Inspection Procedure

  1. INSPECT NAVIGATION ECU (+B, ACC, GND)
    1. Remove the navigation ECU with connectors with still connected.
    2. Check voltage.
      1. Measure voltage between terminals +B, ACC and GND of navigation ECU at each conditions, as shown in the chart.

        Standard:

        TERMINAL STANDARD VOLTAGE

        Terminal Condition Voltage (v)
        +B <=> GND Constant 10-14V
        ACC <=> GND Turn ignition switch ACC 10-14V

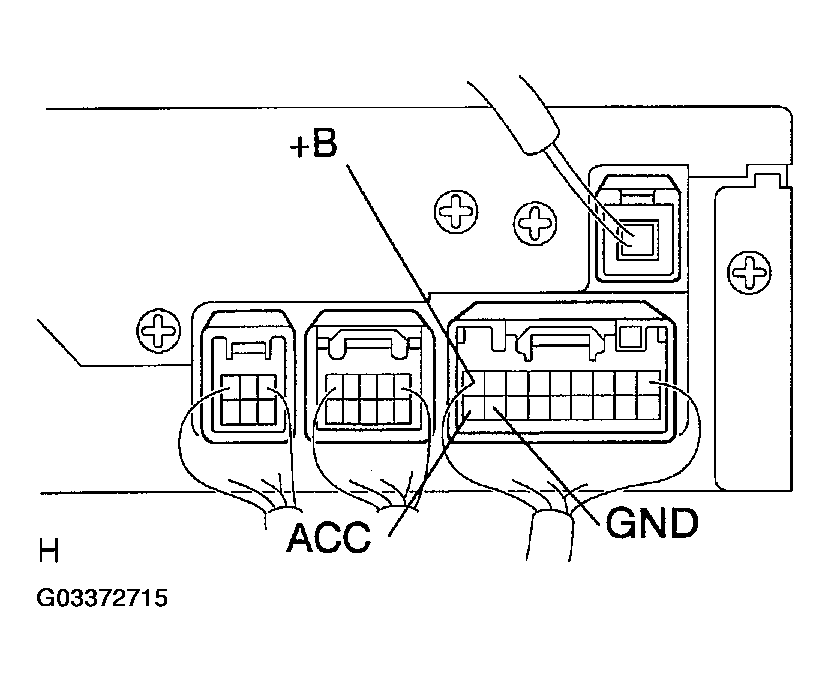

        Fig 1: Inspecting Navigation ECU (+B, ACC, GND)
        G03372715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Check continuity.
      1. Check that the continuity exists between terminal GND of navigation ECU and body ground.

        Standard: Continuity exists.

    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: CHECK AND REPLACE NAVIGATION ECU
