Inspection Procedure

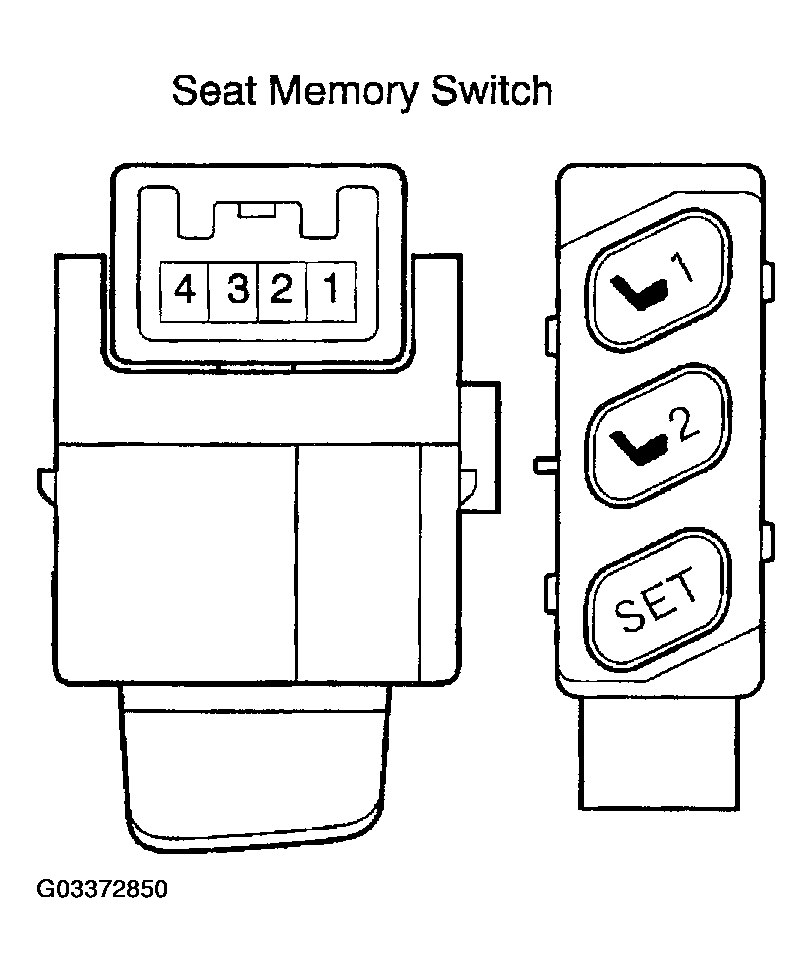

- INSPECT SEAT MEMORY SWITCH
- Disconnect the seat memory switch connector.
- Check the continuity of each terminal, as shown in the illustration and table.
Standard:
TERMINAL NO AND SWITCH POSITION CHARTTerminal No. Switch position Specified condition 1 <==> 2 SET switch ON Continuity 1 <==> 4 Memory switch 1 ON Continuity 1 <==> 3 Memory switch 2 ON Continuity
- NG : REPLACE SEAT MEMORY SWITCH
- OK : Go to next step.
- CHECK WIRE HARNESS (MEMORY SWITCH <==> POSITION CONTROL ECU)

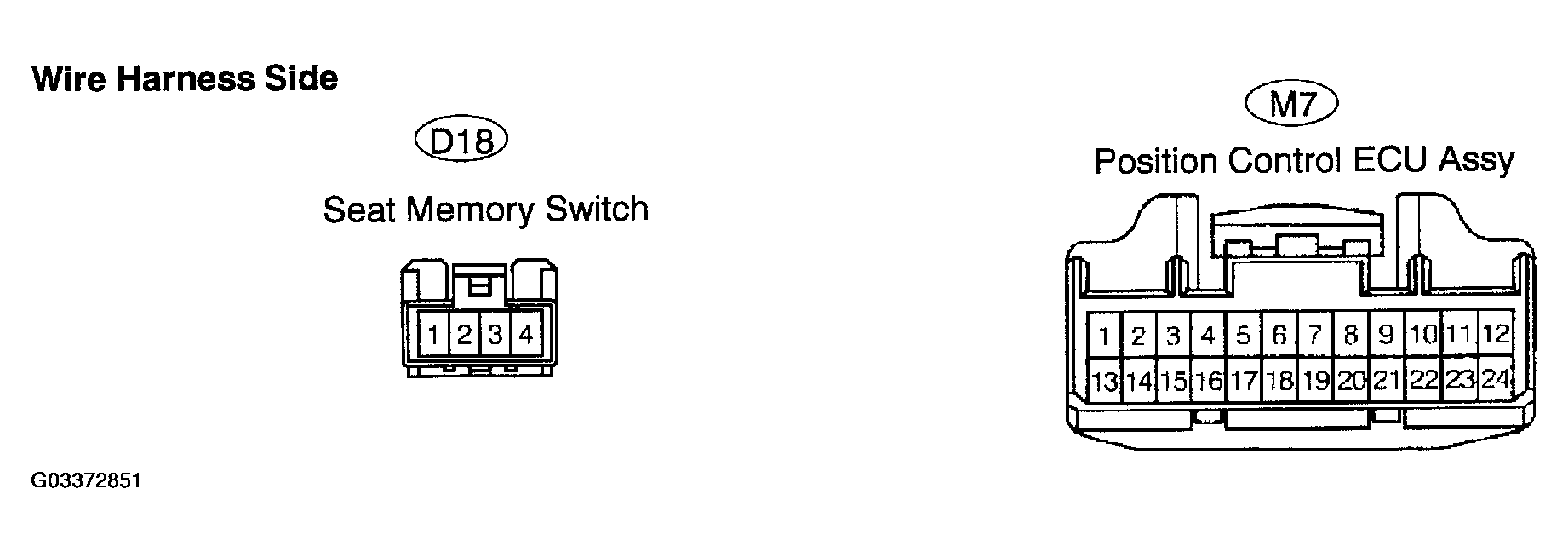

- Disconnect the D18 seat memory switch and M7 seat position control ECU connectors.
- Check the continuity of the wire harness between the seat memory switch and seat position control ECU, as shown in the illustration and table.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard:
TERMINAL NO AND CONDITION CHARTSymbols (Terminal No.)
(Switch <==> ECU)Condition Specified condition 1 <==> SW1 (D18-4 <==> M7-16) Constant Continuity 2 <==> SW2 (D18-3 <==> M7-17) Constant Continuity MMRY <==> MMRY (D18-2 <==> M7-15) Constant Continuity E <==> Body ground (D18-T <==> Body ground) Constant Continuity HINT:
If circuit is not as specified, check the circuits connected to other parts.
- NG : CHECK AND REPLACE HARNESS AND CONNECTOR
- OK : CHECK AND REPLACE POSITION CONTROL ECU ASSY (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE )
