Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

CHECK MAP DISC
1. Check that the map disc is not deformed or cracked.
  Standard: No deformations or cracks appear on the map disc.

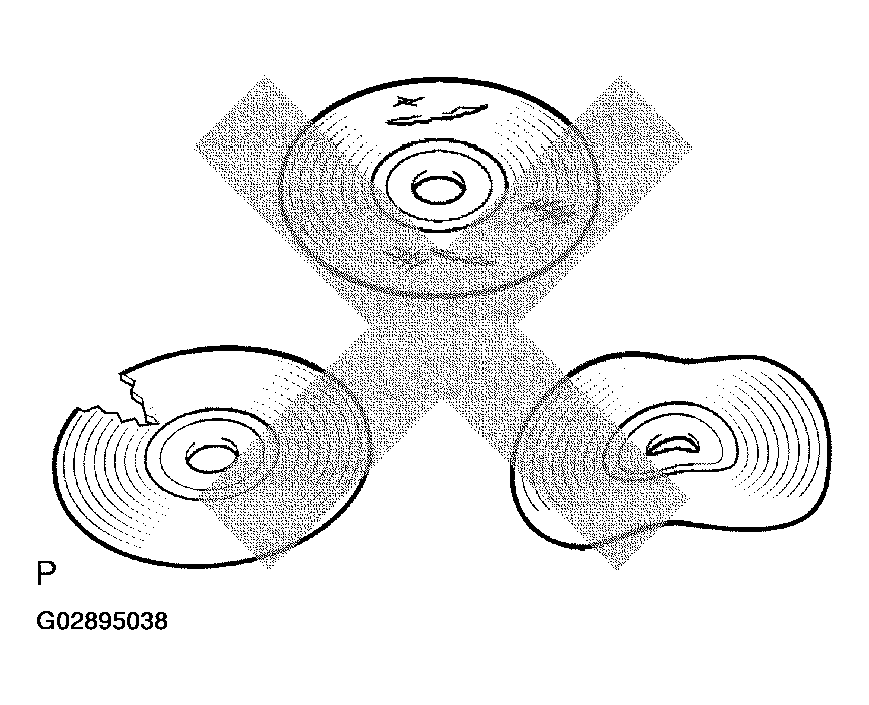

  Fig 1: Identifying MAP DISC Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: CHECK THE MAP DISC
2. OK: Go to next step.
CHECK RADIO AND NAVIGATION ASSY
1. Check that the "MAP" indicator near the disc slot comes on.
  Standard: It does not come on.

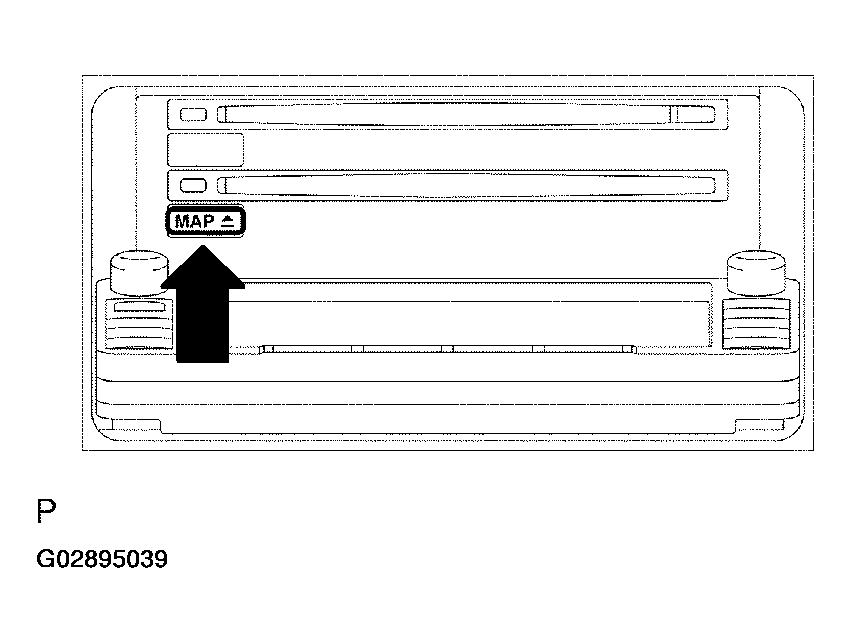

  Fig 2: Identifying MAP
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: PRESS THE EJECT SWITCH TO EJECT THE DISC
2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (see PROBLEM SYMPTOMS TABLE )
