Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

CHECK THE PANEL SWITCH
1. Check for foreign matter around the switch that might prevent operation.
  Standard: No foreign matter is found.
1. NG: REMOVE ANY FOREIGN MATTER FOUND
2. OK: Go to next step.
DISPLAY CHECK MODE (PANEL SWITCH CHECK MODE)
1. Enter the "Display Check" mode (Panel Switch Check Mode) (see DISPLAY CHECK MODE (PANEL SWITCH CHECK) ).
2. Operate the abnormal switch and check if the switch name and status are correctly displayed.
  Standard: The switch name and status are correctly displayed as operated.

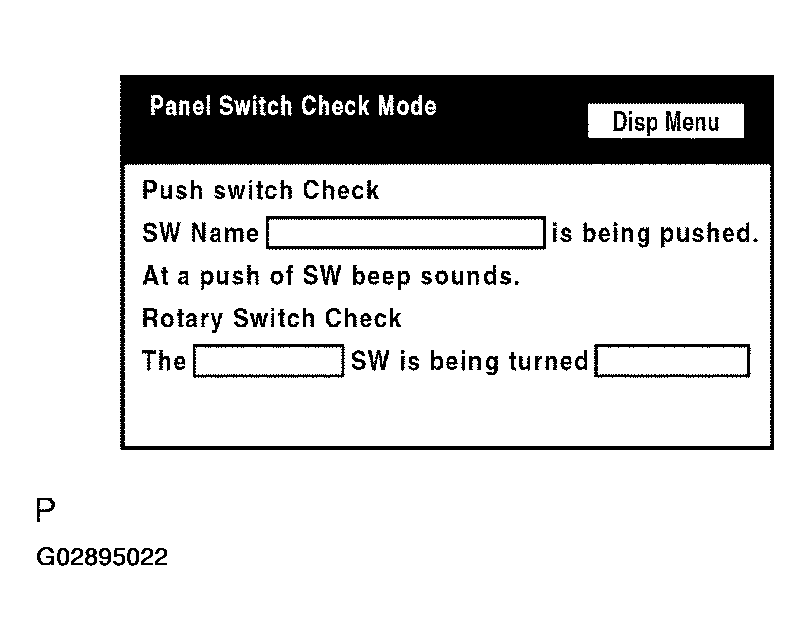

  Fig 1: Display Check Mode - Panel Switch Check Mode
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. OK: REPLACE RADIO AND NAVIGATION ASSY (SEE REPLACEMENT )
2. NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (see PROBLEM SYMPTOMS TABLE )
