Display Check Mode (Panel Switch Check)

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

This mode checks the panel switch operation response on the radio and navigation assy.
Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH ).
Select "Display Check" from the "Diagnosis MENU" screen.

Fig 1: Identifying Display (Display Check)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Select "Panel Switch Check" from the "Display Check" screen.

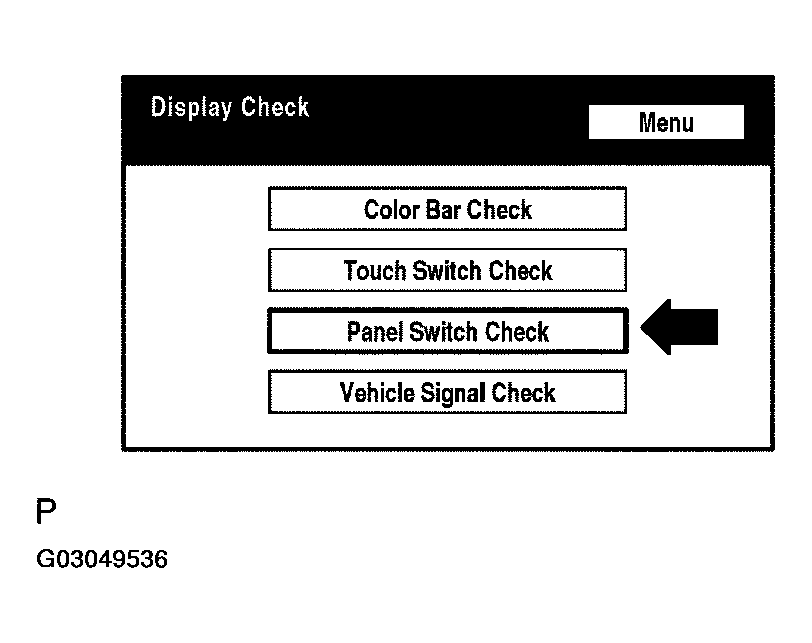

Fig 2: Identifying Display (Panel Switch Check)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Operate each switch and check that the switch name and condition are correctly displayed.
HINT:
- Pressing the "DISPLAY" switch for 3 seconds will exit the diagnostic mode.
- "OPEN" and "TILT" switches are not displayed. To test these switches, they must be operated.

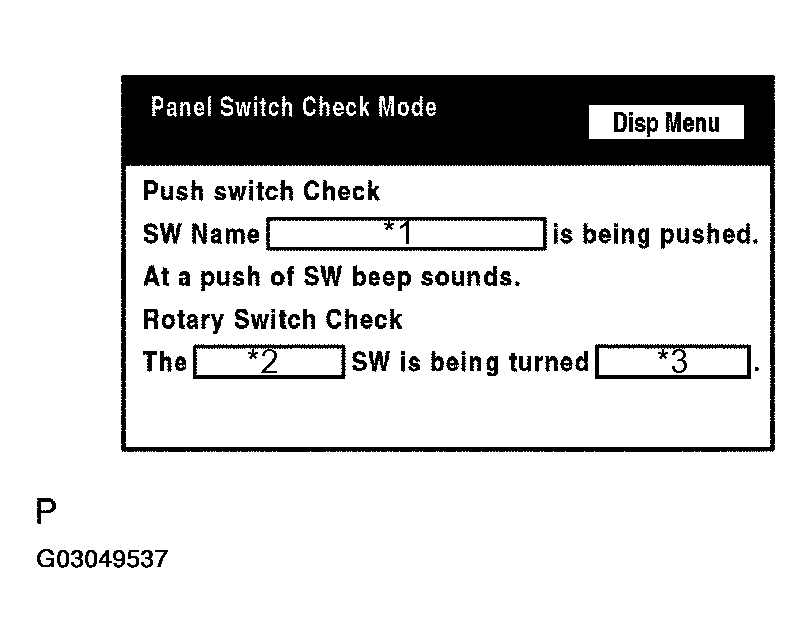

Fig 3: Identifying Display (Display Menu)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

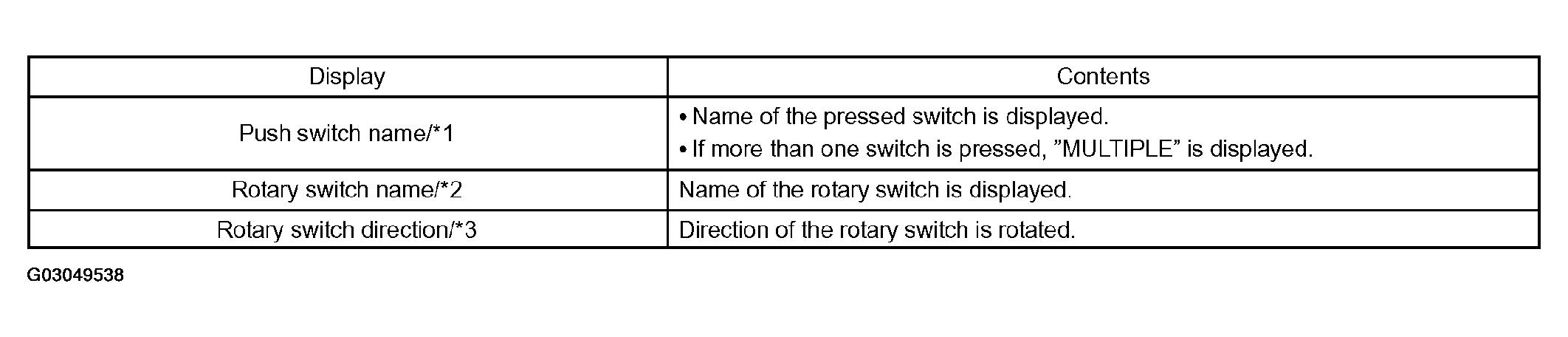

Fig 4: Display Content Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
