Display Check Mode (Touch Switch Check)

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

This mode checks the touch switch operation condition on the radio and navigation assy.
Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH ).

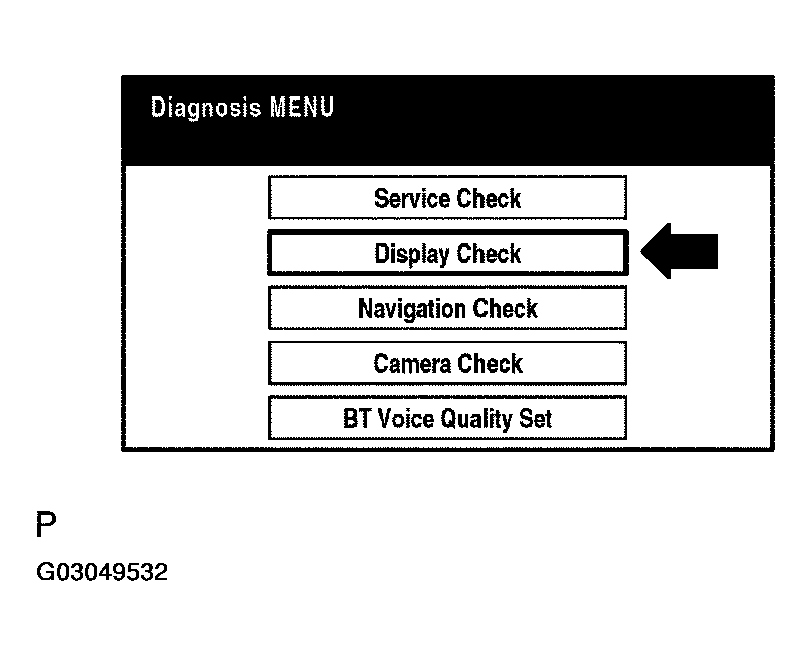

Select "Display Check" from the "Diagnosis MENU" screen.

Fig 1: Identifying Display (Display Check)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

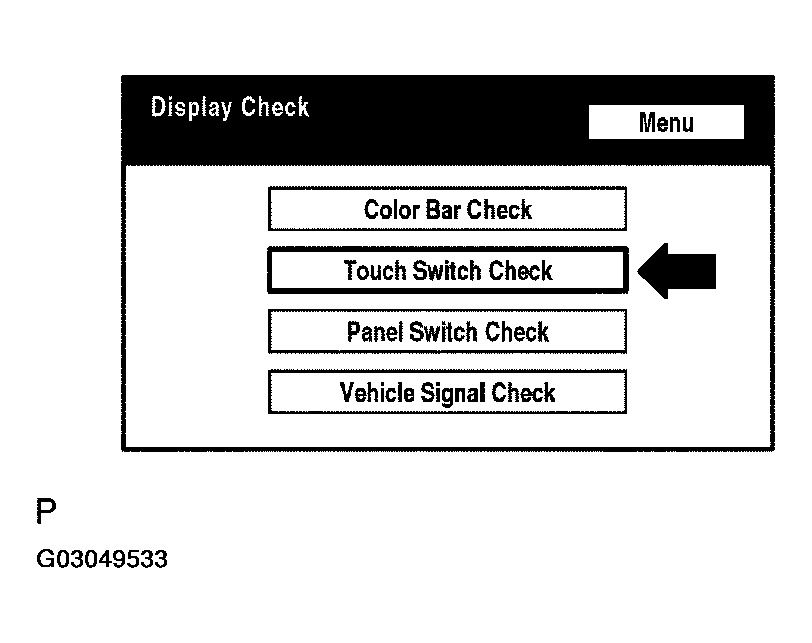

Select "Touch Switch Check" from the "Display Check" screen.

Fig 2: Identifying Display (Touch Switch Check)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

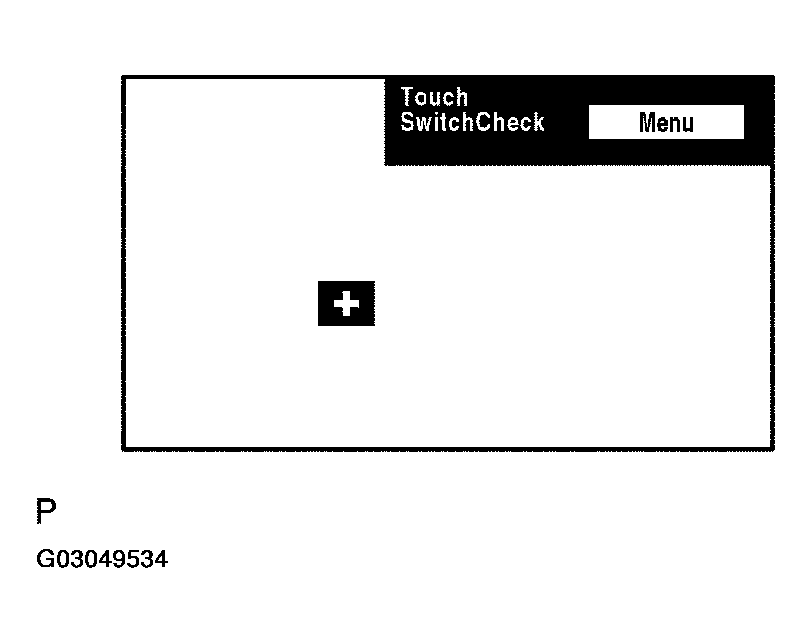

Touch the display anywhere in the open area to perform the check when the "Touch Switch Check" screen is displayed.
HINT:
- A "+" mark is displayed where the display is touched.
- The "+" mark remains on the display even after the finger is removed.
Fig 3: Identifying Display (Touch Switch Check)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
