Section 239 (Navigation System - Diagnostics): Location
WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

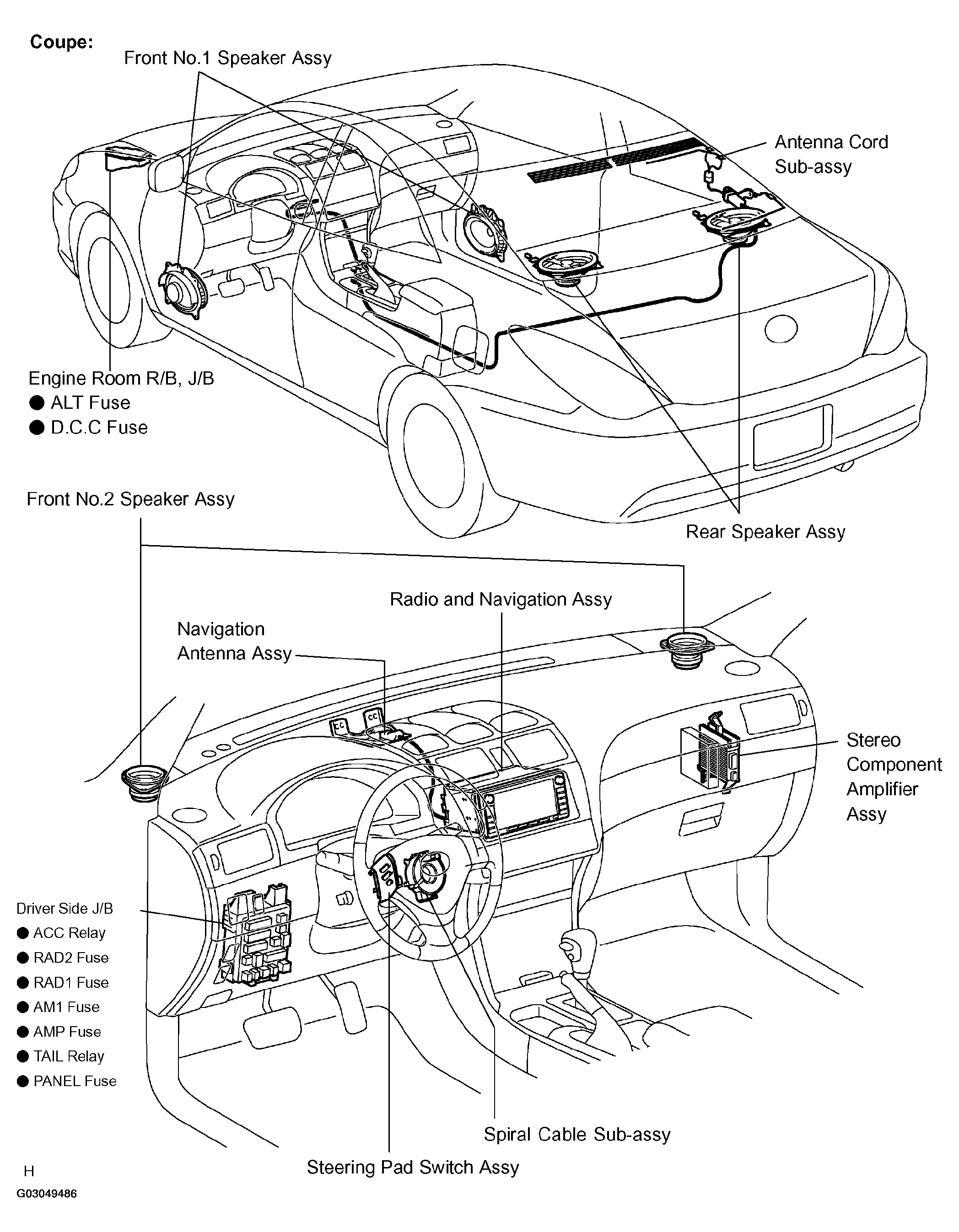

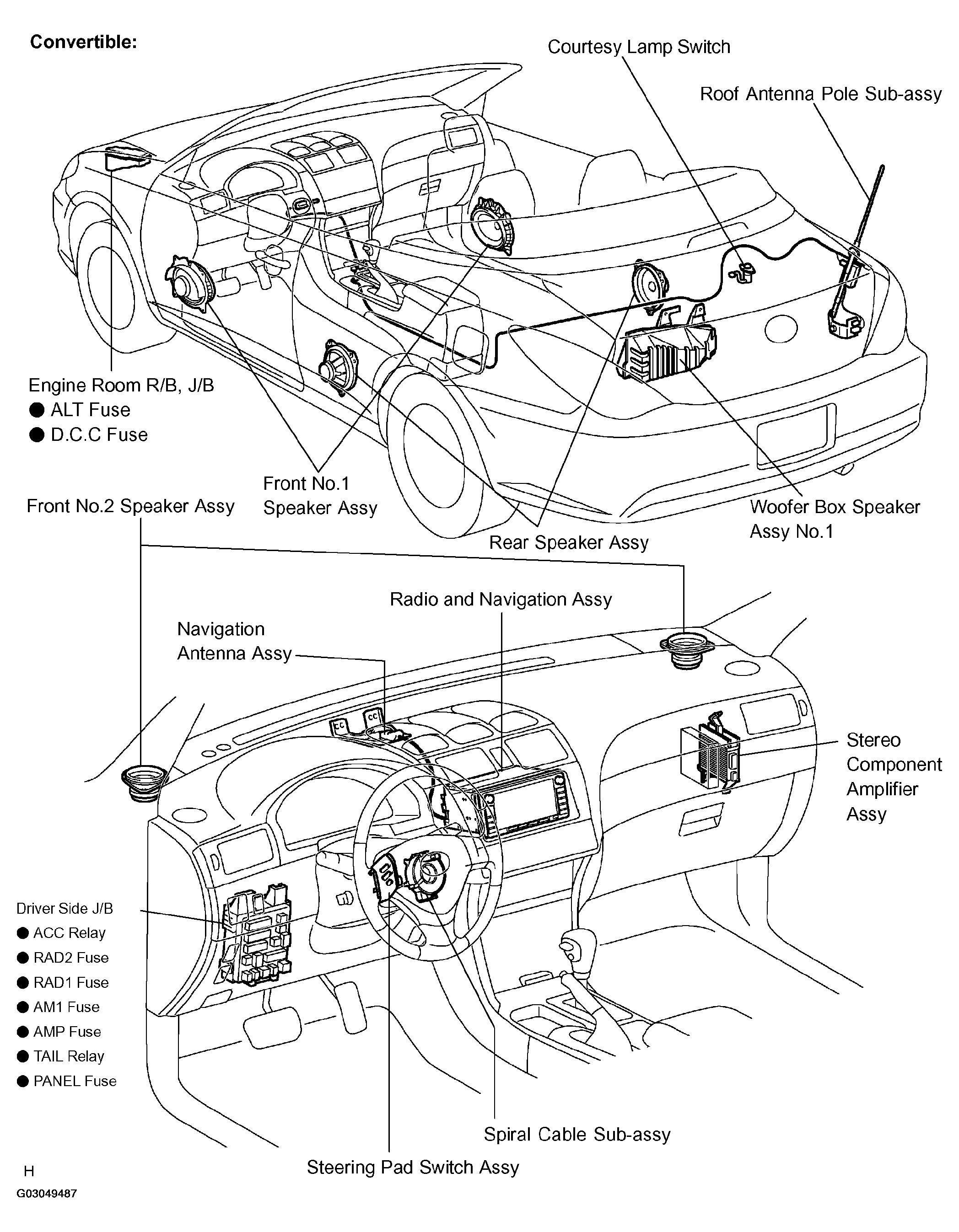

Fig 1: Locating Navigation System Components (1 of 2)
