Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

CHECK MAP DISC
1. Check for dirt on the map disc surface.
  OK: No dirt is on the map disc surface.
HINT:

If dirt is on the map disc surface, wipe it with a soft cloth from inside to outside in a radial direction.

NOTE: Do not use a conventional record cleaner or anti-static preservative.

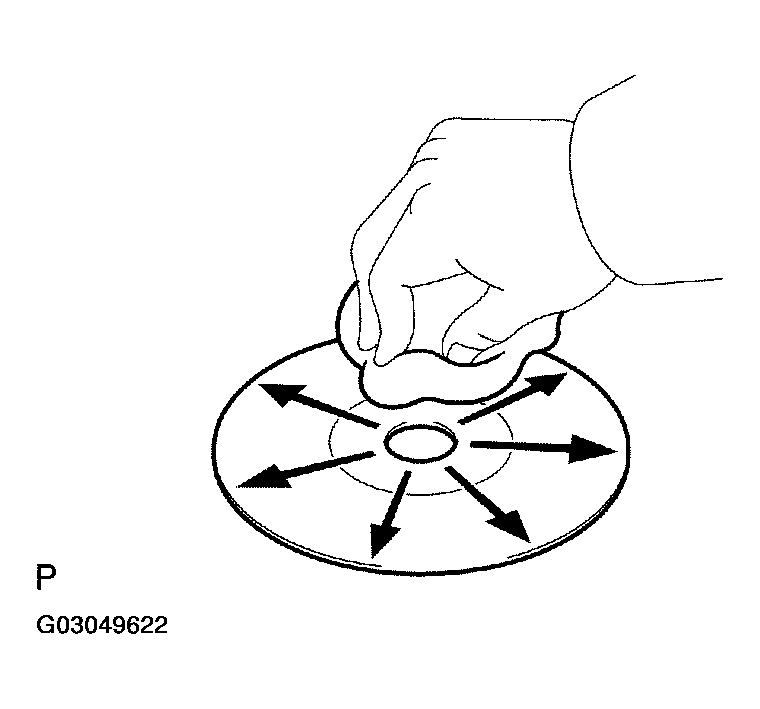

Fig 1: Cleaning Disc With Soft Cloth
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: CLEAN MAP DISC
2. OK: Go to Next Step.
CHECK MAP DISC
1. Check that the map disc is not deformed or cracked.
  OK: No deformations or cracks appear on the map disc.

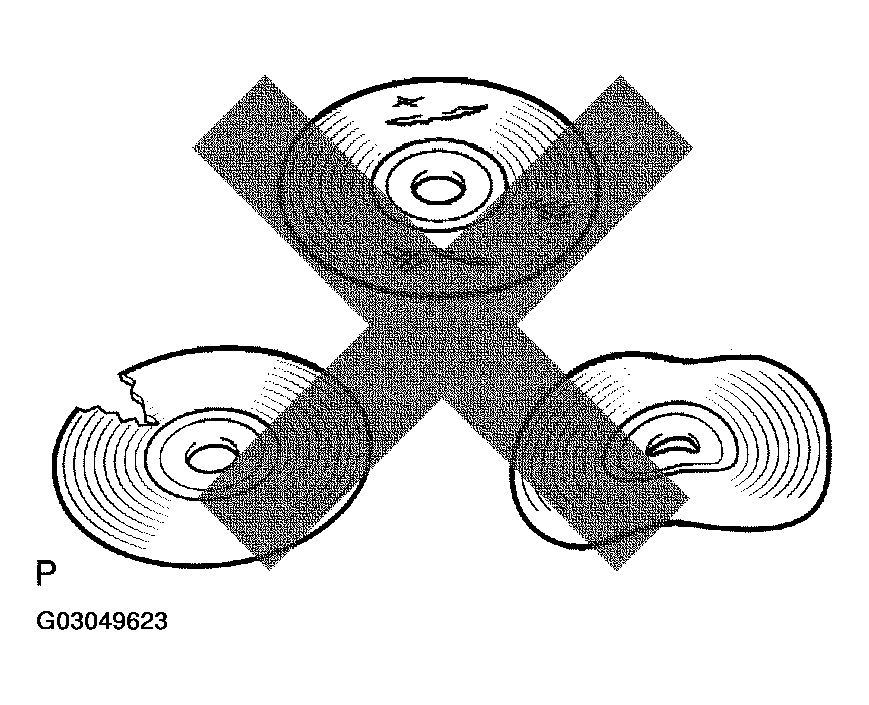

  Fig 2: Checking Map Disc Is Not Deformed Or Cracked
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE MAP DISC
2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN DIAGNOSTIC TROUBLE CODE TABLE (SEE DIAGNOSTIC TROUBLE CODE TABLE )
