Problem Symptoms Table

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Before performing verification listed in Fig 1 , check the fuse and relay.
Methods used to verify the cause of the problem are listed in order of probability in the verification column.

Display function

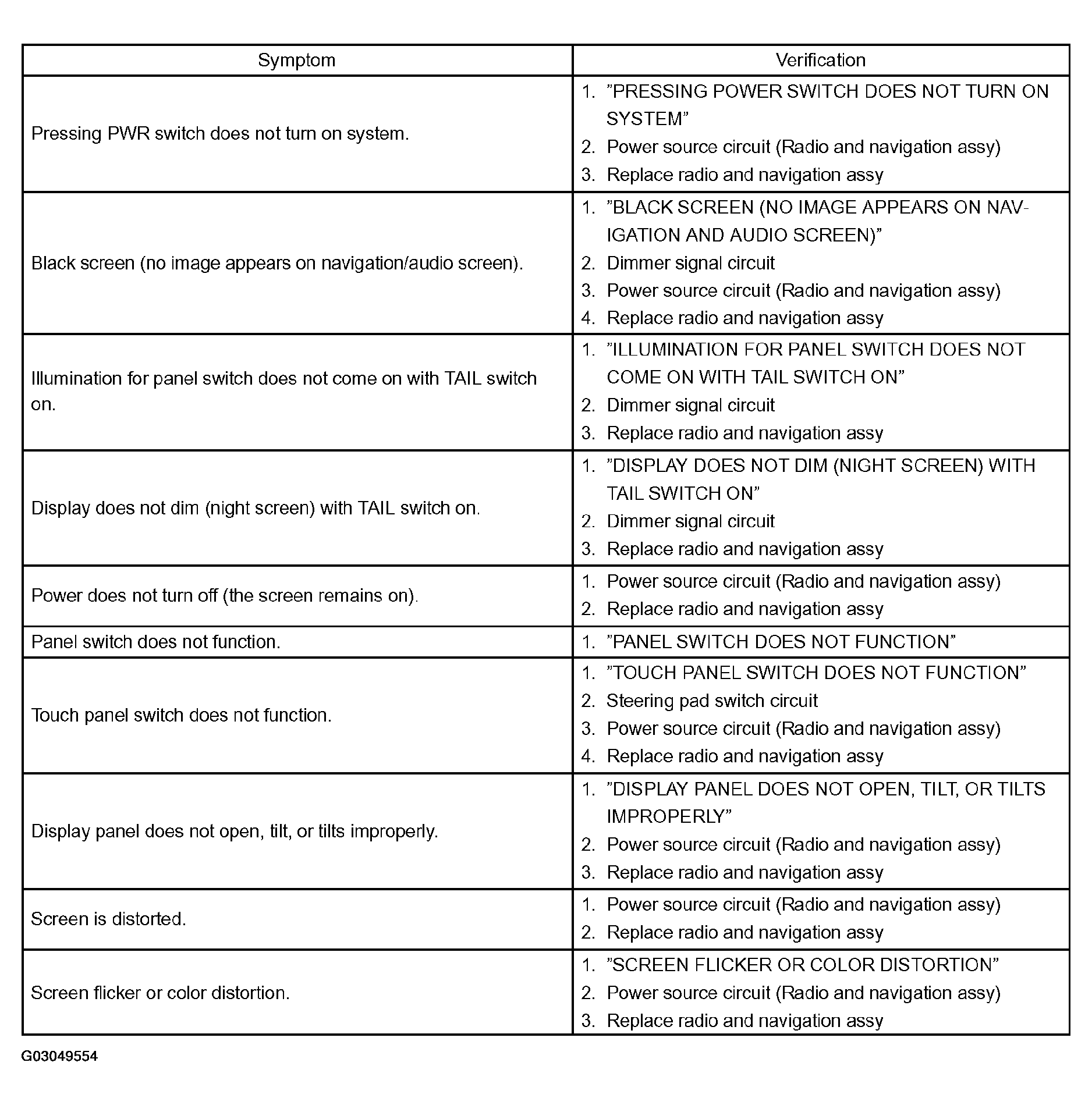

Fig 1: Display Content Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Audio function

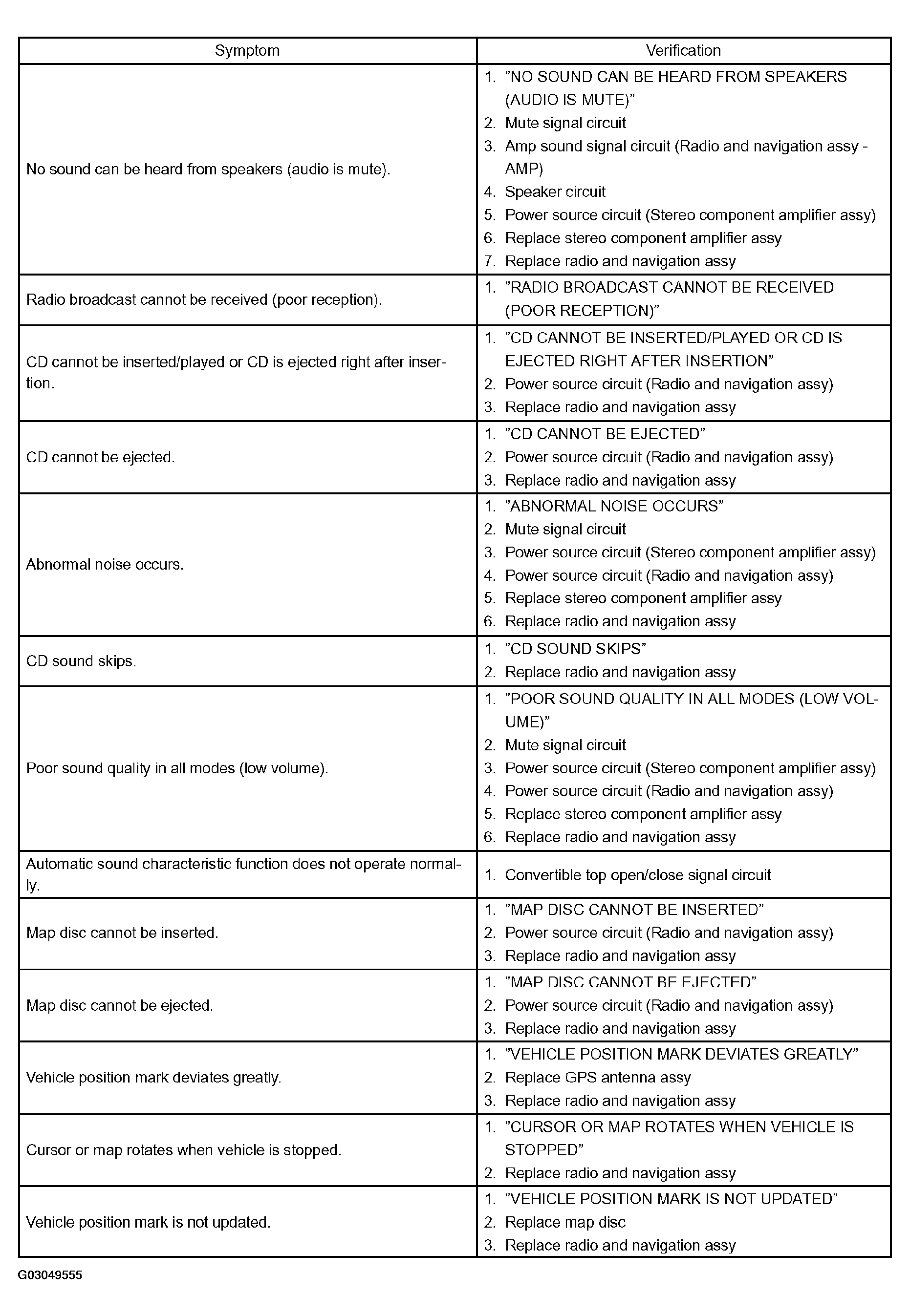

Fig 2: Audio Frequency Symptom Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Navigation function

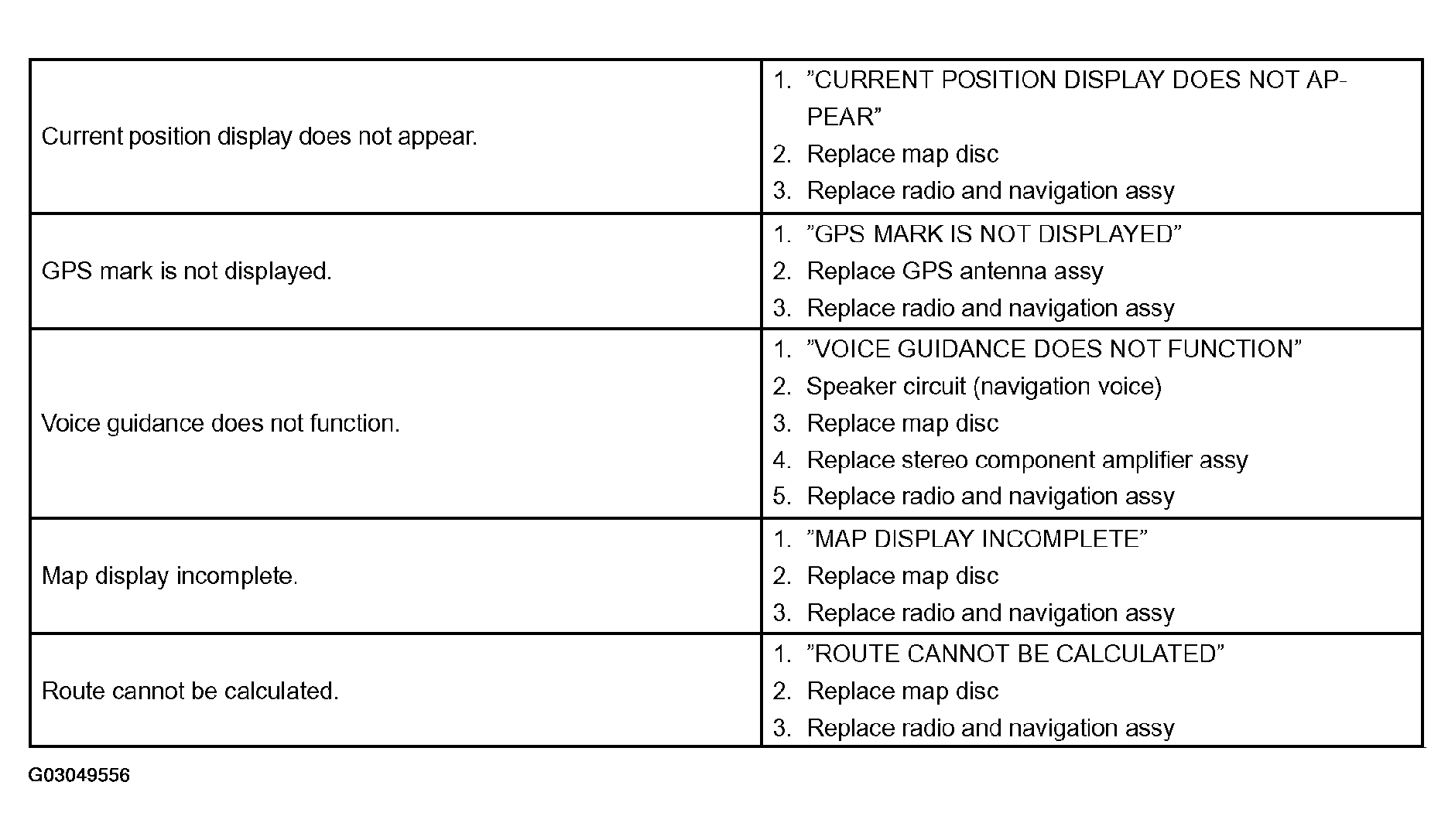

Fig 3: Navigation Function Table

Steering pad

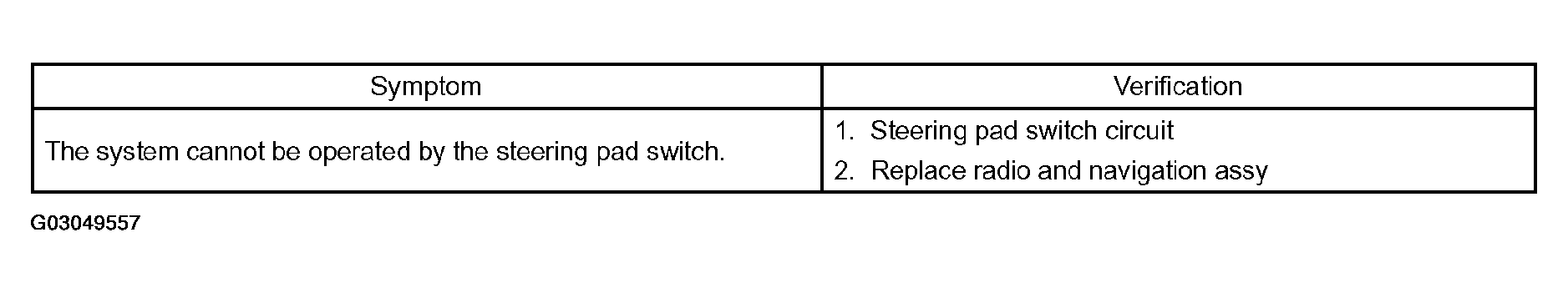

Fig 4: Steering Pad Table
