System Check Mode (DTC Clear/Recheck)

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH ).
Clear DTC
1. Press the "Code CLR" switch for 3 seconds.

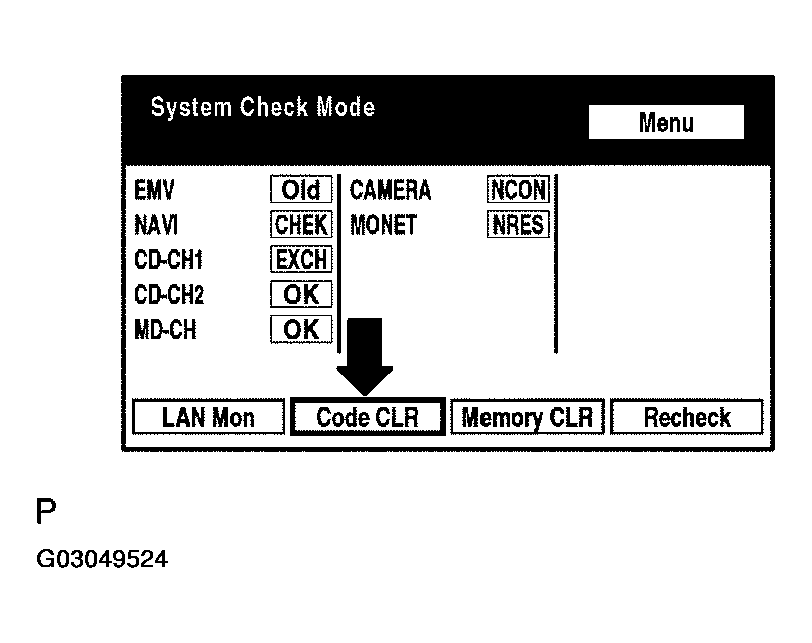

  Fig 1: Identifying Display (Code CLR)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check result is cleared.
Recheck
1. Press the "Recheck" switch.

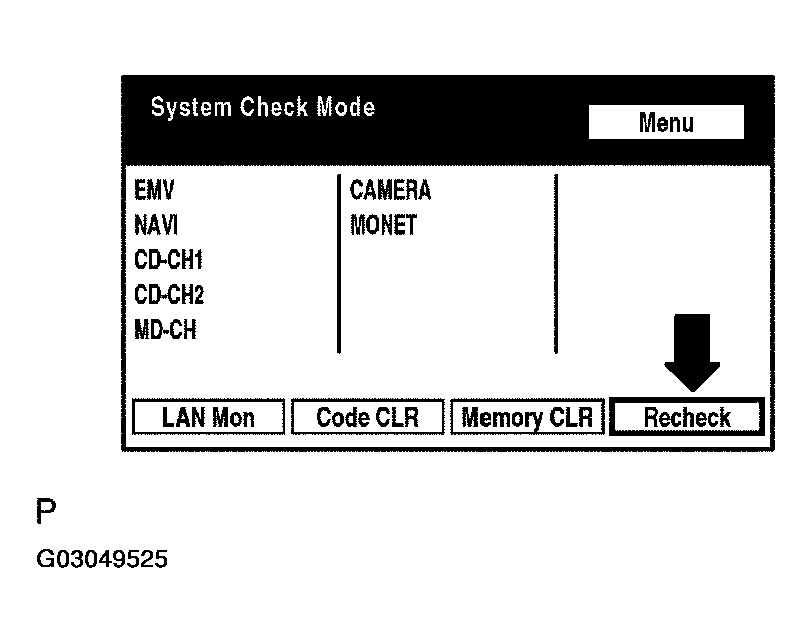

  Fig 2: Identifying Display (Recheck)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Confirm that all diagnostic codes are "OK" when the check results are displayed.
  If a code other than "OK" is displayed, troubleshoot again.

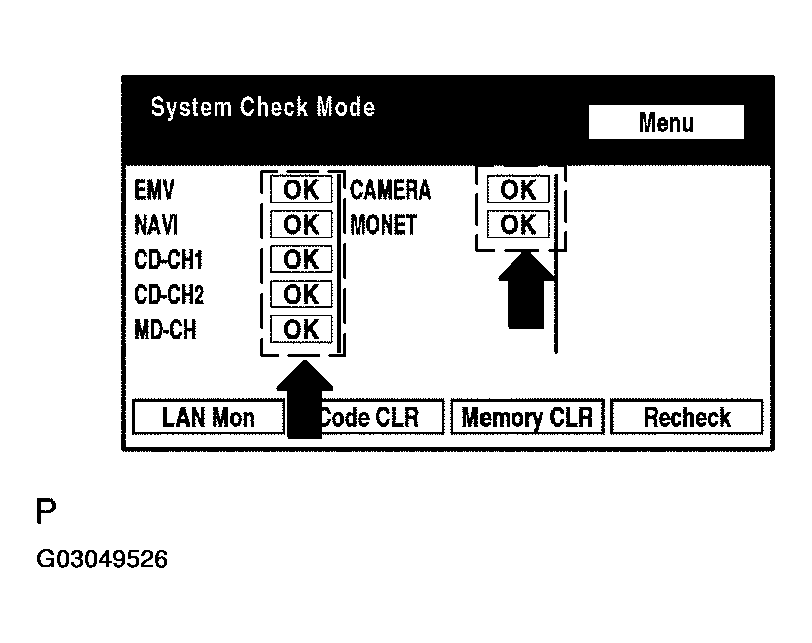

  Fig 3: Identifying Display (OK)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Press the "LAN Mon" switch to change to "LAN Monitor" mode.

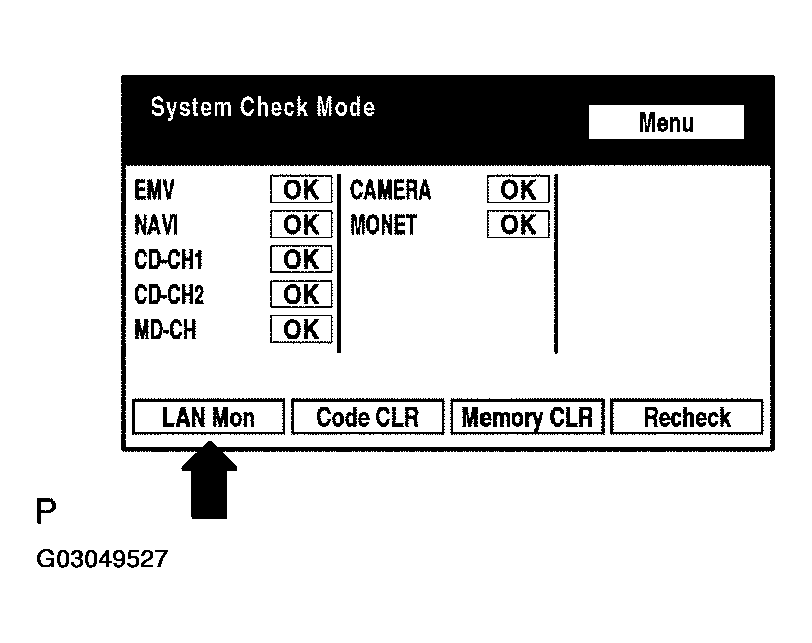

  Fig 4: Identifying Display (LAN Mon)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Confirm that all diagnostic codes are "No Err".
  If a code other than "No Err" is displayed, troubleshoot again.

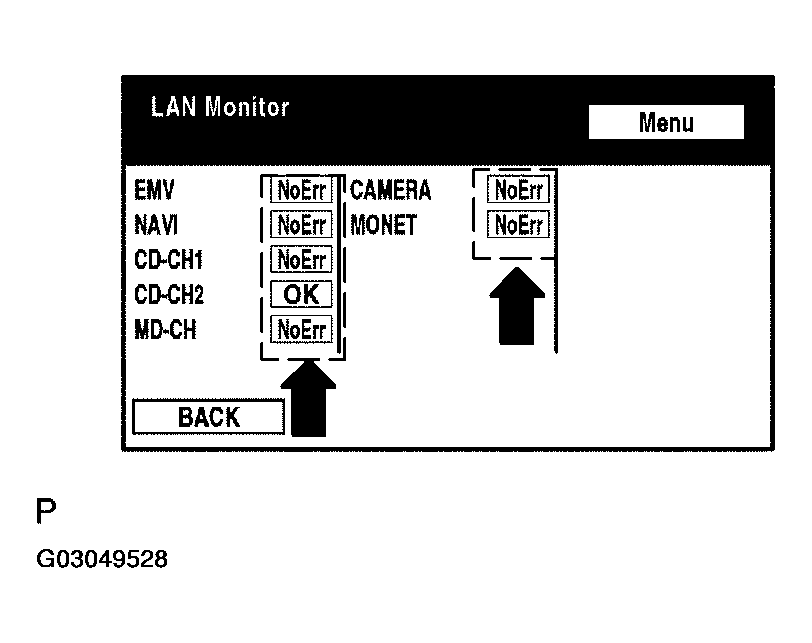

Fig 5: Identifying Display (No Err)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
