DTC Check/Clear

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DTC
1. Connect the hand-held tester to the DLC3.

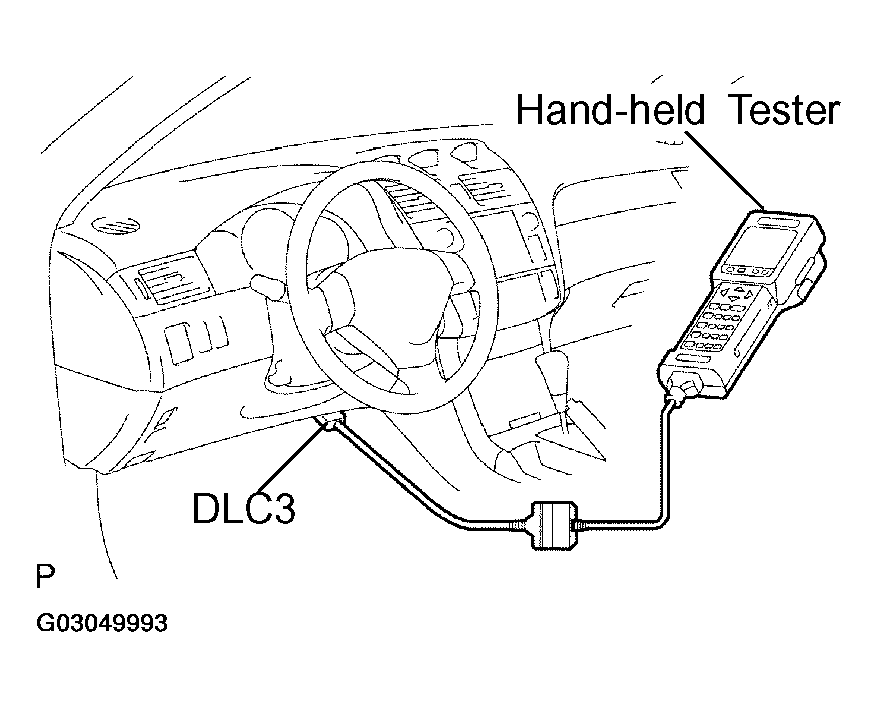

  Fig 1: Connecting Handheld Tester To DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the ignition switch ON.
3. Read the DTCs by following the directions on the tester's screen.
HINT:

Refer to the hand-held tester operator's manual for further details.

Fig 2: Connecting Handheld Tester To DLC3
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CLEAR DTC
1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch ON.
3. Erase the DTCs by following the directions on the tester's screen.
HINT:

Refer to the hand-held tester operator's manual for further details.
