Accelerator Pedal Assembly: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ACCELERATOR PEDAL ASSY
    1. Disconnect the accelerator position sensor connector.

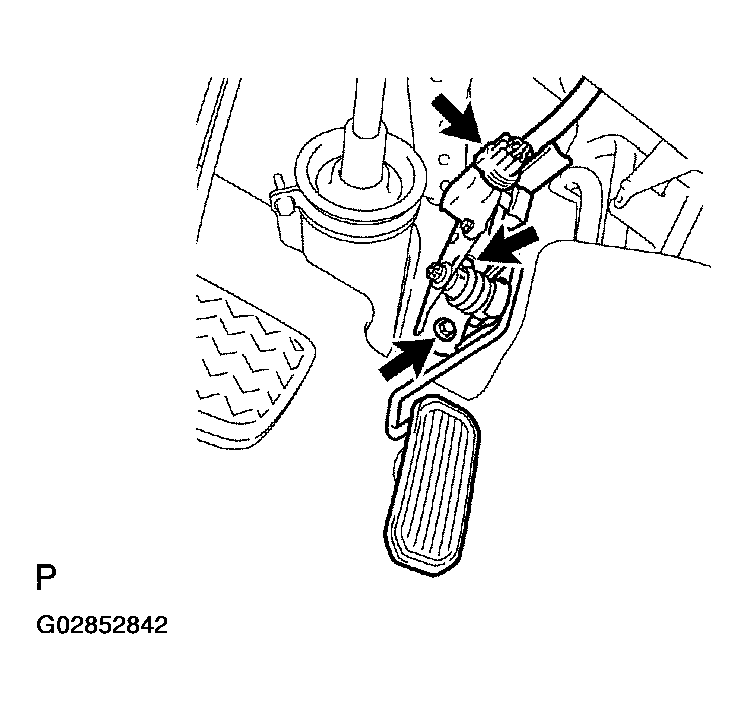

      Fig 1: Disconnecting Accelerator Position Sensor Connector
      G02852842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and accelerator pedal.
  2. INSTALL ACCELERATOR PEDAL ASSY
    1. Connect the accelerator position sensor connector.
    2. Install the accelerator pedal with the 2 bolts.

      Torque:  7.5 N.m (76 kgf.cm, 66 in.lbf)
