Throttle Body Assembly: Components

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

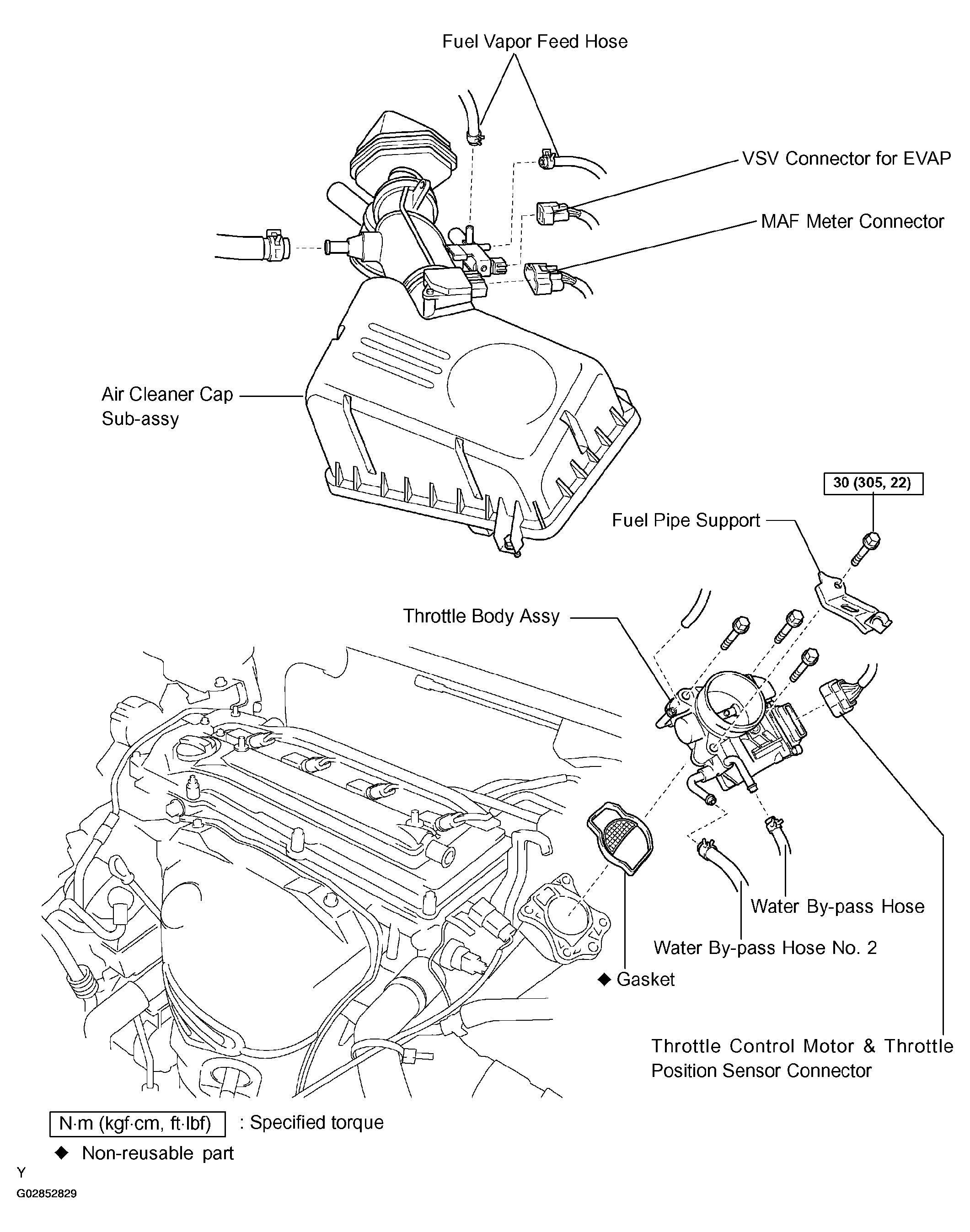

Fig 1: Identifying Throttle Body Components
G02852829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
