Speed Sensor Front: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

REMOVE FRONT WHEEL
REMOVE FRONT FENDER LINER LH
REMOVE SPEED SENSOR FRONT LH
1. Disconnect the speed sensor connector and clamp.

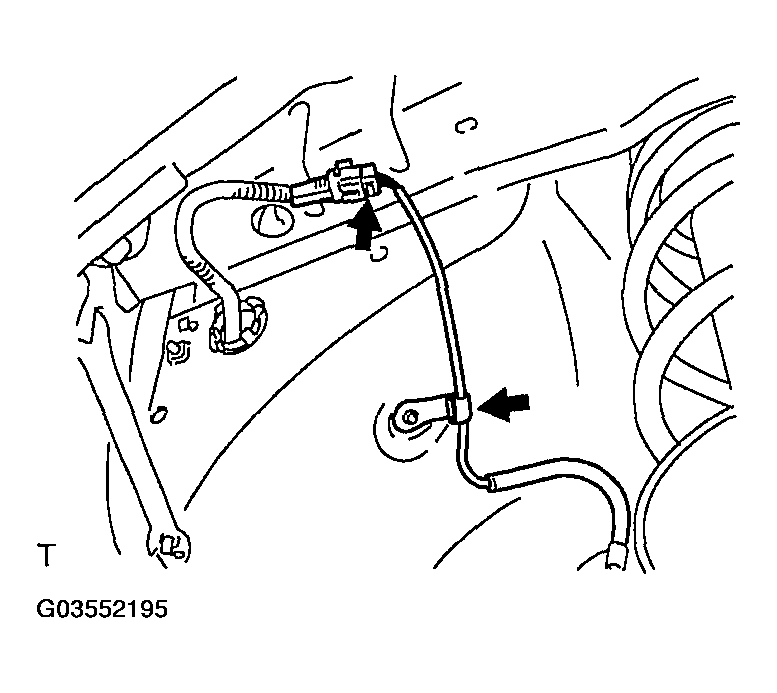

  Fig 1: Disconnecting Speed Sensor Connector & Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 clamp bolts and disconnect the speed sensor harness from the body and shock absorber.

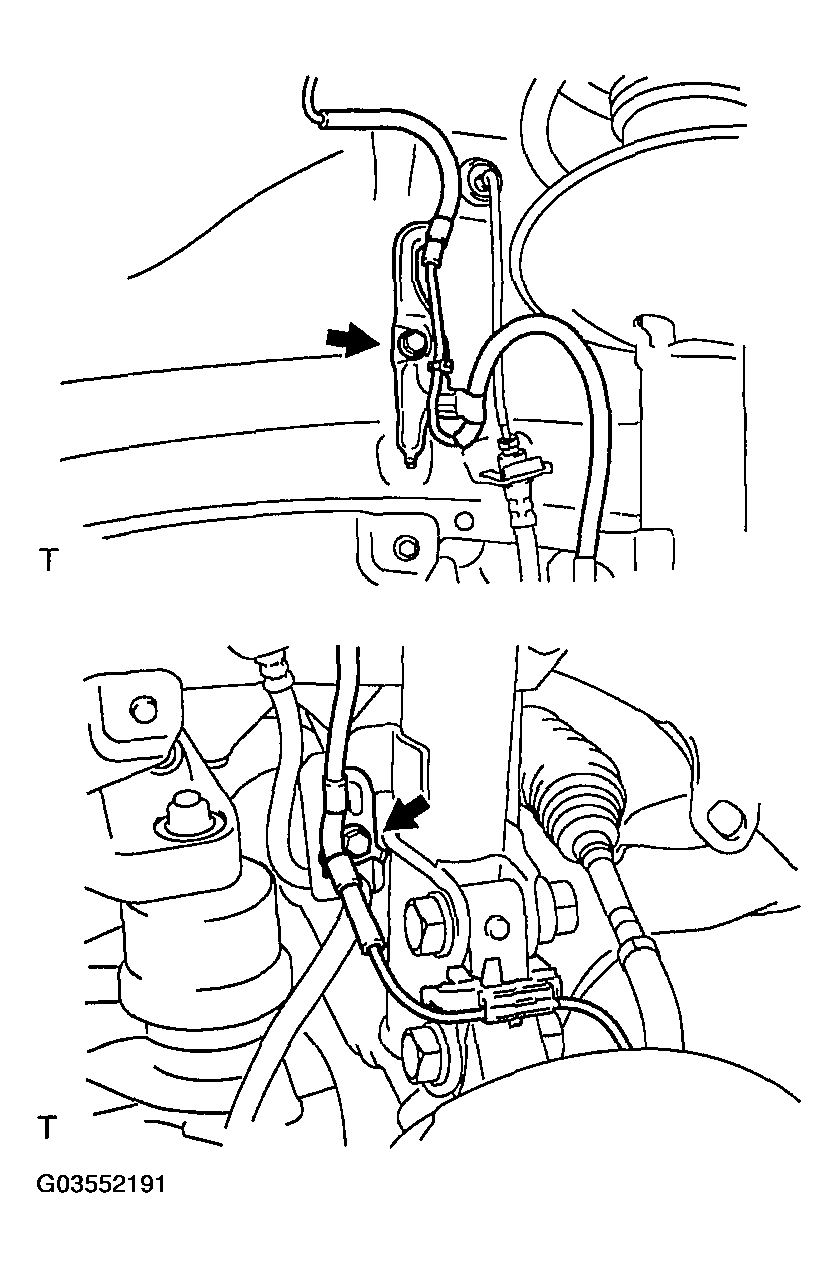

  Fig 2: Disconnecting Speed Sensor Harness
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the bolt and the speed sensor front LH.
  NOTE: Prevent foreign matter from attaching to the sensor tip.

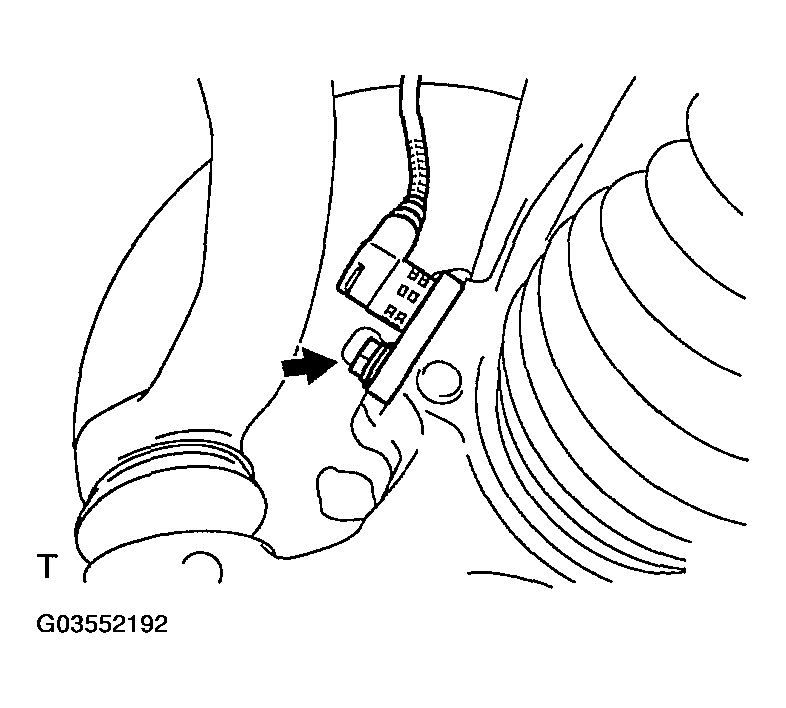

  Fig 3: Removing Speed Sensor Front LH Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SPEED SENSOR FRONT LH
1. Install the speed sensor front LH with the bolt.
  Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

  NOTE: Prevent foreign matter from attaching to the sensor tip.

  Fig 4: Installing Speed Sensor Front LH Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the sensor harness clamps with the 2 bolts "A" and "B" to the body and shock absorber.
  Torque:
  - Bolt A: 5.0 N.m (51 kgf.cm, 44 in.lbf)
  - Bolt B: 19 N.m (192 kgf.cm, 14 ft.lbf)

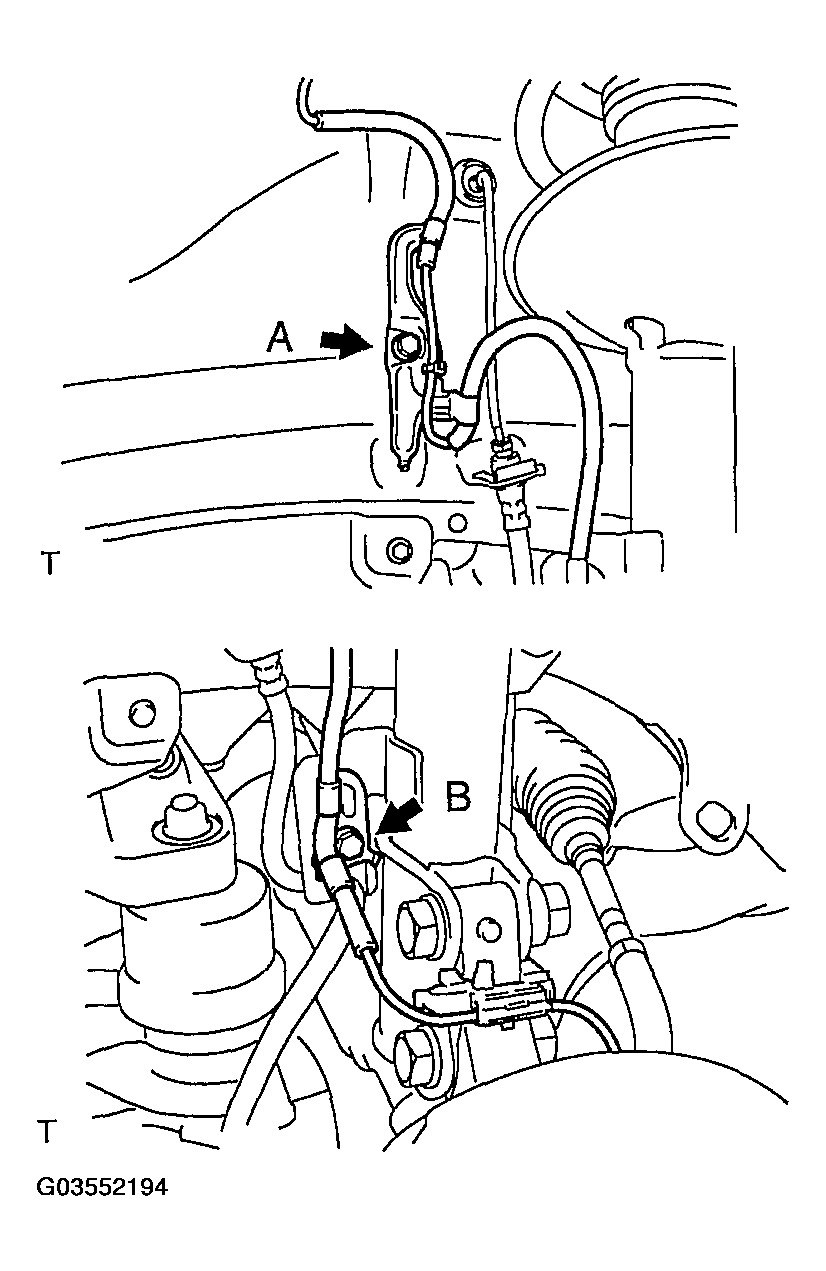

  Fig 5: Installing Sensor Harness Clamps Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the clamp to the knuckle.
4. Connect the speed sensor connector and clamp.

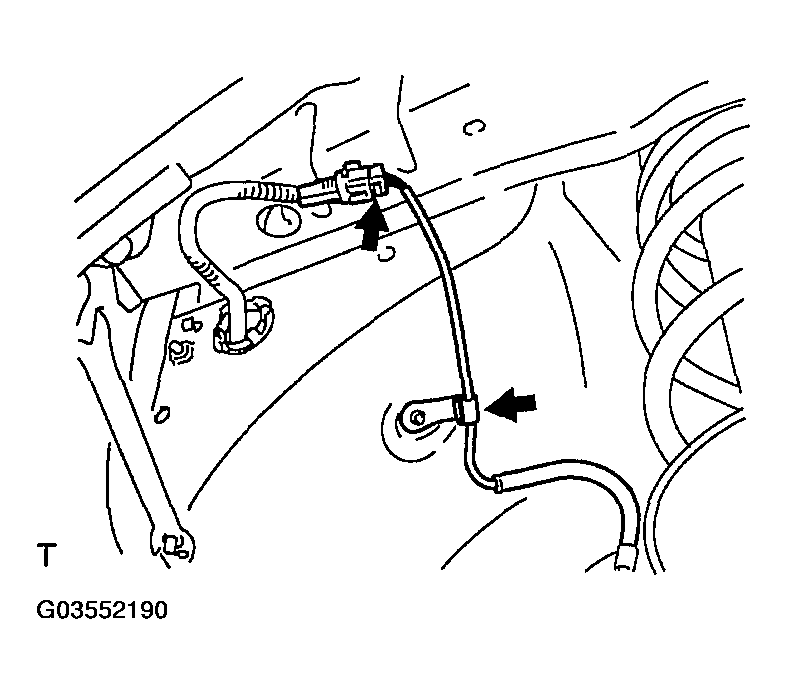

  Fig 6: Connecting Speed Sensor Connector & Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT FENDER LINER LH
INSTALL FRONT WHEEL
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
CHECK ABS SPEED SENSOR SIGNAL (SEE OPERATION CHECK or OPERATION CHECK )
