Navigation Receiver ASSY: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS
Installation is in the reverse order of removal.

REMOVE SHIFT LEVER KNOB SUB-ASSY (SEE REPLACEMENT )
REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY (SEE REPLACEMENT )
REMOVE CONSOLE PANEL SUB-ASSY UPPER (SEE REPLACEMENT )
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (SEE REPLACEMENT )
REMOVE CENTER CLUSTER INTEGRATION PANEL ASSY
1. Remove the 4 bolts.
2. Disconnect the connector.
3. Disengage the 4 claws and remove the center cluster integration panel assy.

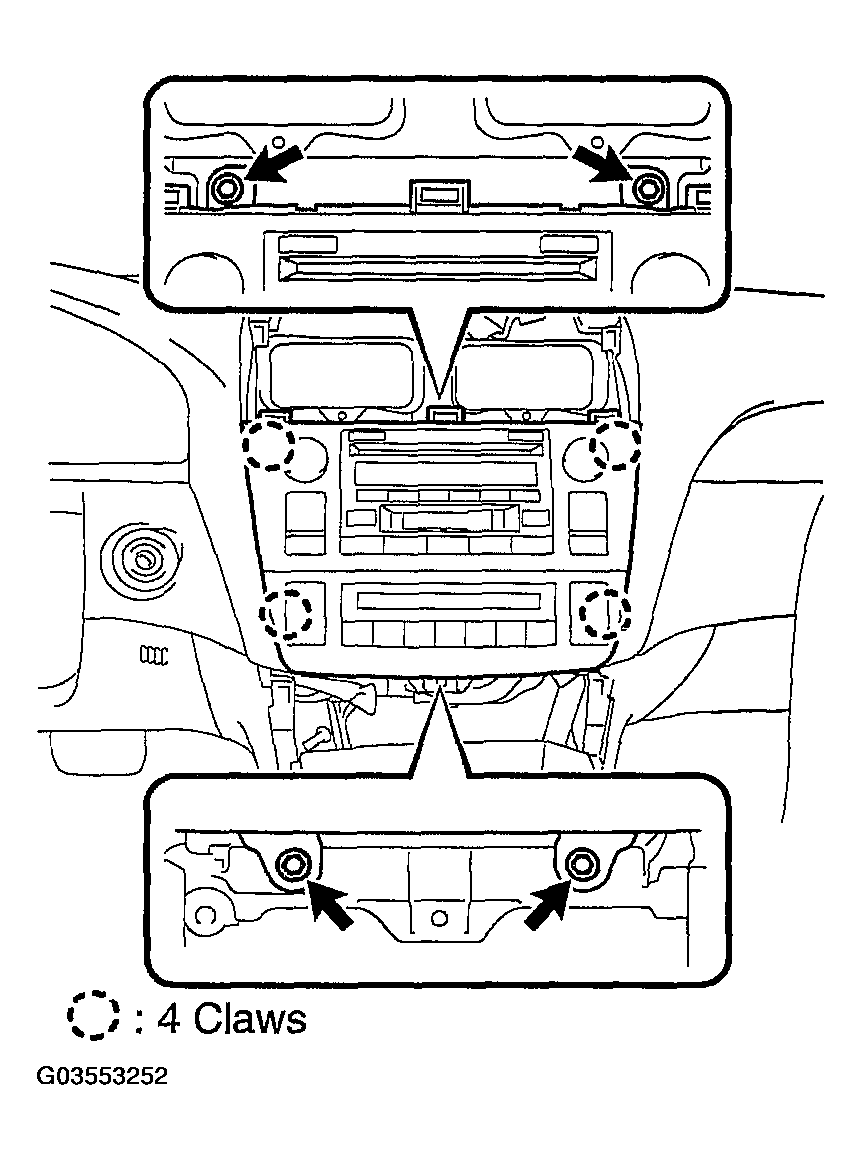

  Fig 1: Removing Center Cluster Integration Panel Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CENTER
1. Remove the 4 bolts and instrument cluster finish panel assy center.

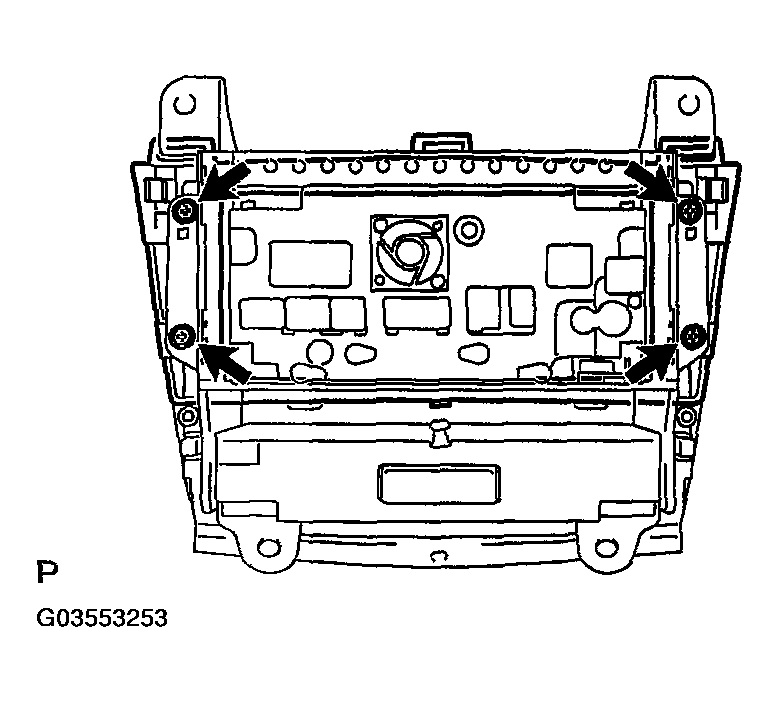

  Fig 2: Removing Instrument Cluster Finish Panel Assy Center
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIO RECEIVER BRACKET NO.1
1. Remove the 6 screws and radio receiver bracket No.1.

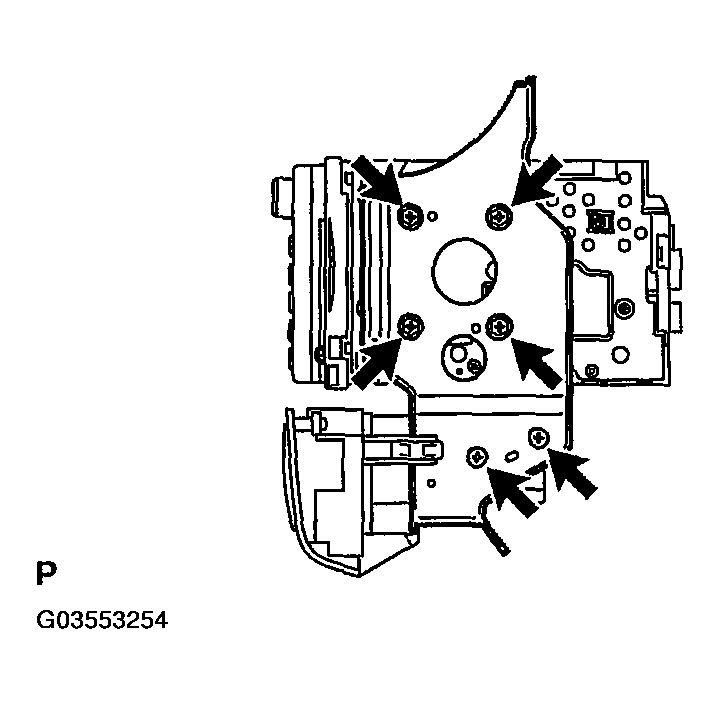

  Fig 3: Removing Radio Receiver Bracket No. 1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIO RECEIVER BRACKET NO.1
1. Remove the 5 screws and radio receiver bracket No.1.

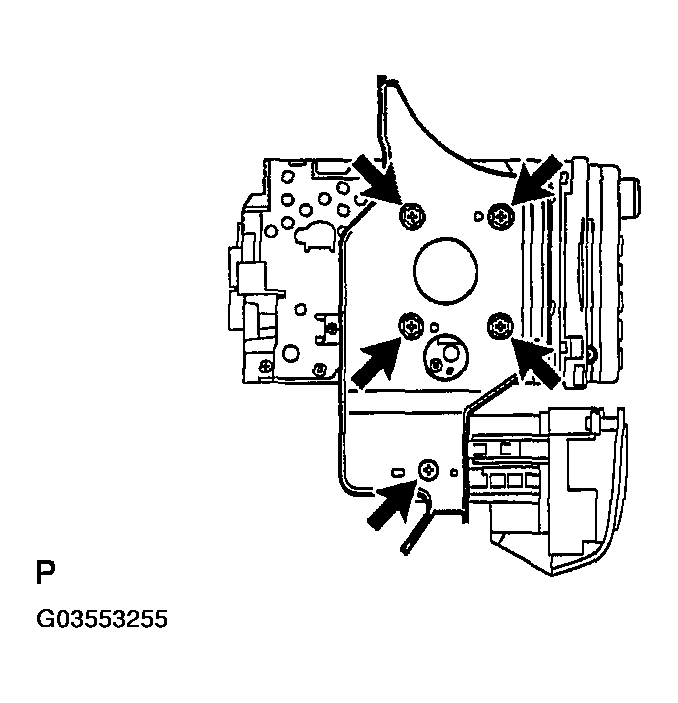

  Fig 4: Removing Radio Receiver Bracket No. 1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NAVIGATION RECEIVER ASSY
