Section 398 (Windshield Glass): Components

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

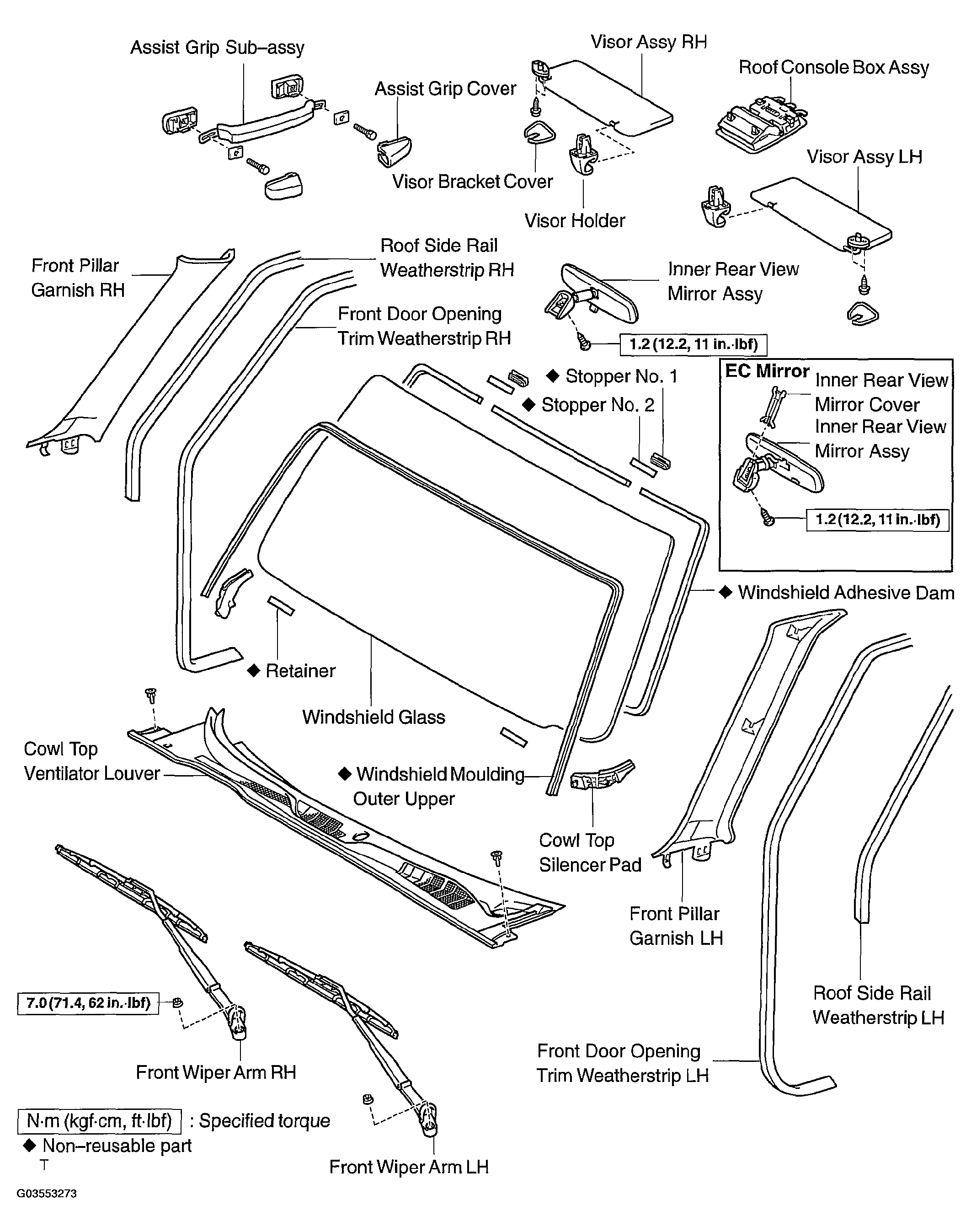

Fig 1: Exploded View Of Windshield Glass
G03553273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
