ICU (Integrated Control Unit): Assembly
WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

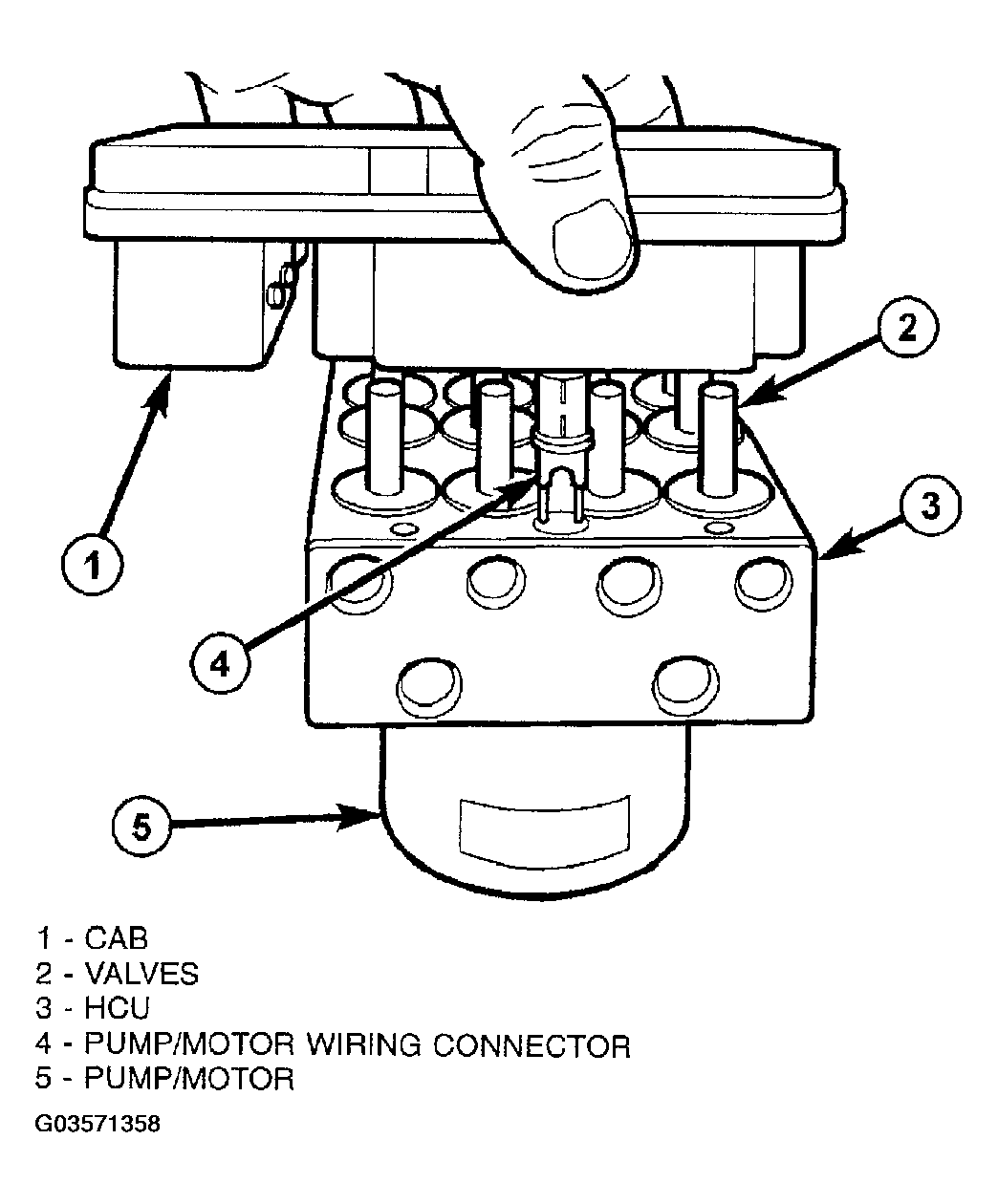

- Align CAB solenoids and pump/motor wiring connector with HCU valves and connector passage (Figure ). Slide CAB onto HCU.

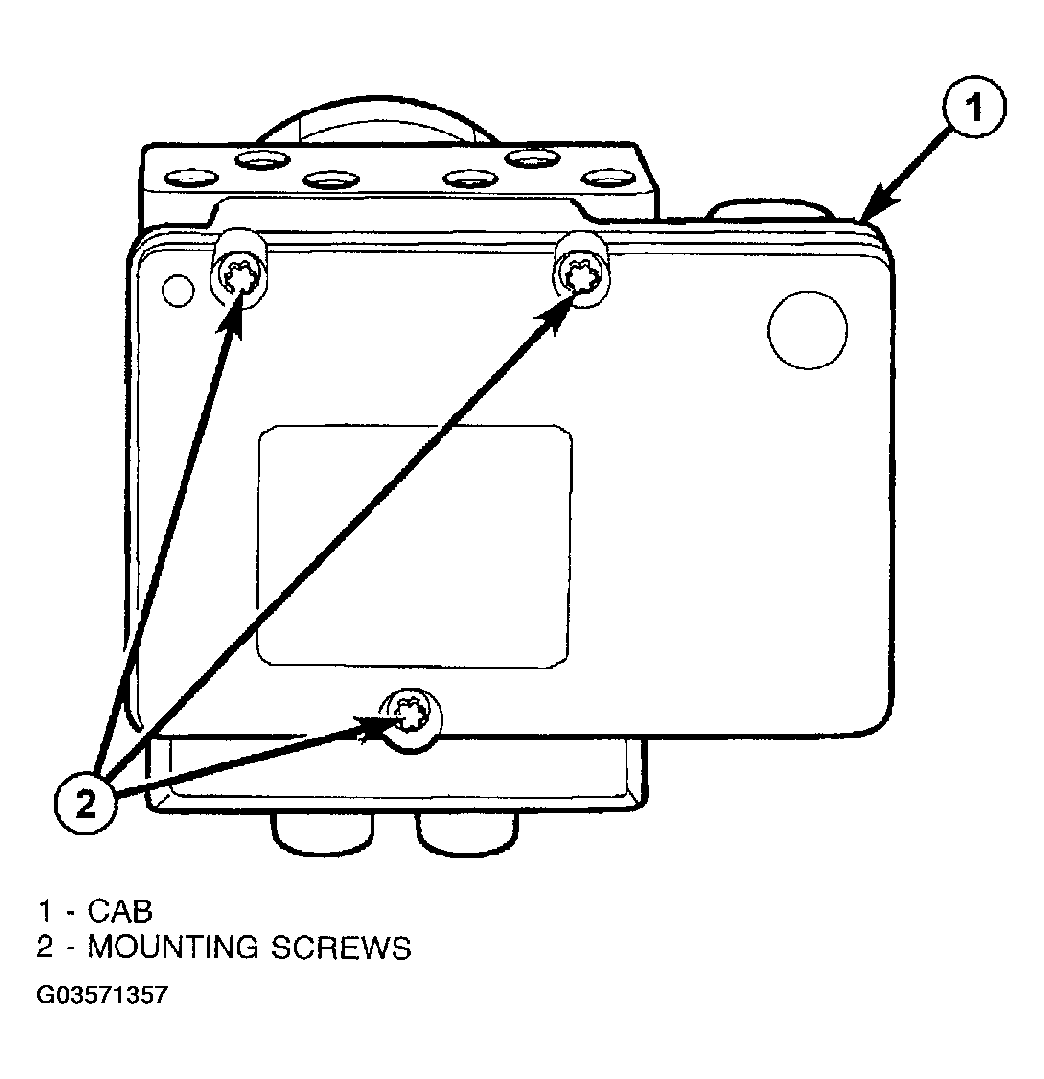

- Install 3 screws mounting CAB to HCU (Figure ). Tighten CAB mounting screws to 2 N.m (17 in. lbs.) torque.
- Install ICU in vehicle. (Refer to INSTALLATION ).
