Front Wiper Module: Installation
WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
- Place wiper module into position in vehicle.

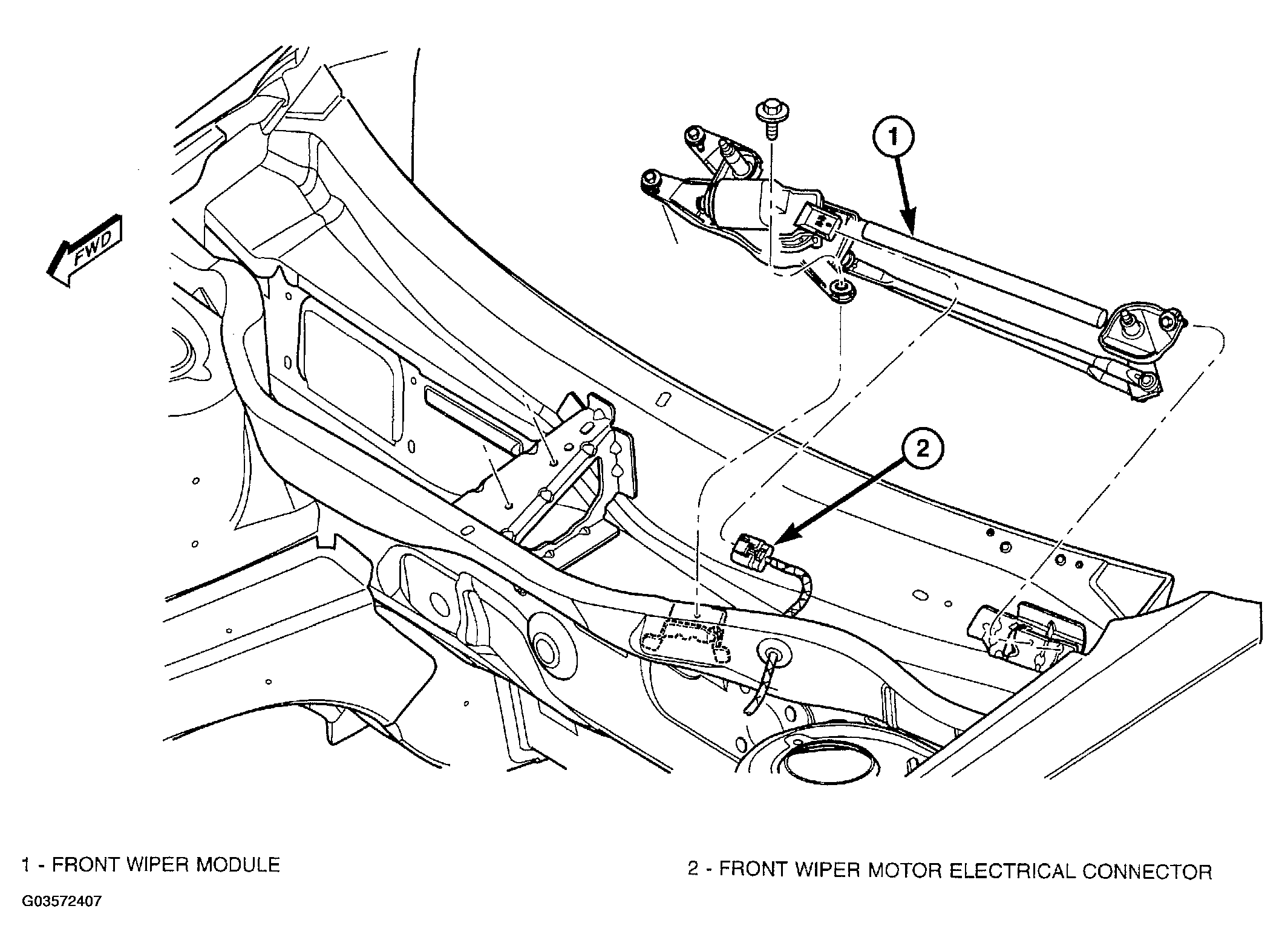

- Install the four retaining bolts to the wiper module (Figure).
- Connect the wiper motor electrical connector (Figure).
- Install the cowl plenum grille (Refer to COWL PLENUM GRILLE ).
- Connect the battery negative cable
- Verify vehicle and system operation.
