Throttle Body: Installation
WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

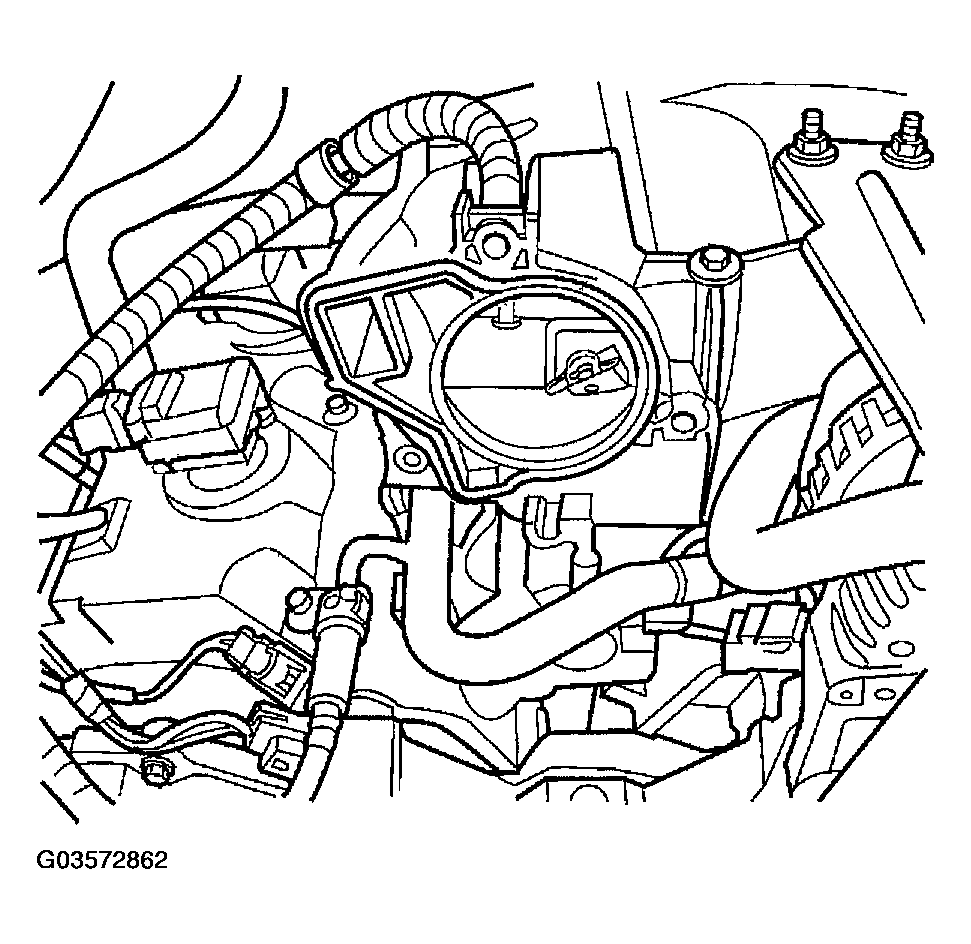

- Install throttle body (Figure ).
- Install 3 throttle body bolts and tighten.

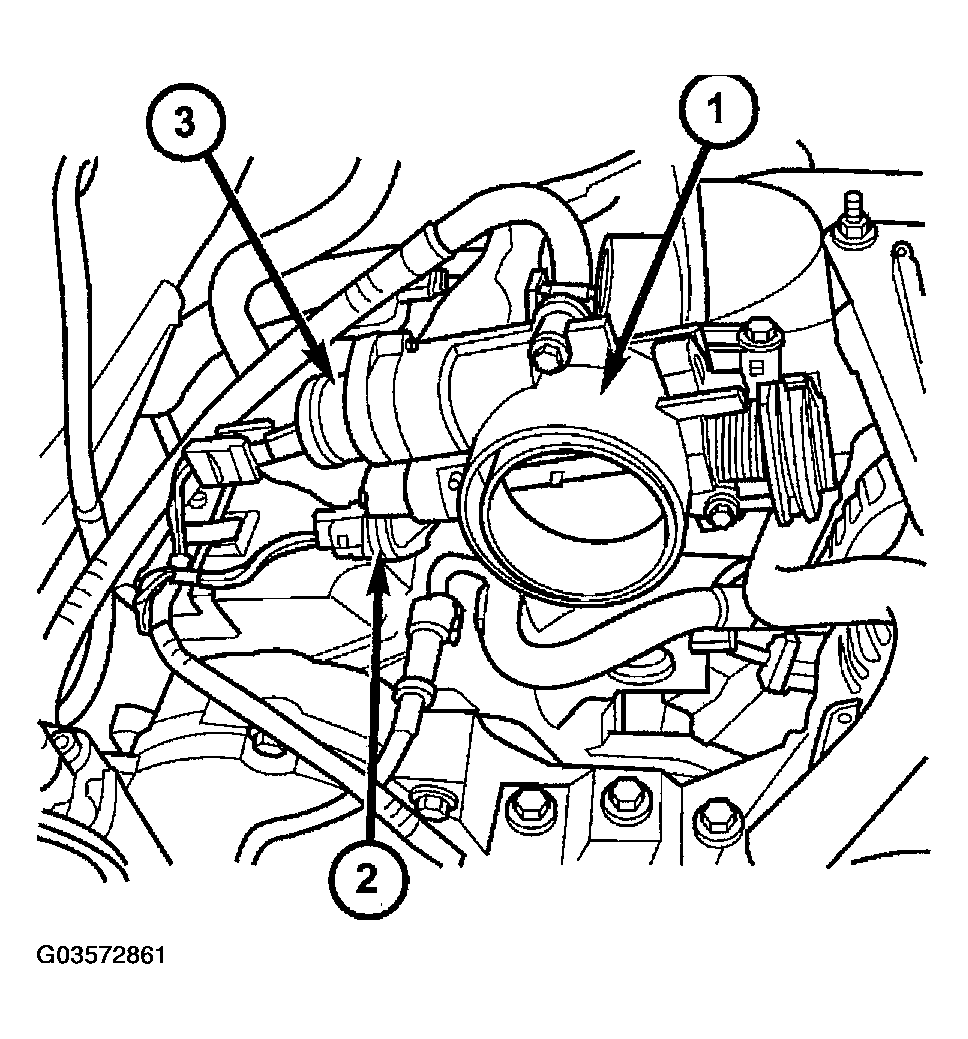

- Connect electrical connectors to throttle body (Figure ).

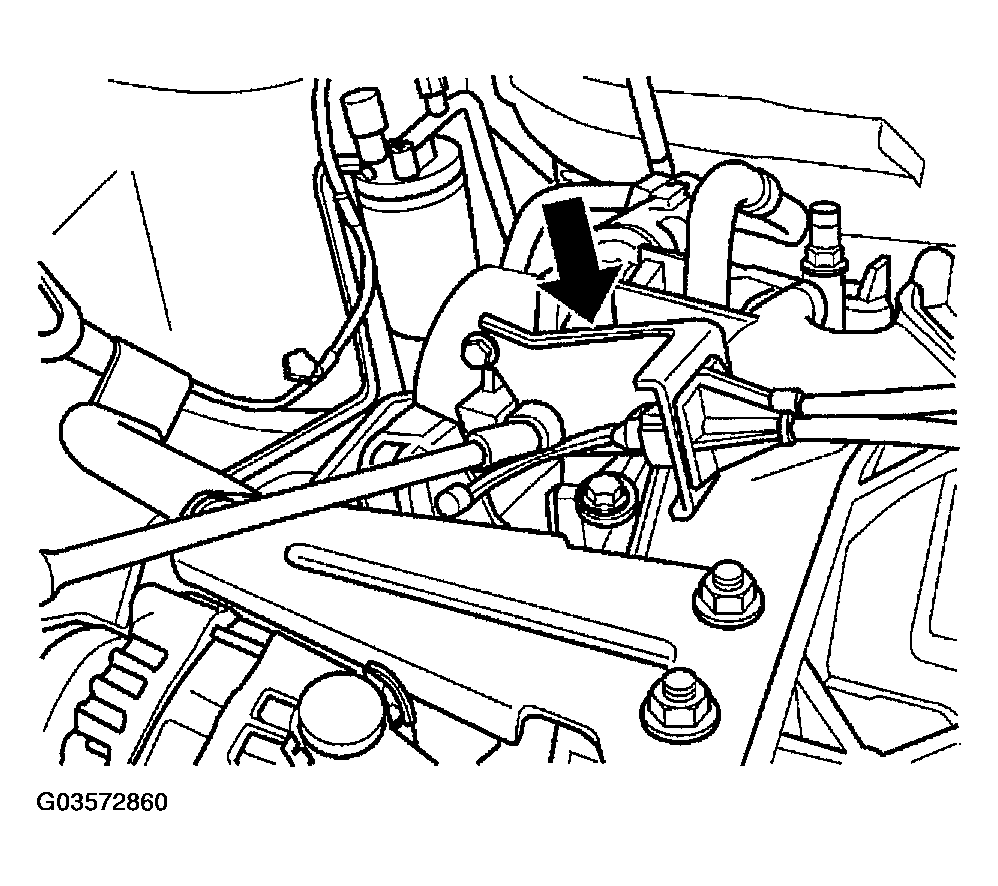

- Install throttle cable bracket (Figure ).
- Hold throttle lever in wide open position. Install throttle cable and speed control cables to throttle arm.
- Install the air cleaner box,
- Install the engine cover.
- Connect negative cable from battery
