Problem Symptoms Table
WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

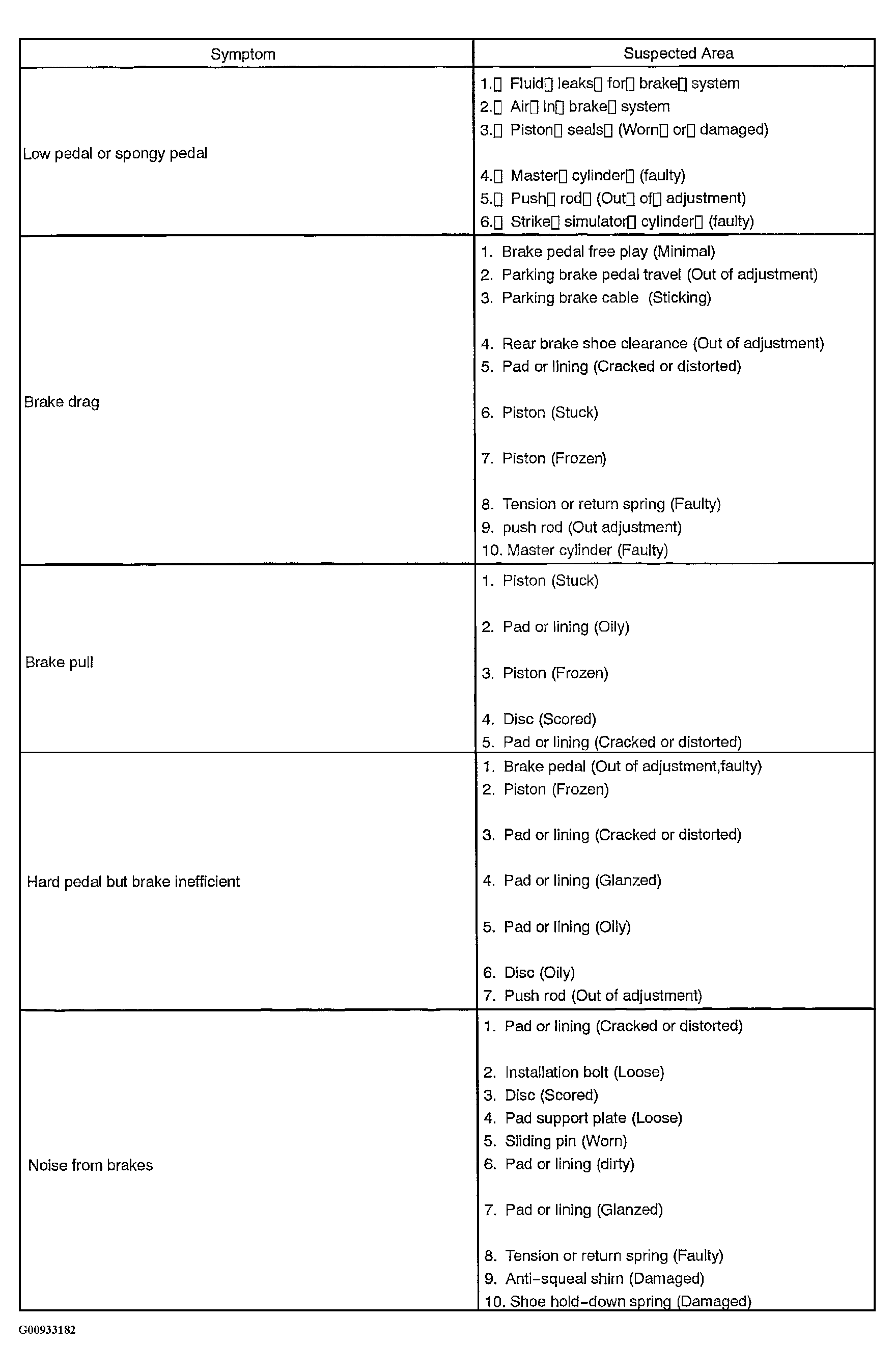

Use the table below to help find the cause of the problem. The numbers indicate the probability of the problems in descending order. Check each part in order. If necessary, replace these parts.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
