Front Speed Sensor: Replacement

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT WHEEL
REMOVE FRONT FENDER LINER
REMOVE FRONT SPEED SENSOR
1. Disconnect the connector of the speed sensor front LH.

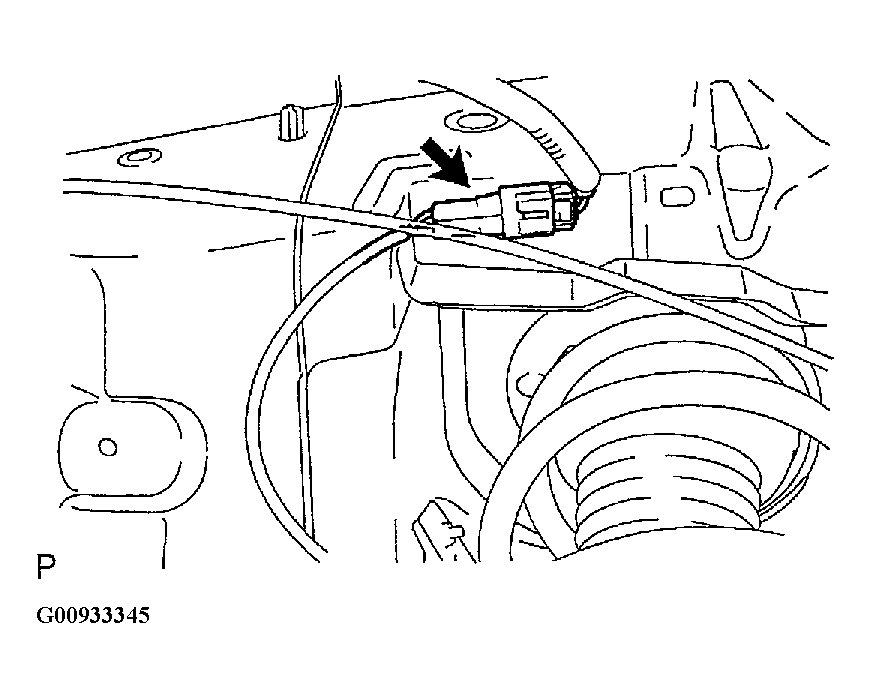

  Fig 1: Disconnecting Connector Of Speed Sensor Front LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt A and the bolt B. Remove the speed sensor front clamps from the body and front shock absorber.
  HINT:

  The bolt B is tightened together with the brake flexible hose clamp.

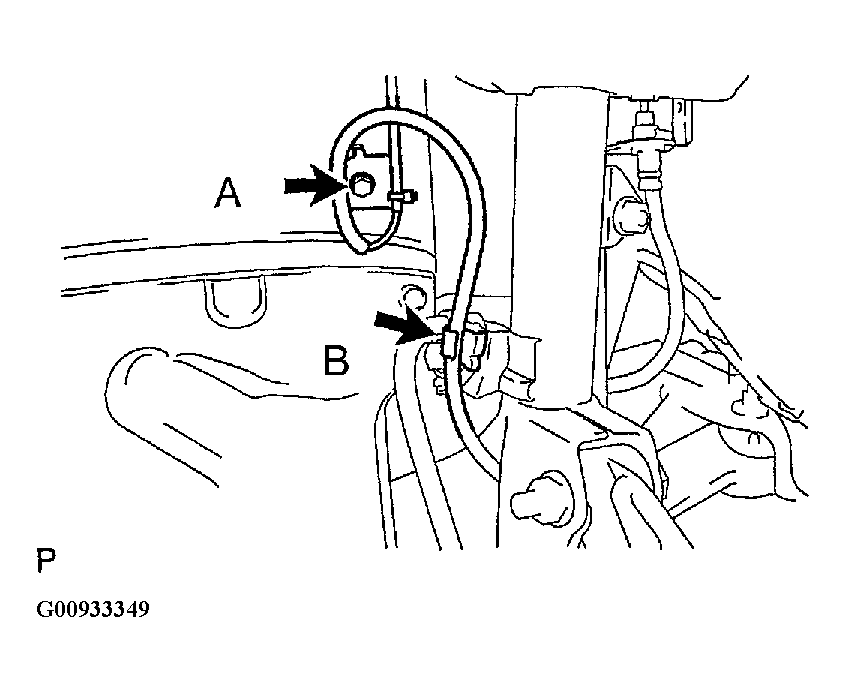

  Fig 2: Removing Bolt A And Bolt B
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the clip from the front shock absorber.

  Fig 3: Removing Clip From Front Shock Absorber
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the bolt and speed sensor front.
NOTE: Do not attach any foreign matter to the tip or connecting portion of the speed sensor front.
INSTALL FRONT SPEED SENSOR
NOTE: Do not twist the speed sensor front wire harnesses during installation.
1. Install the speed sensor front with the bolt.
  1. Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)

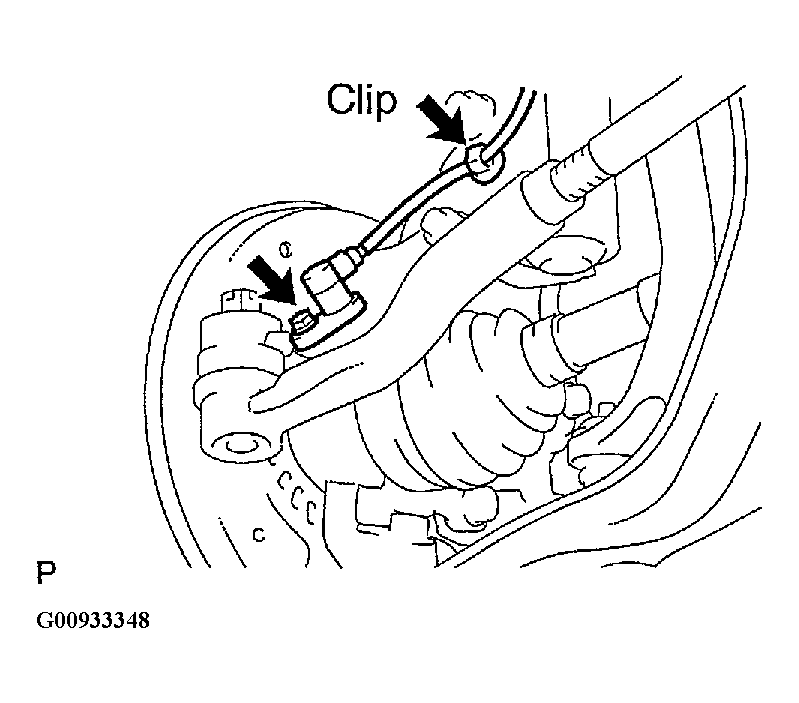

  Fig 4: Installing Speed Sensor Front
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Check that there is no foreign matter attached to the tip and connecting portion of the speed sensor front.

  HINT:

  Clean the connecting portion of the speed sensor front.
2. Install the clip to the front shock absorber.
3. Install the speed sensor front clamps to the body and front shock absorber with a bolt A and a bolt B.
  Torque:
  1. 8.0 N.m (82 kgf.cm, 71 in..lbf) (bolt A)
  2. 19 N.m (192 kgf.cm, 14 ft.lbf) (bolt B)
  Fig 5: Installing Speed Sensor Front Clamps To Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Tighten the bolt B together with the brake flexible hose clamp and speed sensor front clamp. The brake flexible hose clamp should be placed above.
4. Connect the connector of speed sensor front.

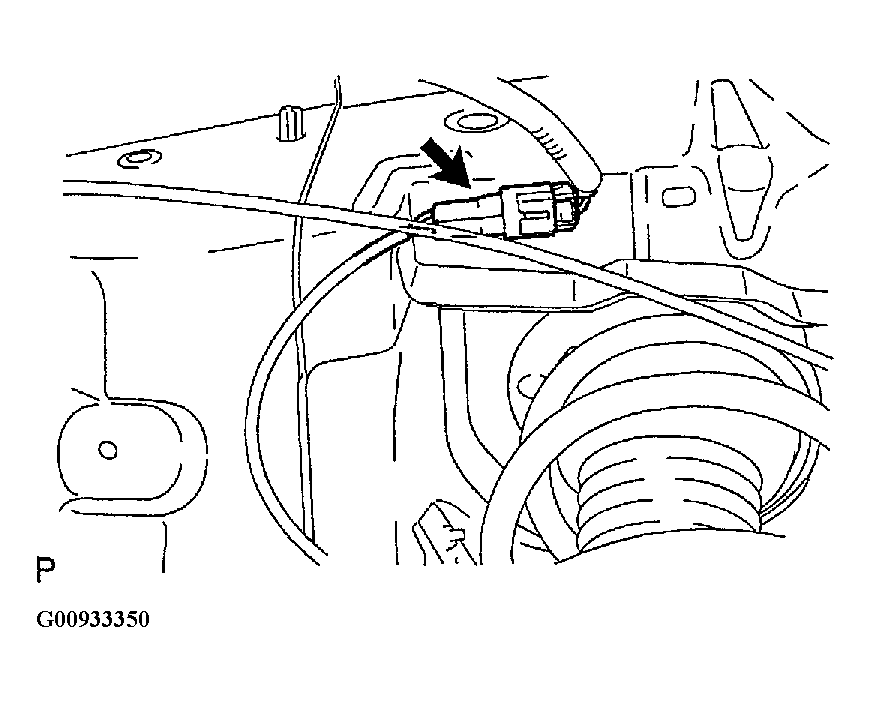

  Fig 6: Connecting Connector Of Speed Sensor Front
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT FENDER LINER
INSTALL FRONT WHEEL
1. Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
CHECK ABS SPEED SENSOR SIGNAL (SEE TEST MODE PROCEDURE )
