Acceleration Sensor: Replacement

WARNING: This page is about a different car, the 2003 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

LOCATION: See ELECTRICAL COMPONENT LOCATOR

  1. REMOVE FRONT DOOR SCUFF PLATE RH
  2. REMOVE COWL SIDE TRIM BOARD RH (See  REPLACEMENT  )
  3. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO. 1 (See  REPLACEMENT  )
  4. REMOVE INSTRUMENT PANEL FINISH PLATE (See  REPLACEMENT  )
  5. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL RH (See  REPLACEMENT  )
  6. REMOVE INSTRUMENT PANEL LOWER LH (See  REPLACEMENT  )
  7. REMOVE ACCELERATION SENSOR
    1. Disconnect the connector from the acceleration sensor.
    2. Remove a bolt and the acceleration sensor.

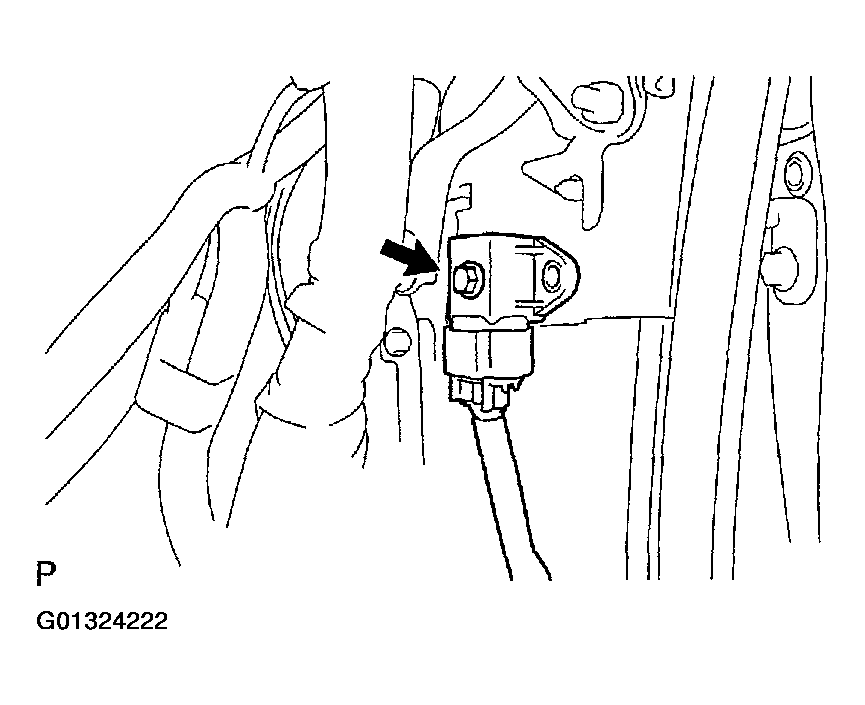

      Fig 1: Removing Bolt And Acceleration Sensor
      G01324222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL ACCELERATION SENSOR
    1. Install the acceleration sensor with a bolt.

      Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)

    2. Connect the connector to the acceleration sensor.
  9. INSTALL INSTRUMENT PANEL LOWER LH
  10. INSTALL INSTRUMENT PANEL FINISH LOWER PANEL RH
  11. INSTALL INSTRUMENT PANEL FINISH PLATE
  12. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSY NO. 1
  13. INSTALL COWL SIDE TRIM BOARD RH
  14. INSTALL FRONT DOOR SCUFF PLATE RH
