Section 441 (Interior Light System): Inspection

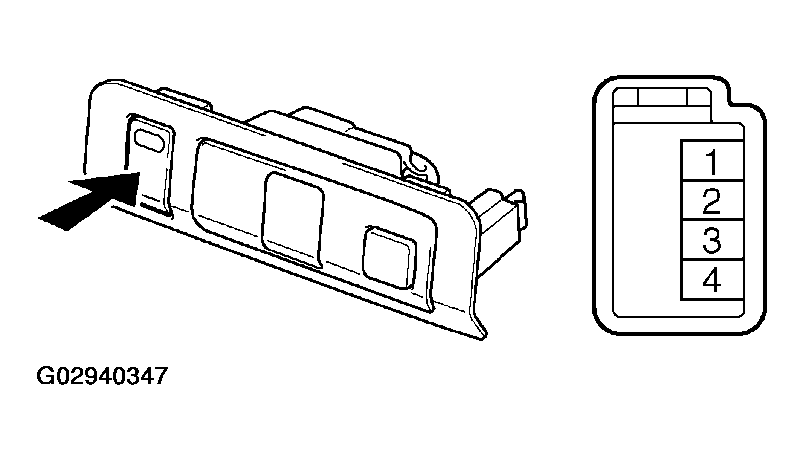

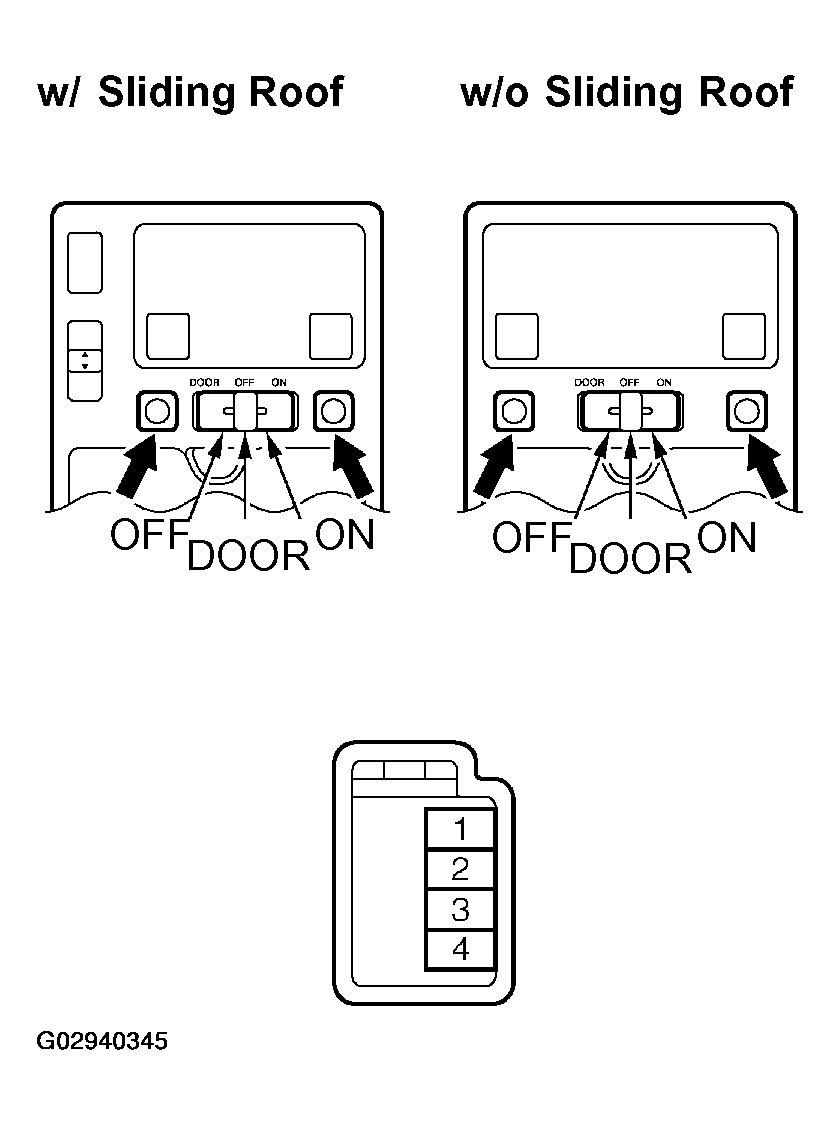

- INSPECT FRONT PERSONAL LIGHT SWITCH CONTINUITY FRONT PERSONAL LIGHT SWITCH CONTINUITY
Switch position Tester connection Specified condition Interior light switch OFF (Lever switch) - No continuity Interior light switch DOOR (Lever switch) 1 - 3 Continuity Interior light switch ON (Lever switch) 1 - 2 Continuity (1)Personal light OFF (Push switch) - No continuity (1)Personal light ON (Push switch) 1 - 2 Continuity (1) Set the interior light switch to OFF or DOOR. If continuity is not as specified, replace the light assembly or bulb.
- INSPECT FRONT PERSONAL LIGHT SWITCH CIRCUIT (See ILLUMINATION CIRCUIT
)

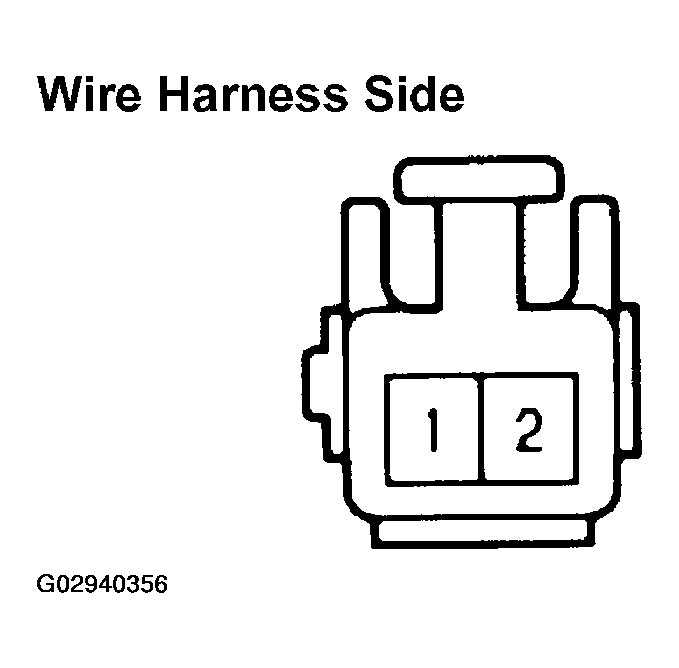

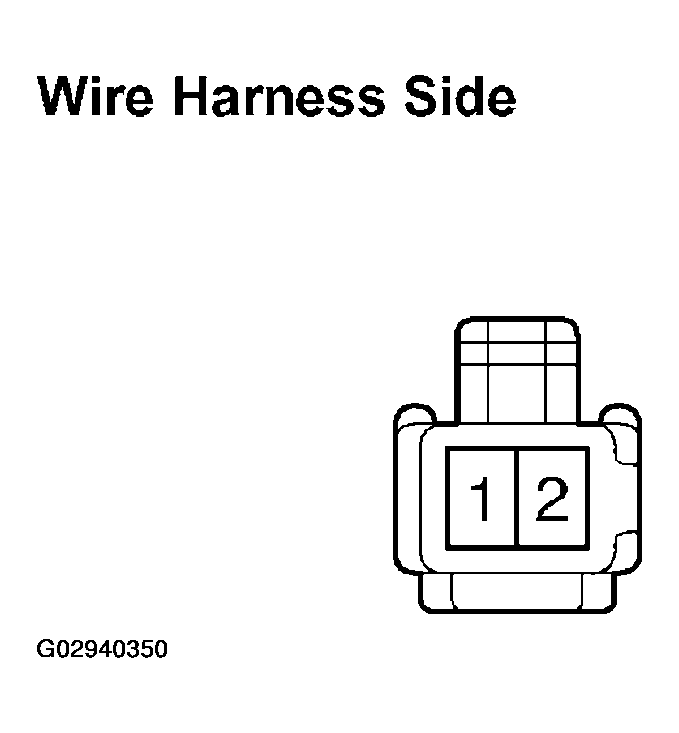

Disconnect the connector from the switch and inspect the connector on the wire harness side, as shown in Fig 2.
FRONT PERSONAL LIGHT SWITCH CIRCUITTester connection Condition Specified condition 2 - Ground Constant Continuity 1 - Ground Constant Battery positive voltage Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If circuit is not as specified, inspect power source or wire harness.
- INSPECT REAR PERSONAL LIGHT SWITCH CONTINUITY REAR PERSONAL LIGHT SWITCH CONTINUITY
Switch position Tester connection Specified condition Room light switch OFF and door closed - No continuity Room light switch ON and door closed 1 - 2 Continuity Room light switch OFF or ON and door opened 1 - 3 Continuity Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If continuity is not as specified, replace the light assembly or bulb.
- INSPECT REAR PERSONAL LIGHT SWITCH CIRCUIT

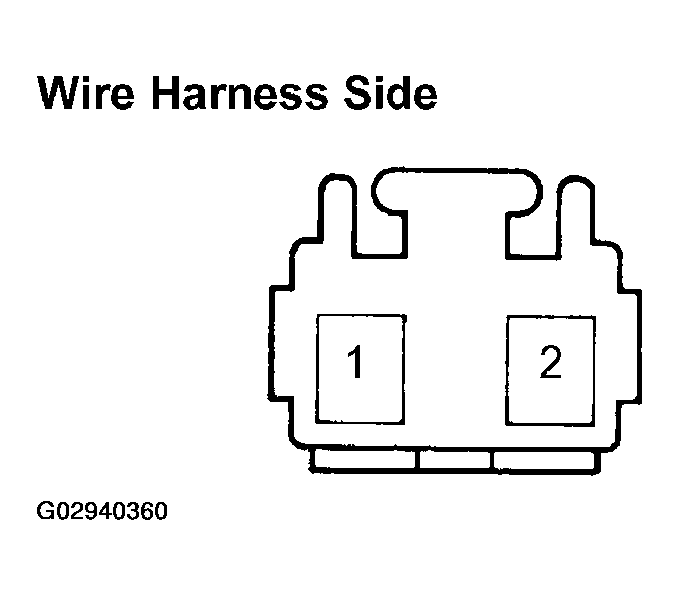

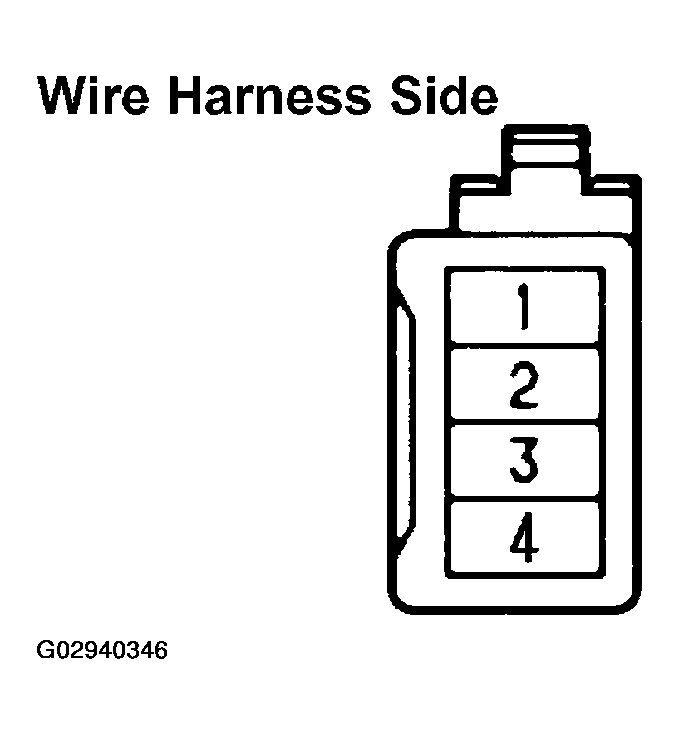

Disconnect the connector from the switch and inspect the connector on the wire harness side, as shown in Fig 4.
REAR PERSONAL LIGHT SWITCH CIRCUITTester connection Condition Specified condition 2 - Ground Constant Continuity 1 - Ground Constant Battery positive voltage If circuit is not as specified, inspect power source or wire harness.

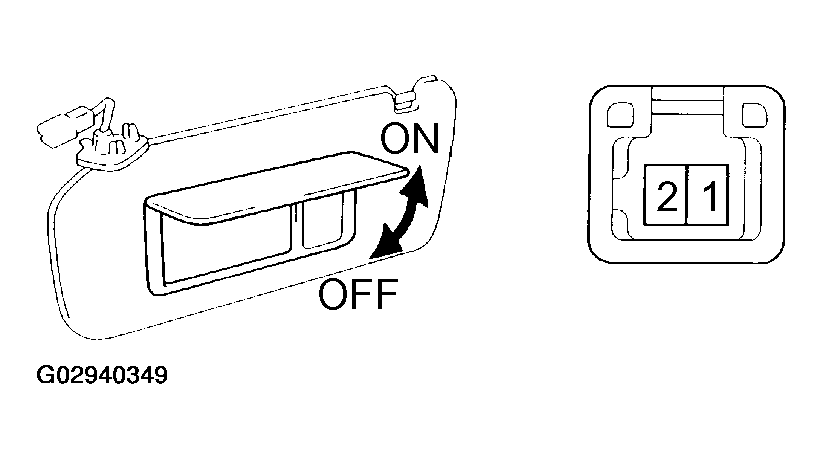

- INSPECT VANITY LIGHT CONTINUITY VANITY LIGHT CONTINUITY
Switch position Tester connection Specified condition OFF (closed) - No continuity ON (opened) 1 - 2 Continuity If continuity is not as specified, replace the vanity light assembly or bulb.
- INSPECT VANITY LIGHT CIRCUIT

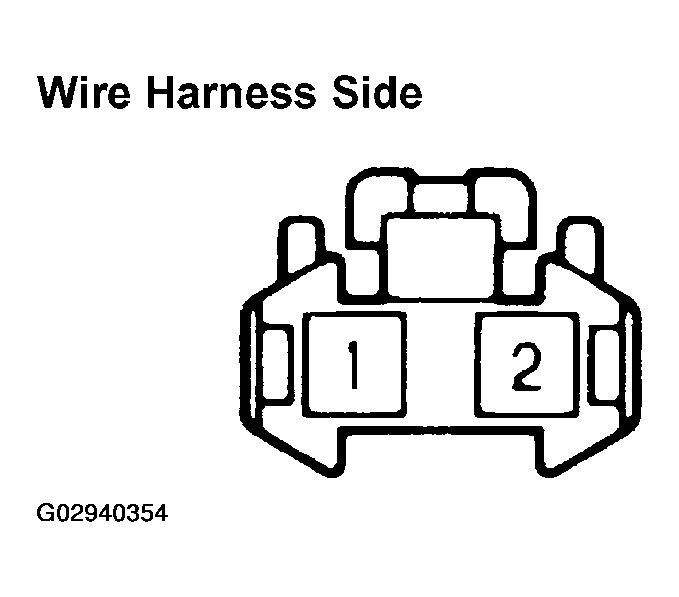

Disconnect the connector from the light and inspect the connector on the wire harness side, as shown in Fig 6.
VANITY LIGHT CIRCUITTester connection Condition Specified condition 2 - Ground Constant Continuity 1 - Ground Constant Battery positive voltage If circuit is not as specified, inspect power source or wire harness.

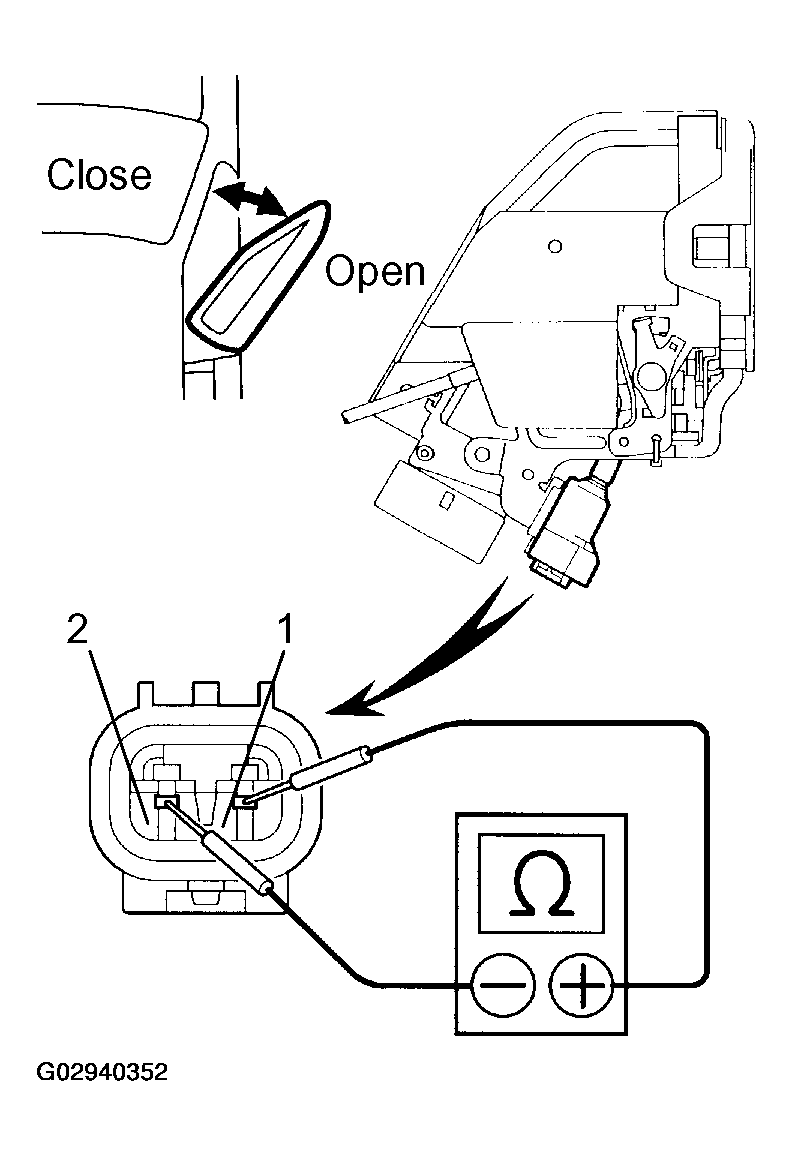

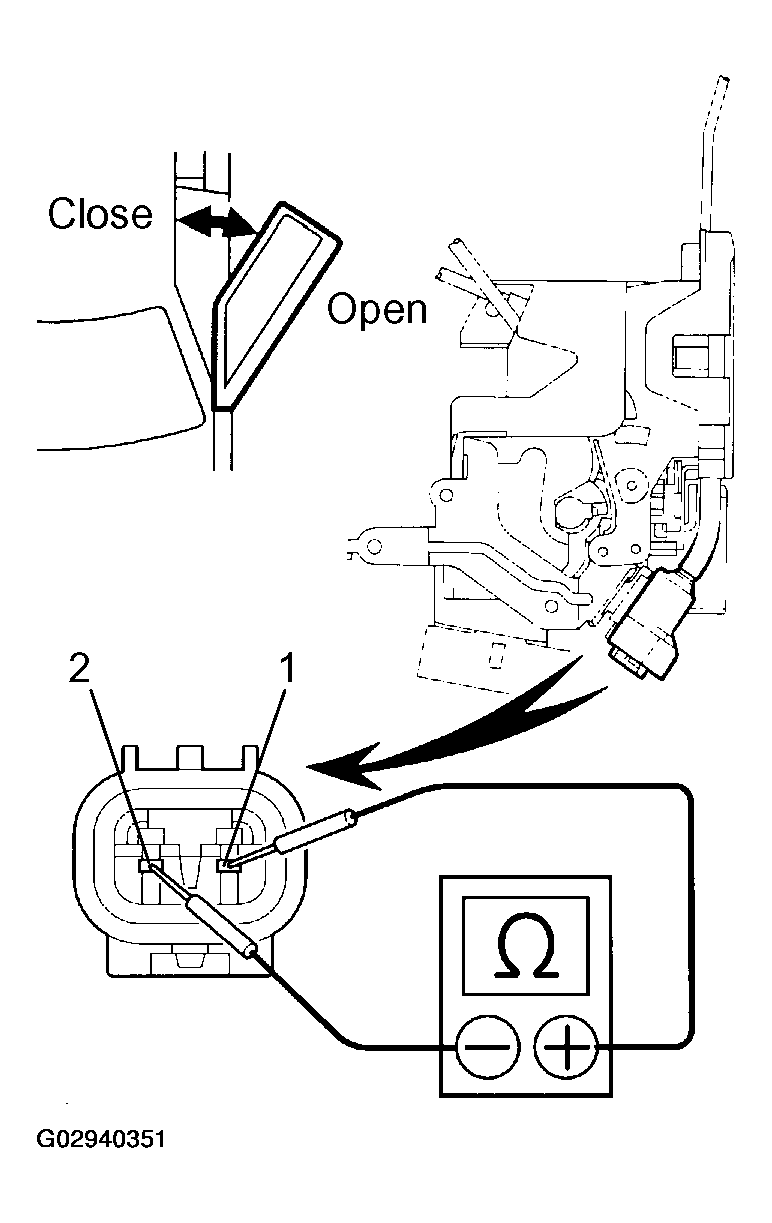

- Front door: INSPECT DOOR COURTESY SWITCH CONTINUITY
- Connect the connector to the front door ECU.
- Check that continuity exists between terminals 1 and 2 when door is opened.
- Check that no continuity exists between terminals 1 and 2 when door is closed.
If continuity is not as specified, replace the switch.
- Front door: INSPECT DOOR COURTESY SWITCH CIRCUIT
Driver side: (See DOOR LOCK MOTOR CIRCUIT )
Passenger side: (See DOOR LOCK MOTOR CIRCUIT )
- Rear door: INSPECT DOOR COURTESY SWITCH CONTINUITY
- Connect the connector to the rear door ECU.
- Check that continuity exists between terminals 1 and 2 when door is opened.
- Check that no continuity exists between terminals 1 and 2 when door is closed.
If continuity is not as specified, replace the switch.
- Rear door: INSPECT DOOR COURTESY SWITCH CIRCUIT
Rear LH side: (See DOOR LOCK MOTOR CIRCUIT )
Rear RH side: (See DOOR LOCK MOTOR CIRCUIT )

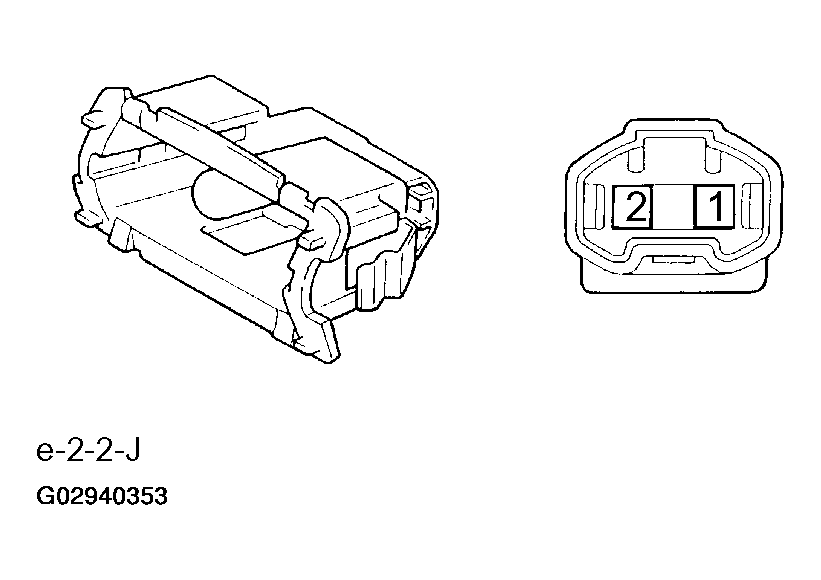

- INSPECT DOOR COURTESY LIGHT CONTINUITY
Using an ohmmeter, check that continuity exists between terminals.
If continuity is not as specified, replace the light assembly or bulb.
- INSPECT DOOR COURTESY LIGHT CIRCUIT
Driver side: (See DOOR COURTESY LIGHT AND COURTESY SWITCH CIRCUIT )
Passenger side: (See DOOR COURTESY LIGHT AND COURTESY SWITCH CIRCUIT )
Rear LH side: (See DOOR COURTESY LIGHT AND COURTESY SWITCH CIRCUIT )
Rear RH side: (See DOOR COURTESY LIGHT AND COURTESY SWITCH CIRCUIT )
- INSPECT LUGGAGE COMPARTMENT DOOR COURTESY SWITCH CONTINUITY LUGGAGE COMPARTMENT DOOR COURTESY SWITCH CONTINUITY
Switch position Tester connection Specified condition OFF (closed) - No continuity ON (opened) 2 - Switch body Continuity Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If continuity is not as specified, replace the switch.
- INSPECT LUGGAGE COMPARTMENT DOOR COURTESY SWITCH CIRCUIT (See LUGGAGE COURTESY SWITCH CIRCUIT
)
Disconnect the connector from the switch and inspect the connector on the wire harness side, as shown in Fig 12.
LUGGAGE COMPARTMENT DOOR COURTESY SWITCH CIRCUITTester connection Condition Specified condition 2 - Body ground Luggage compartment door courtesy switch ON (door opened) Continuity Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If circuit is not as specified, inspect power source or wire harness.

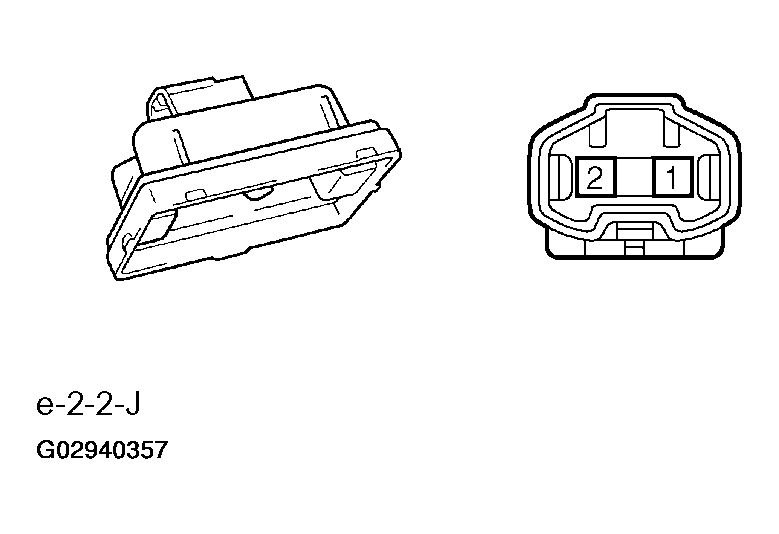

- INSPECT LUGGAGE COMPARTMENT LIGHT CONTINUITY
Using an ohmmeter, check that continuity exists between terminals.
If continuity is not as specified, replace the light assembly or bulb.
- INSPECT LUGGAGE COMPARTMENT LIGHT CIRCUIT
Disconnect the connector from the light and inspect the connector on the wire harness side, as shown in Fig 14.
LUGGAGE COMPARTMENT LIGHT CIRCUITTester connection Condition Specified condition 1 - Body ground Constant Continuity If circuit is not as specified, inspect power source or wire harness.

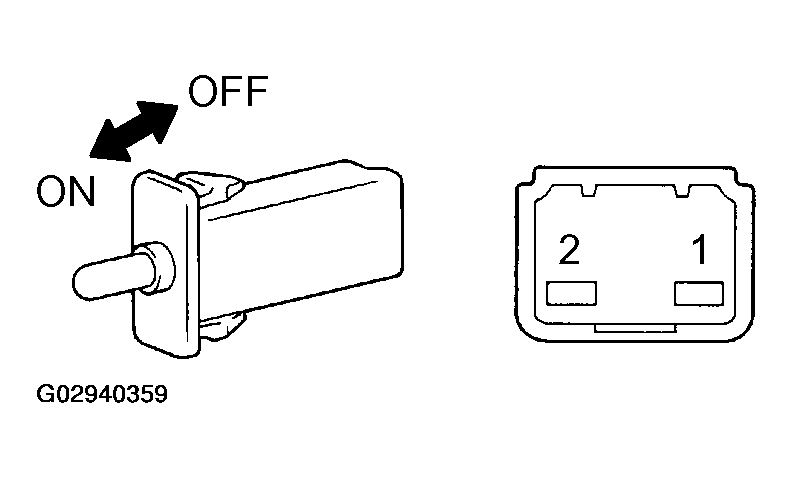

- INSPECT GLOVE COMPARTMENT DOOR COURTESY SWITCH CONTINUITY GLOVE COMPARTMENT DOOR COURTESY SWITCH CONTINUITY
Switch position Tester connection Specified condition OFF (closed) - No continuity ON (opened) 1 - 2 Continuity Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If continuity is not as specified, replace the switch.
- INSPECT GLOVE COMPARTMENT DOOR COURTESY SWITCH CIRCUIT
Disconnect the connector from the switch and inspect the connector on the wire harness side, as shown in Fig 16.
GLOVE COMPARTMENT DOOR COURTESY SWITCH CIRCUITTester connection Condition Specified condition 2 - Ground Constant Continuity 1 - Ground Light control switch OFF No voltage 1 - Ground Light control switch TAIL or HEAD Battery positive voltage Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If circuit is not as specified, inspect power source or wire harness.
- INSPECT GLOVE COMPARTMENT LIGHT CONTINUITY
Using an ohmmeter, check that continuity exists between terminals.
If continuity is not as specified, replace the light assembly or bulb.
- INSPECT GLOVE COMPARTMENT LIGHT CIRCUIT
Disconnect the connector from the light and inspect the connector on the wire harness side, as shown in Fig 18.
GLOVE COMPARTMENT LIGHT CIRCUITTester connection Condition Specified condition 2 - Ground Glove compartment door courtesy switch ON Continuity 1 - Ground Light control switch in TAIL or HEAD Battery positive voltage If circuit is not as specified, inspect power source or wire harness.

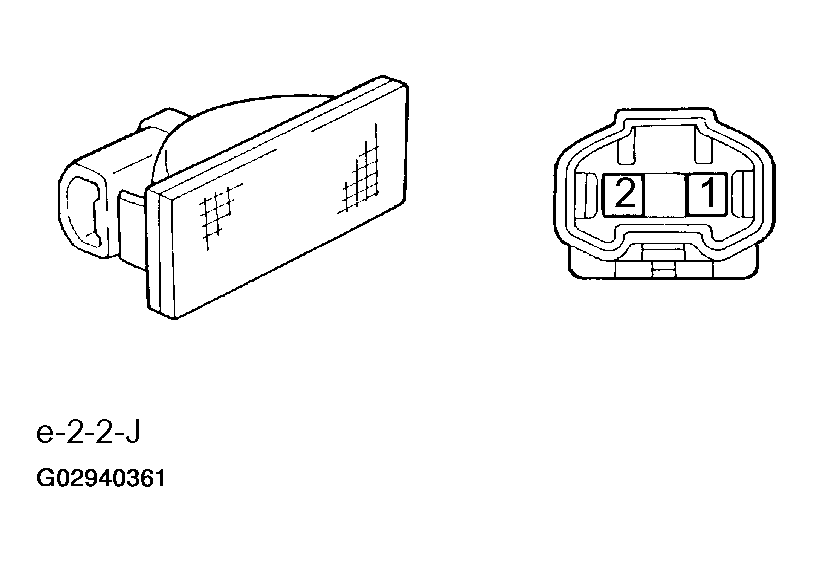

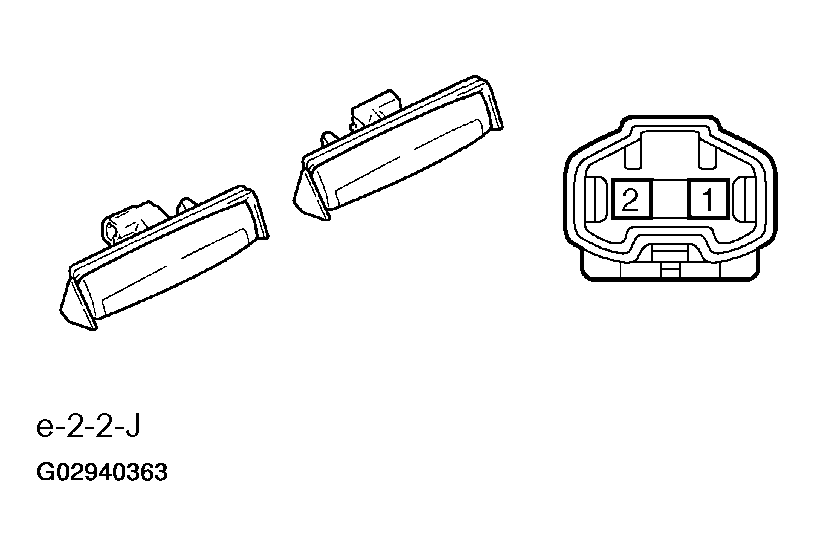

- INSPECT LICENCE PLATE LIGHT CONTINUITY
Using an ohmmeter, check that continuity exists between terminals.
If continuity is not as specified, replace the light assembly or bulb.
- INSPECT LICENCE PLATE LIGHT CIRCUIT
Disconnect the connector from the light and inspect the connector on the wire harness side, as shown in Fig 20.
LICENCE PLATE LIGHT CIRCUITTester connection Condition Specified condition 1 - Ground Constant Continuity 2 - Ground Light control switch TAIL or HEAD Battery positive voltage If circuit is not as specified, inspect power source or wire harness.
