Outside Rear View Mirror: Installation

Install the outside rear view mirror with the 3 bolts, then connect the connector.

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

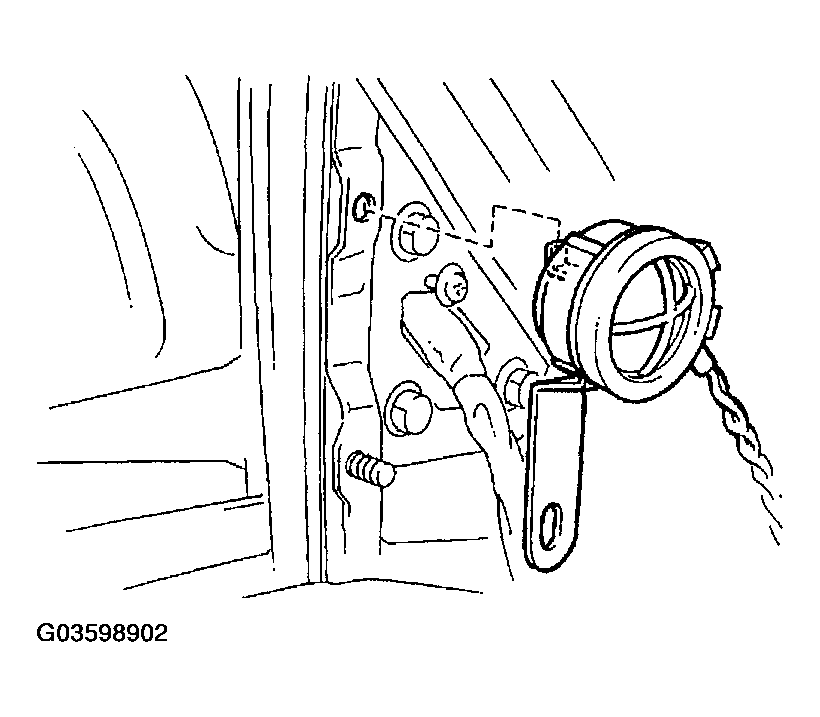

1. Connect the claw and set the tweeter speaker to the door.
2. Connect the connector.

Install the door frame garnish with the nut.

Fig 1: Installing Tweeter Speaker To Door

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the connectors.

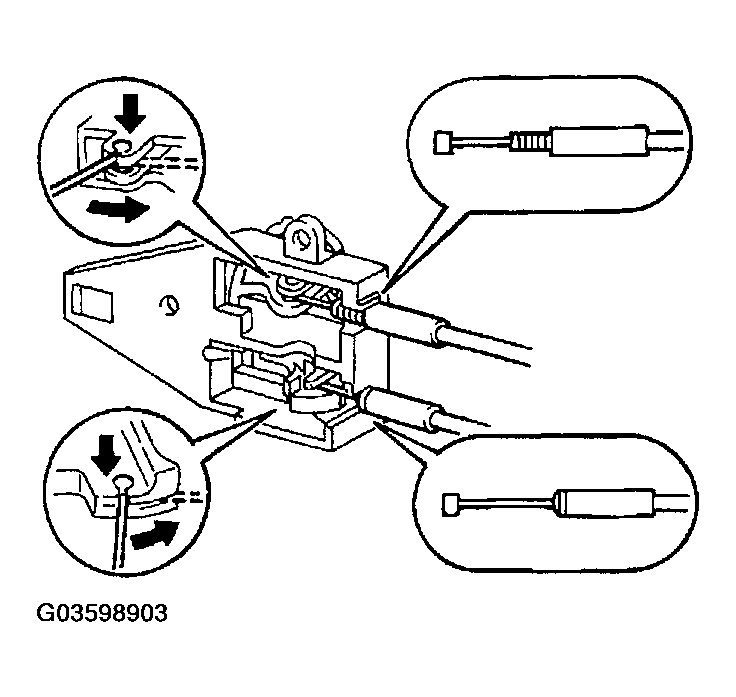

2. Install the 2 cables to the door inside handle.
   Fig 2: Installing Cables To Door Inside Handle

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

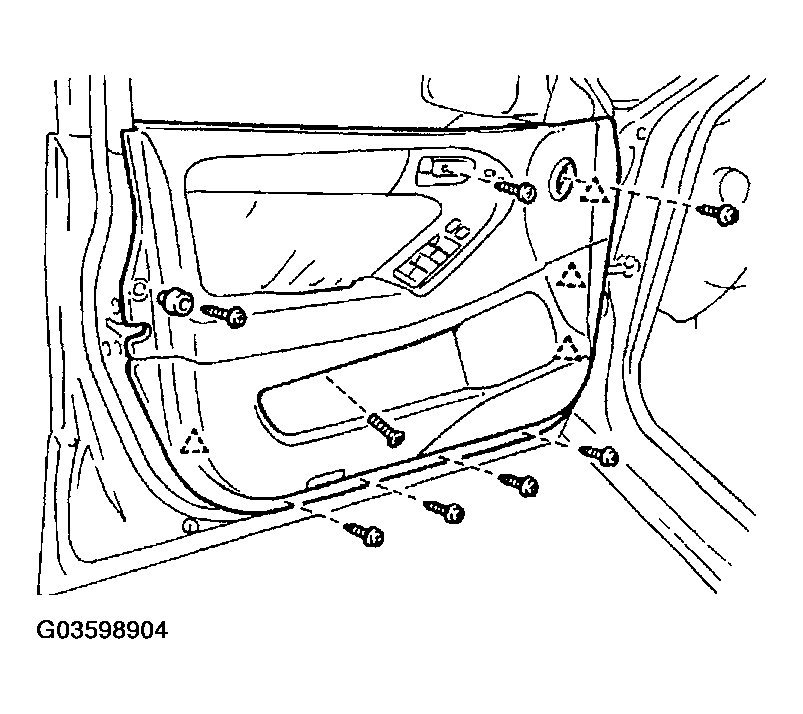

3. Install the door trim with the 8 screws.
   Fig 3: Installing Door Trim Panel

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
