Outside Rear View Mirror: Replacement

  1. IF NECESSARY, DISCONNECT MIRROR
    1. Insert a shop rag between the mirror and the mirror body.
    2. Pull up the lower side of the shop rag to disconnect the mirror joint.

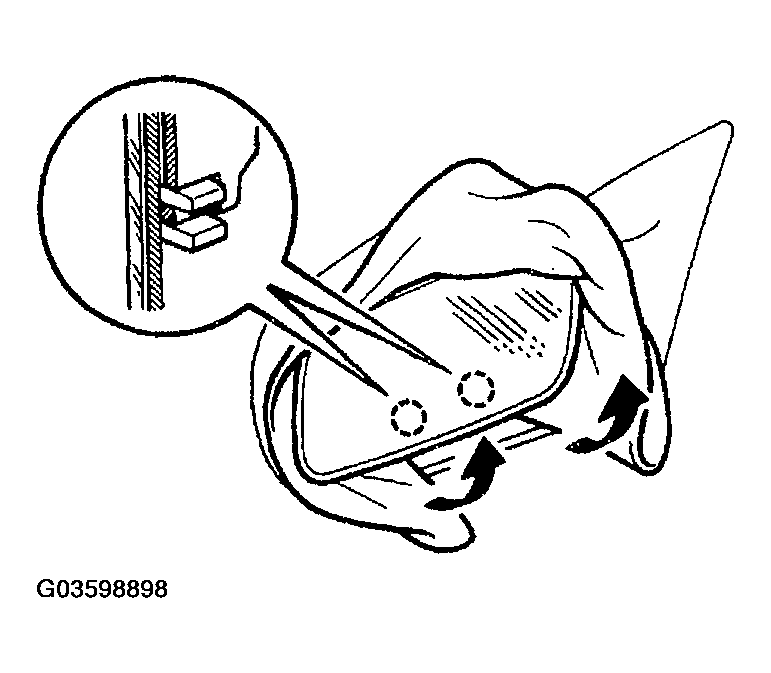

      Fig 1: Inserting Shop Rag Between Mirror And Mirror Body
      G03598898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pull up the mirror and disconnect it.

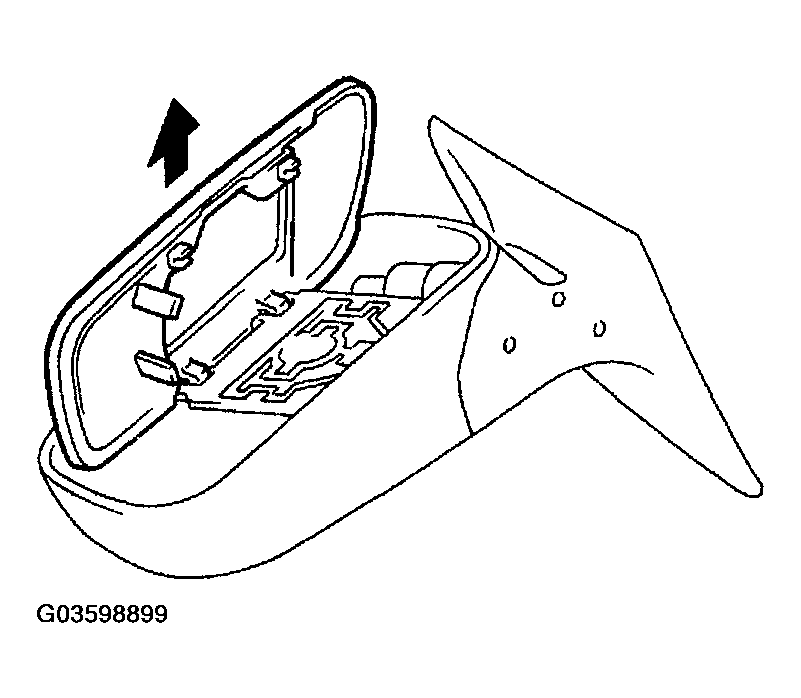

      Fig 2: Pulling Up Mirror
      G03598899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the connectors.

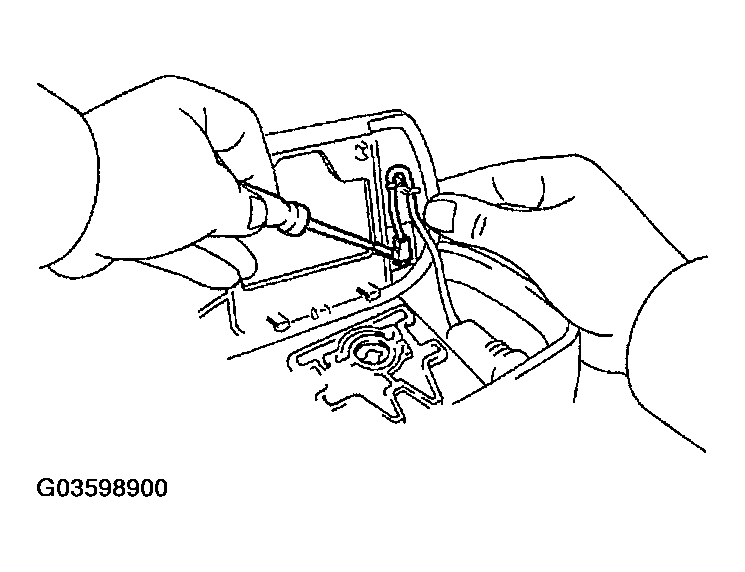

      Fig 3: Disconnecting Mirror Connectors
      G03598900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CONNECT MIRROR
    1. Connect the connectors.
    2. Connect the claws (A) and set the mirror to the mirror body.
    3. Push the mirror to connect the claws (B) and set it.

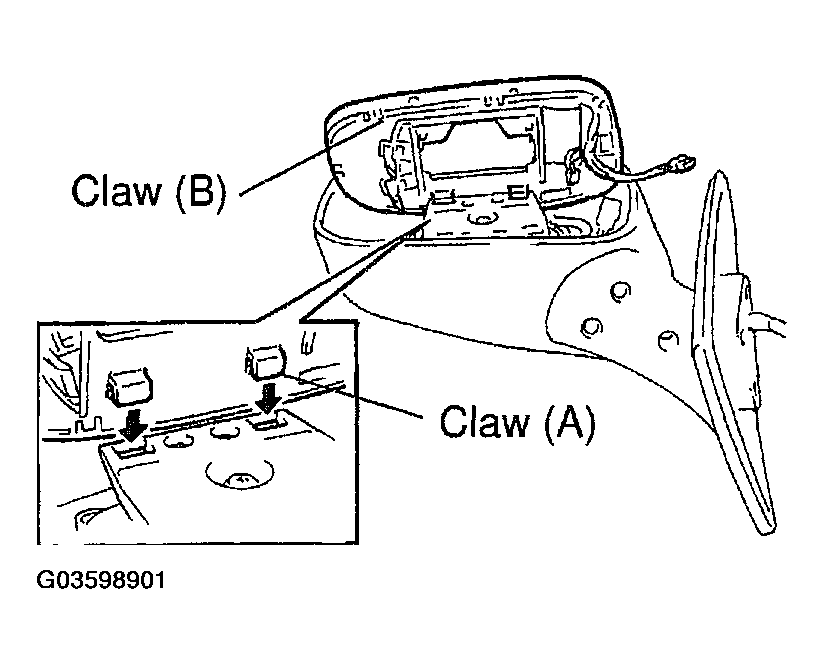

    Fig 4: Installing Mirror To Mirror Body
    G03598901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
