Circuit Description

WARNING: This page is about a different car, the 2004 Lexus GS 430 and 2004 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

This DTC is output when communication stops between front passenger door ECU and body ECU No.20.

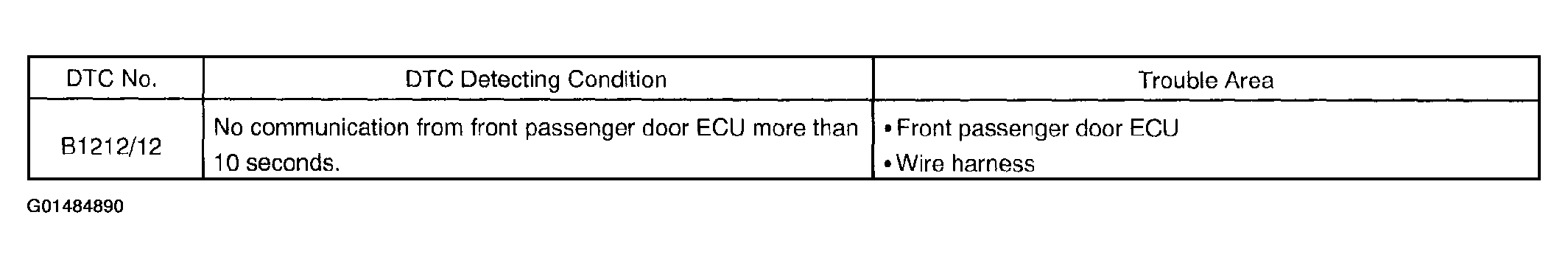

Fig 1: Front Passenger Door ECU Communication Stop Circuit Description
G01484890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
