Multi-Display (CRT Display) Display: Replacement

WARNING: This page is about a different car, the 2003 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See LOCATION

REMOVE CONSOLE UPPER PANEL GARNISH NO. 2 (See REPLACEMENT )
REMOVE CONSOLE UPPER PANEL GARNISH NO. 1 (See REPLACEMENT )
REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY LH (See REPLACEMENT )
REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY RH (See REPLACEMENT )
REMOVE INTEGRATION CONTROL & PANEL ASSY (See REPLACEMENT )
REMOVE RADIO BRACKET NO. 1 (See REPLACEMENT )
REMOVE RADIO BRACKET NO. 2 (See REPLACEMENT )
REMOVE MULTI-DISPLAY (CRT DISPLAY) DISPLAY
1. Release the 2 claws and remove the multi display.

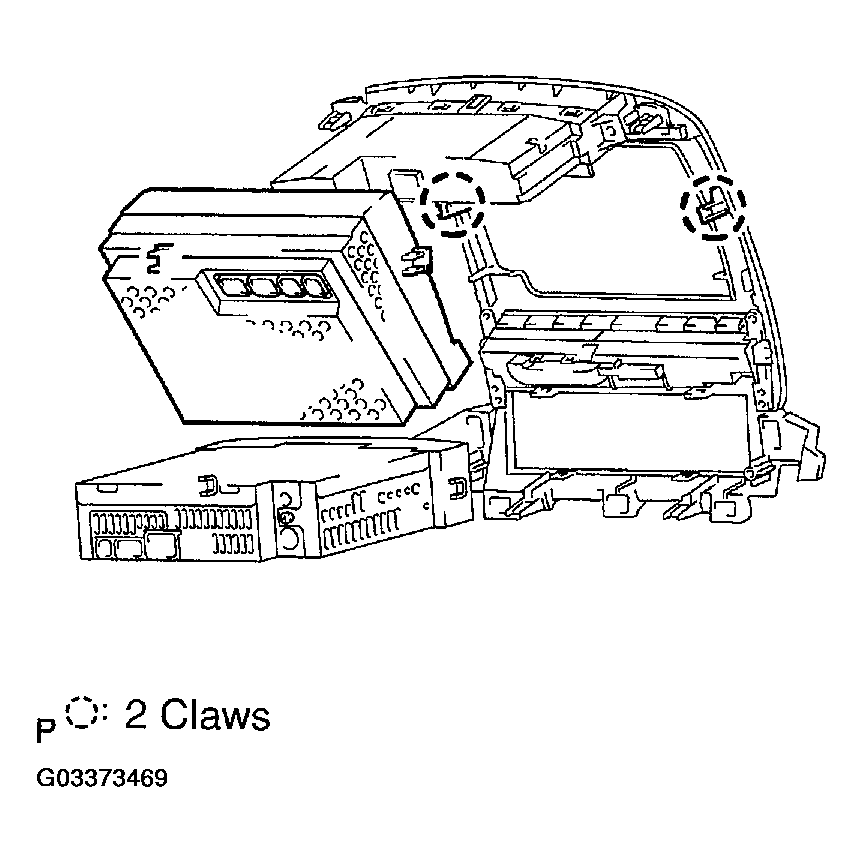

  Fig 1: Removing Multi-Display (CRT Display)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
