Multi-Display Controller Sub-ASSY: Replacement

WARNING: This page is about a different car, the 2003 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See LOCATION

REMOVE FRONT DOOR SCUFF PLATE RH
REMOVE COWL SIDE TRIM BOARD RH
REMOVE MULTI-DISPLAY CONTROLLER W/BRACKET
1. Disconnect the connectors.
2. Remove the 2 nuts, and multi-display controller w/bracket.

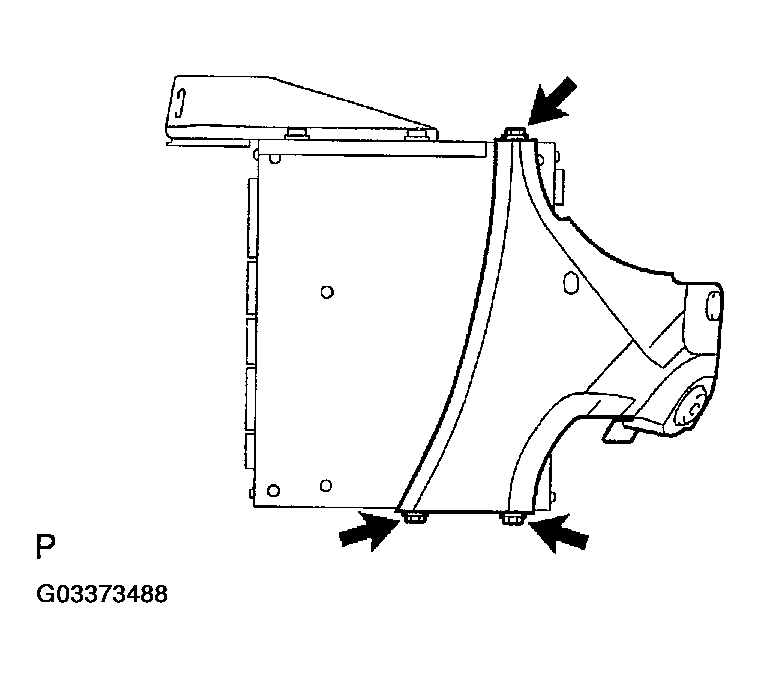

  Fig 1: Removing Multi-Display Controller W/Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TELEVISION DISPLAY BRACKET A
1. Remove the 3 screws, and television display bracket A.

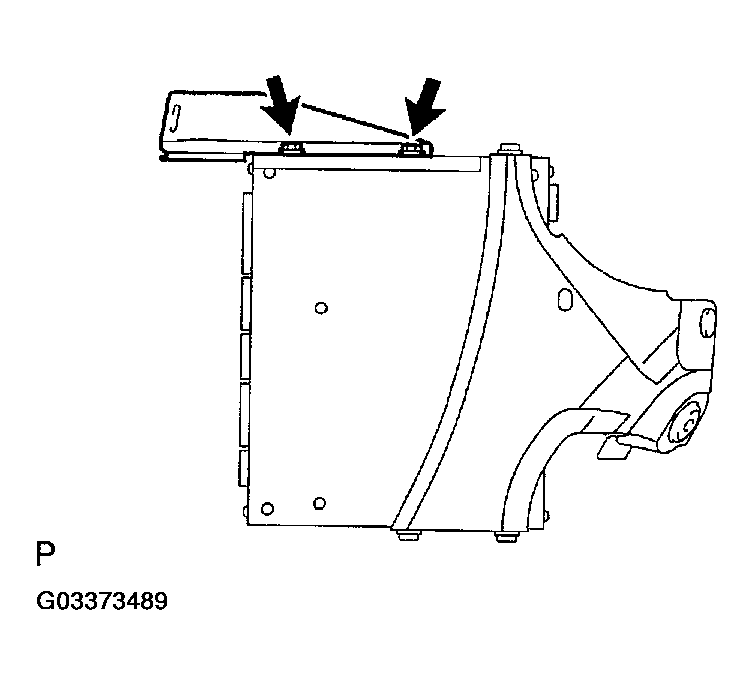

  Fig 2: Removing Television Display Bracket A
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TELEVISION DISPLAY BRACKET B
1. Remove the 2 screws, and television display bracket B.

  Fig 3: Removing Television Display Bracket B
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
