Power Point Socket ASSY: Replacement

WARNING: This page is about a different car, the 2003 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See LOCATION

REMOVE CONSOLE UPPER PANEL GARNISH NO. 2 (See REPLACEMENT )
REMOVE CONSOLE UPPER PANEL GARNISH NO. 1 (See REPLACEMENT )
REMOVE CONSOLE PANEL UPPER ASSY (See REPLACEMENT )
REMOVE CONSOLE UPPER PANEL GARNISH FRONT (See REPLACEMENT )
REMOVE POWER POINT SOCKET ASSY
1. Pressing the claw of the power point socket assy in the direction of the arrow, push the power point socket assy toward the inside of the chamber and remove it.

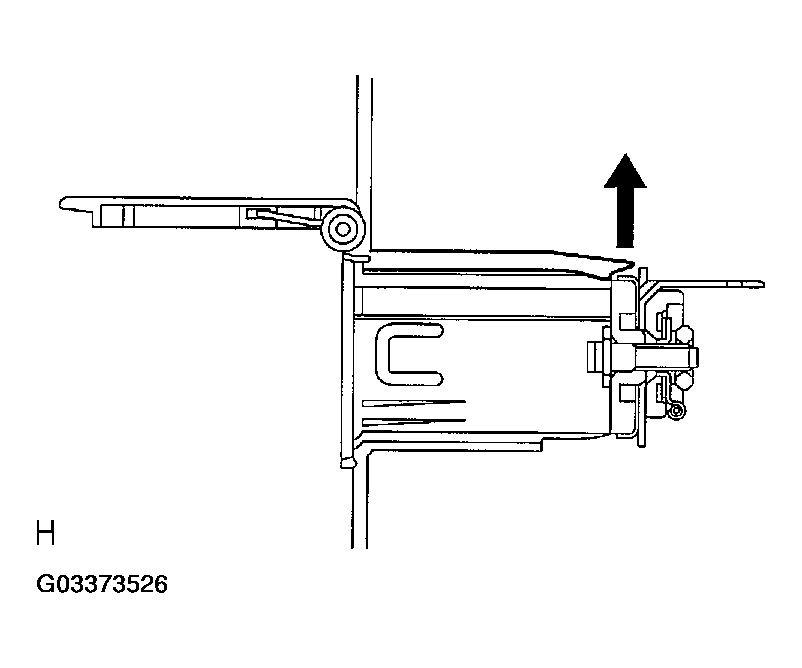

  Fig 1: Removing Power Point Socket Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POWER POINT SOCKET ASSY
1. Align the claw of the power point socket assy with the cutout of the power point socket cover and fully push it to install.
