Circuit Description

WARNING: This page is about a different car, the 2005 Lexus GS 430 and 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

These DTCs are output when a malfunction of pulse switch within power window motor is detected.

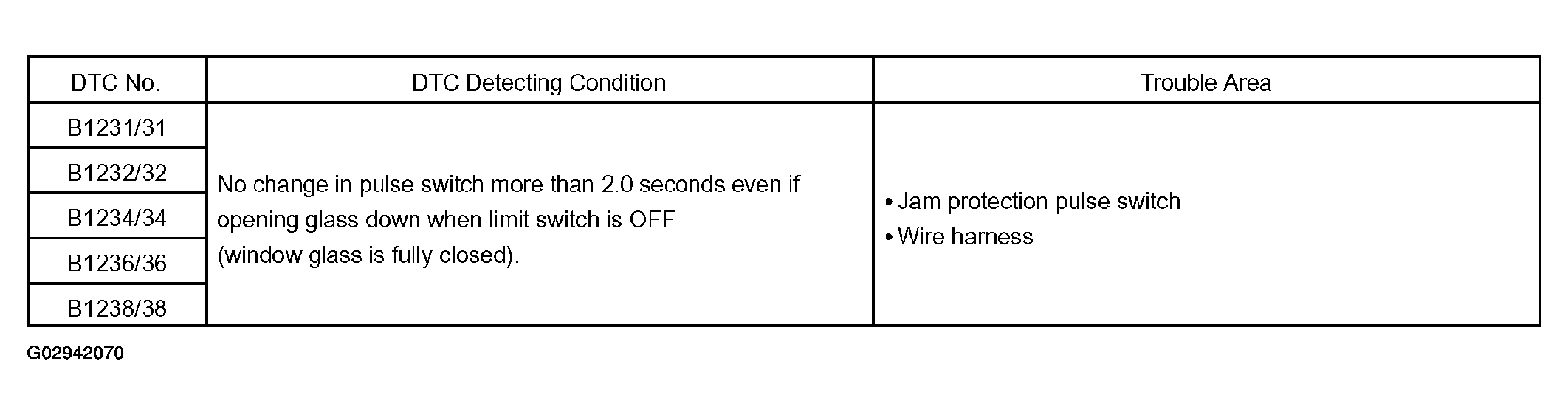

Fig 1: Jam Protection Circuit Description
G02942070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
