Check Open Circuit

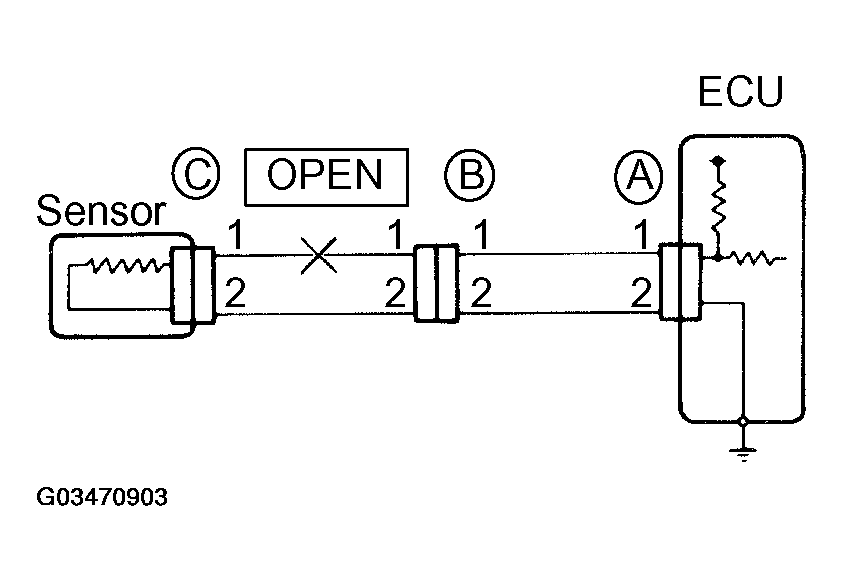

For the open circuit in the wire harness in Figure, perform "(a) Continuity Check" or "(b) Voltage Check" to locate the section.
- Check the continuity.
- Disconnect connectors "A" and "C" and measure the resistance between them.

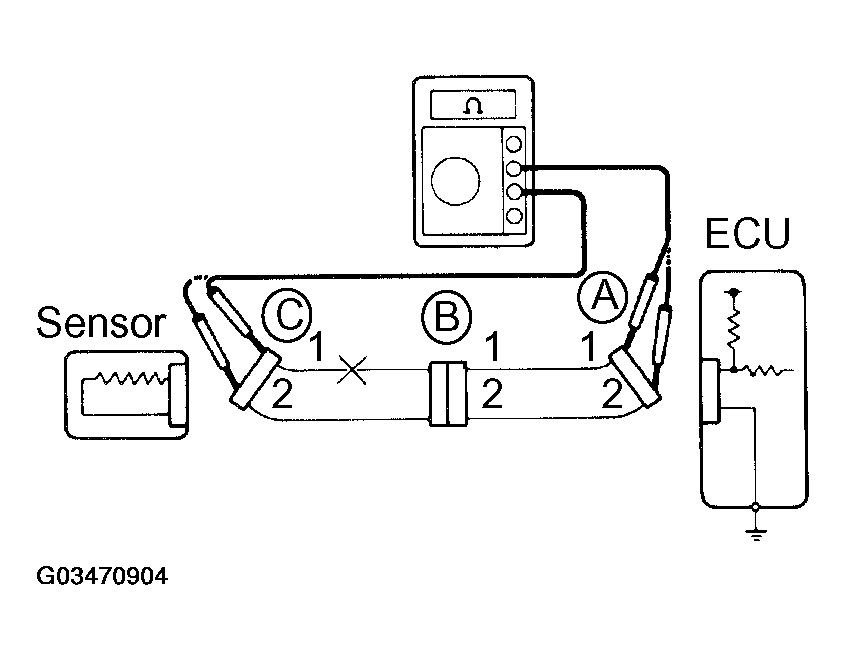

In the case of Fig 2:
Between terminal 1 of connector "A" and terminal 1 of connector "C" --> No continuity (open) Between terminal 2 of connector "A" and terminal 2 of connector "C" -> Continuity
Therefore, it is found out that there is an open circuit between terminal 1 of connector "A" and terminal 1 of connector "C".
- Disconnect connector "B" and measure the resistance between the connectors.

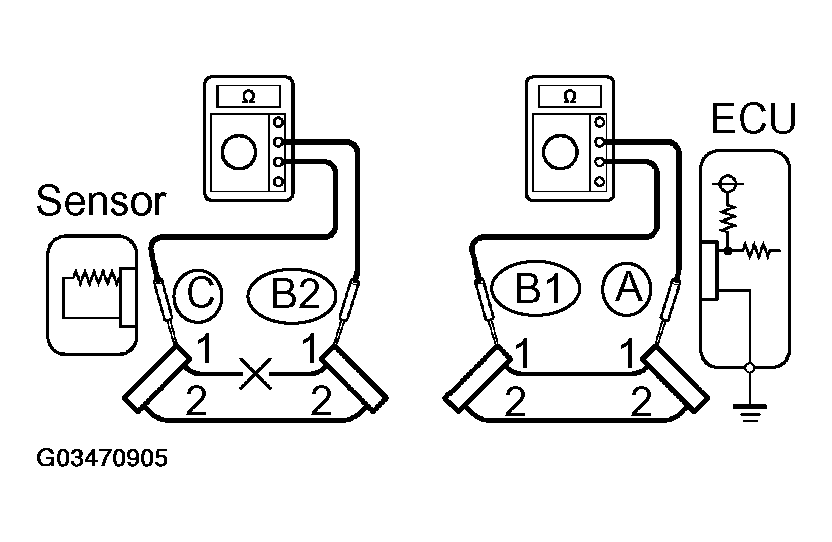

In the case of Fig 3:
Between terminal 1 of connector "A" and terminal 1 of connector "B1" --> Continuity
Between terminal 1 of connector "B2" and terminal 1 of connector "C" --> No continuity (open)
Therefore, it is found out that there is an open circuit between terminal 1 of connector "B2" and terminal 1 of connector "C".
- Disconnect connectors "A" and "C" and measure the resistance between them.
- Check the voltage.
In a circuit in which voltage is applied (to the ECU connector terminal), an open circuit can be checked for by conducting a voltage check.

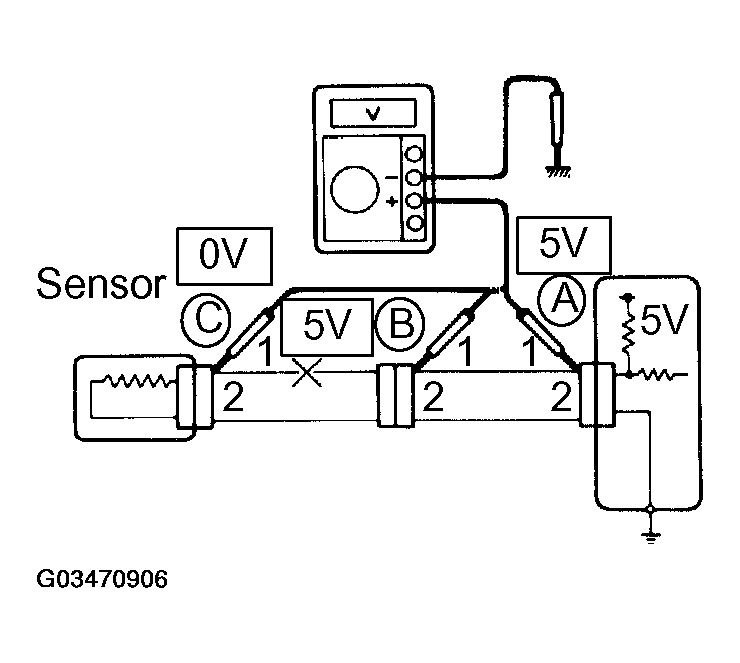

- As shown in Fig 4, with each connector still connected, measure the voltage between body ground and terminal 1 of connector "A" at the ECU 5V output terminal, terminal 1 of connector "B", and terminal 1 of connector "C", in that order.
If the results are:
5V: Between Terminal 1 of connector "A" and Body Ground
5V: Between Terminal 1 of connector "B" and Body Ground
0V: Between Terminal 1 of connector "C" and Body Ground
Then it is found out that there is an open circuit in the wire harness between terminal 1 of "B" and terminal 1 of "C".
