Air Conditioning Control Assembly
OVERHAUL1. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY LH
2. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY RH

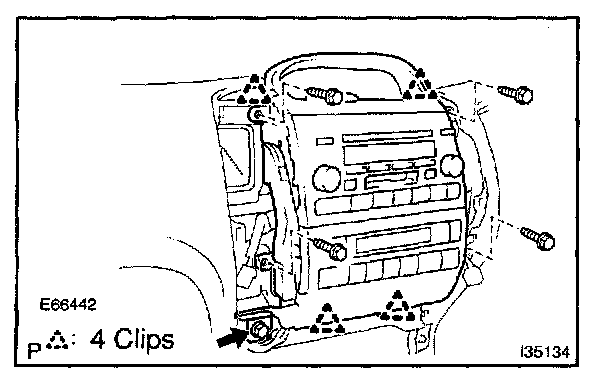

3. REMOVE INTEGRATION CONTROL & PANEL ASSY
a. Loosen the bolt and remove the 4 bolts, the 4 clips and the integration control & panel assy.
4. REMOVE RADIO BRACKET NO.1
5. REMOVE RADIO BRACKET NO.2
6. REMOVE RADIO RECEIVER ASSY (W/ EMV & NAVIGATION SYSTEM)

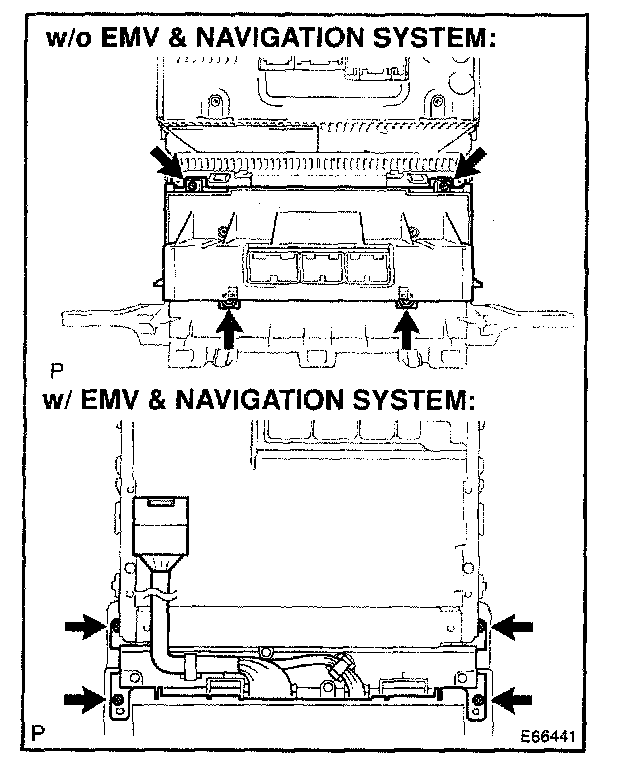

7. REMOVE AIR CONDITIONING CONTROL ASSY
a. Remove the 4 screws and the air conditioning control assy.
8. REMOVE AIRCONDITIONER AMPLIFIER ASSY (W/O EMV & NAVIGATION SYSTEM)

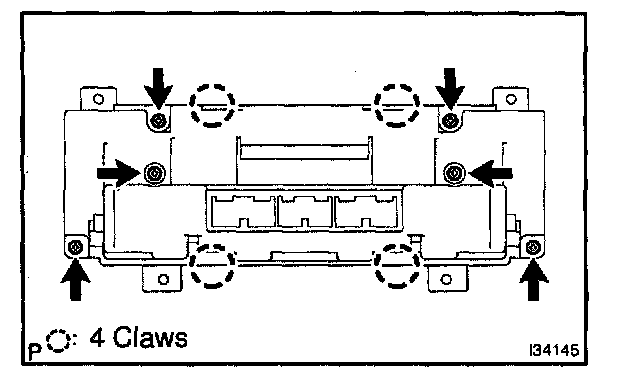

a. Release the 4 claw fittings and remove the 6 screws and the heater control housing.

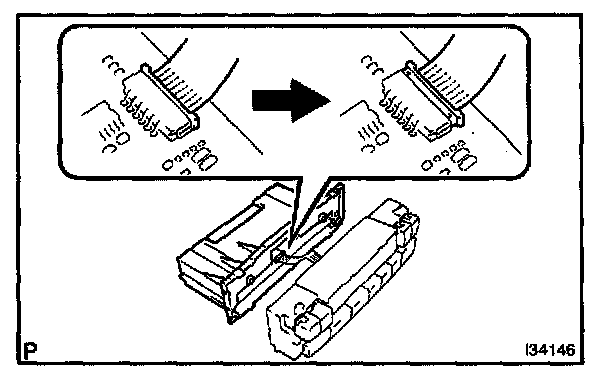

b. Release the lock of the connector and disconnect the cable.

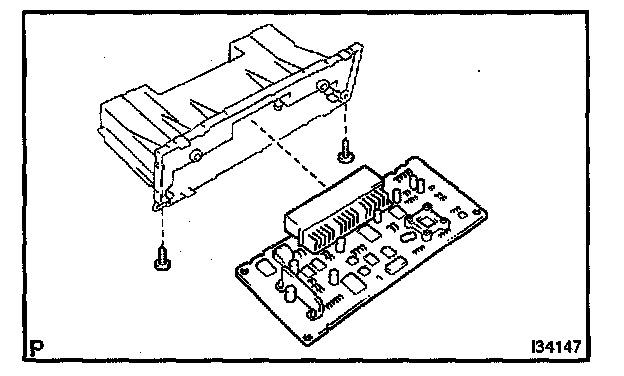

c. Remove the 2 screws and the air conditioner amplifier assy.
9. REMOVE AIR CONDITIONING CONTROL BULB (W/O EMV & NAVIGATION SYSTEM)
10. REMOVE HEATER CONTROL KNOB (W/O EMV & NAVIGATION SYSTEM)
