Rear Control Assembly

OVERHAUL

1. REMOVE CONSOLE REAR END PANEL SUB-ASSY

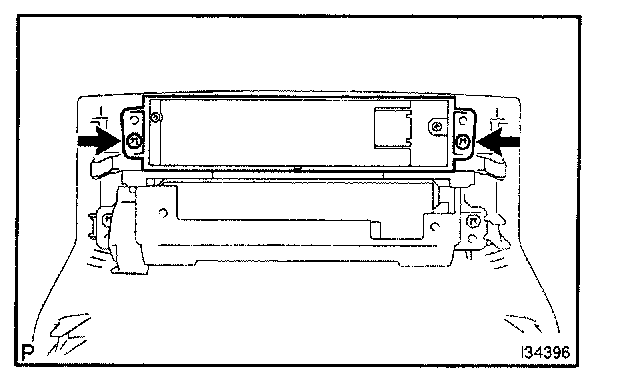

2. REMOVE AIR CONDITIONER CONTROL ASSY
a. Remove the 2 screws and the air conditioner control assy.

3. REMOVE COOLER CONTROL SWITCH KNOB
4. REMOVE HEATER CONTROL NAME SHEET NO.1

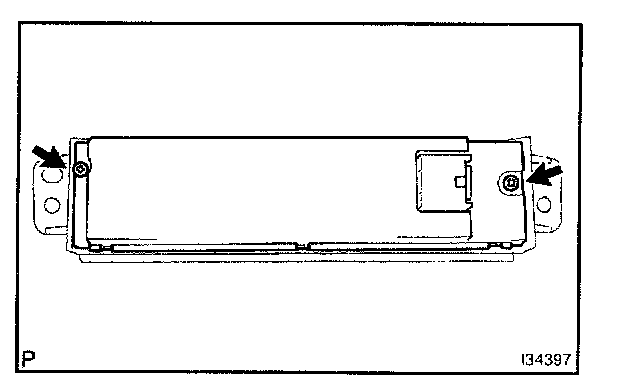

5. REMOVE HEATER CONTROL HOUSING




a. Remove the 2 screws.

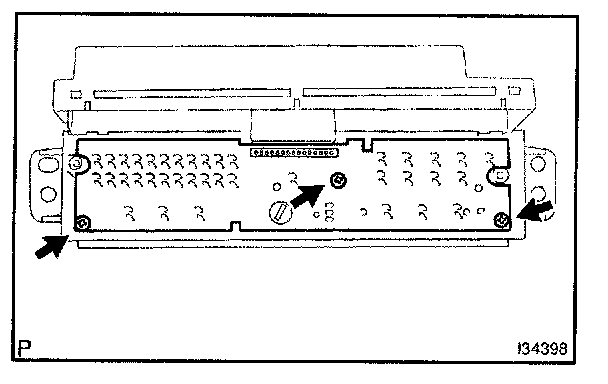

b. Remove the 3 screws and the heater control housing.

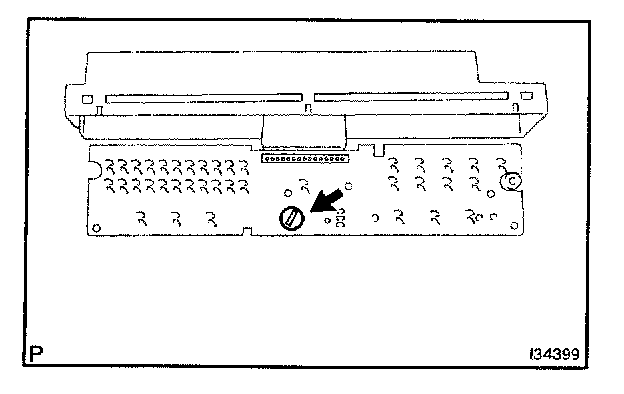

6. REMOVE AIR CONDITIONING CONTROL BULB
a. Remove the air conditioning control bulb.

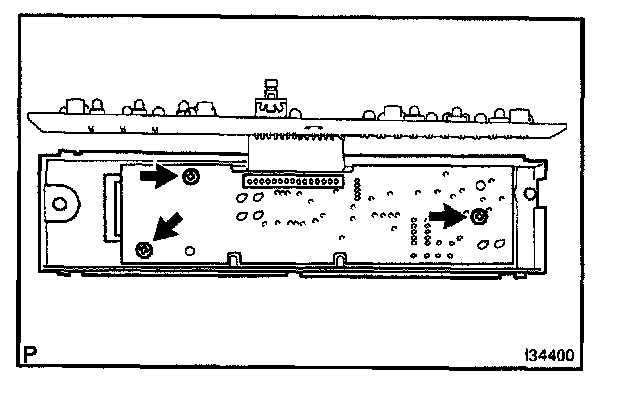

7. REMOVE INTEGRATION CONTROL & PANEL ASSY
a. Remove the 3 screws and the integration control & panel assy.
