Knock Sensor: Testing and Inspection

INSPECT KNOCK SENSOR

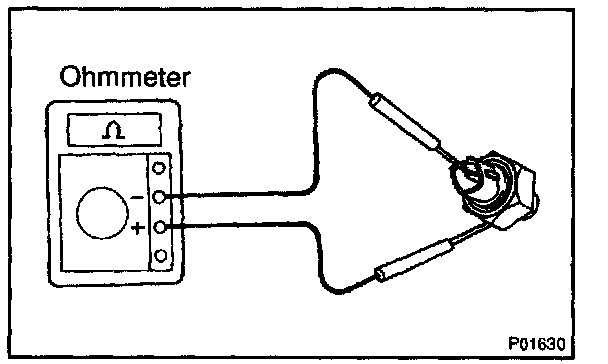

a. Continuity inspection.
1. Using an Ohmmeter,check that these is no continuity between the terminal and body.

Specified condition: No continuity
