Exhaust System: Components

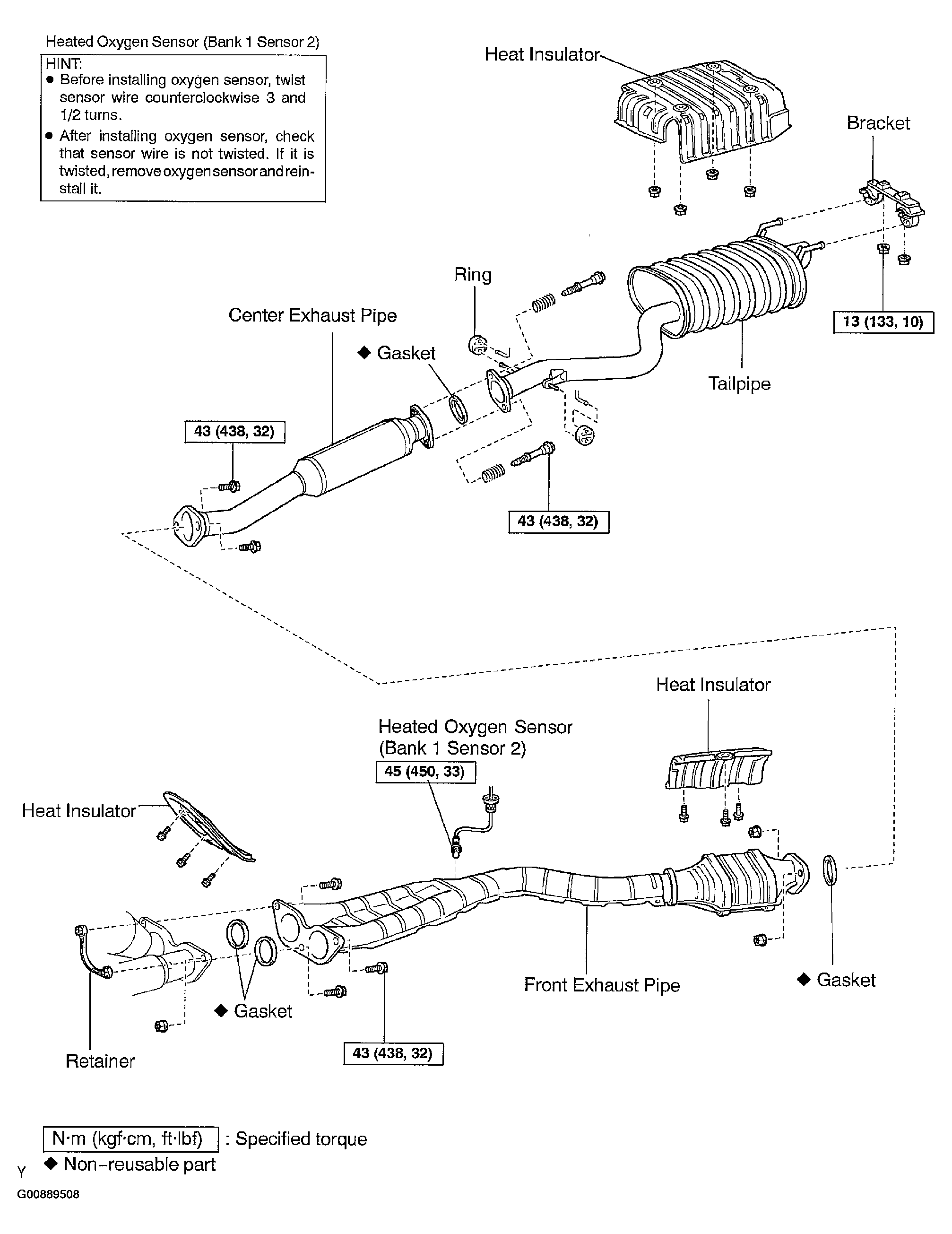

Fig 1: Identifying Components Of Exhaust System
G00889508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
