Outside Rear View Mirror: Replacement

IF NECESSARY, DISCONNECT MIRROR
1. Insert a shop rag between the mirror and the mirror body.
2. Pull up the lower side of the shop rag to disconnect the mirror joint.

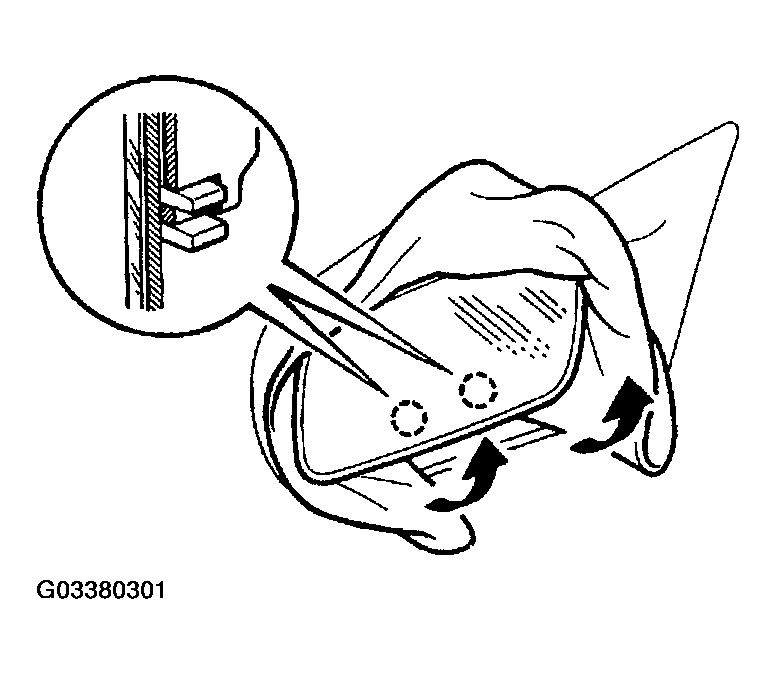

  Fig 1: Inserting Shop Rag Between Mirror And Mirror Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Pull up the mirror and disconnect it.

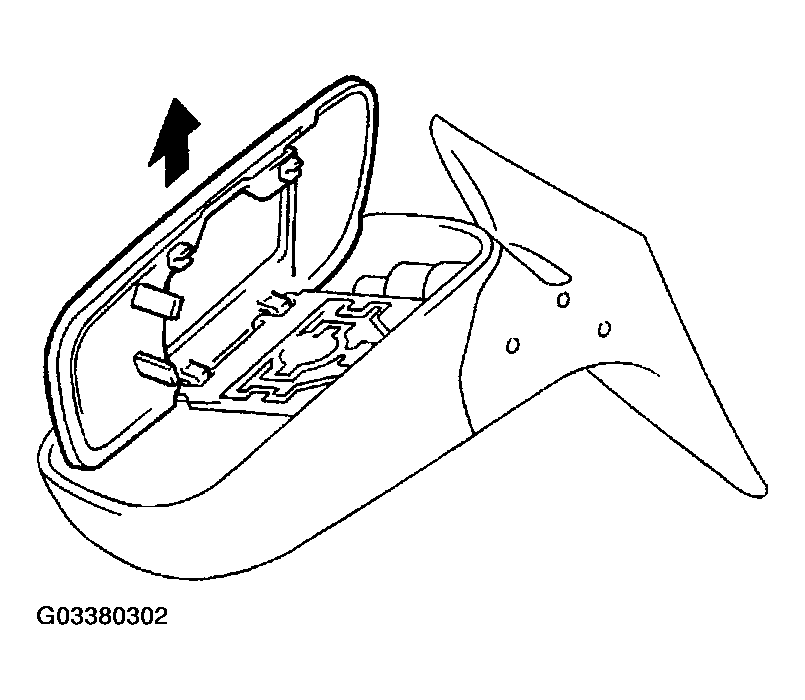

  Fig 2: Pulling Up Mirror
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect the connectors.

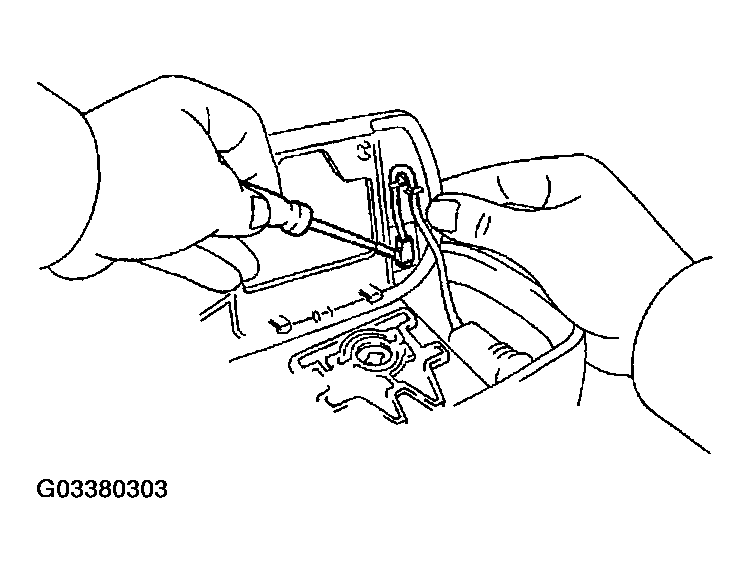

  Fig 3: Disconnecting Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT MIRROR
1. Connect the connectors.
2. Fit the claws (A) in the holes and set the mirror to the mirror body.
3. Push the mirror to fix it by fitting the claws (B) in the holes.

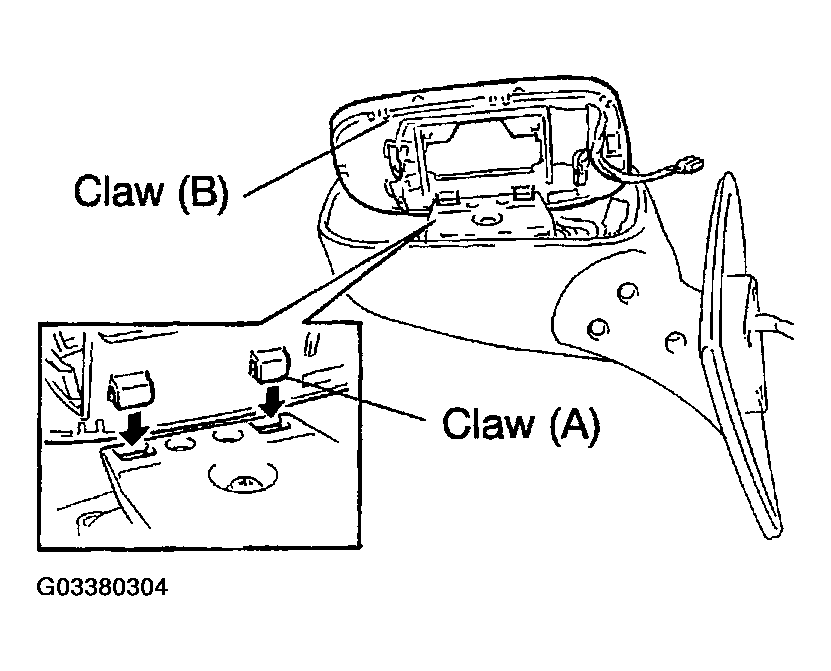

  Fig 4: Pushing Mirror To Fixing Mirror By Fitting Claws In Holes
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
