Seat Belt (Sedan): Components

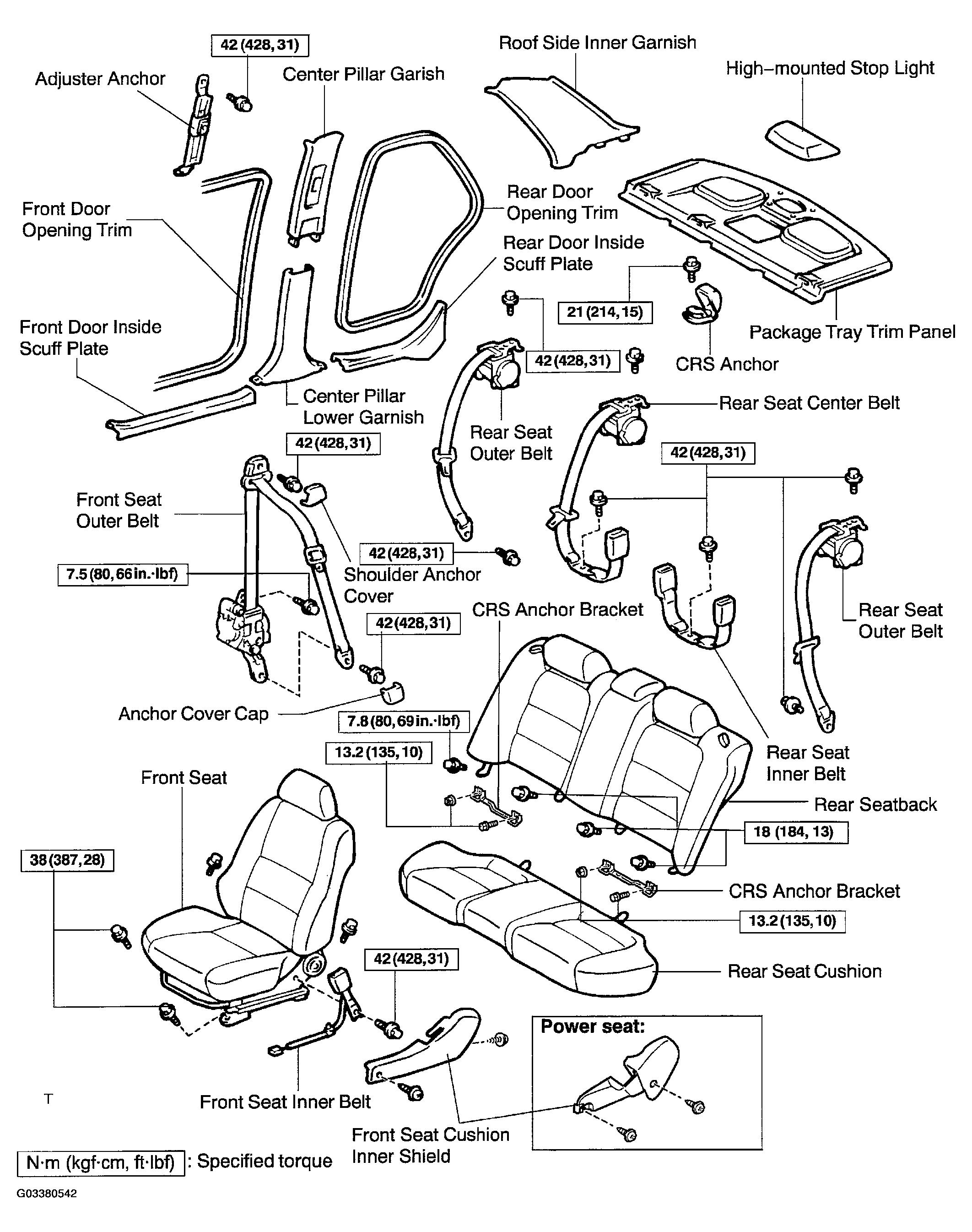

Fig 1: Exploded View Of Seat Belt (Sedan) Components
G03380542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
