Lexus Link System(R) - DTC 6 Set

ELECTRICAL
EL012-03

September 11, 2003

Title:
LEXUS LINK DTC 6

Models:
'01 - '03 LS 430

Introduction

Some customers with 2001 - 2003 model year LS 430 vehicles equipped with the Lexus Link system may encounter a condition which causes a DTC 6 code to be present in the Lexus Link system. Improvements to the Bus Buffer software have been implemented to remedy this condition on the LS 430.

Applicable Vehicles
^ 2001 - 2003 model year LS 430 vehicles.

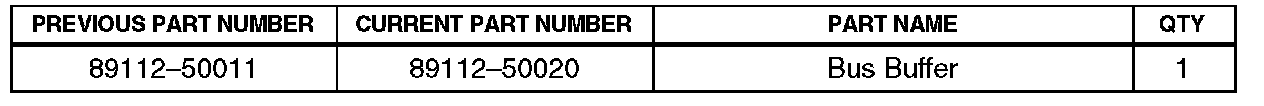

Parts Information

Repair Procedure

Refer to TIS (Technical Information System): 2003 LS 430 Repair Manual, Body Procedure Mechanical, Luggage Compartment Door and Hinge, Removal.

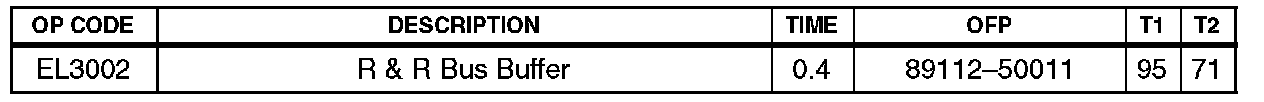

Warranty Information

Applicable Warranty **

This repair is covered under the Lexus Comprehensive Warranty. This warranty is in effect for 48 months or 50,000 miles, whichever occurs first, from the vehicle's in-service date.

** Warranty application is limited to correction of a problem based upon a customer's specific complaint.
