Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Using Toyota hand-held tester or scan tool, read FREEZE FRAME data. Freeze frame data records engine conditions when malfunction is detected.
NOTE: In order to minimize time wasted diagnosing DTCs P0442 or P0456, it is recommended to perform "Confirmation Readiness Test" first to verify EVAP system readiness status and confirmation of DTC. See TEST DRIVE CONFIRMATION .

For diagnosis and repair procedure with Toyota hand-held tester or Enhanced OBD II scan tool, see Fig 1-Fig 8 .

For diagnosis and repair procedure with generic OBD II scan tool, see Fig 9-Fig 17 .

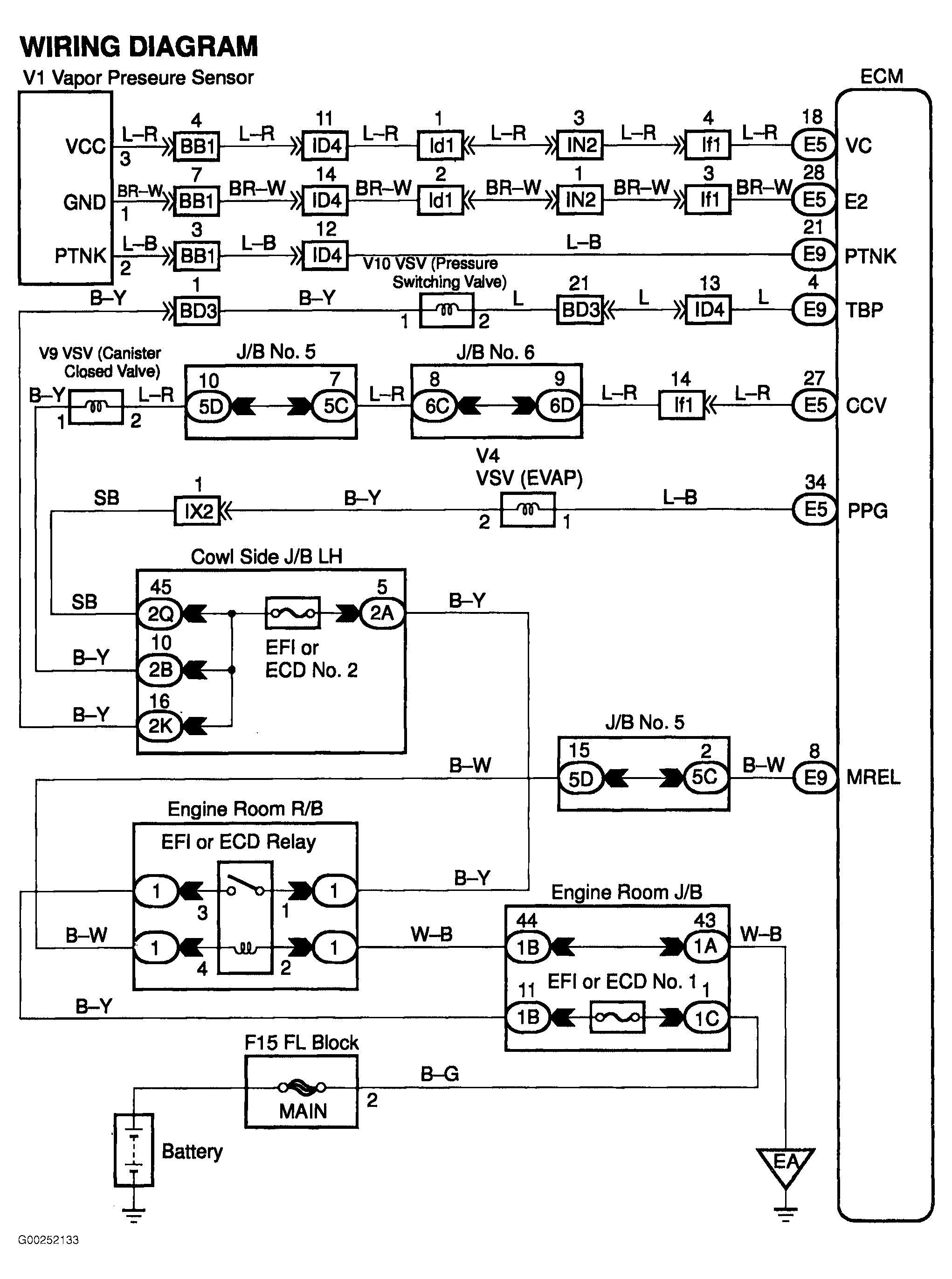

For ECM location, see Figure. For ECM connector terminal view, see Figure. For EVAP system circuit wiring diagram, see Figure. For location of emission related components, see Figure.

For vacuum or EVAP hose routing, see VACUUM DIAGRAMS article. For testing of systems or components, see SYSTEM & COMPONENT TESTING - V6 & V8 article. For removal and installation of components, see REMOVAL & INSTALLATION - V6 & V8 article.

Fig 1: DTCs P0442 & P0456 Diagnostic Procedure Using Hand Held Tester (Steps 1-3)
G00241787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

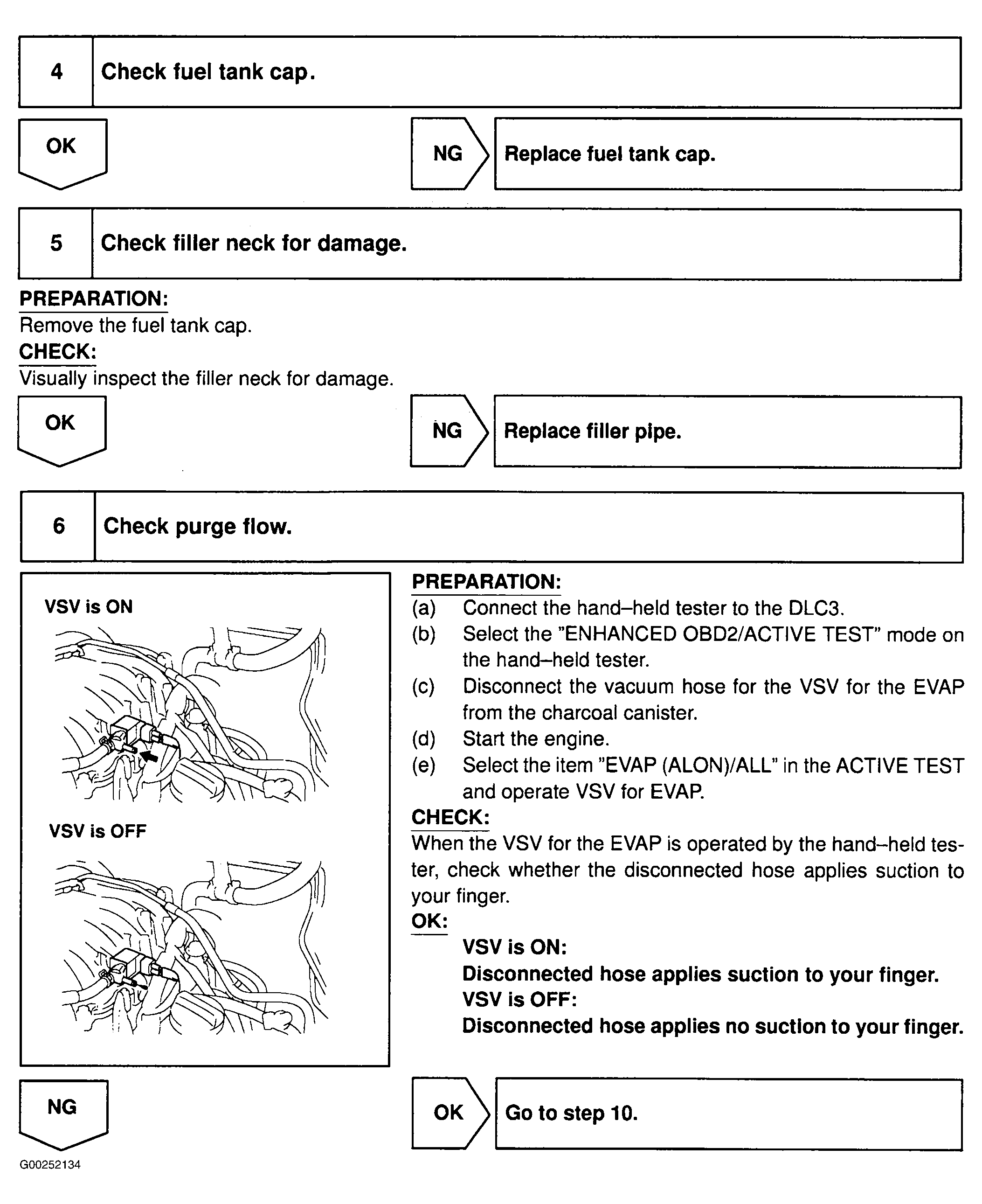

Fig 2: DTCs P0442 & P0456 Diagnostic Procedure Using Hand Held Tester (Steps 4-6)
G00252134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: DTCs P0442 & P0456 Diagnostic Procedure Using Hand Held Tester (Steps 7-9)
G00241789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

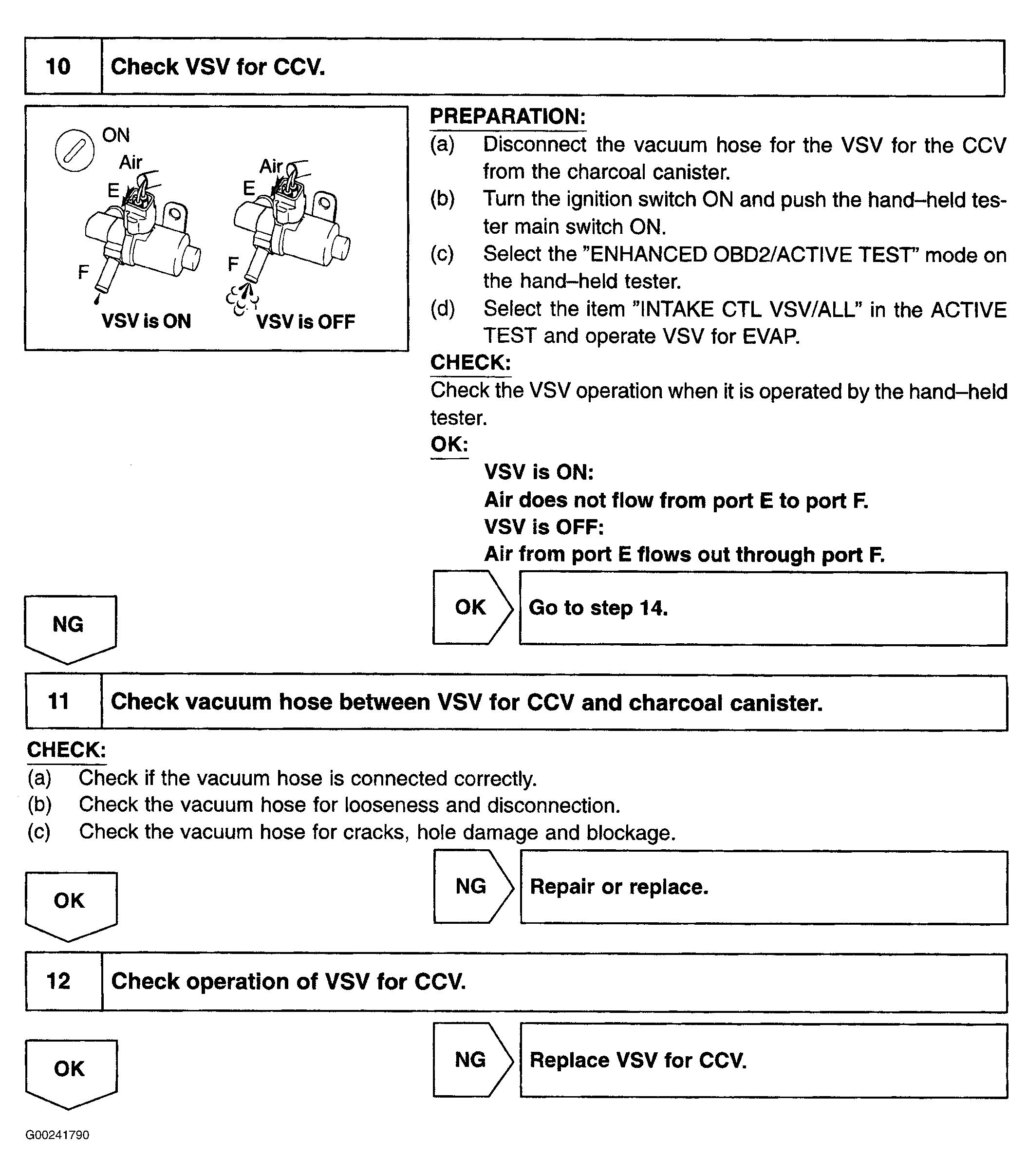

Fig 4: DTCs P0442 & P0456 Diagnostic Procedure Using Hand Held Tester (Steps 10-12)
G00241790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

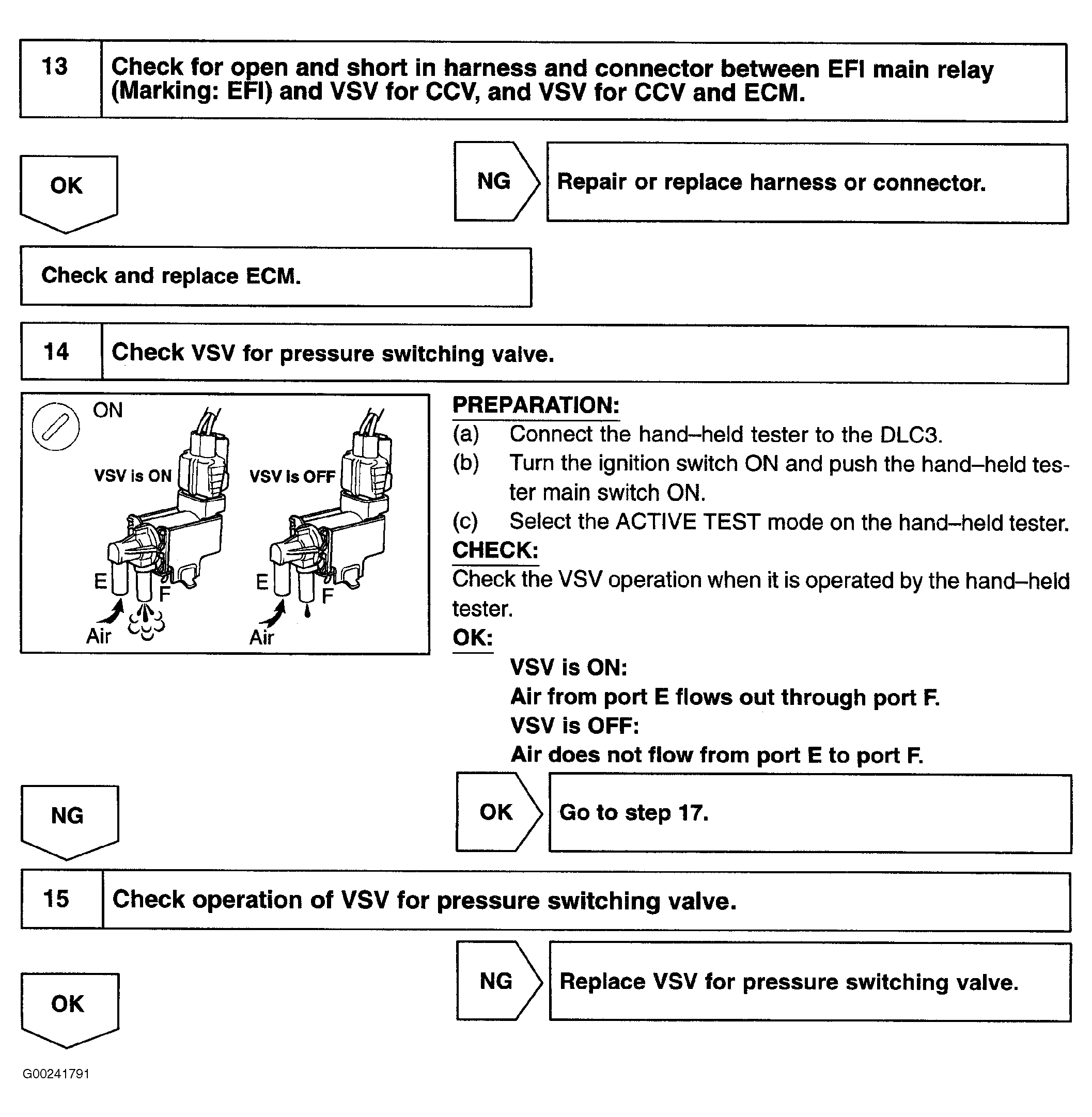

Fig 5: DTCs P0442 & P0456 Diagnostic Procedure Using Hand Held Tester (Steps 13-15)
G00241791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: DTCs P0442 & P0456 Diagnostic Procedure Using Hand Held Tester (Steps 16-18)
G00241792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: DTCs P0442 & P0456 Diagnostic Procedure Using Hand Held Tester (Steps 19-21)
G00241793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

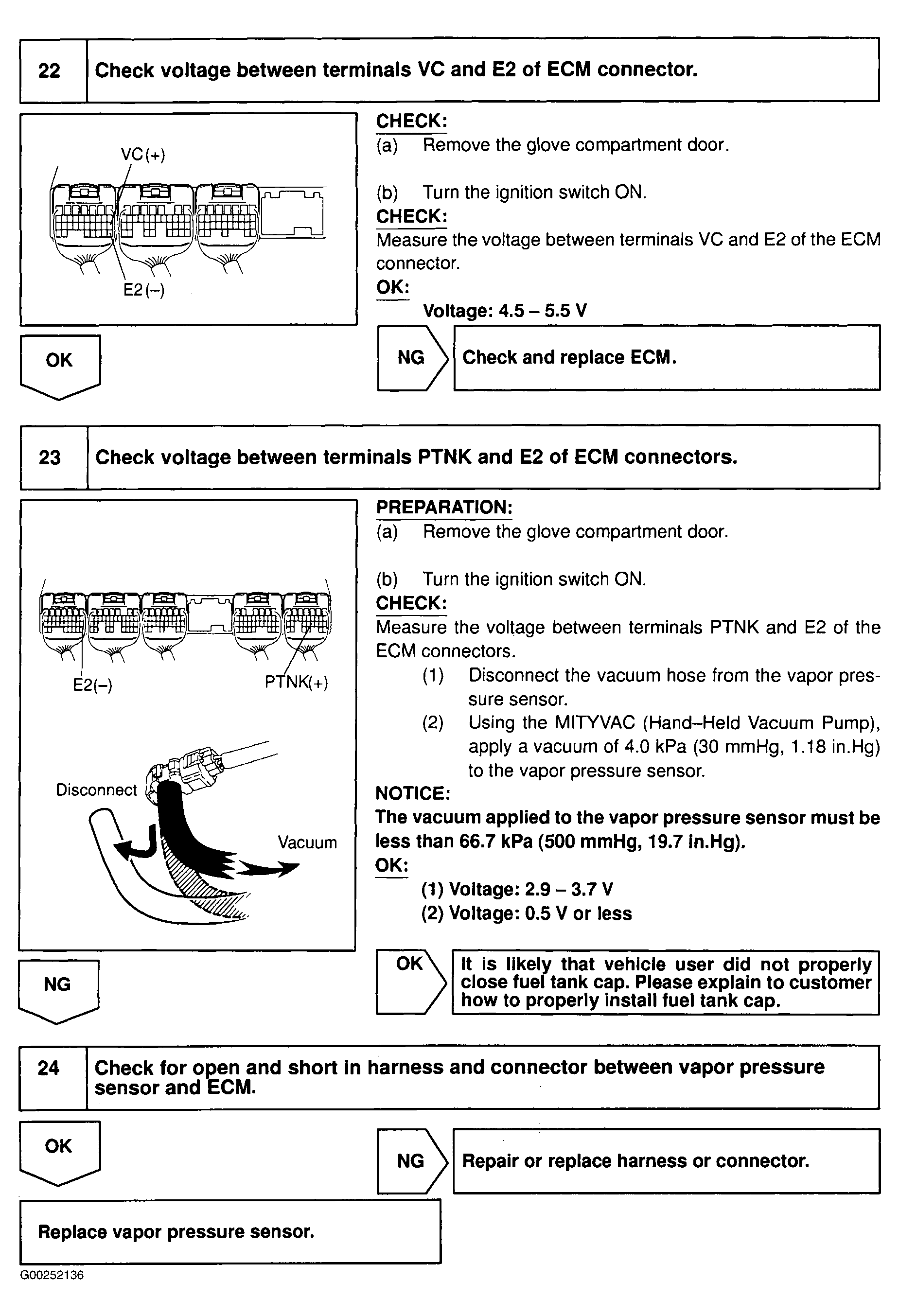

Fig 8: DTCs P0442 & P0456 Diagnostic Procedure Using Hand Held Tester (Steps 22-24)
G00252136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

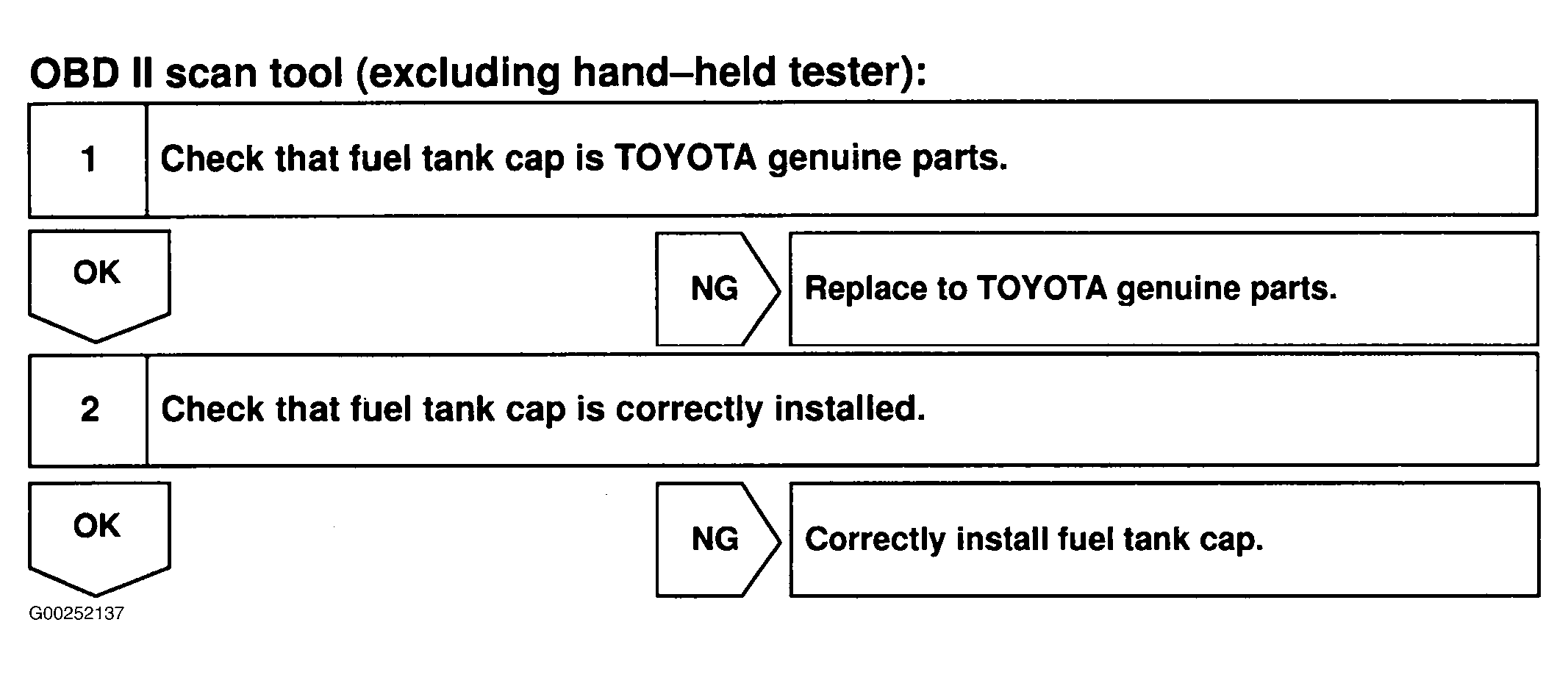

Fig 9: DTCs P0442 & P0456 Diagnostic Procedure Using OBD II Scan Tool (Steps 1-2)
G00252137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 10: DTCs P0442 & P0456 Diagnostic Procedure Using OBD II Scan Tool (Steps 3-5)
G00241796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 11: DTCs P0442 & P0456 Diagnostic Procedure Using OBD II Scan Tool (Steps 6-8)
G00241797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

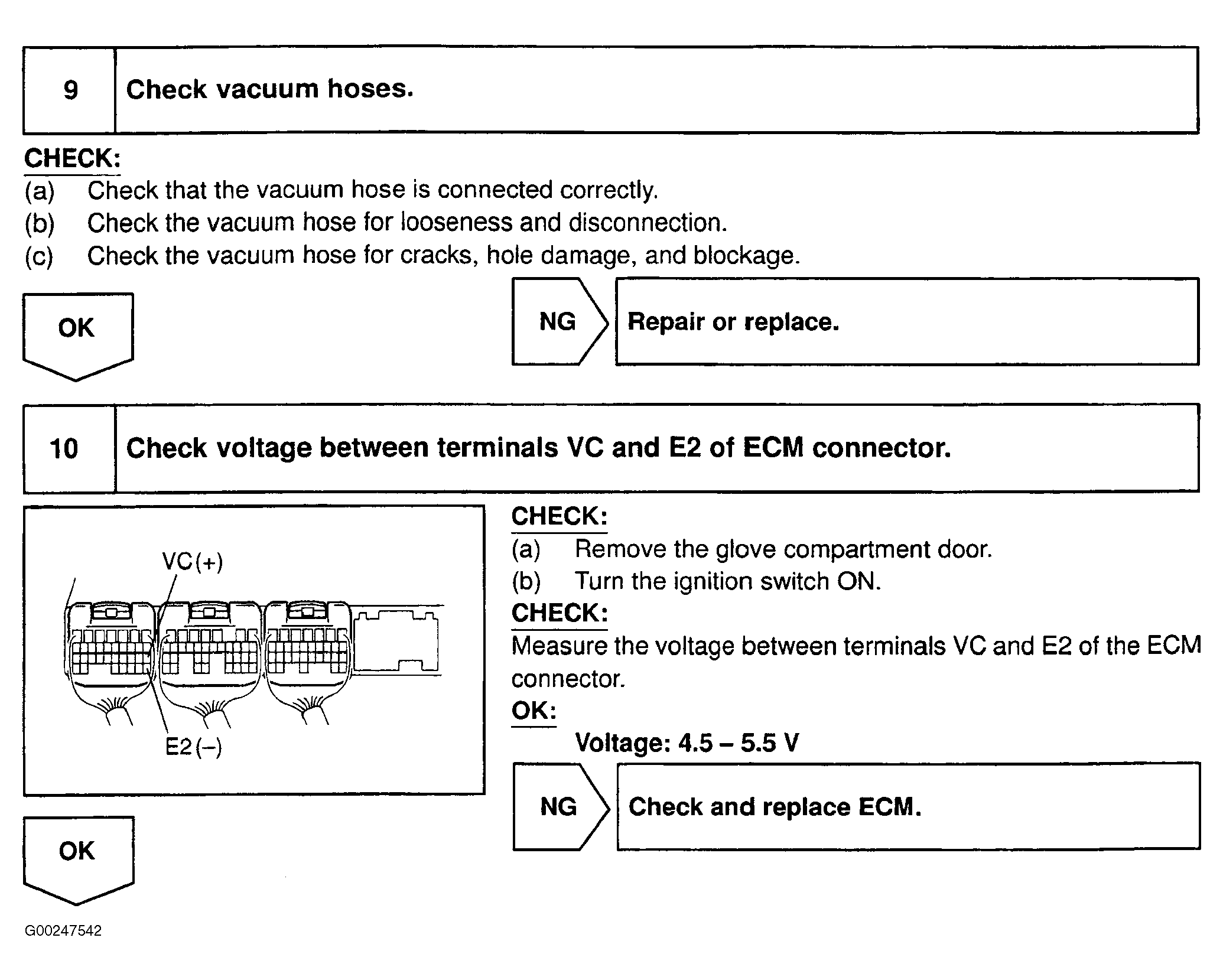

Fig 12: DTCs P0442 & P0456 Diagnostic Procedure Using OBD II Scan Tool (Steps 9-10)
G00247542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

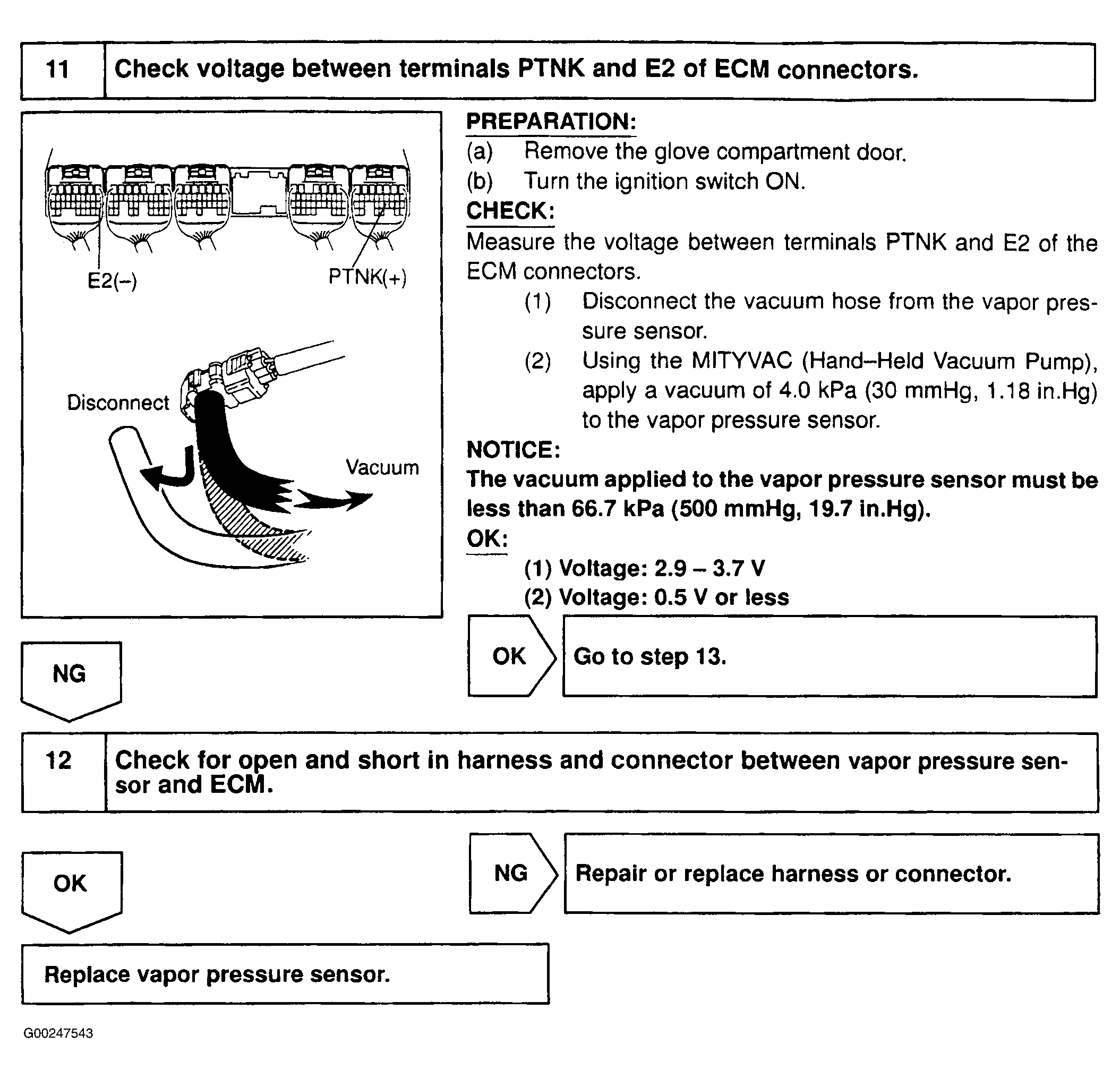

Fig 13: DTCs P0442 & P0456 Diagnostic Procedure Using OBD II Scan Tool (Steps 11-12)
G00247543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

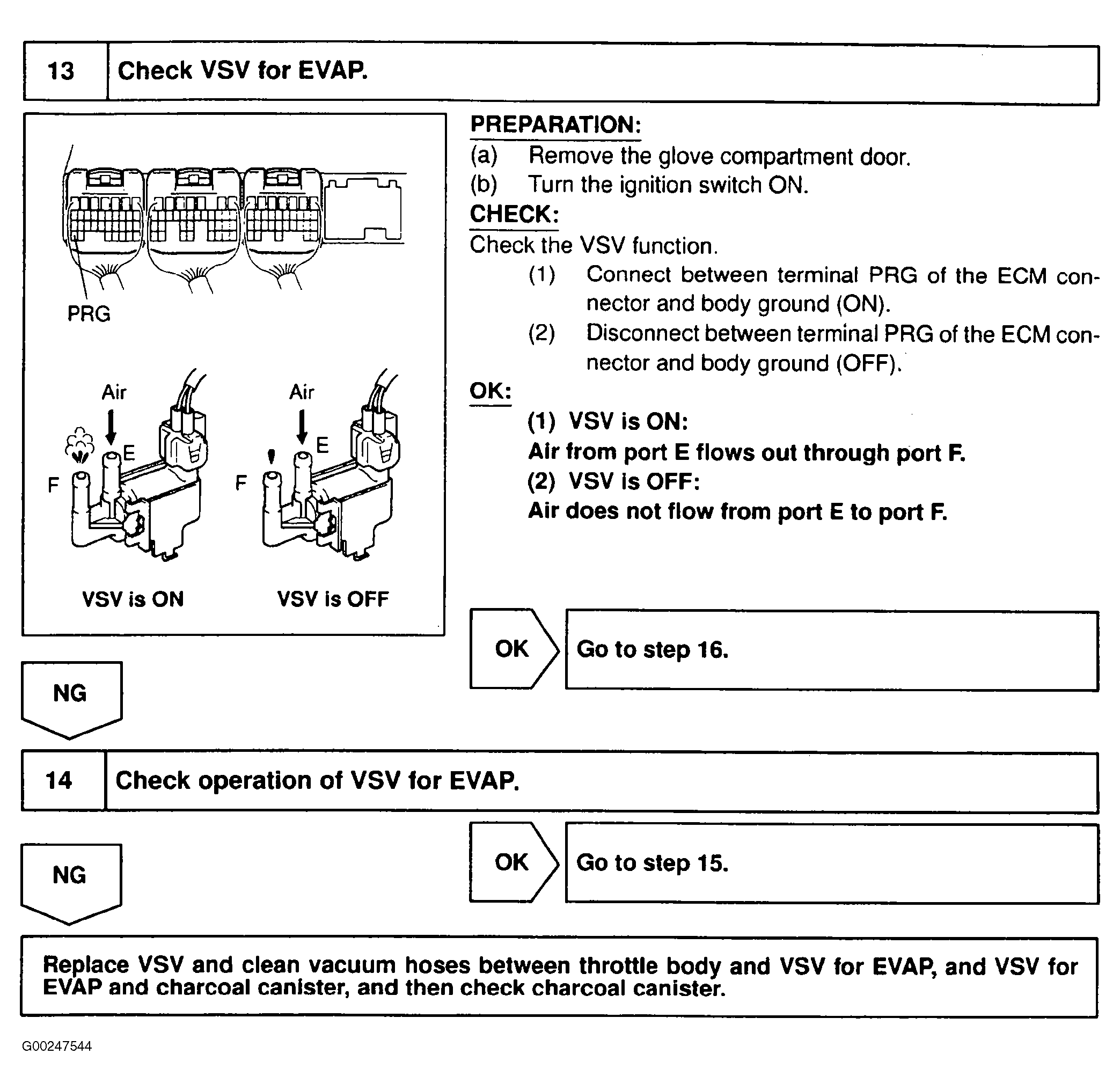

Fig 14: DTCs P0442 & P0456 Diagnostic Procedure Using OBD II Scan Tool (Steps 13-14)
G00247544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

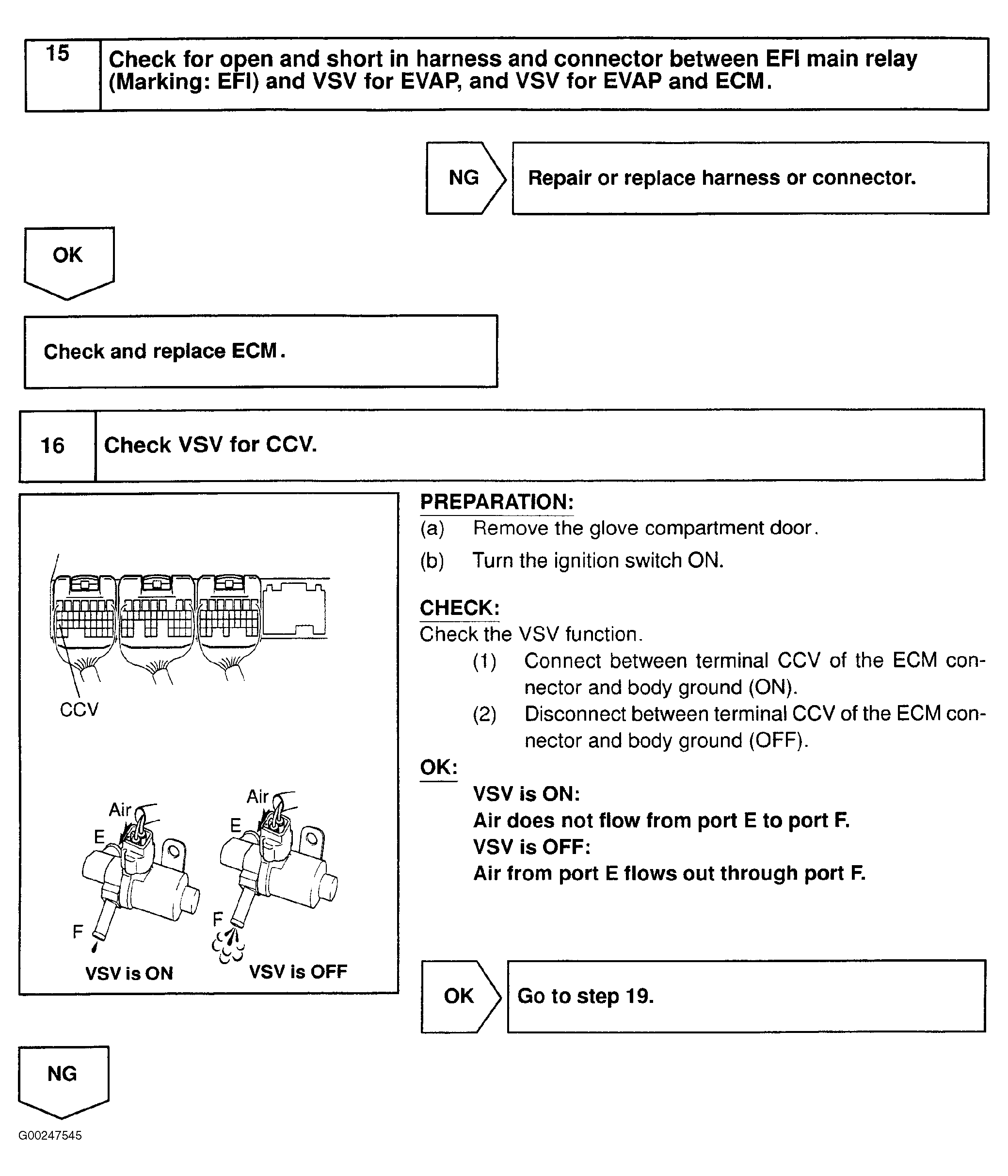

Fig 15: DTCs P0442 & P0456 Diagnostic Procedure Using OBD II Scan Tool (Steps 15-16)
G00247545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

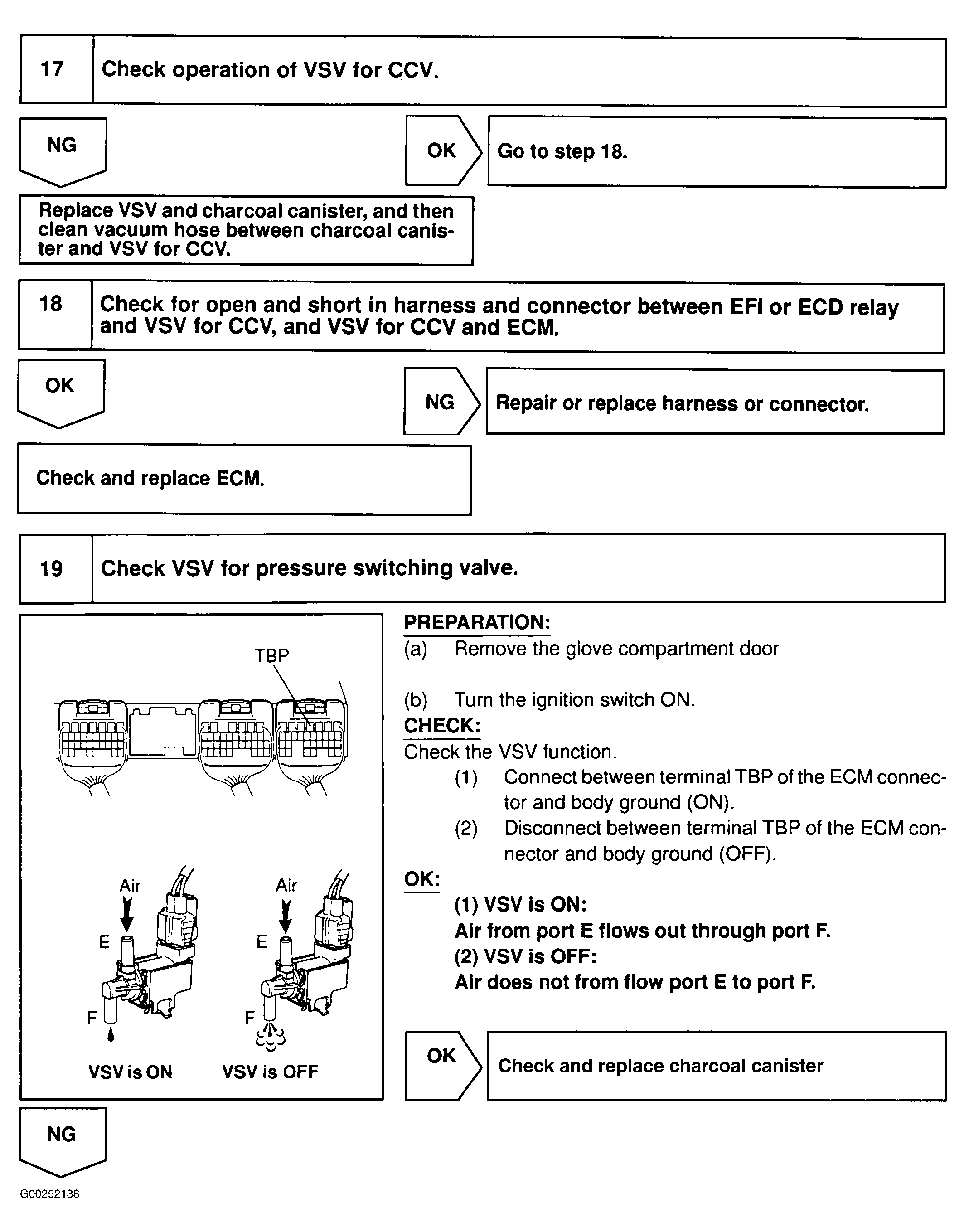

Fig 16: DTCs P0442 & P0456 Diagnostic Procedure Using OBD II Scan Tool (Steps 17-19)
G00252138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

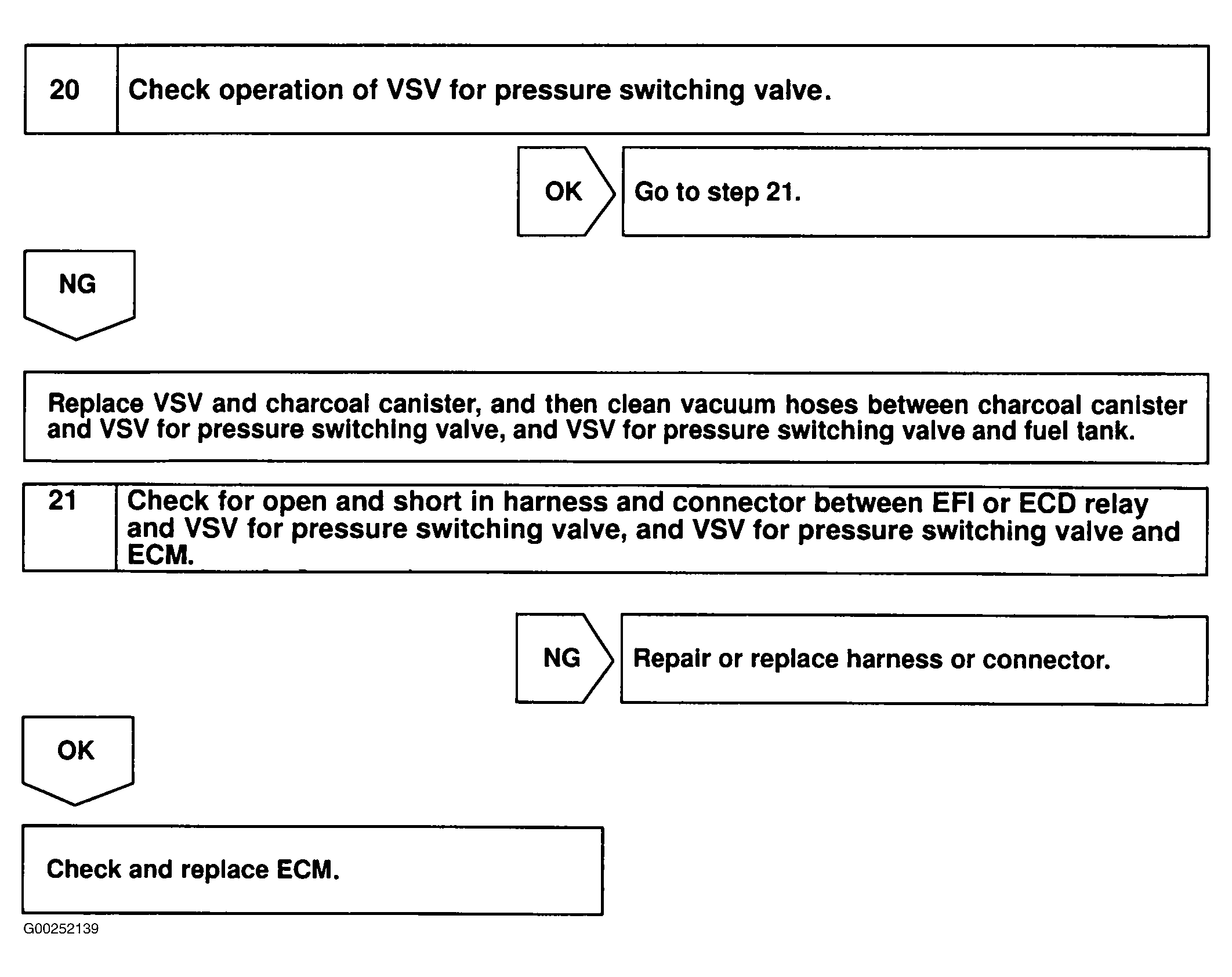

Fig 17: DTCs P0442 & P0456 Diagnostic Procedure Using OBD II Scan Tool (Steps 20-21)
G00252139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
