Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Using Toyota hand-held tester or scan tool, read FREEZE FRAME data. Freeze frame data records engine conditions when malfunction is detected.

For diagnosis and repair procedure with Toyota Hand-held tester or an Enhanced OBD II scan tool, see Fig 1-Fig 21 .

For diagnosis and repair procedure with OBD II scan tool (Non Enhanced), see Fig 22-Fig 30 .

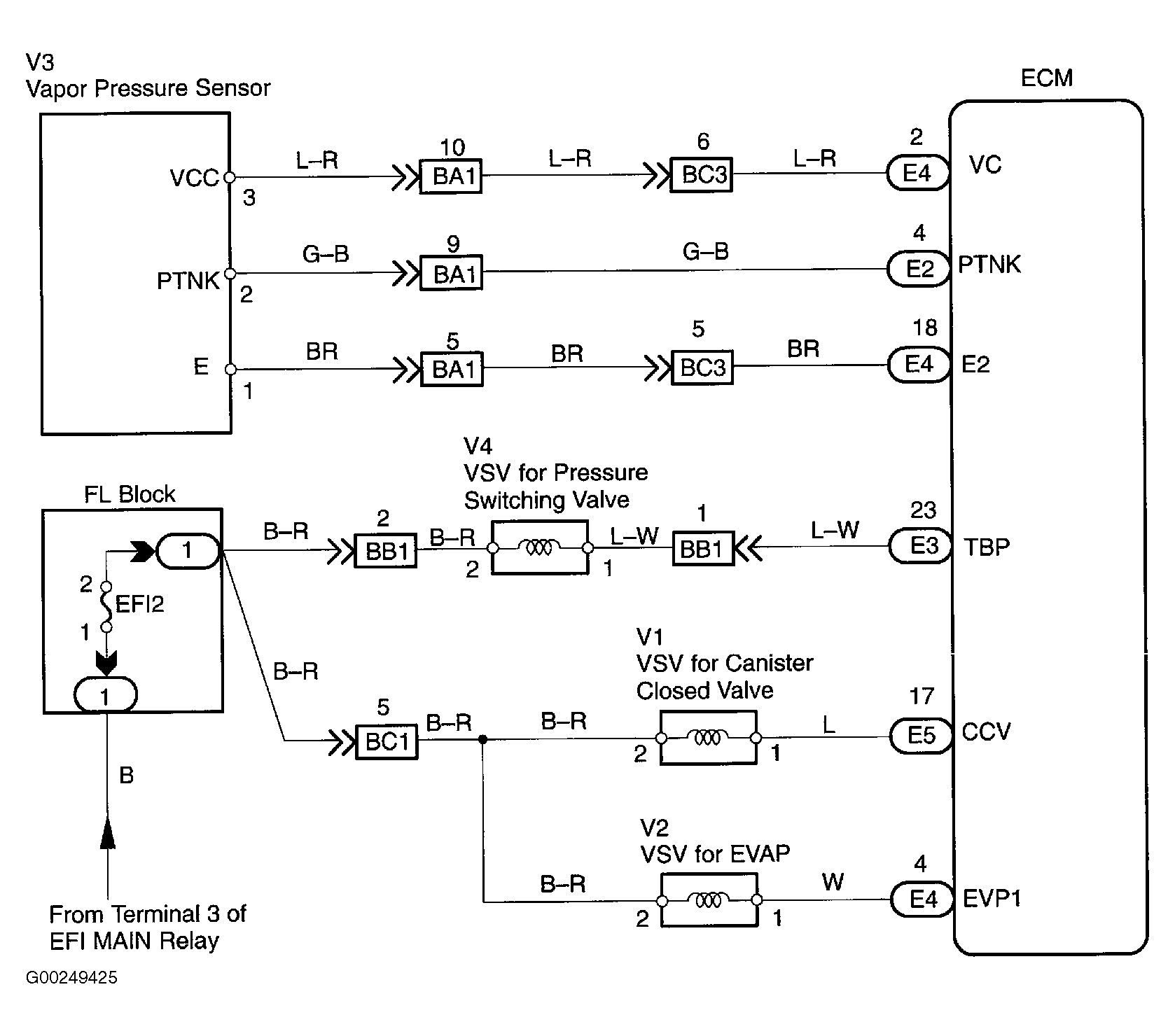

For EVAP system circuit wiring diagram, see Figure. For location of emission related components, see Figure.

For ECM location, see Figure. For ECM connector terminal view, see Figure.

For vacuum or EVAP hose routing, see VACUUM DIAGRAMS article. For testing of systems or components, see SYSTEM & COMPONENT TESTING - 4-CYLINDER article. For removal and installation of components, see REMOVAL & INSTALLATION - 4-CYLINDER article.

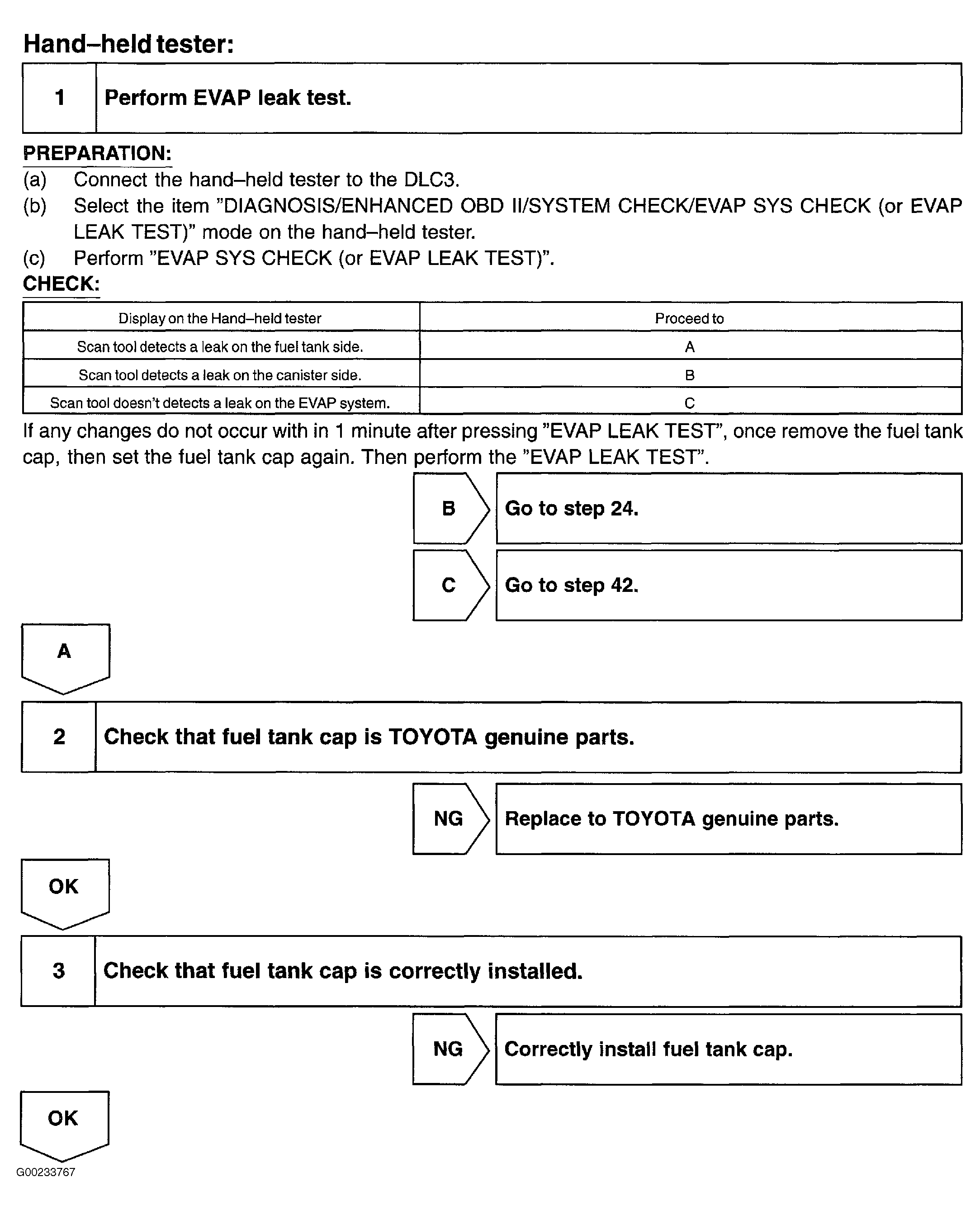

Fig 1: DTCs P0441 & P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 1-3)

G00233767

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

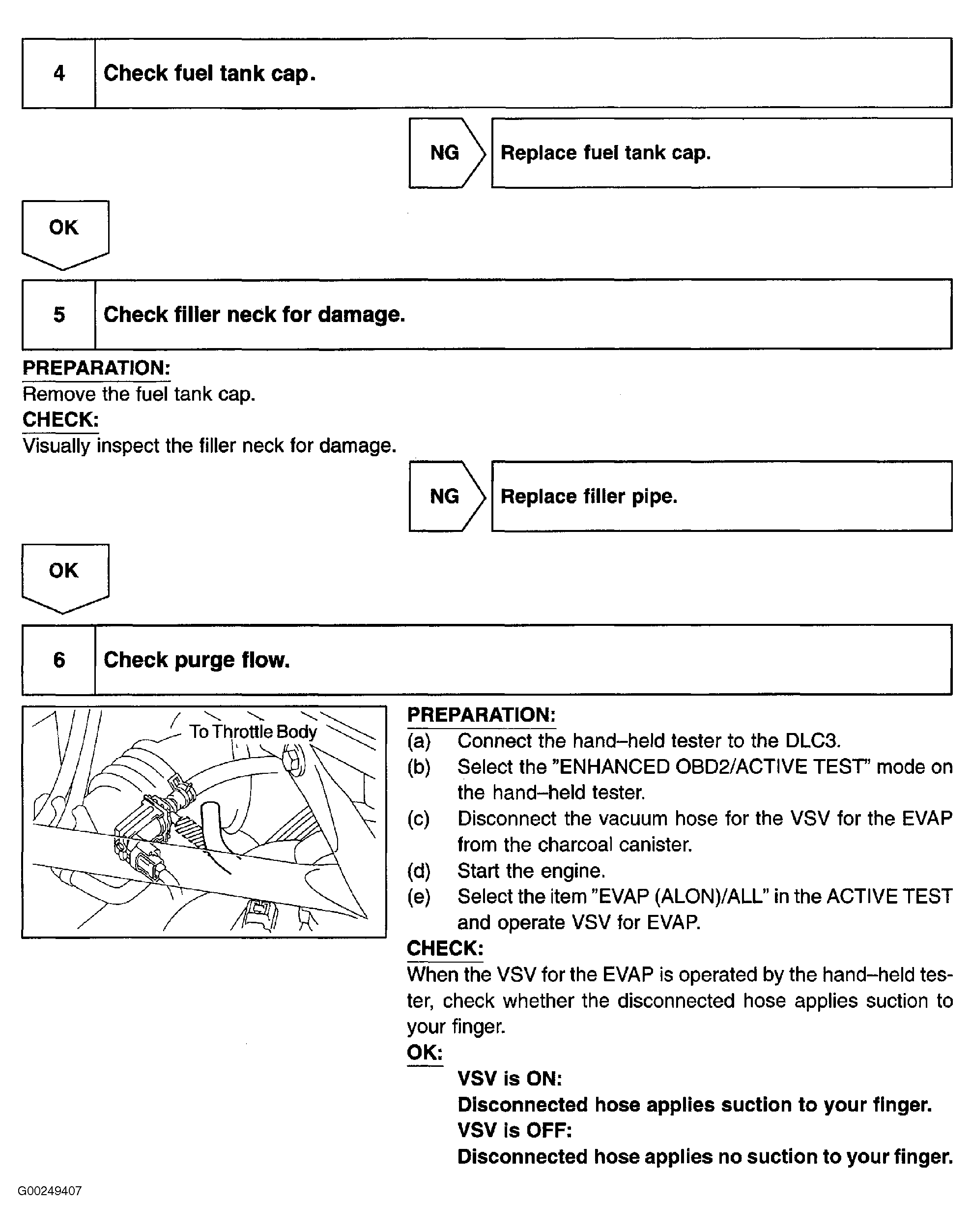

Fig 2: DTCs P0441 & P0446 Diagnostic Procedure Using Toyota Hand Held Tester (Steps 4-6)

G00249407

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

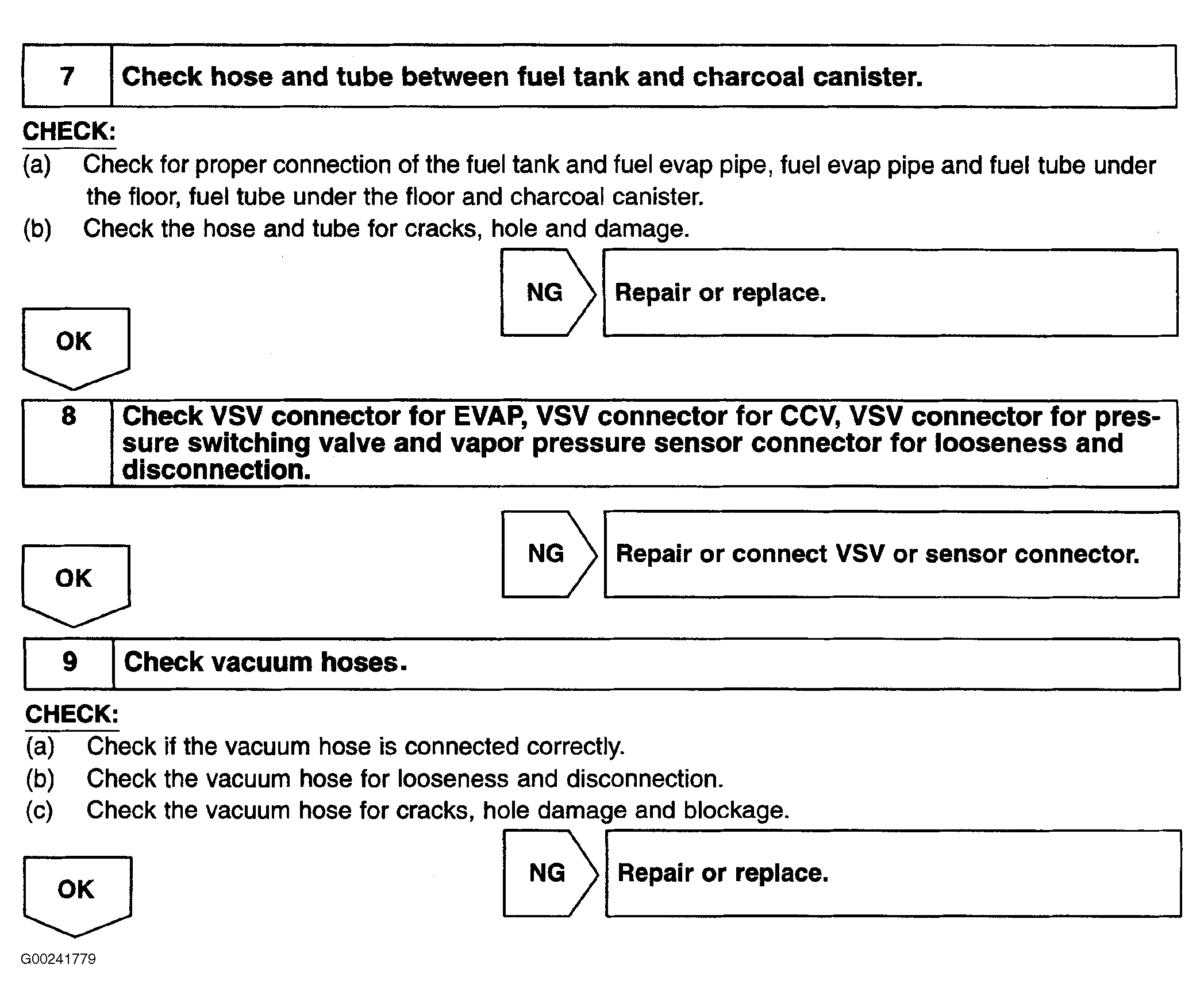

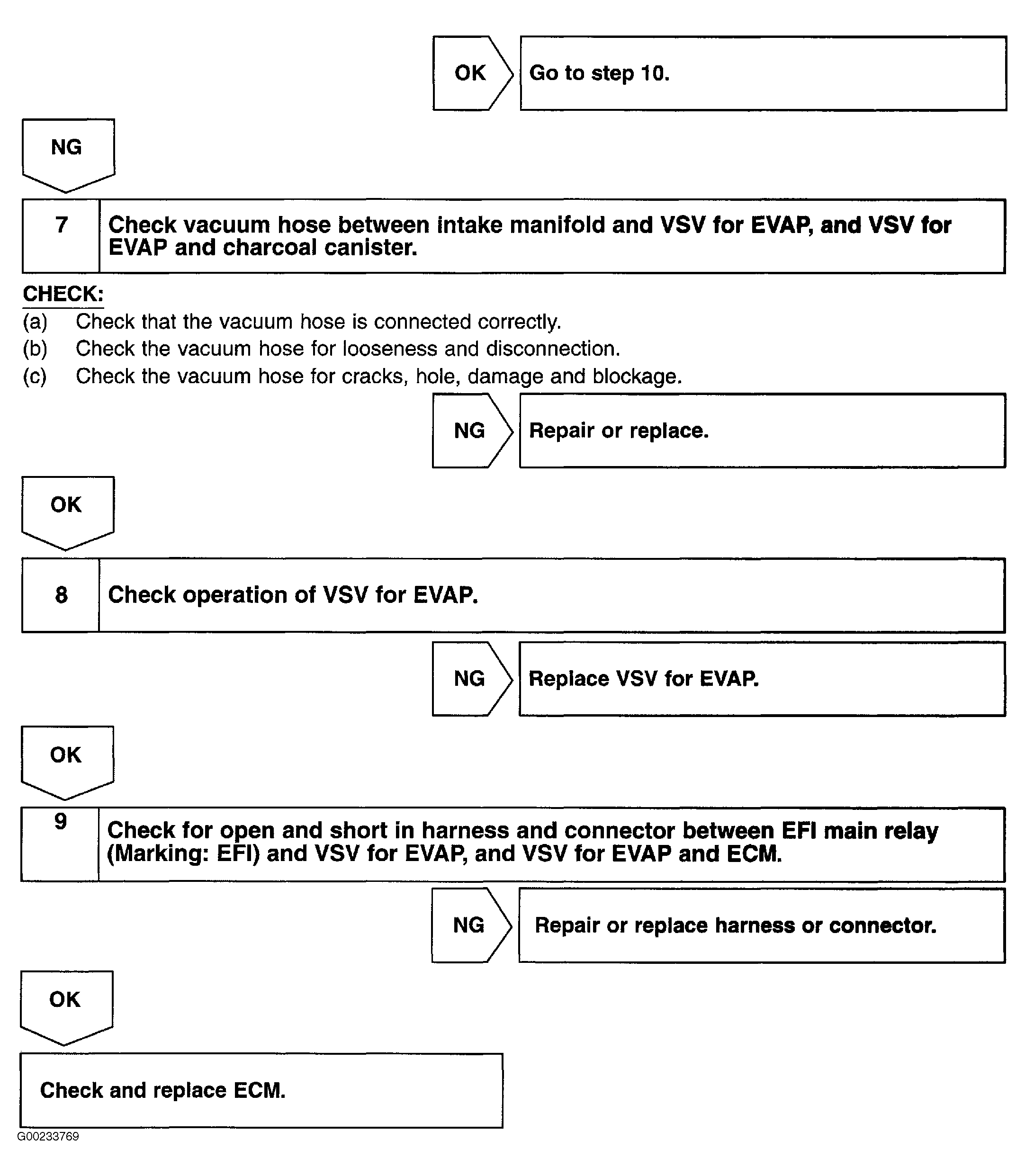

Fig 3: DTCs P0441 & P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 7-9)

G00233769

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

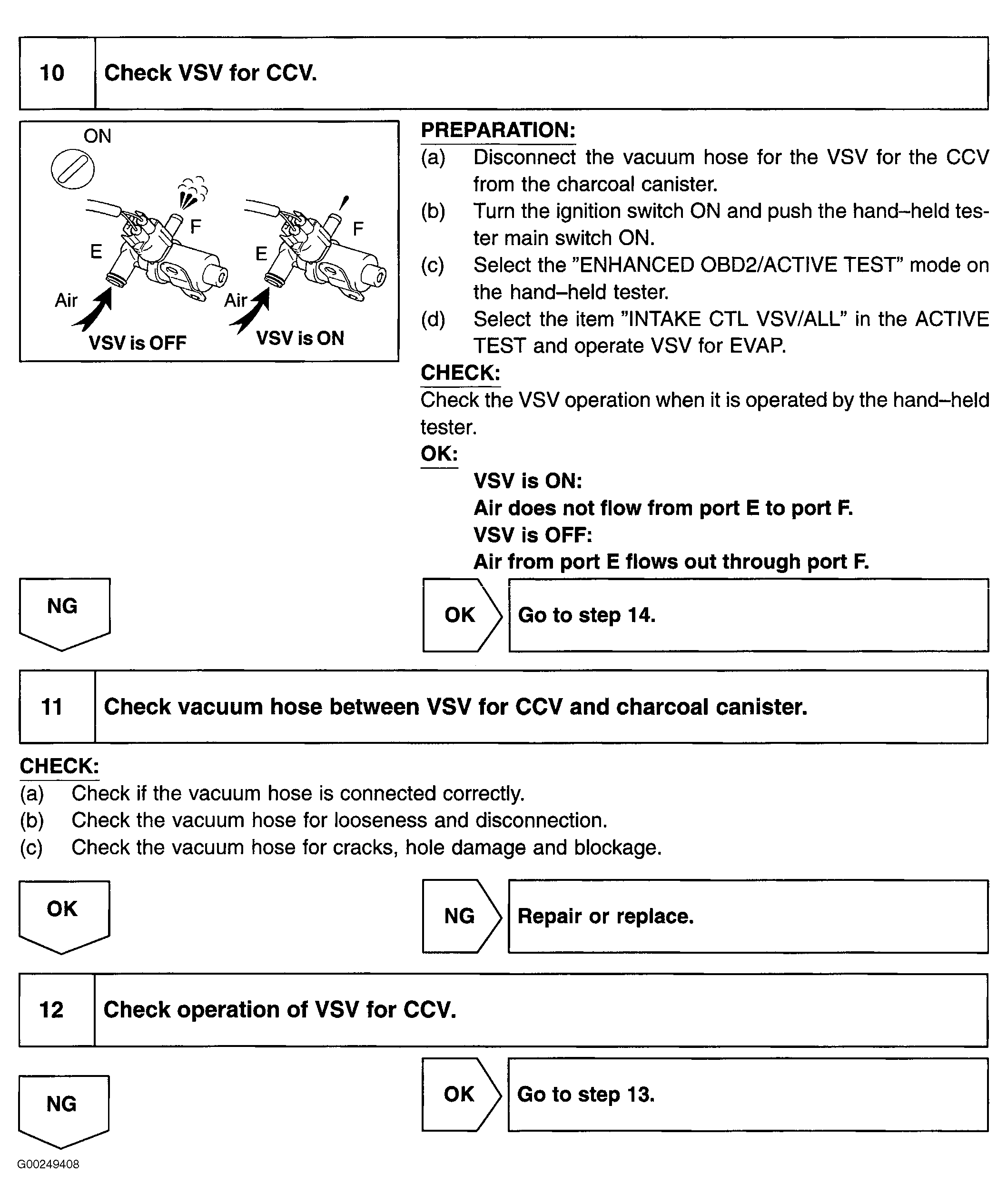

Fig 4: DTCs P0441 & P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 10-12)

G00249408

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

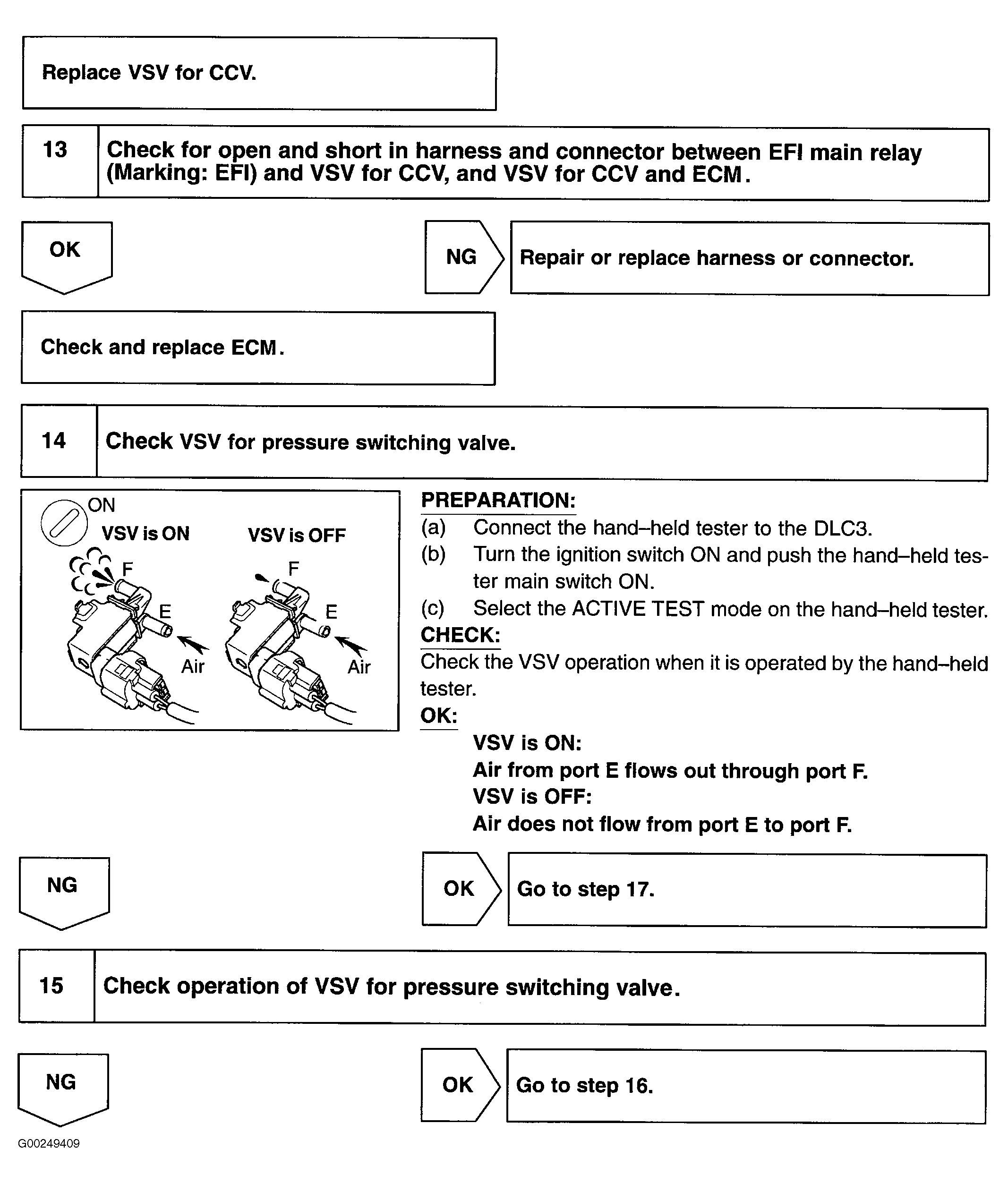

Fig 5: DTCs P0441 & P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 13-15)

G00249409

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

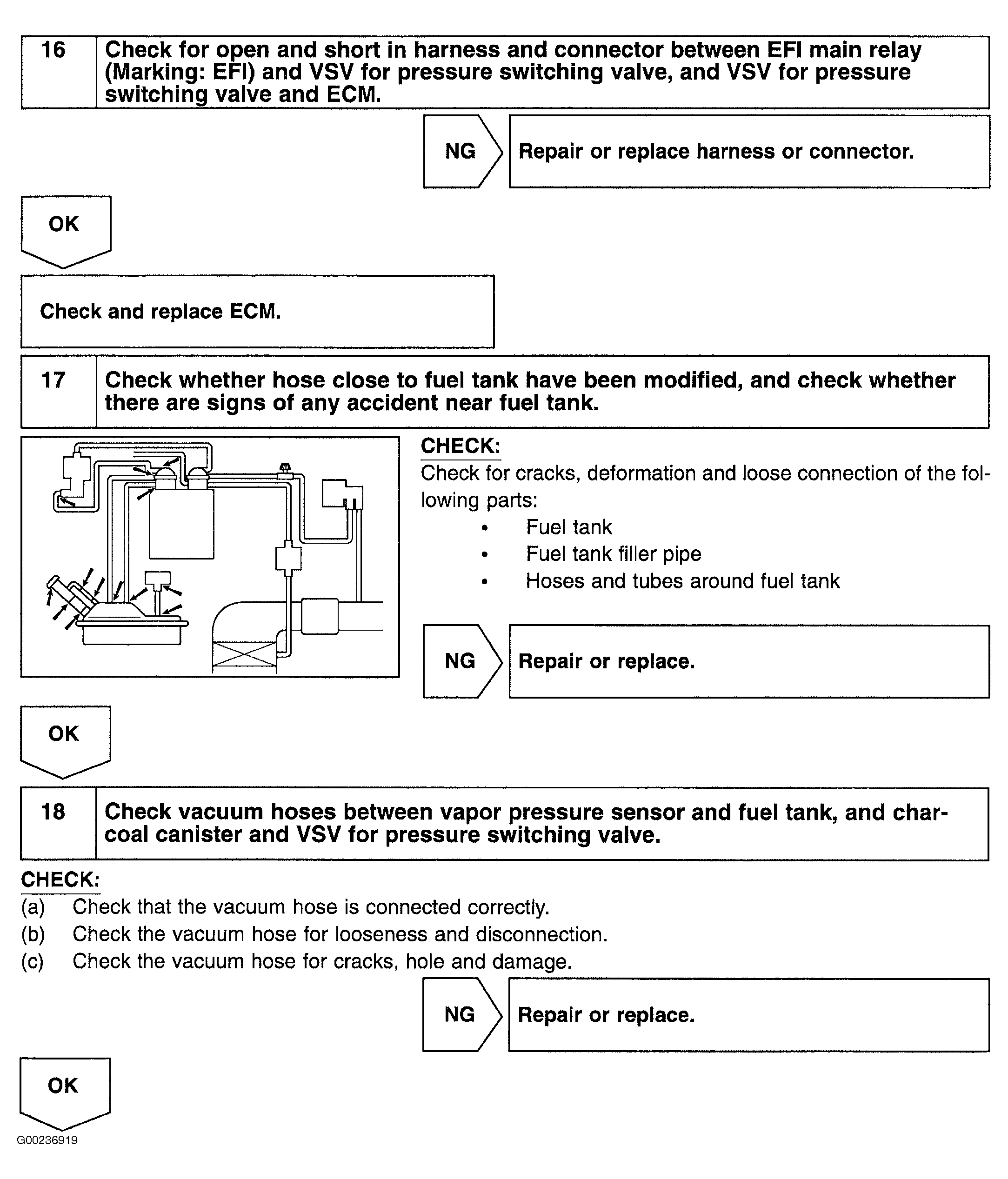

Fig 6: DTCs P0441 & P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 16-18)

G00236919

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

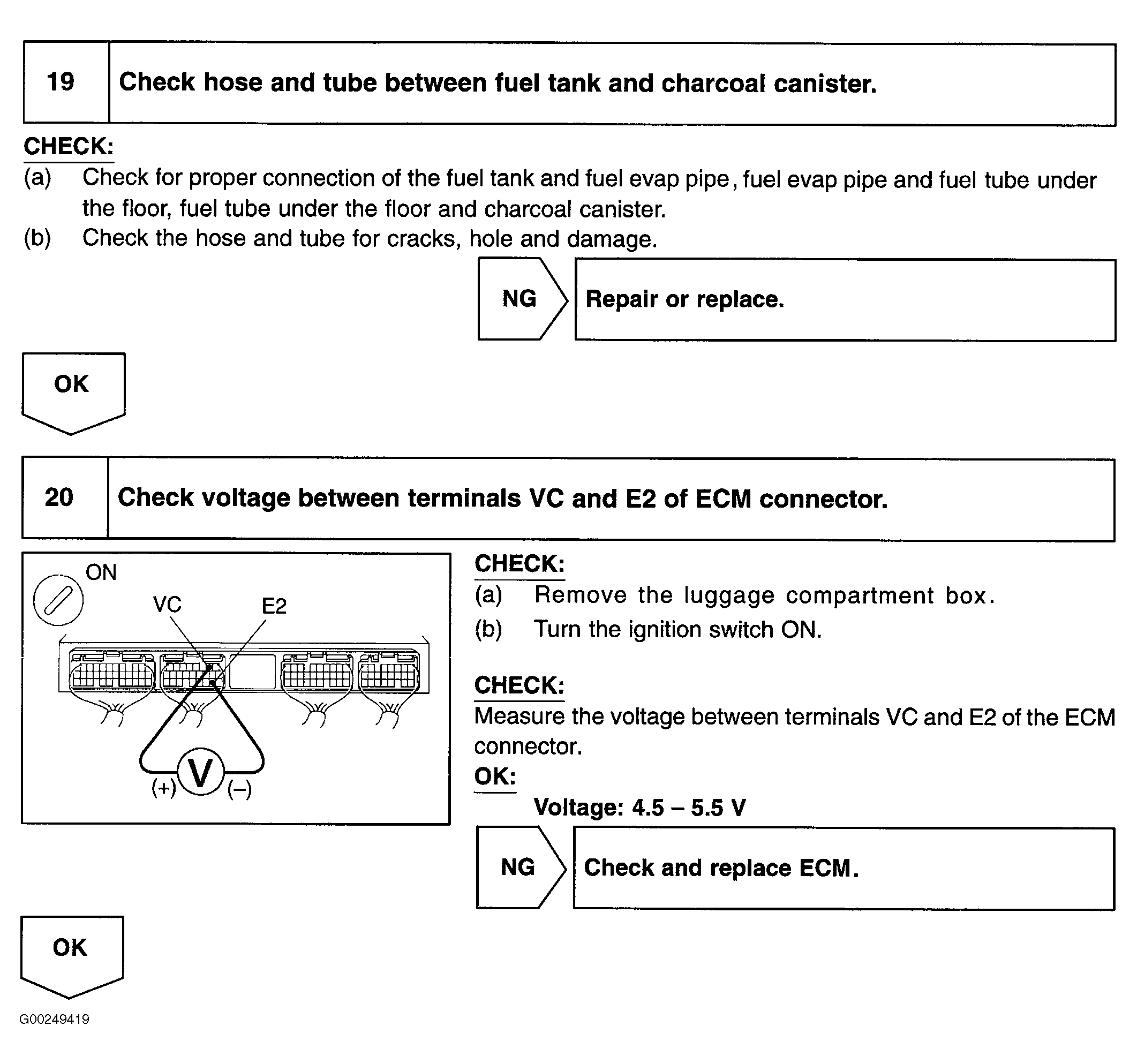

Fig 7: DTCs P0441 & P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 19-20)

G00249419

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

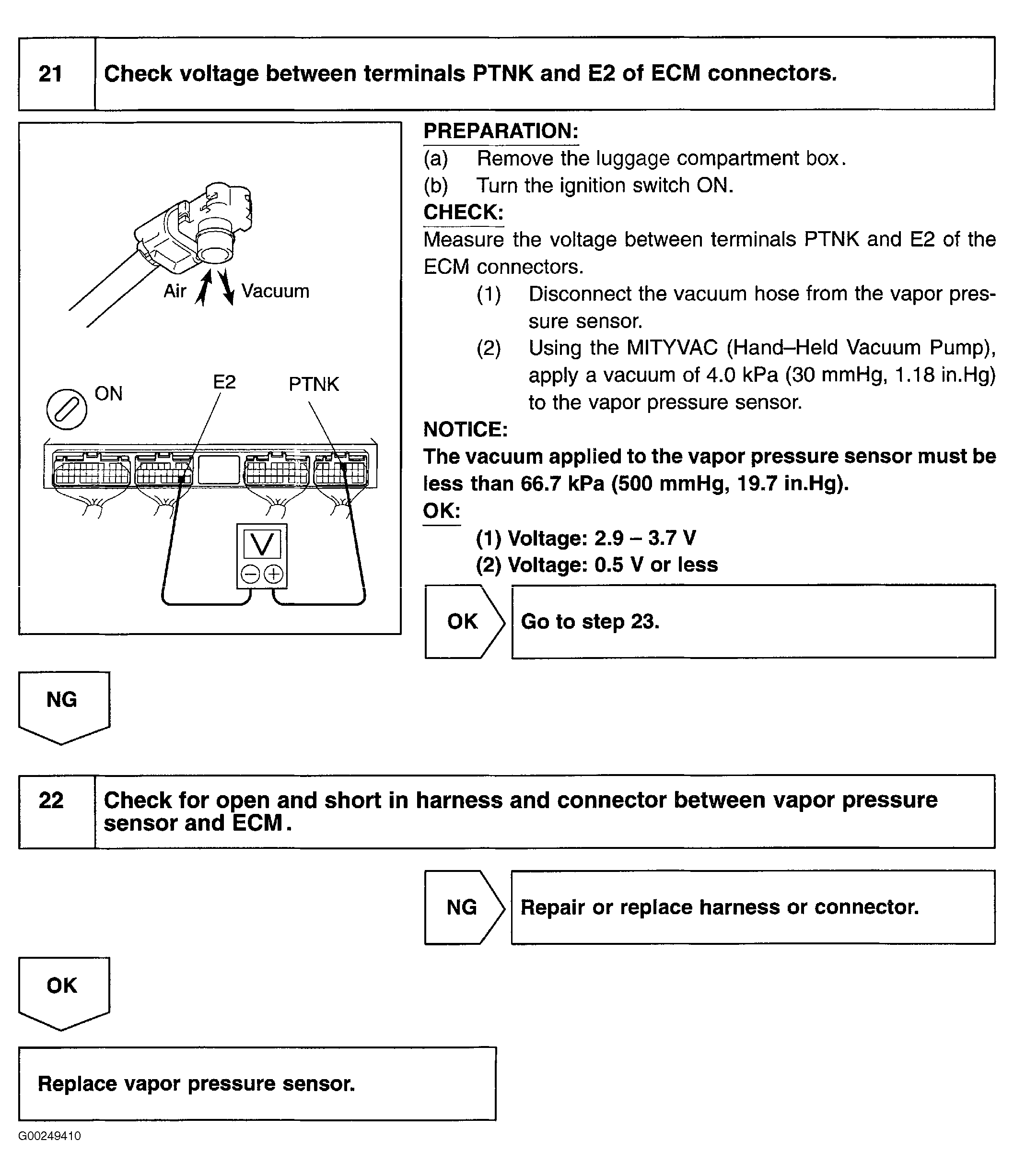

Fig 8: DTCs P0441 & P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 21-22)

G00249410

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

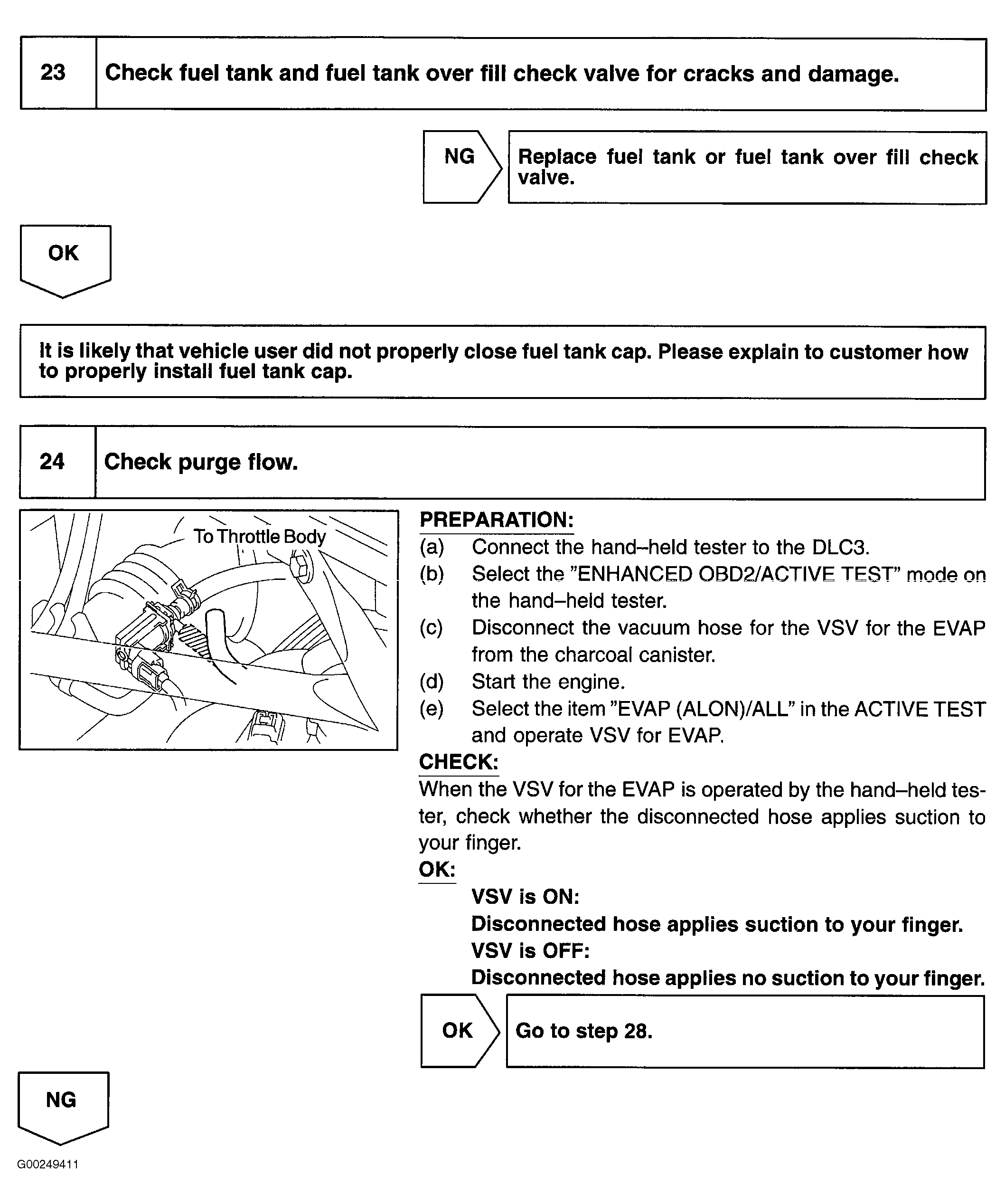

Fig 9: DTCs P0441 & P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 23-24)

G00249411

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

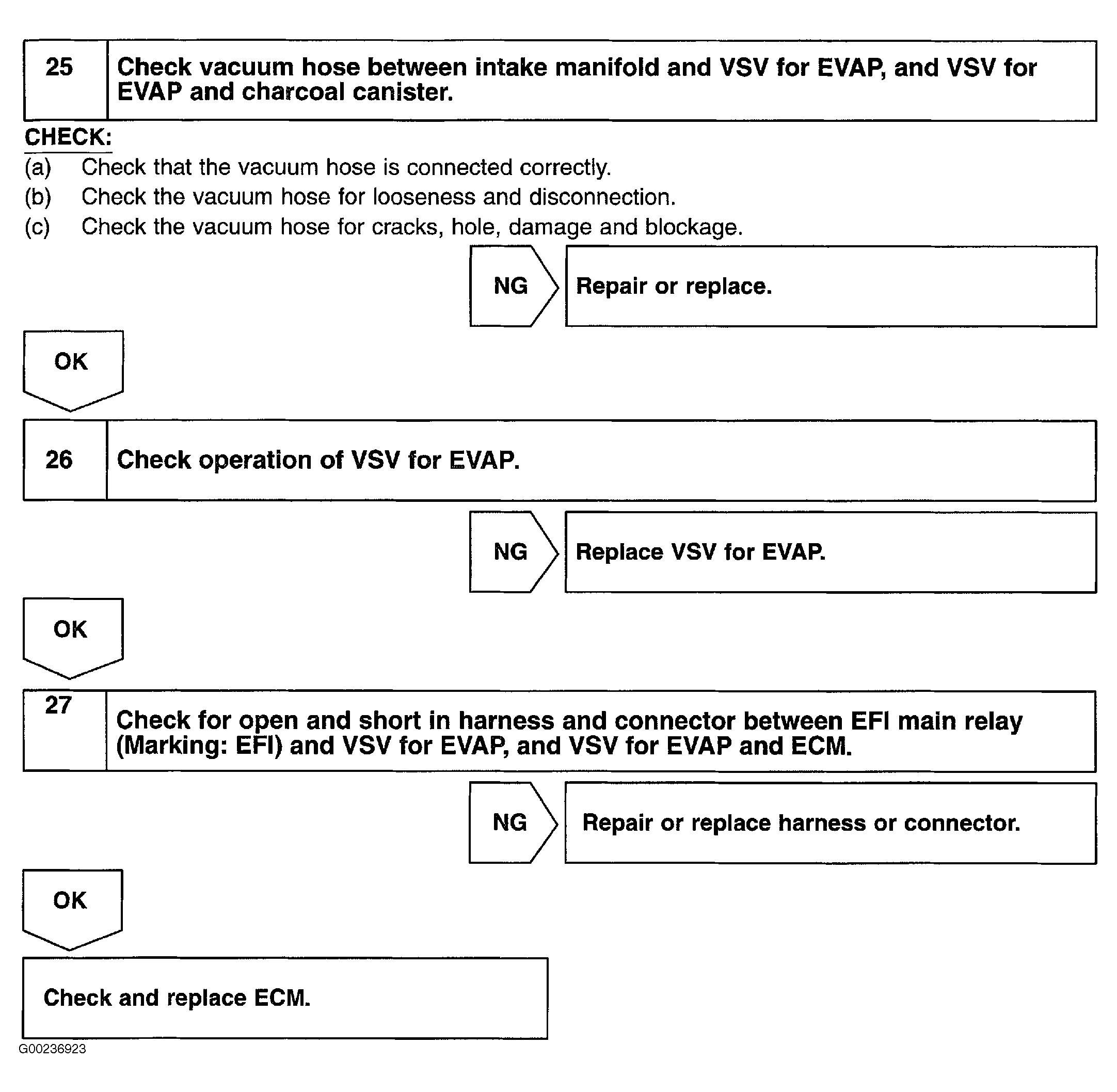

Fig 10: DTCs P0441 & P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 25-27)

G00236923

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

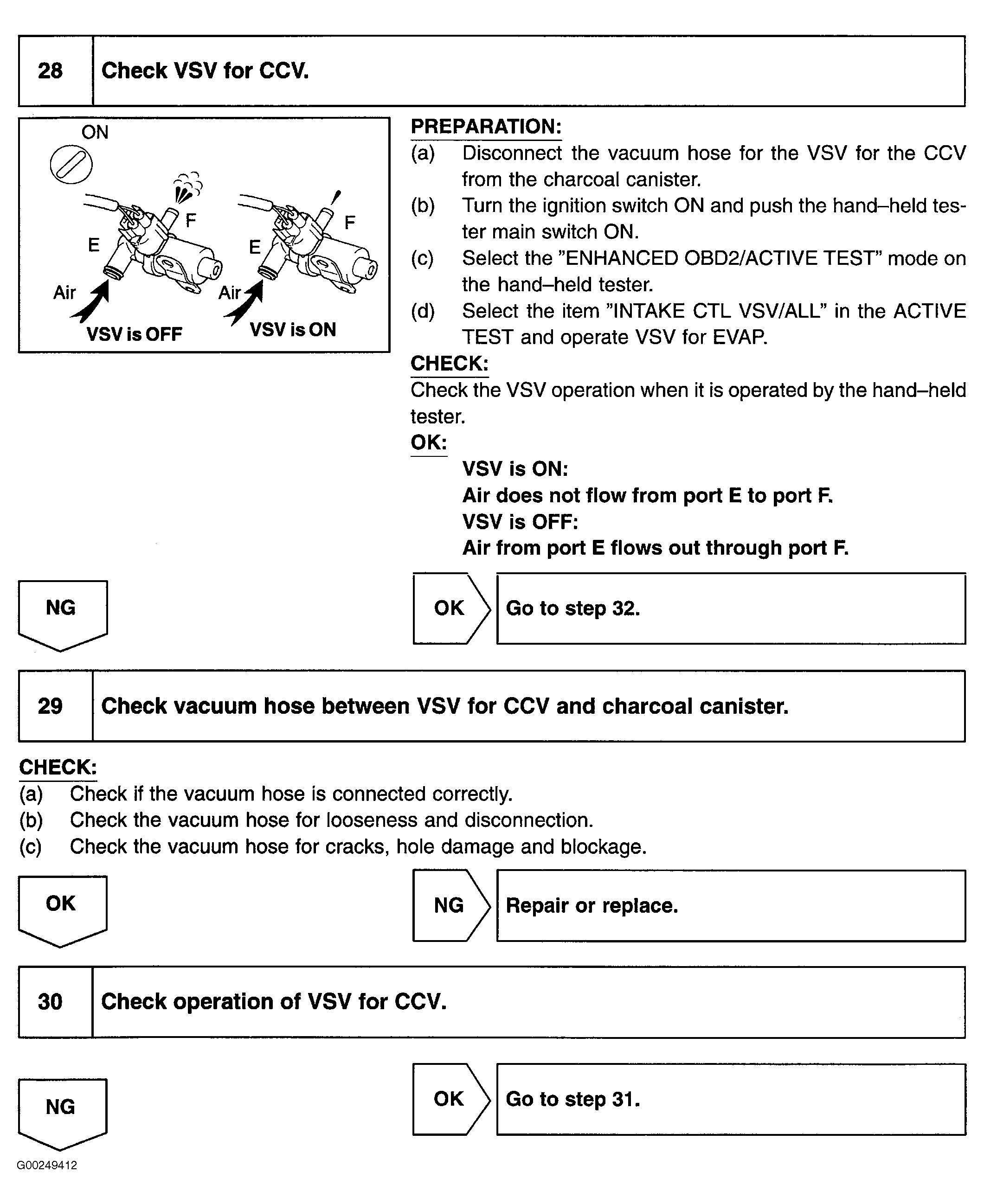

Fig 11: DTCs P0441 & P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 28-30)

G00249412

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

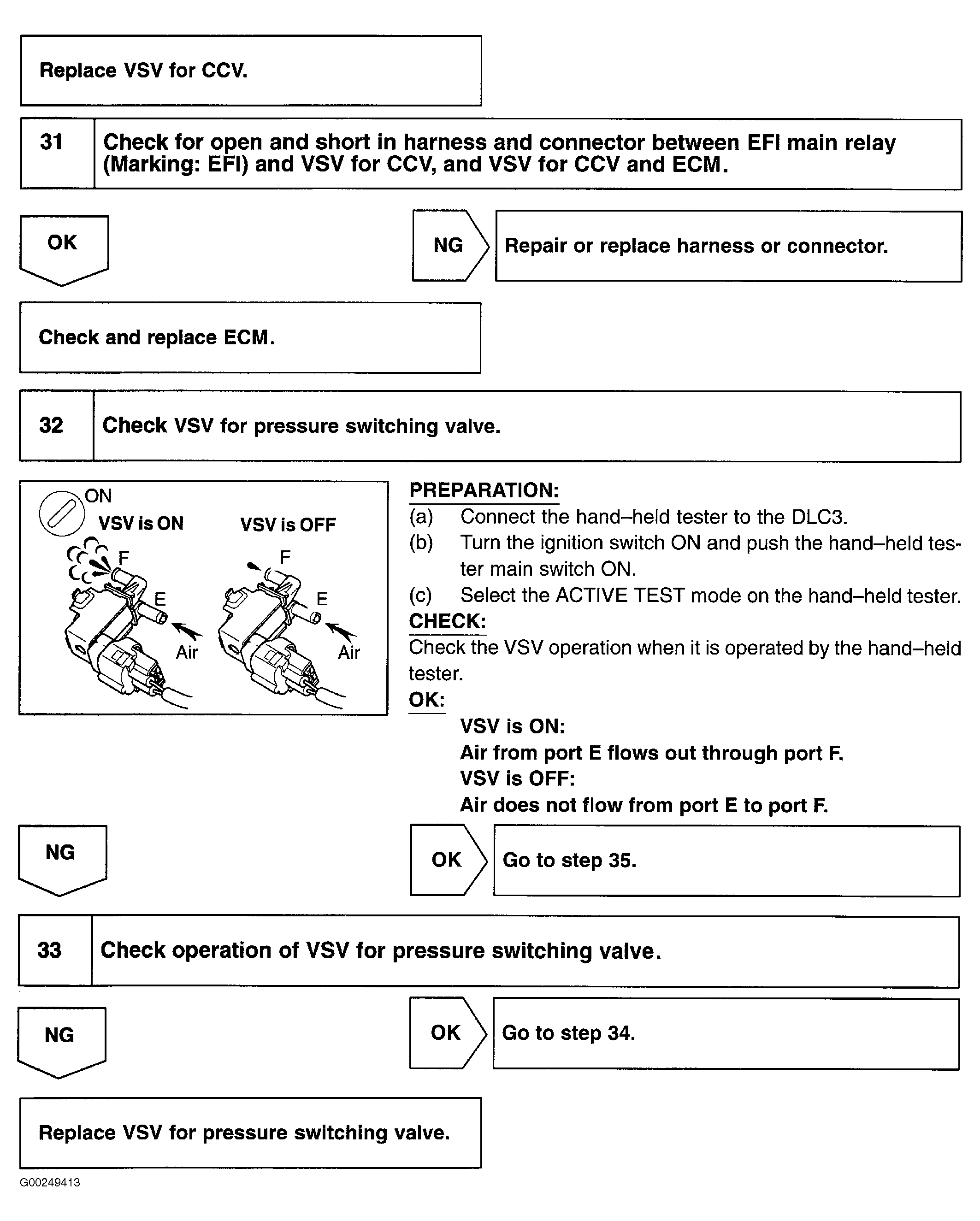

Fig 12: DTCs P0441 & P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 31-33)

G00249413

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

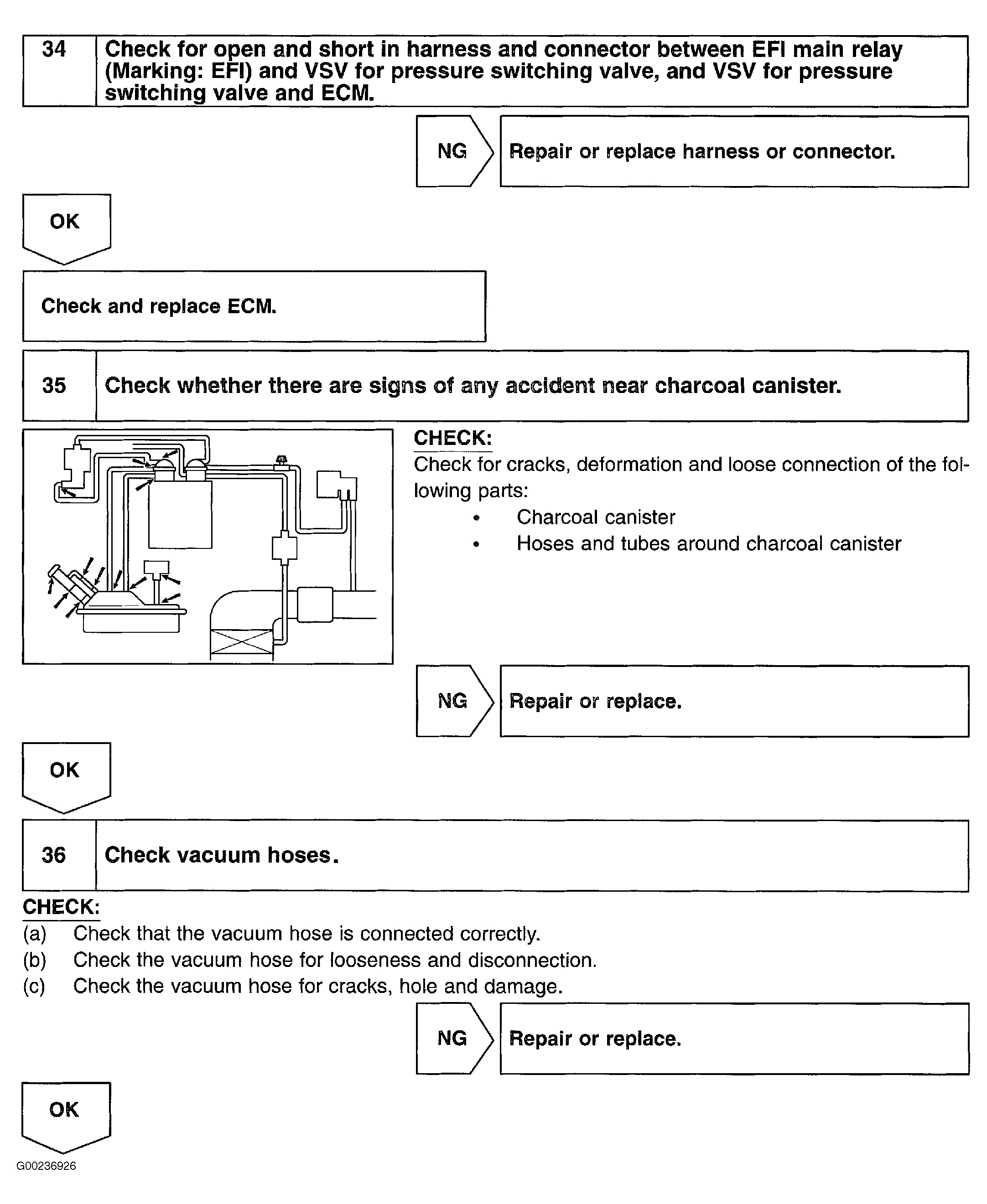

Fig 13: DTCs P0441 & P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 34-36)

G00236926

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

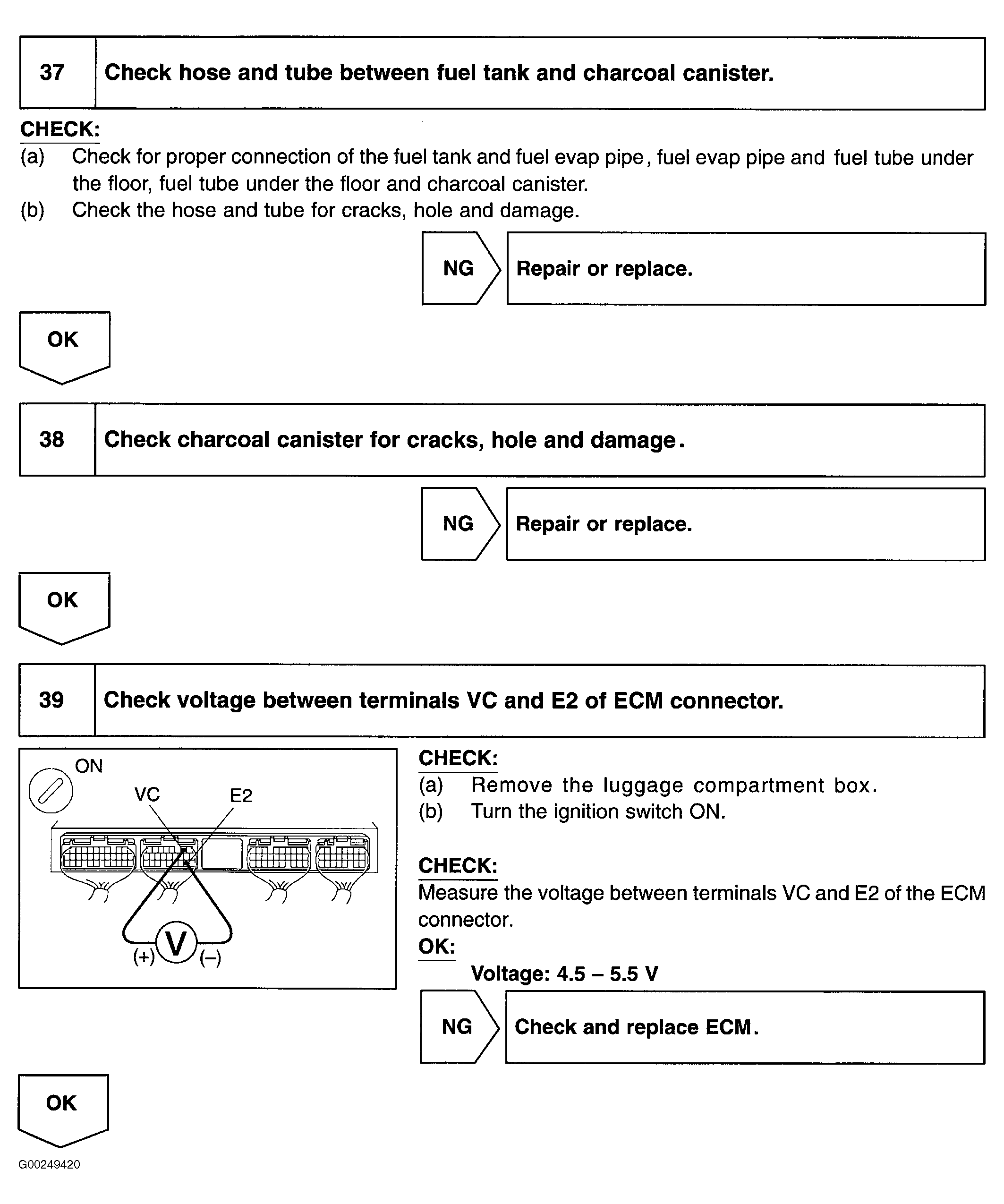

Fig 14: DTCs P0441 & P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 37-39)

G00249420

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

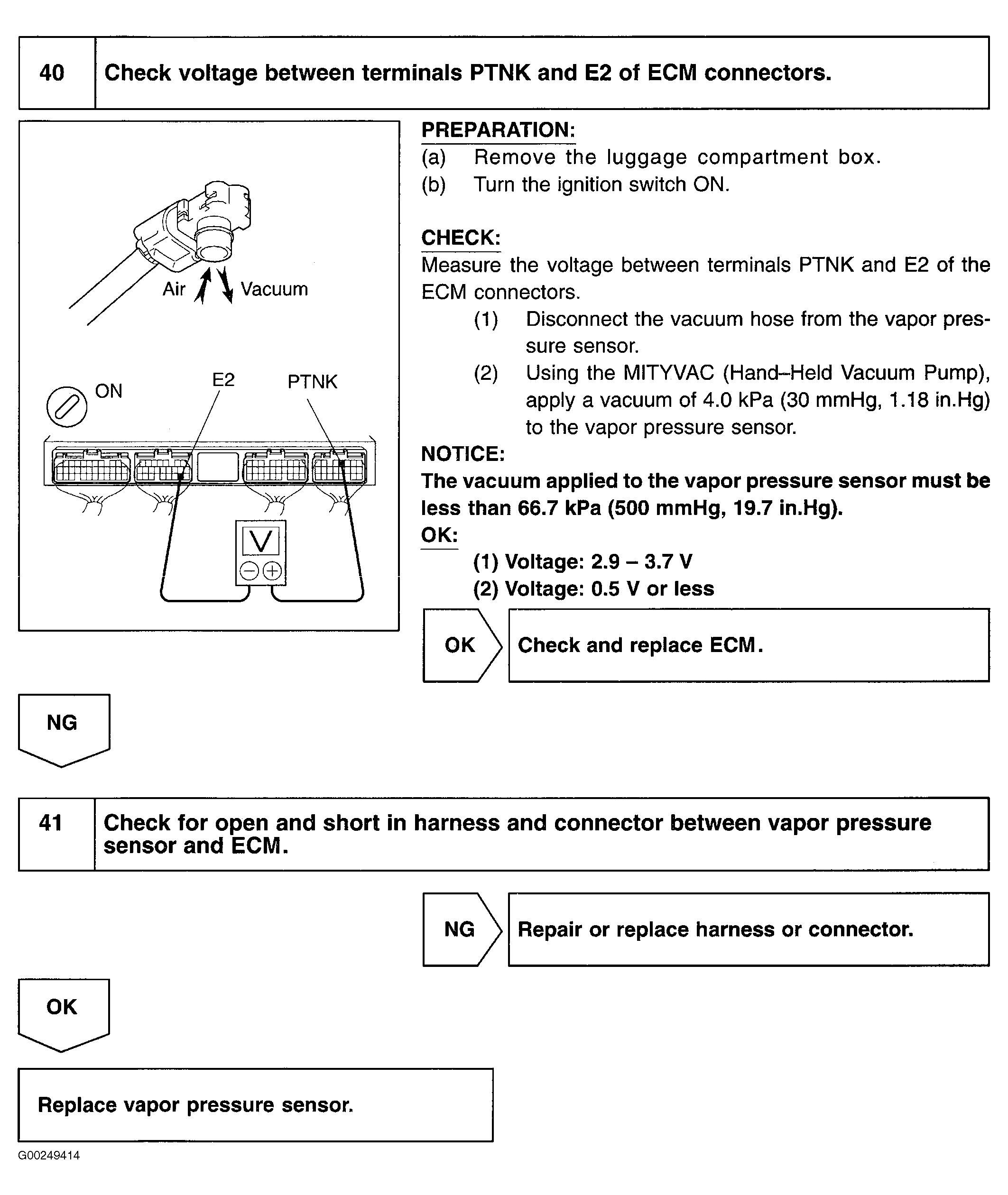

Fig 15: DTCs P0441 & P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 40-41)

G00249414

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

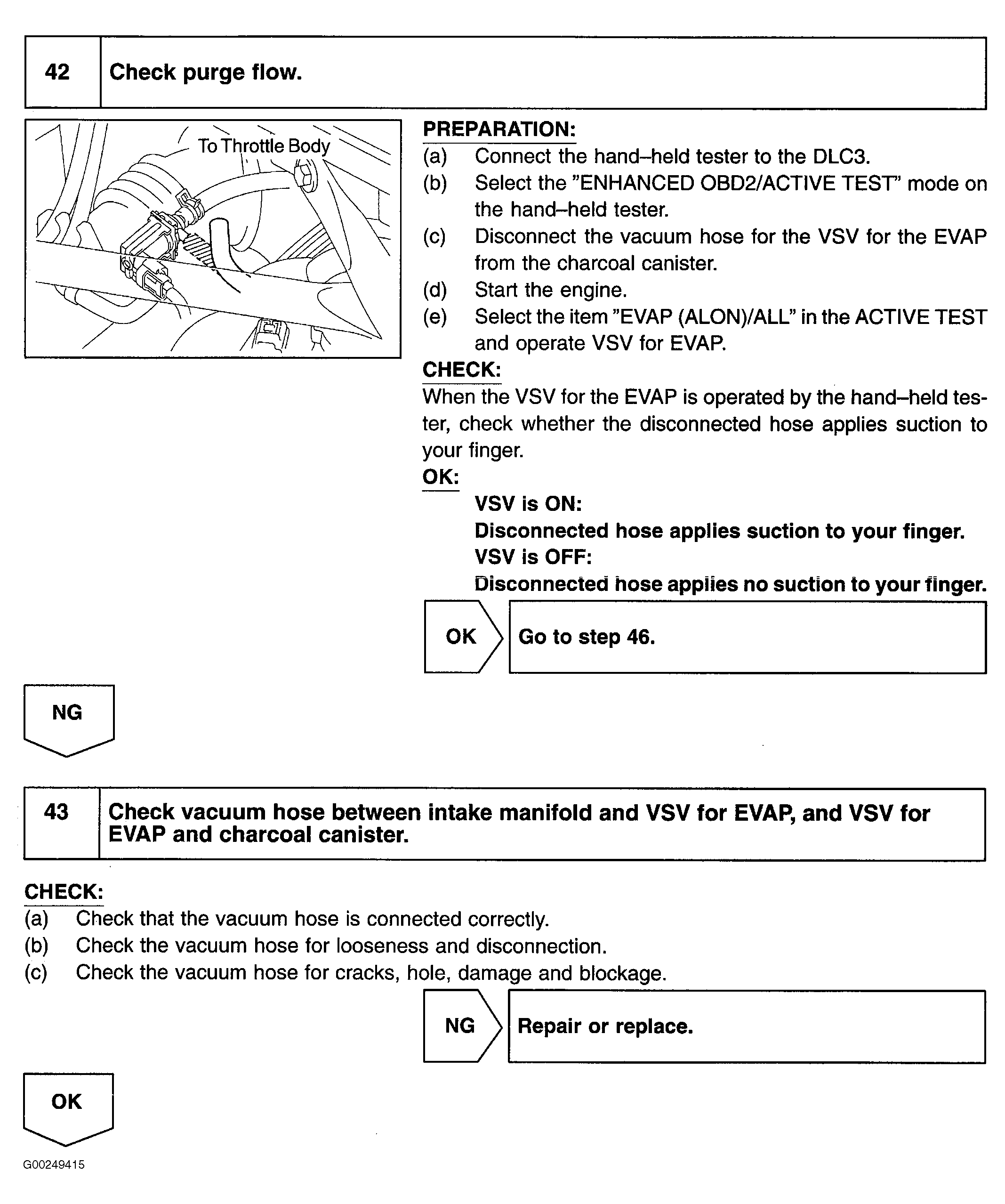

Fig 16: DTCs P0441 & P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 42-43)

G00249415

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

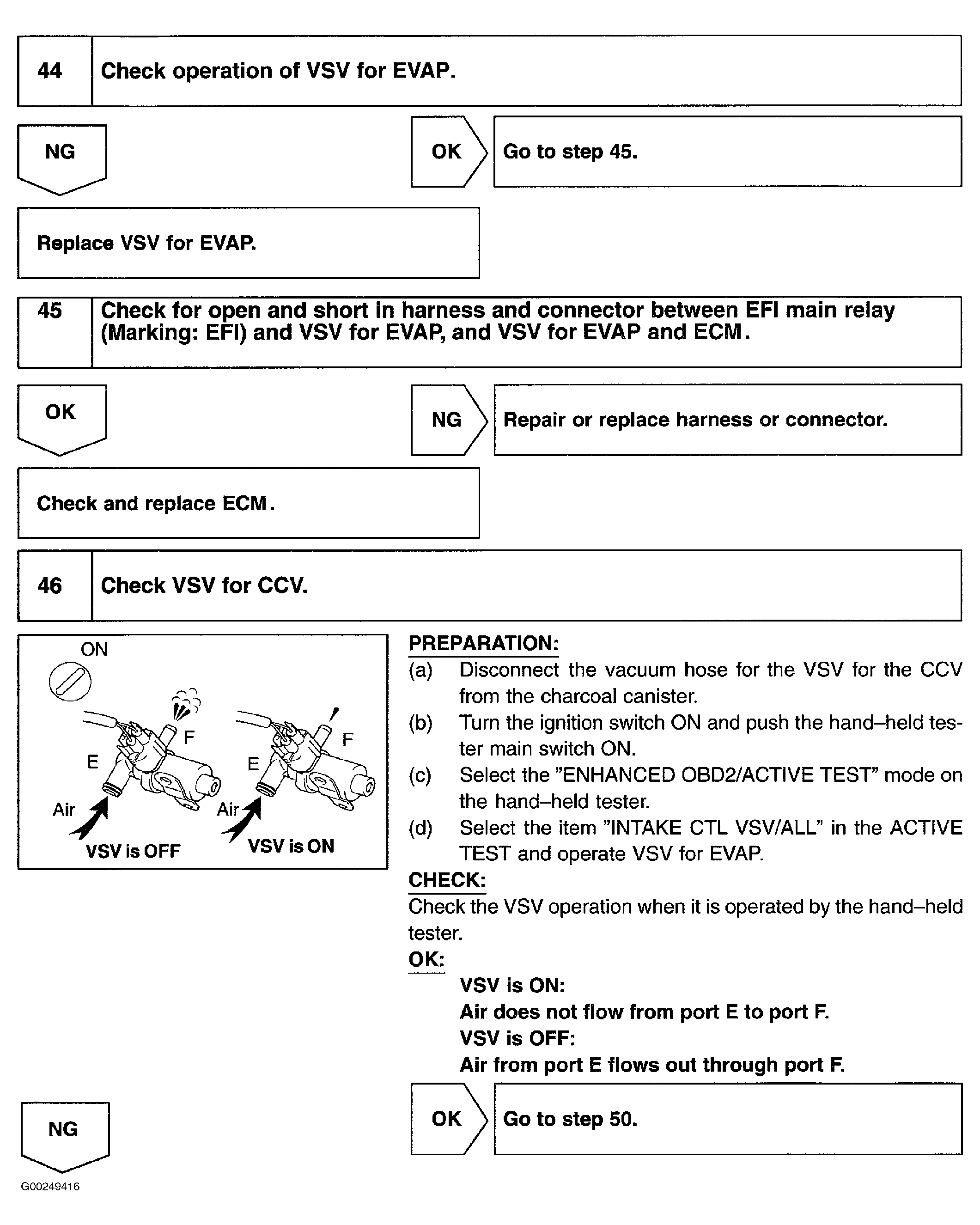

Fig 17: DTCs P0441 & P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 44-46)

G00249416

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

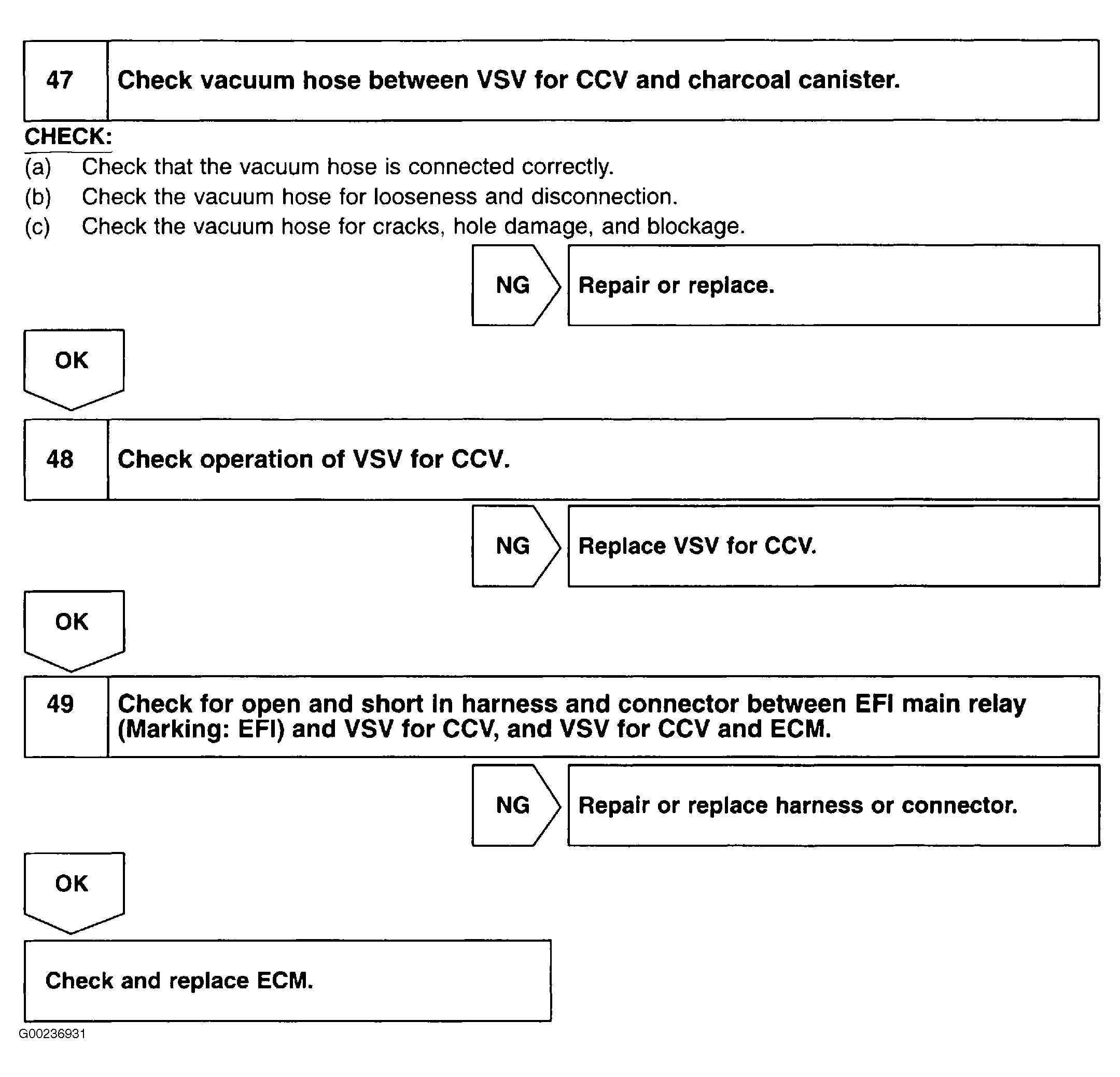

Fig 18: DTCs P0441 & P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 47-49)

G00236931

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

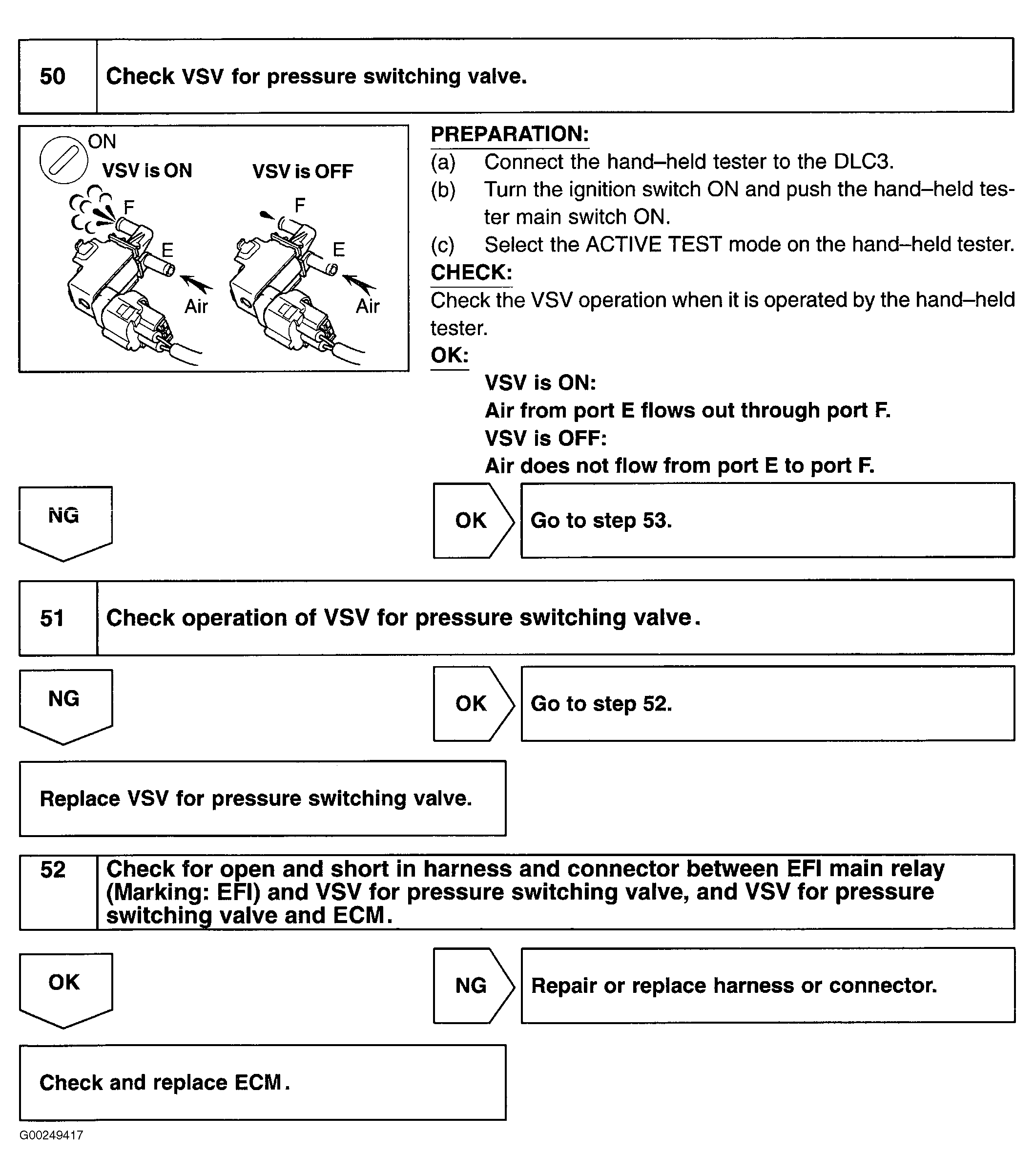

Fig 19: DTCs P0441 & P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 50-52)

G00249417

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

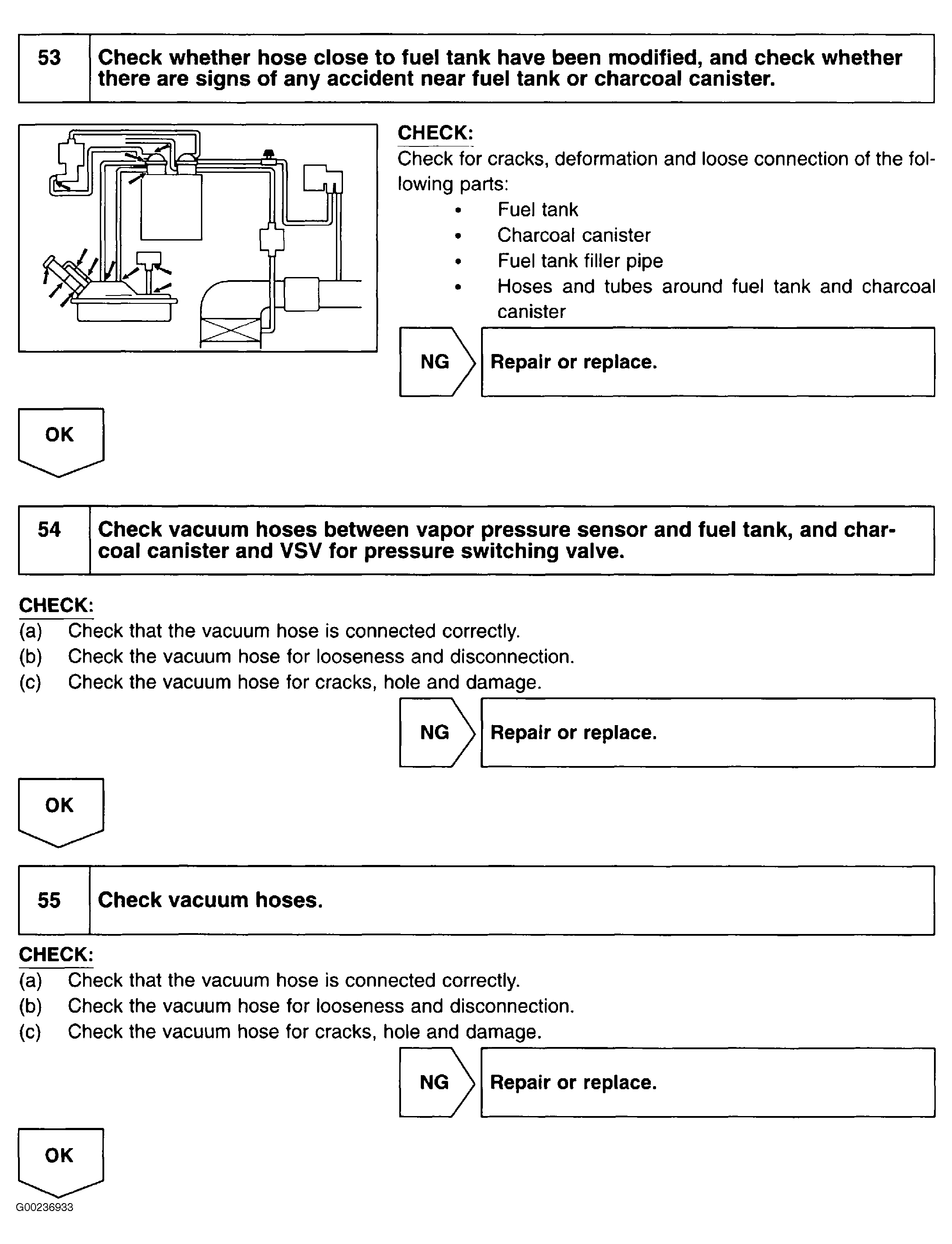

Fig 20: DTCs P0441 & P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 53-55)

G00236933

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

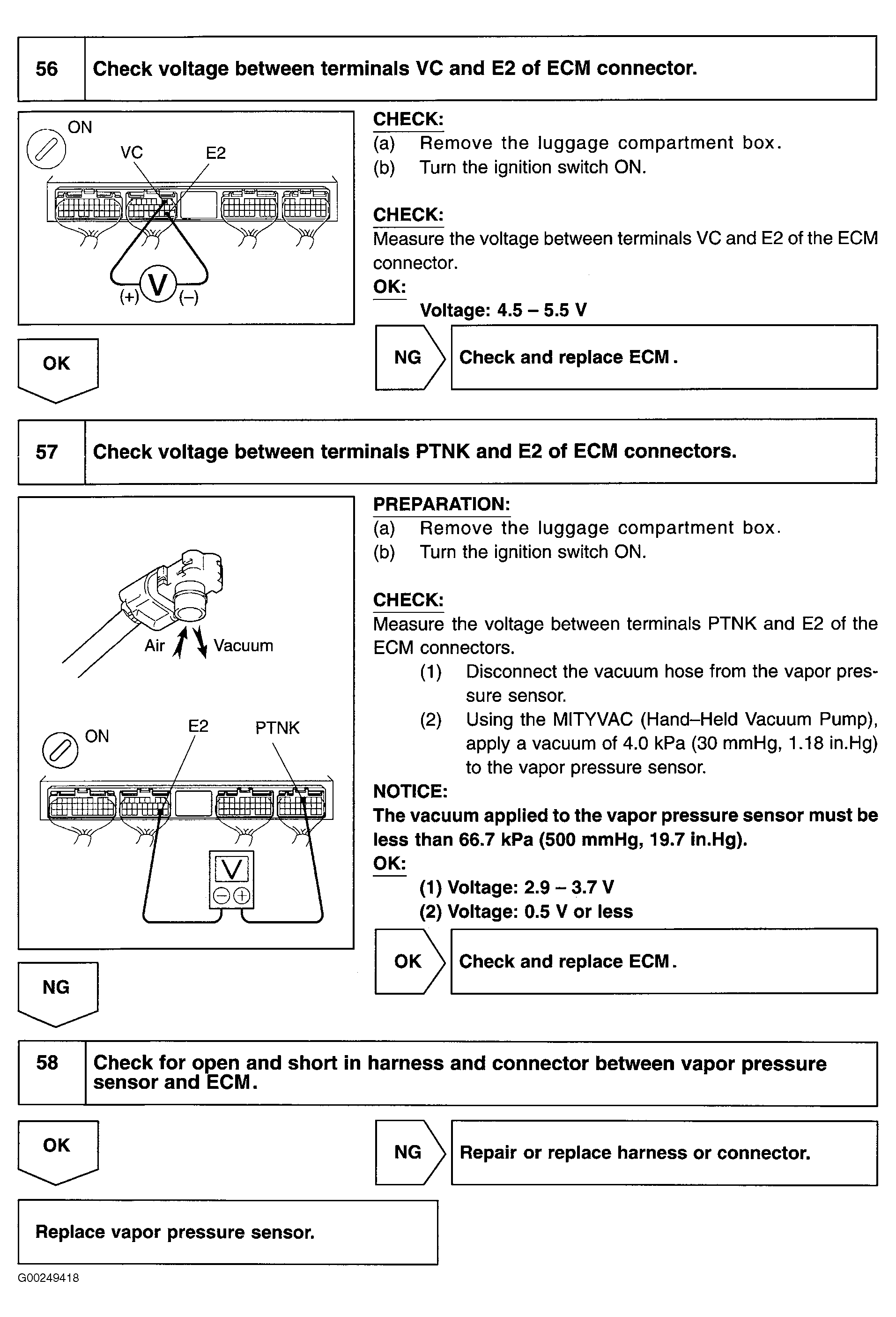

Fig 21: DTCs P0441 & P0446 Diagnostic Procedure Using Toyota Hand Held Tester (Steps 56-58)

G00249418

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

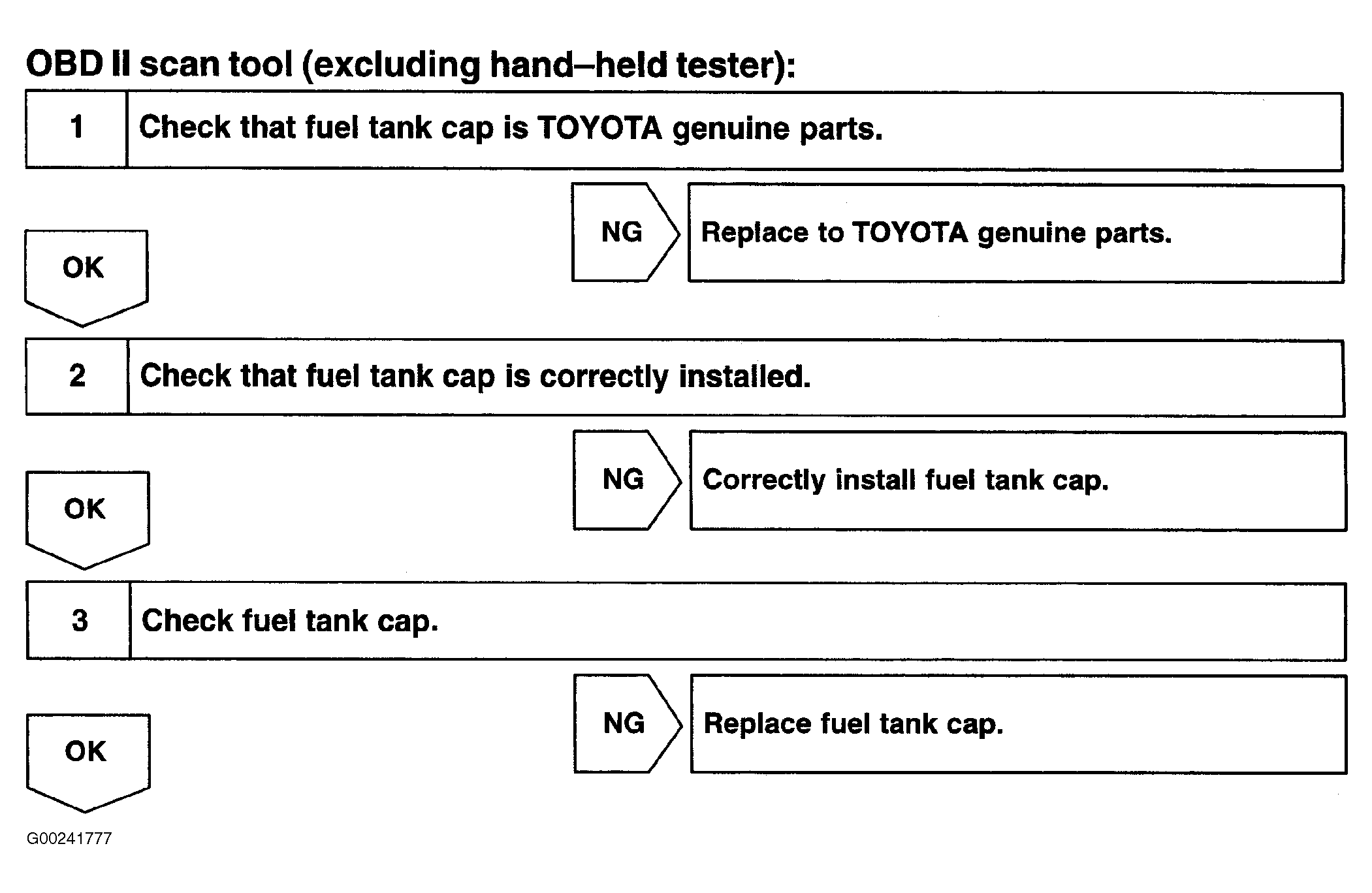

Fig 22: DTCs P0441 & P0446 Diagnostic Procedure Using OBD II Scan Tool (Steps 1-3)

G00241777

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

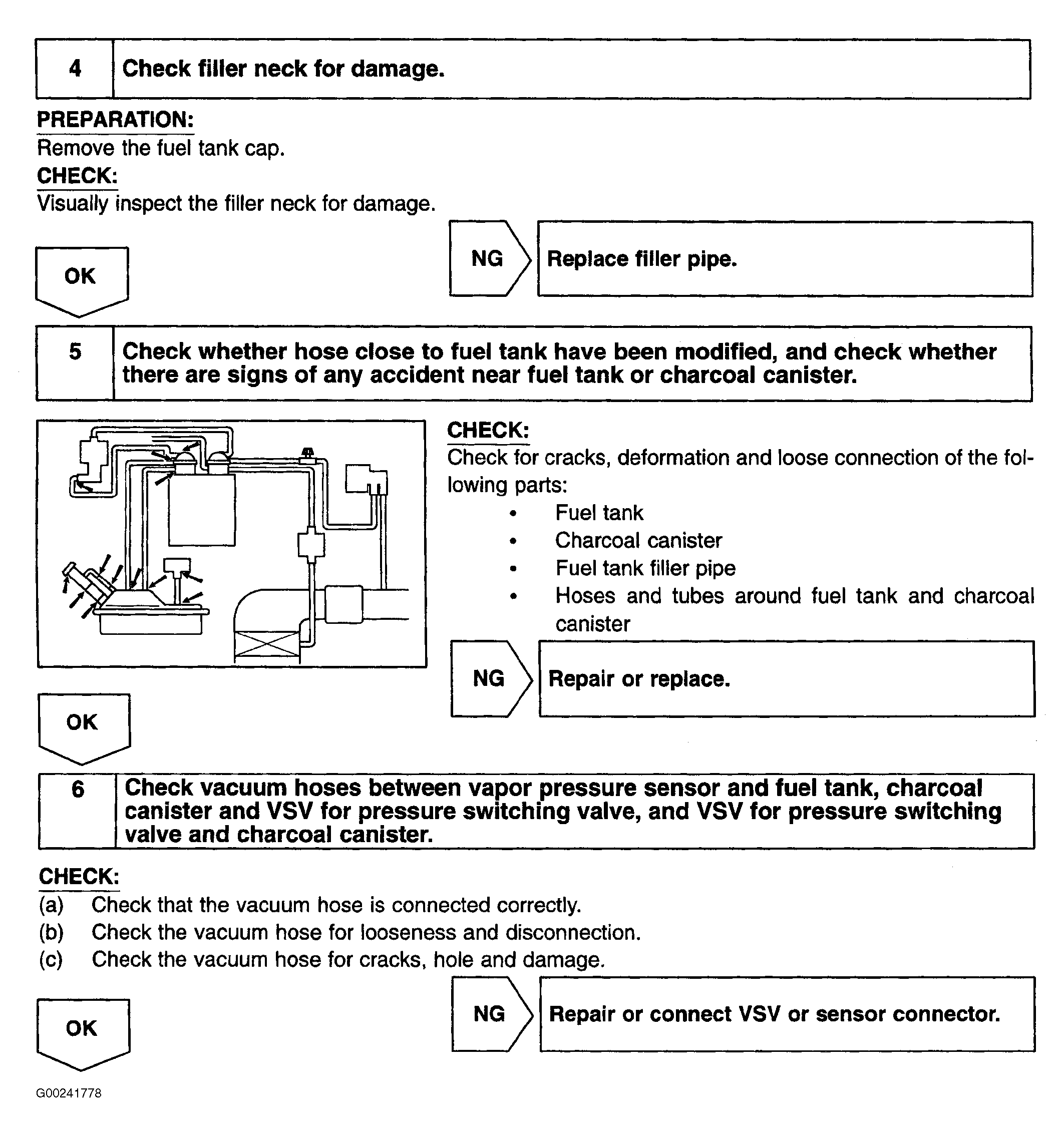

Fig 23: DTCs P0441 & P0446 Diagnostic Procedure Using OBD II Scan Tool (Steps 4-6)

G00241778

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 24: DTCs P0441 & P0446 Diagnostic Procedure Using OBD II Scan Tool (Steps 7-9)

G00241779

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

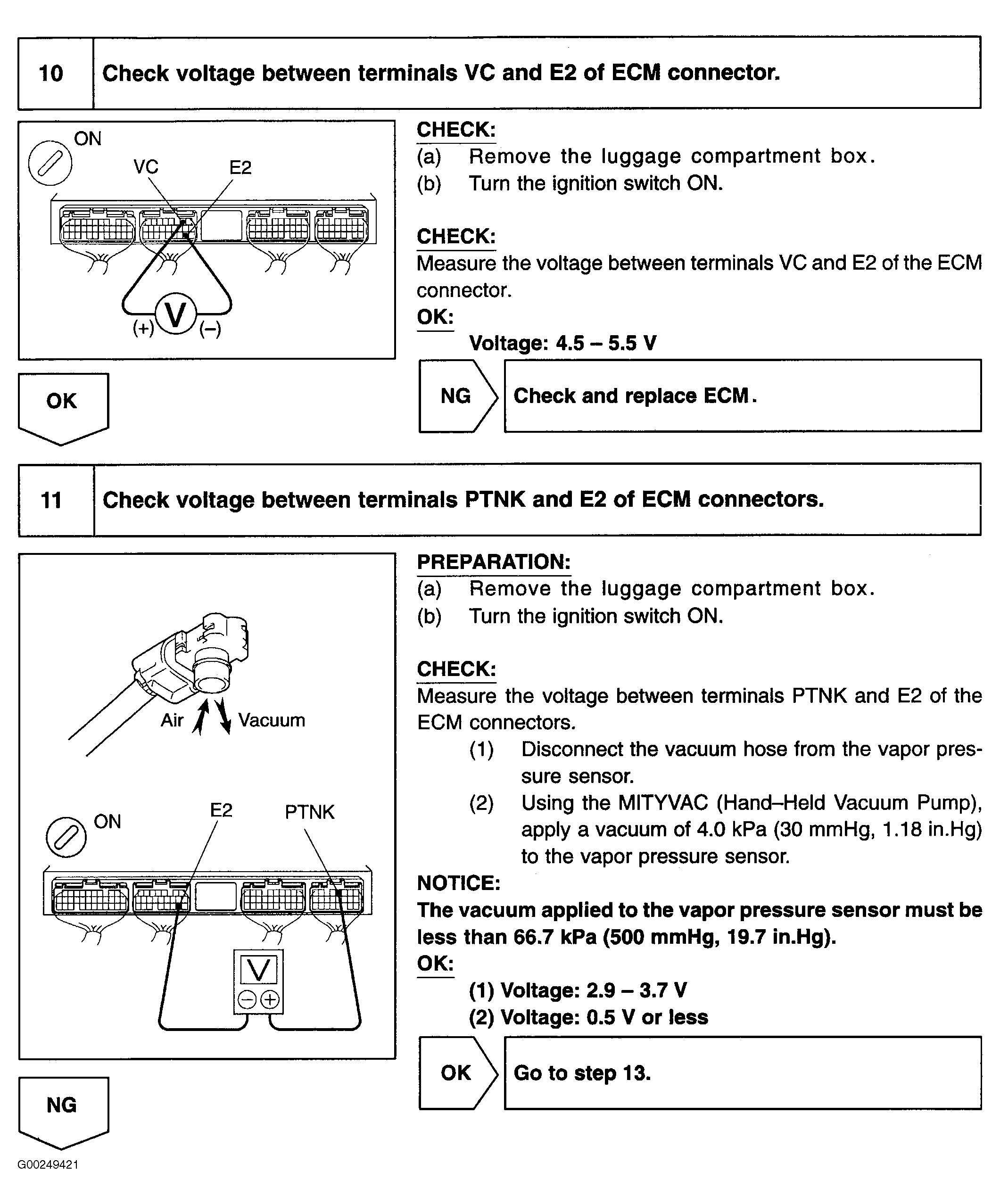

Fig 25: DTCs P0441 & P0446 Diagnostic Procedure Using OBD II Scan Tool (Steps 10-11)

G00249421

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

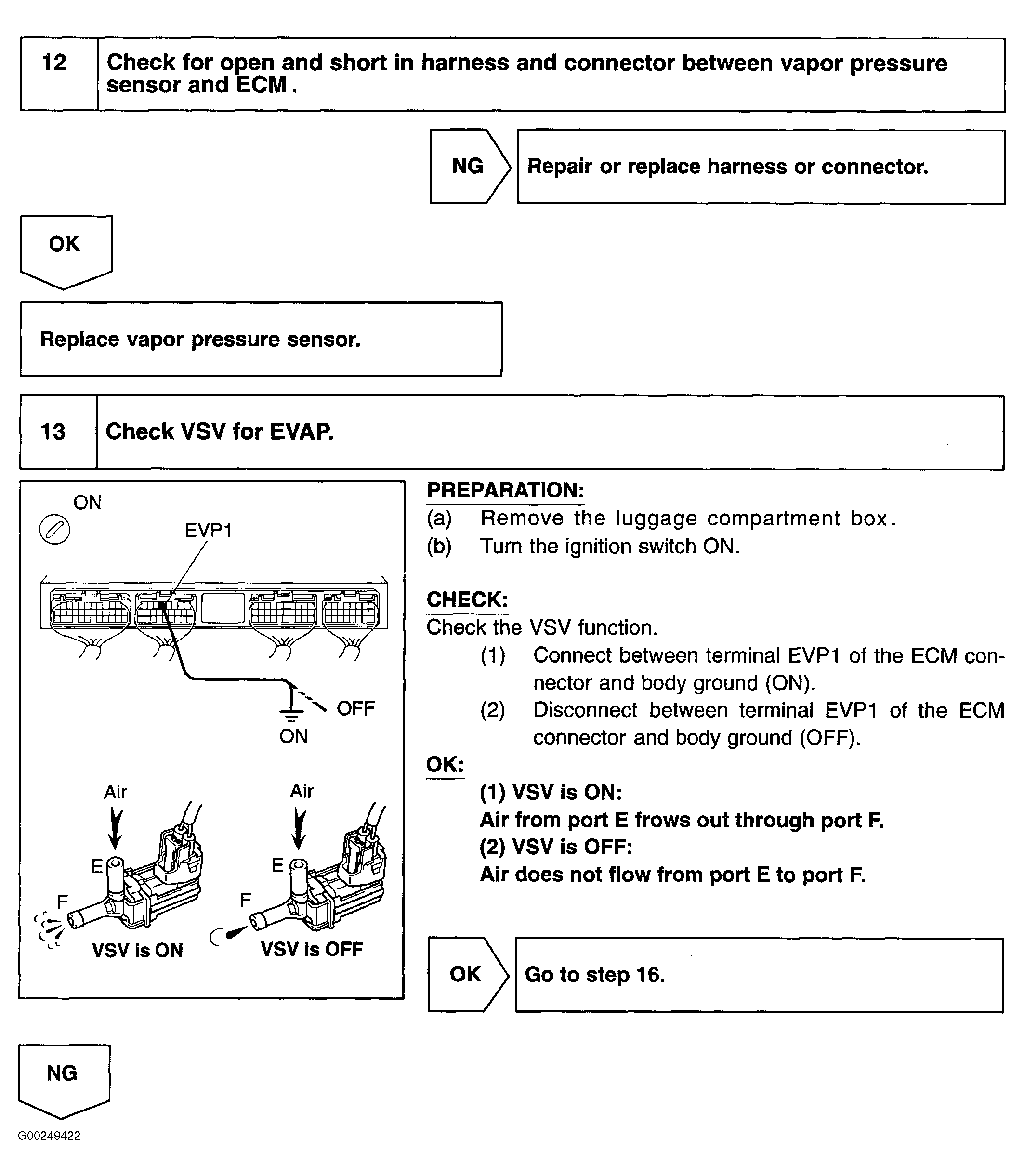

Fig 26: DTCs P0441 & P0446 Diagnostic Procedure Using OBD II Scan Tool (Steps 12-13)

G00249422

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

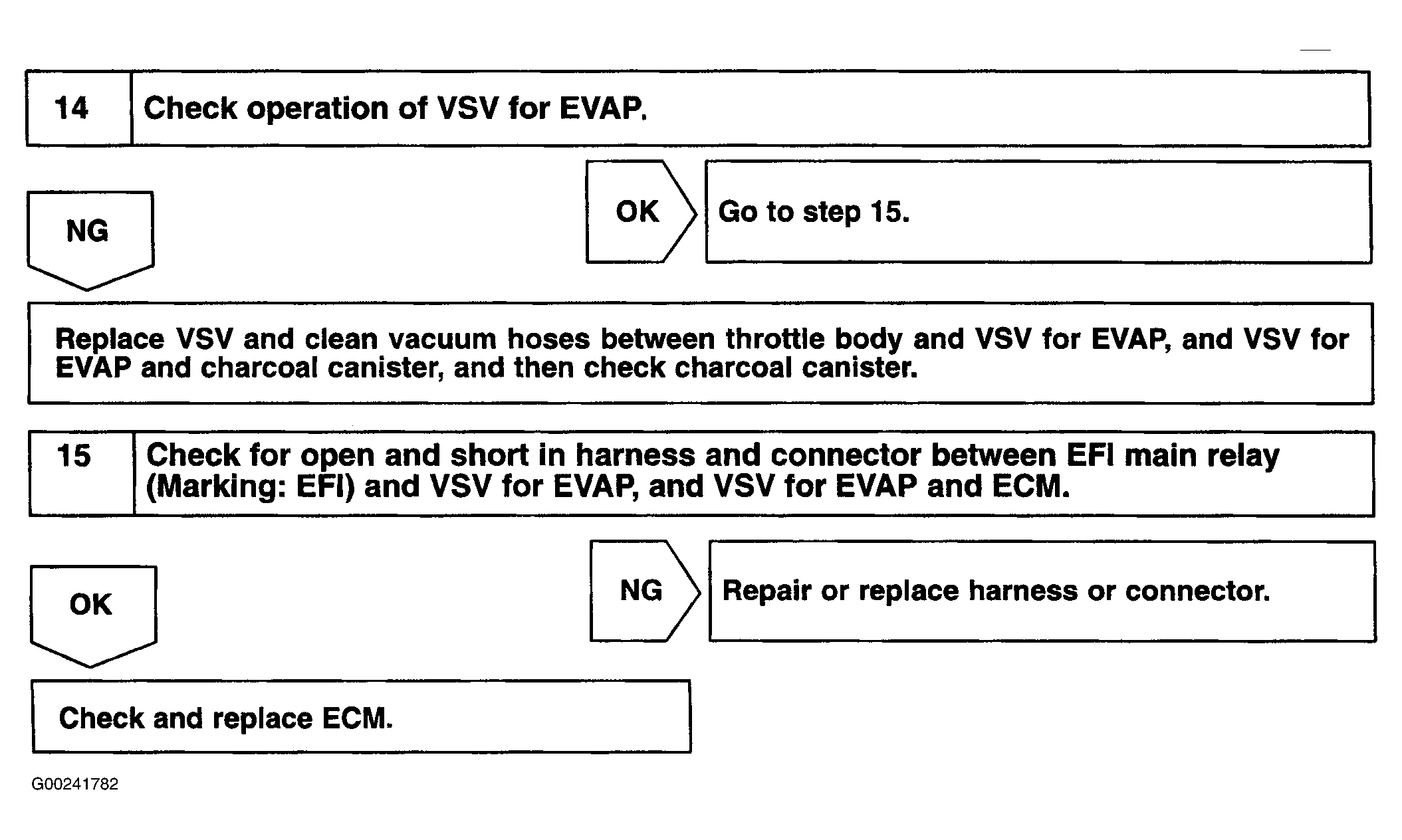

Fig 27: DTCs P0441 & P0446 Diagnostic Procedure Using OBD II Scan Tool (Steps 14-15)

G00241782

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

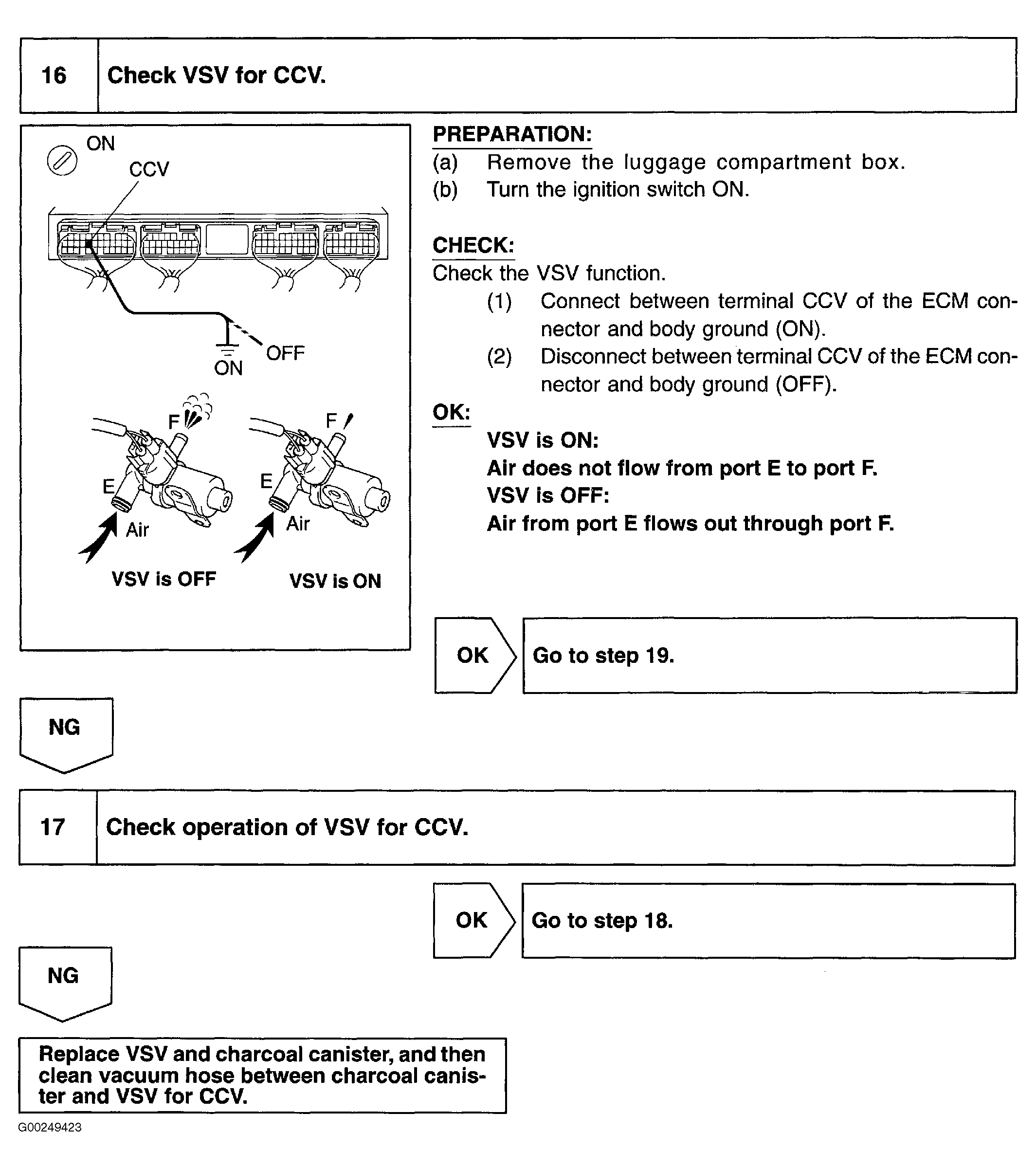

Fig 28: DTCs P0441 & P0446 Diagnostic Procedure Using OBD II Scan Tool (Steps 16-17)

G00249423

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

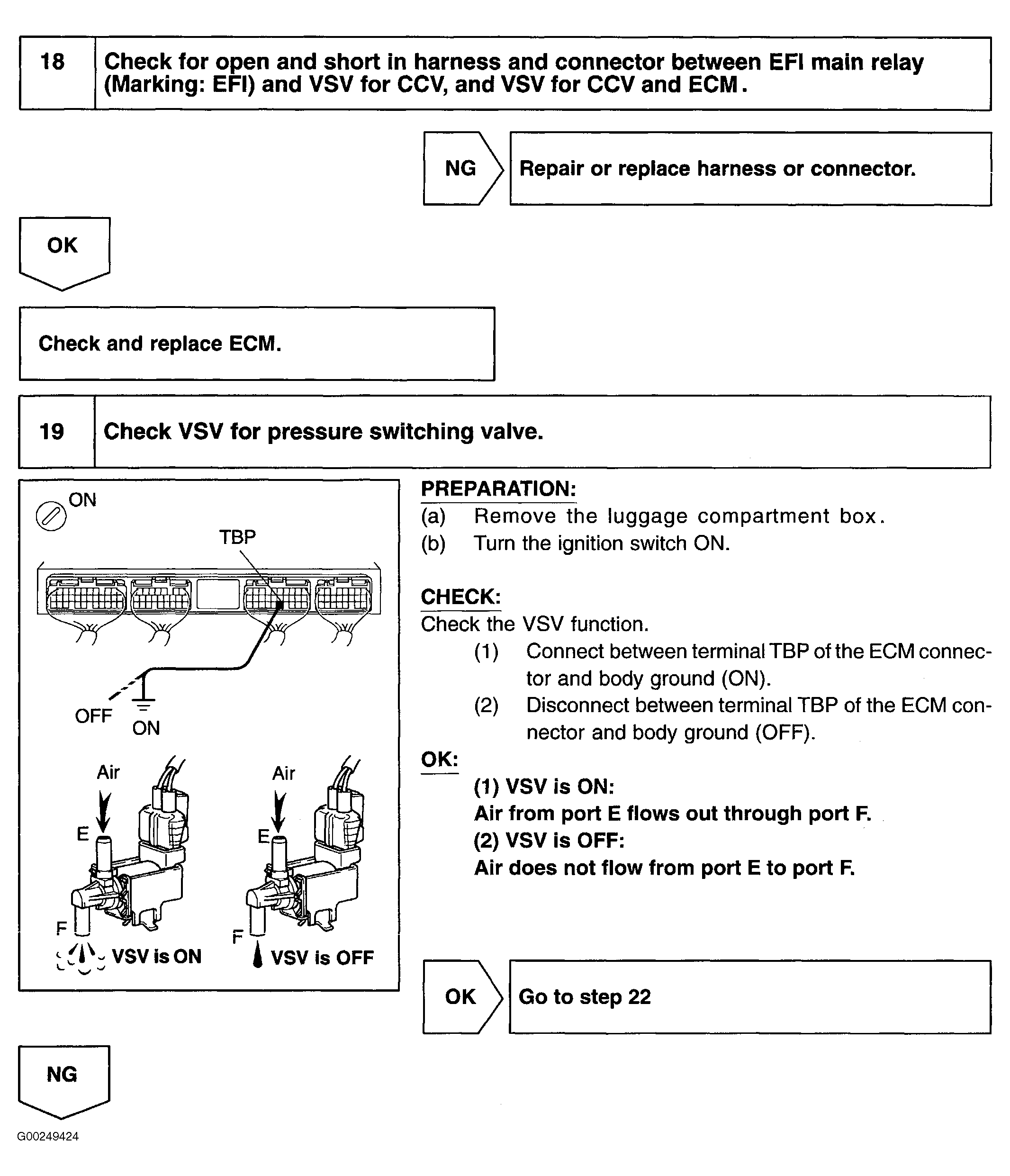

Fig 29: DTCs P0441 & P0446 Diagnostic Procedure Using OBD II Scan Tool (Steps 18-19)

G00249424

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

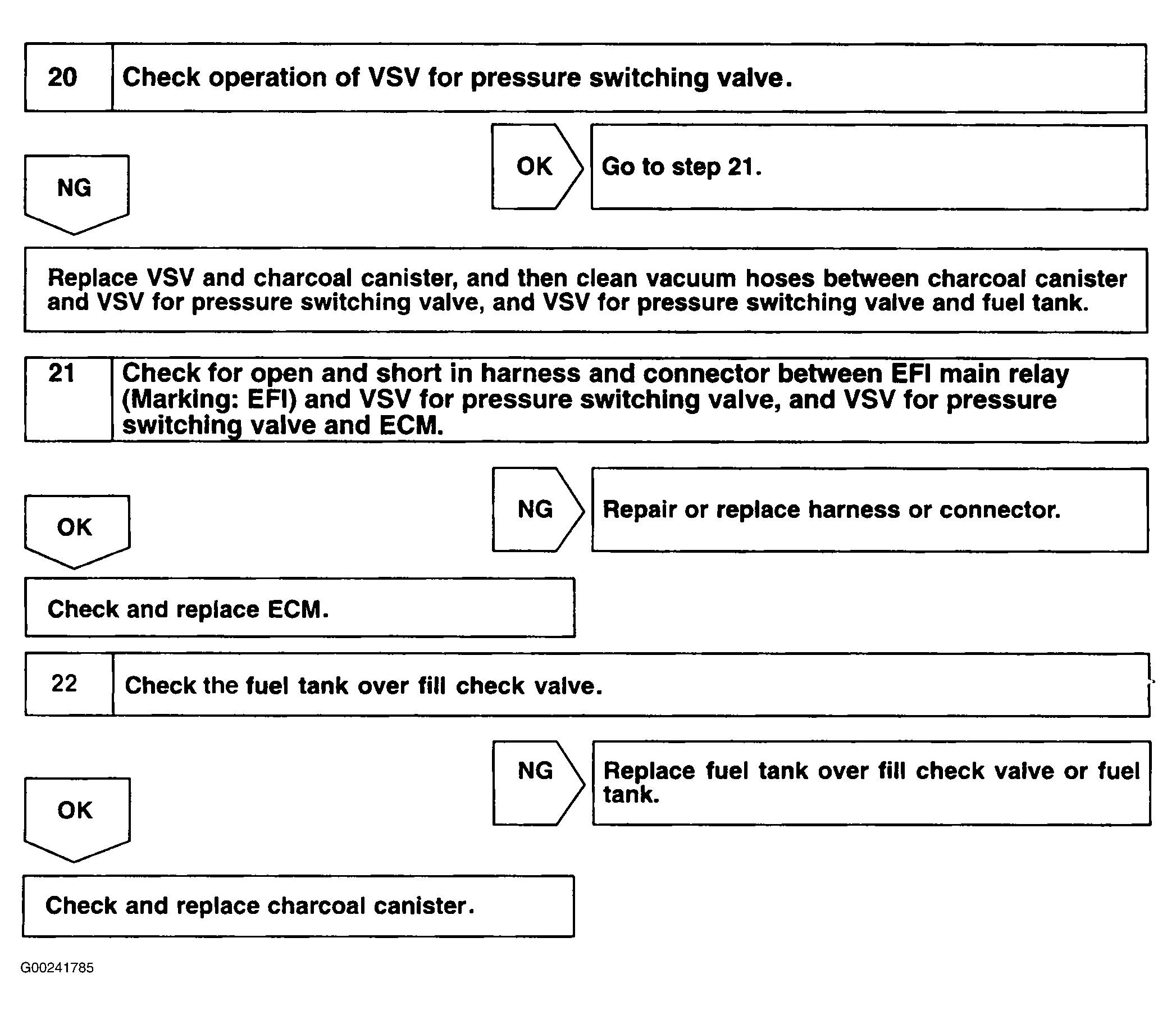

Fig 30: DTCs P0441 & P0446 Diagnostic Procedure Using OBD II Scan Tool (Steps 20-22)

G00241785

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
