Circuit Description

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

For circuit description, see Fig 1.

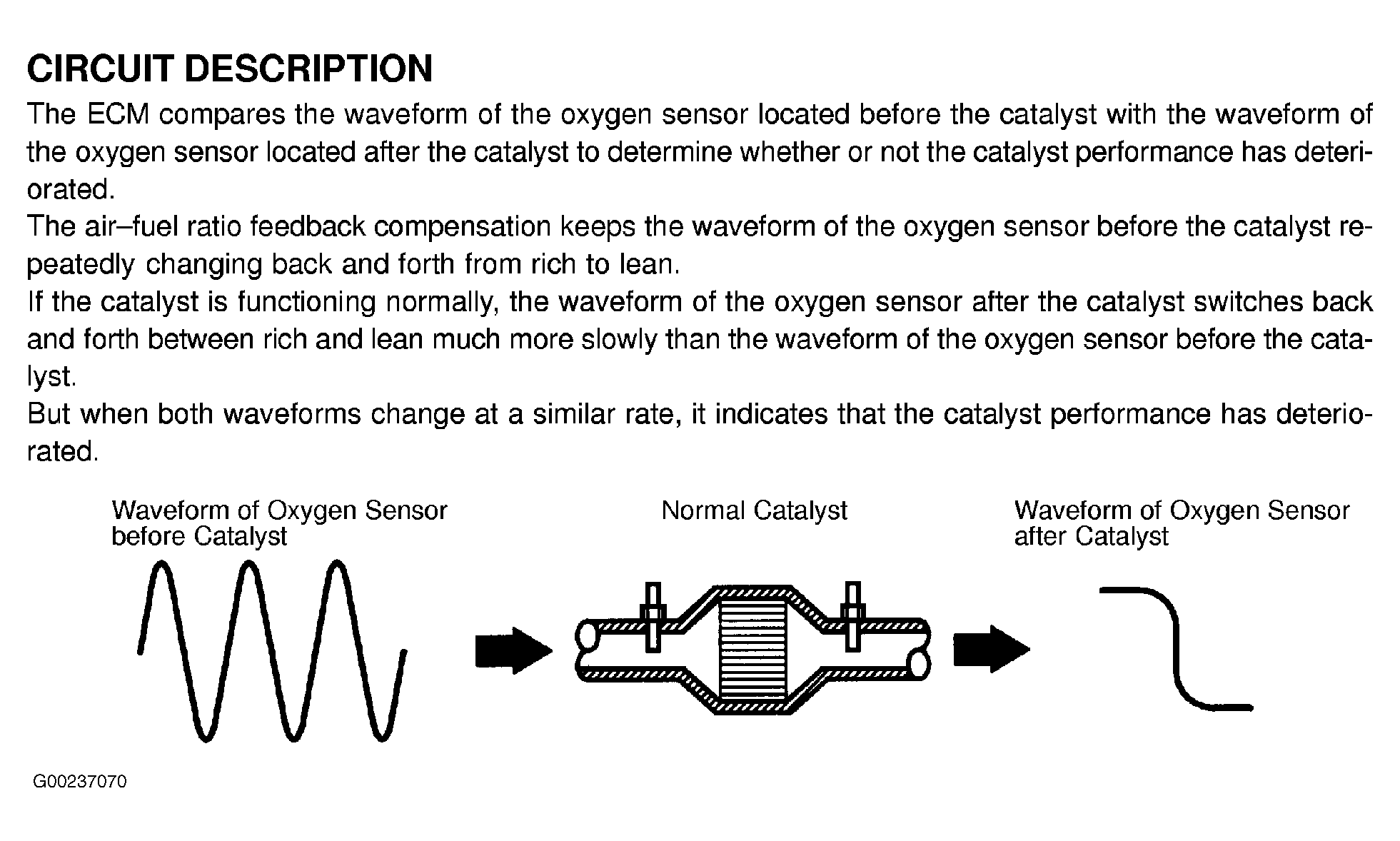

Fig 1: Catalyst System Circuit Description
G00237070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
