Confirmation Engine Racing Pattern

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

For confirmation engine racing pattern procedure, see Fig 1.

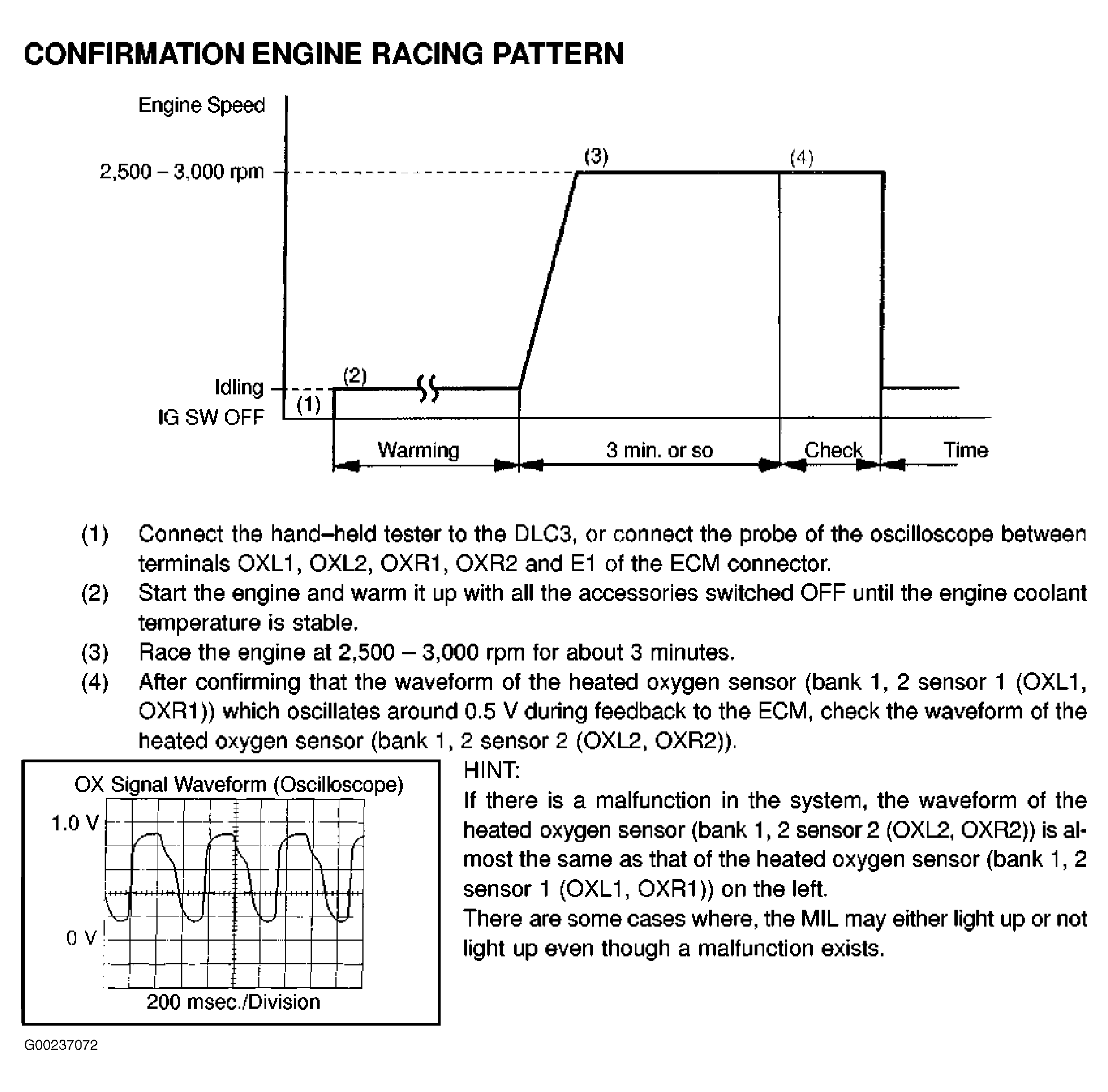

Fig 1: Confirmation Engine Racing Pattern & Procedure
G00237072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
