Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Using Toyota hand-held tester or scan tool, read FREEZE FRAME data. Freeze frame data records engine conditions when malfunction is detected.

For diagnosis and repair procedure with Toyota hand-held tester or Enhanced OBD II scan tool, see Fig 1-Fig 21 .

For diagnosis and repair procedure with generic OBD II scan tool, see Fig 22-Fig 30 .

For ECM location, see Figure. For ECM connector view, see Figure. For EVAP system circuit wiring diagram, see Fig 31. For vacuum or EVAP hose routing, see VACUUM DIAGRAMS article. For testing of systems or components, see SYSTEM & COMPONENT TESTING - V6 & V8 article. For removal and installation of components, see REMOVAL & INSTALLATION - V6 & V8 article.

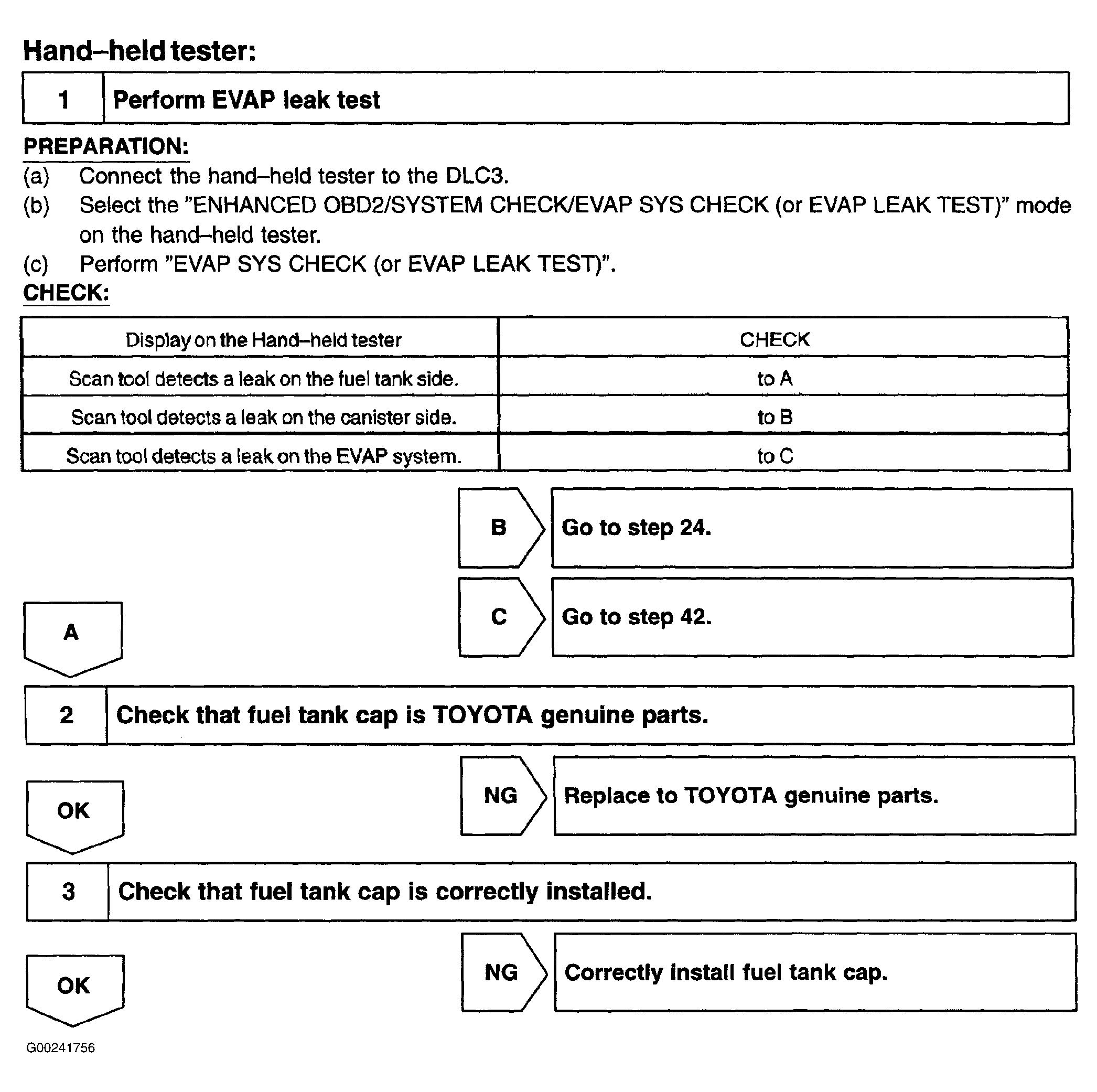

Fig 1: DTCs P0441 & P0446 Diagnostic Procedure Using Hand Held Tester (Steps 1-3)

G00241756

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

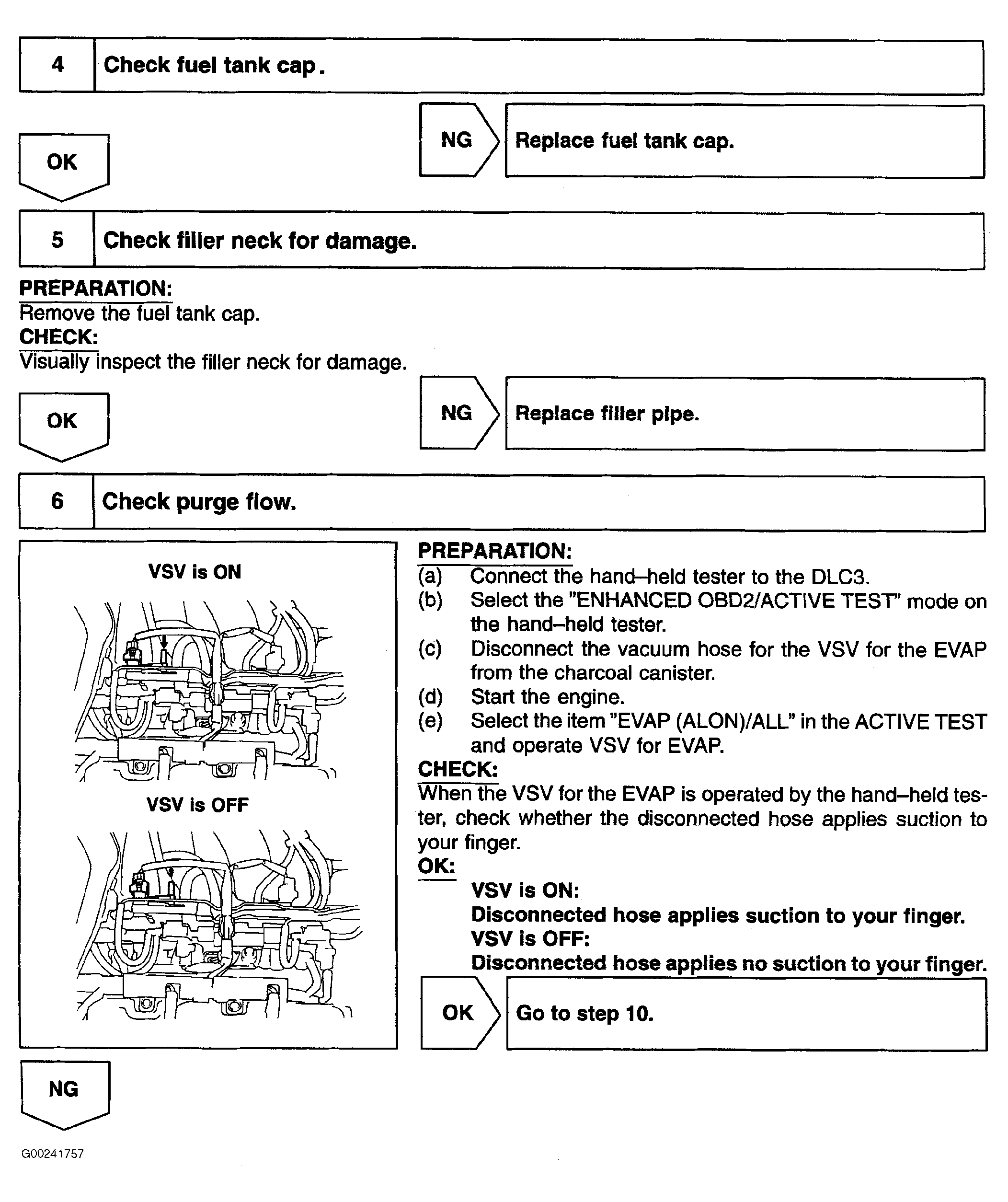

Fig 2: DTCs P0441 & P0446 Diagnostic Procedure Using Hand Held Tester (Steps 4-6)

G00241757

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: DTCs P0441 & P0446 Diagnostic Procedure Using Hand Held Tester (Steps 7-9)

G00241758

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: DTCs P0441 & P0446 Diagnostic Procedure Using Hand Held Tester (Steps 10-12)

G00241759

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

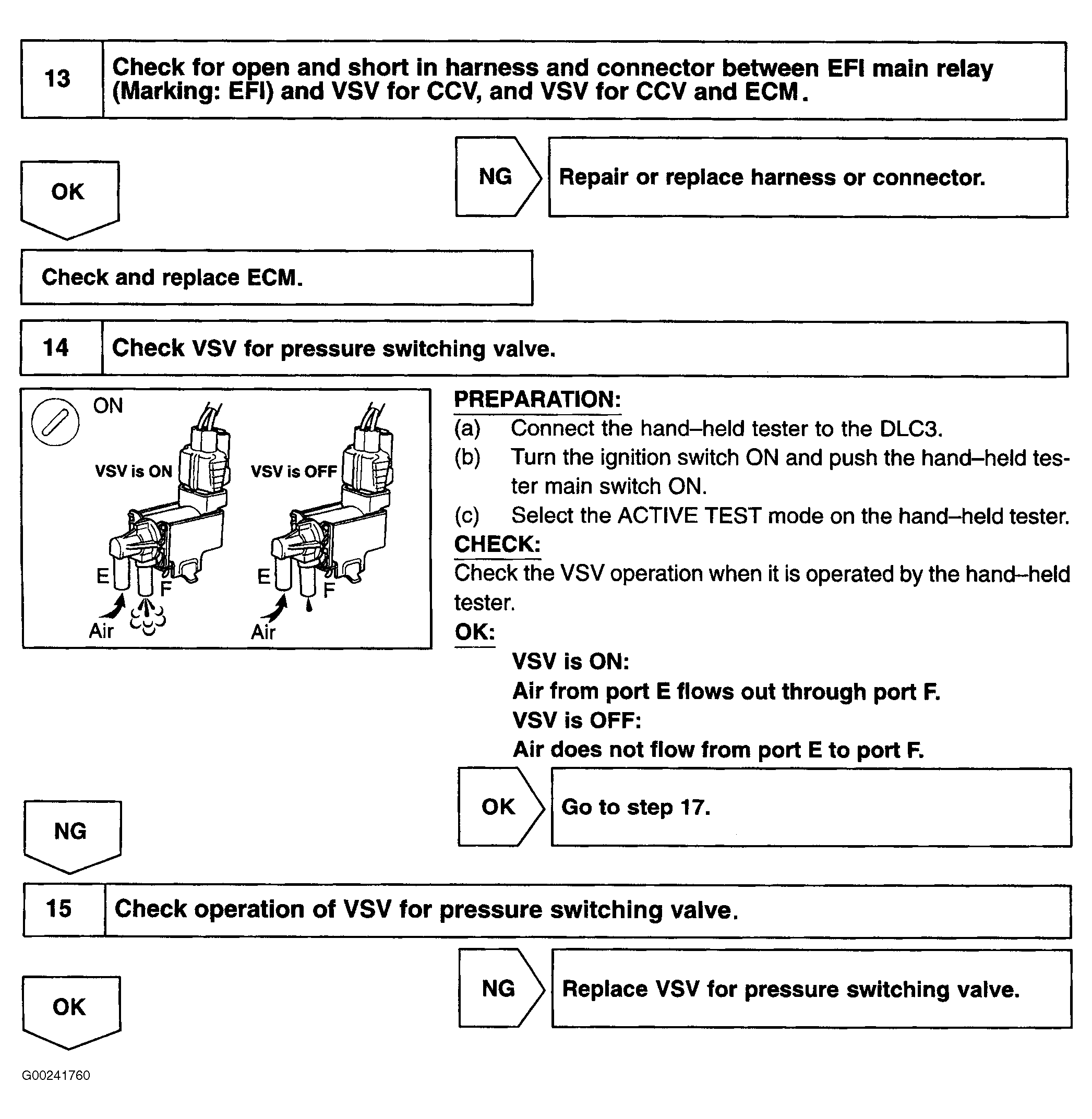

Fig 5: DTCs P0441 & P0446 Diagnostic Procedure Using Hand Held Tester (Steps 13-15)

G00241760

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: DTCs P0441 & P0446 Diagnostic Procedure Using Hand Held Tester (Steps 16-18)

G00241761

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: DTCs P0441 & P0446 Diagnostic Procedure Using Hand Held Tester (Steps 19-20)

G00247532

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: DTCs P0441 & P0446 Diagnostic Procedure Using Hand Held Tester (Steps 21-22)

G00247533

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

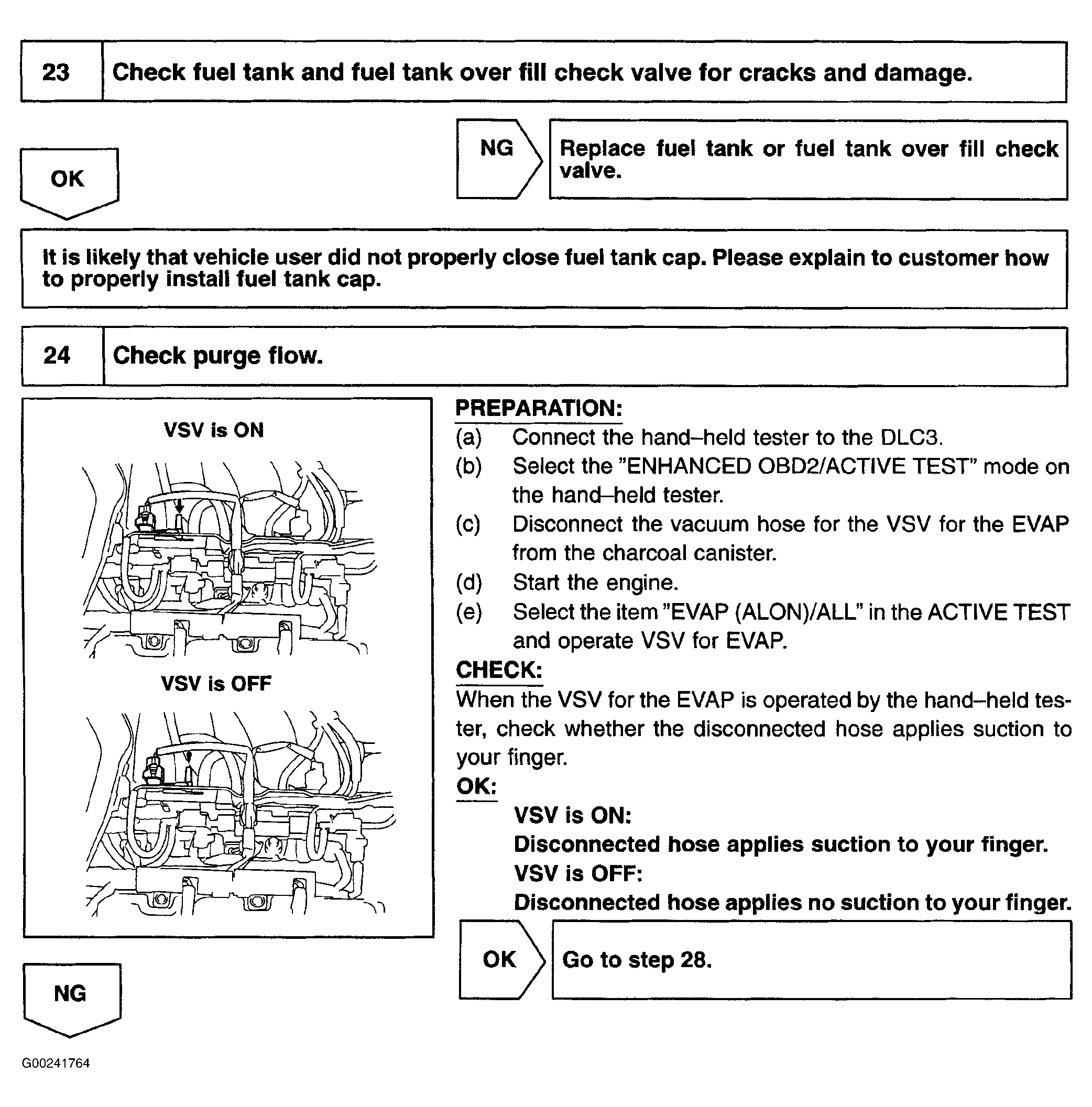

Fig 9: DTCs P0441 & P0446 Diagnostic Procedure Using Hand Held Tester (Steps 23-24)

G00241764

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

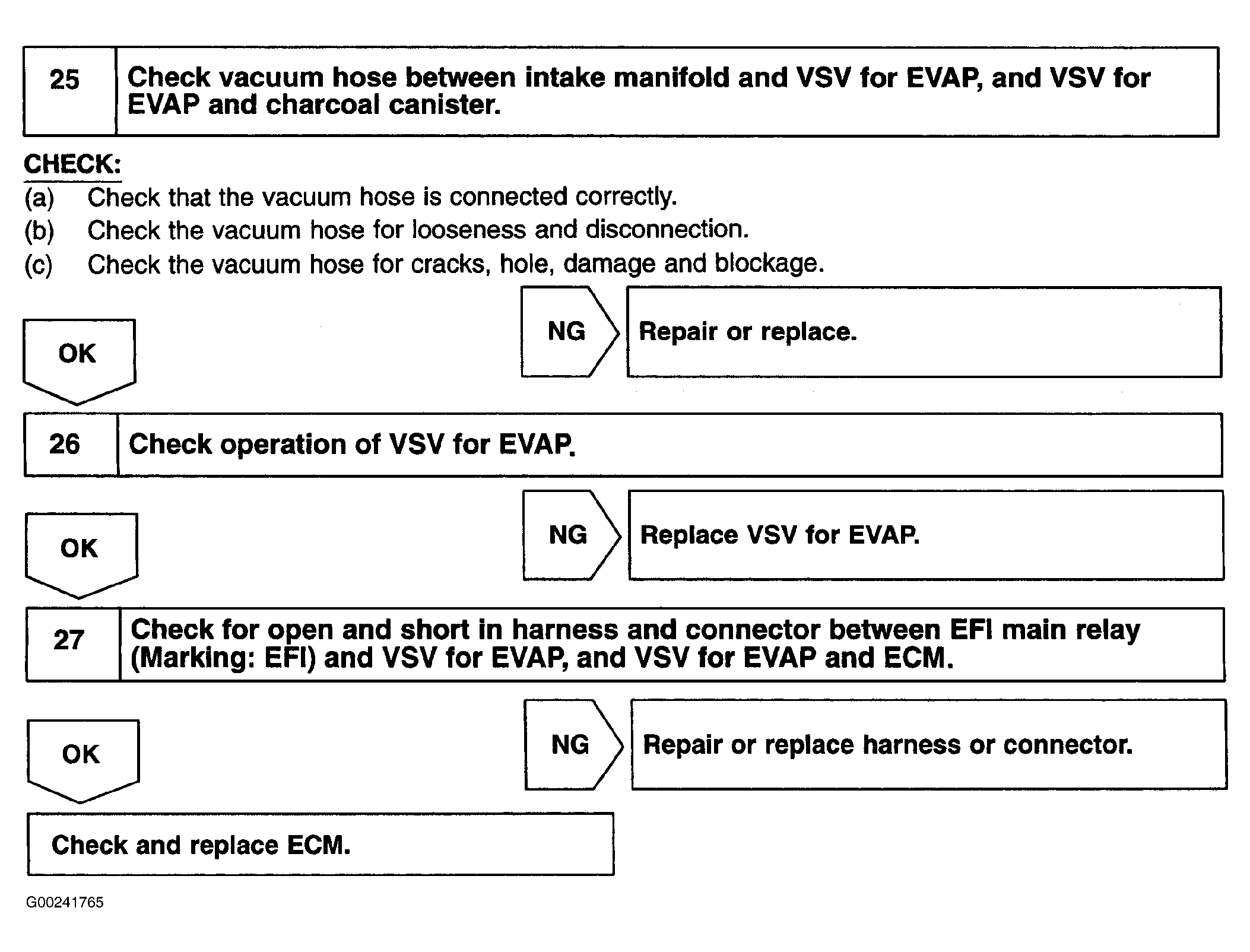

Fig 10: DTCs P0441 & P0446 Diagnostic Procedure Using Hand Held Tester (Steps 25-27)

G00241765

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

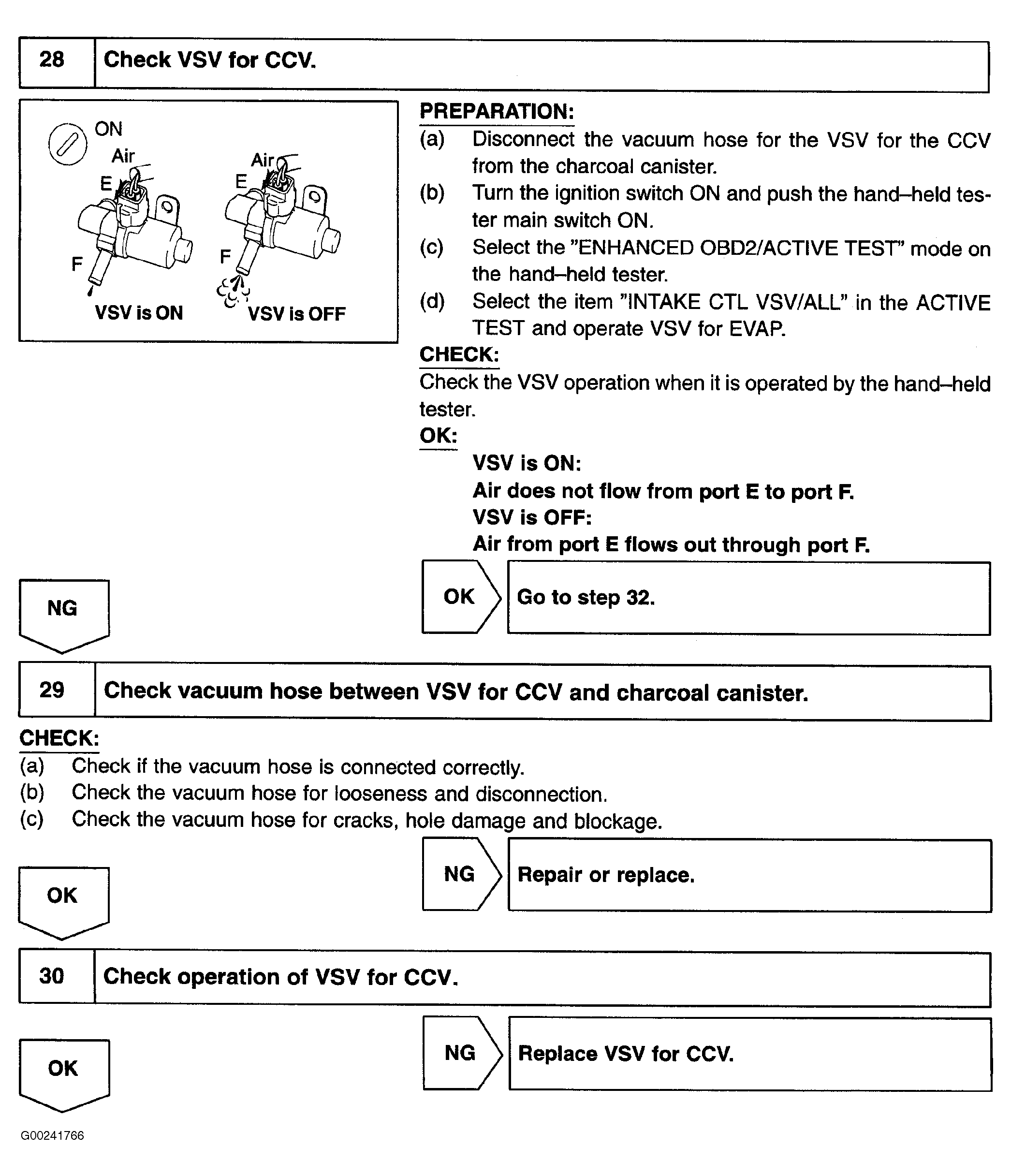

Fig 11: DTCs P0441 & P0446 Diagnostic Procedure Using Hand Held Tester (Steps 28-30)

G00241766

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

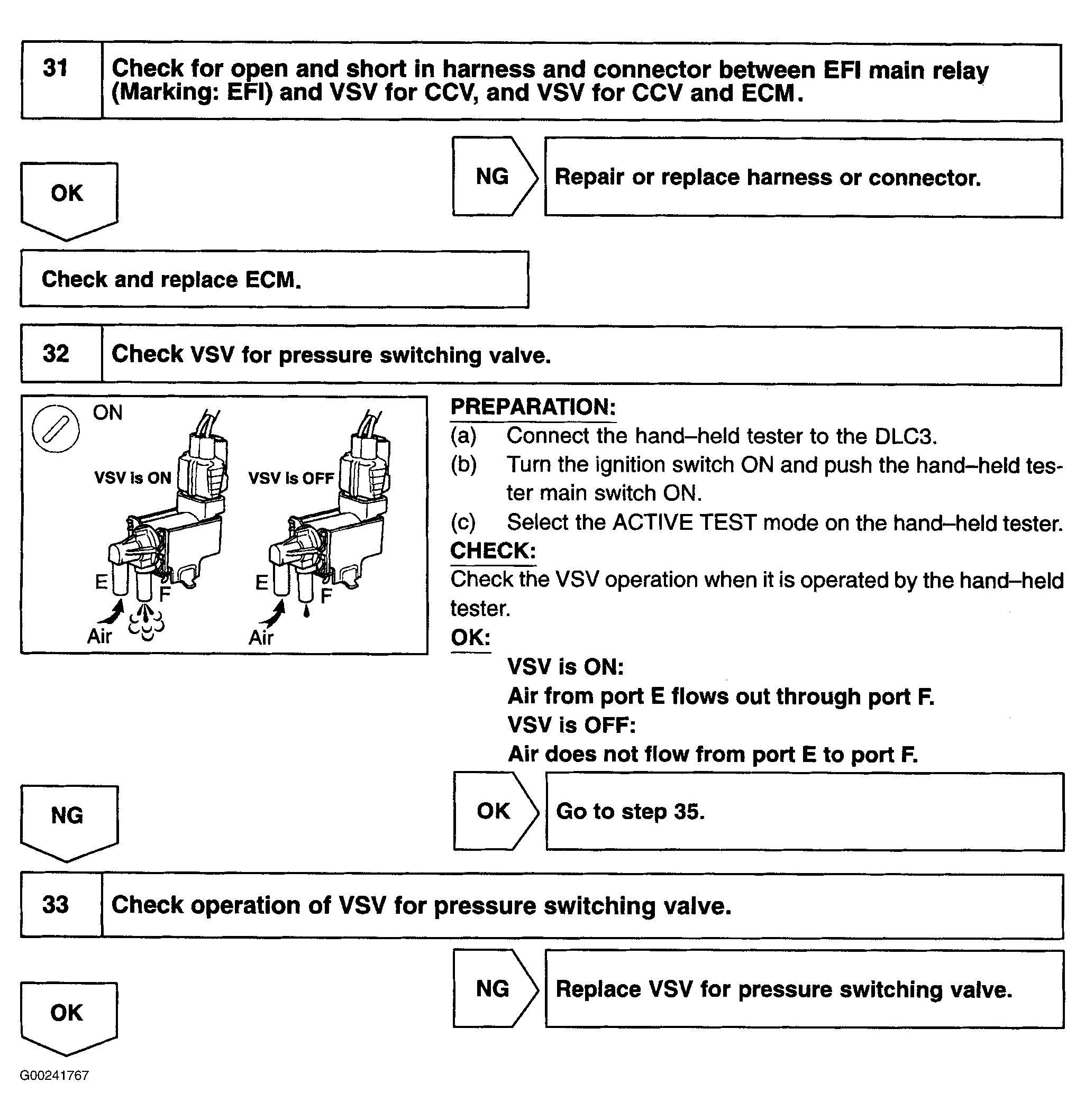

Fig 12: DTCs P0441 & P0446 Diagnostic Procedure Using Hand Held Tester (Steps 31-33)

G00241767

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

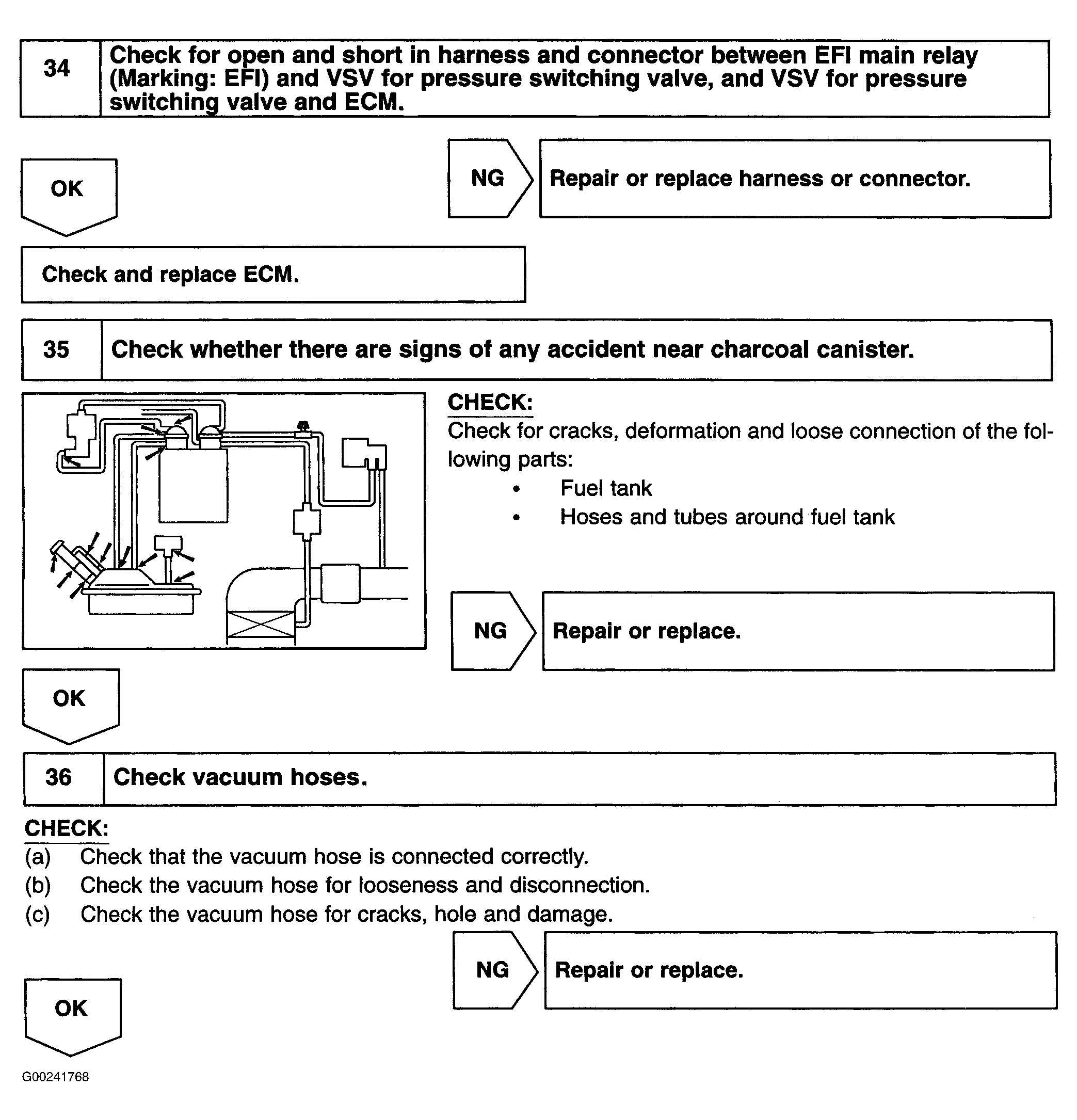

Fig 13: DTCs P0441 & P0446 Diagnostic Procedure Using Hand Held Tester (Steps 34-36)

G00241768

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

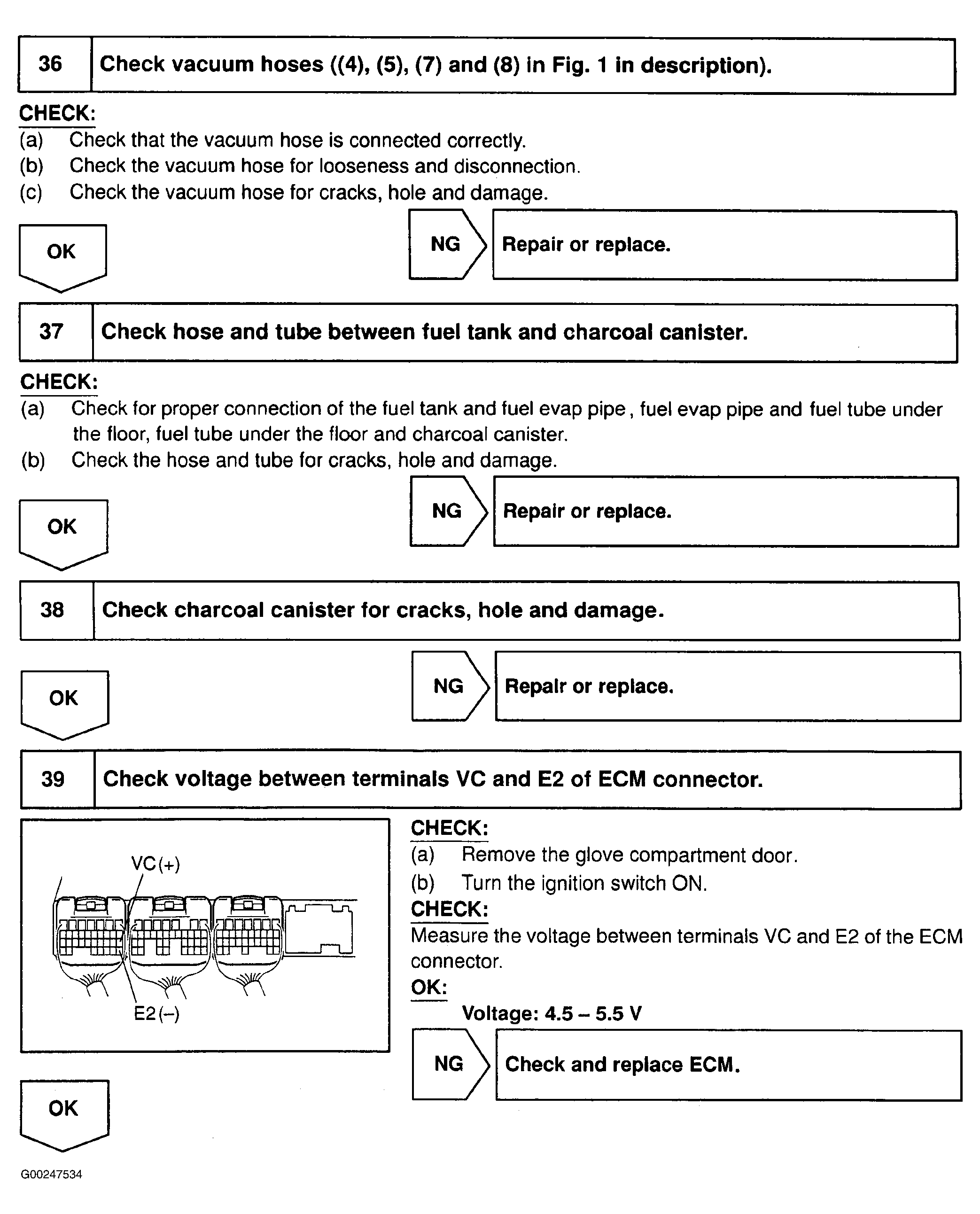

Fig 14: DTCs P0441 & P0446 Diagnostic Procedure Using Hand Held Tester (Steps 37-39)

G00247534

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

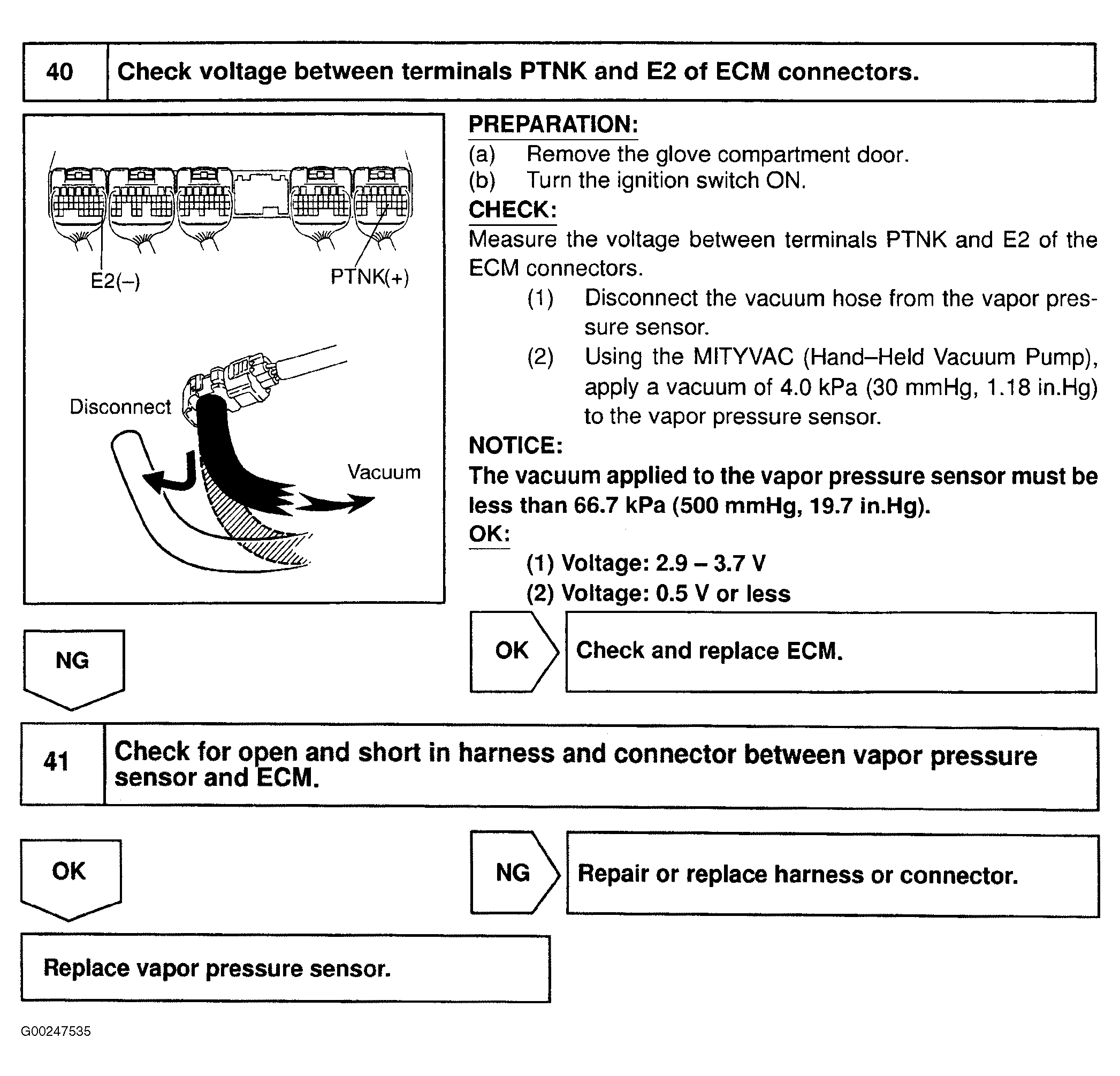

Fig 15: DTCs P0441 & P0446 Diagnostic Procedure Using Hand Held Tester (Steps 40-41)

G00247535

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

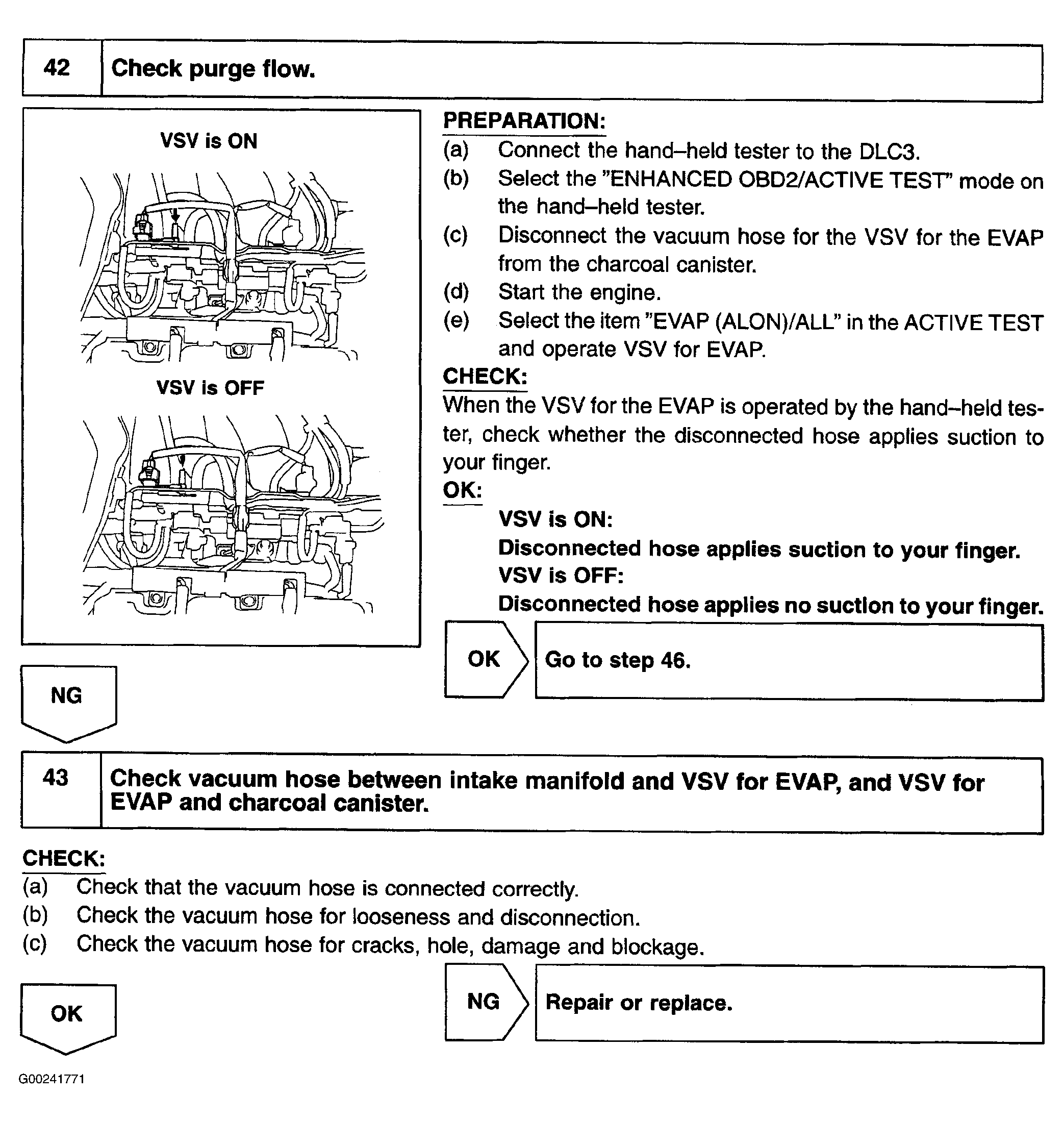

Fig 16: DTCs P0441 & P0446 Diagnostic Procedure Using Hand Held Tester (Steps 42-43)

G00241771

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

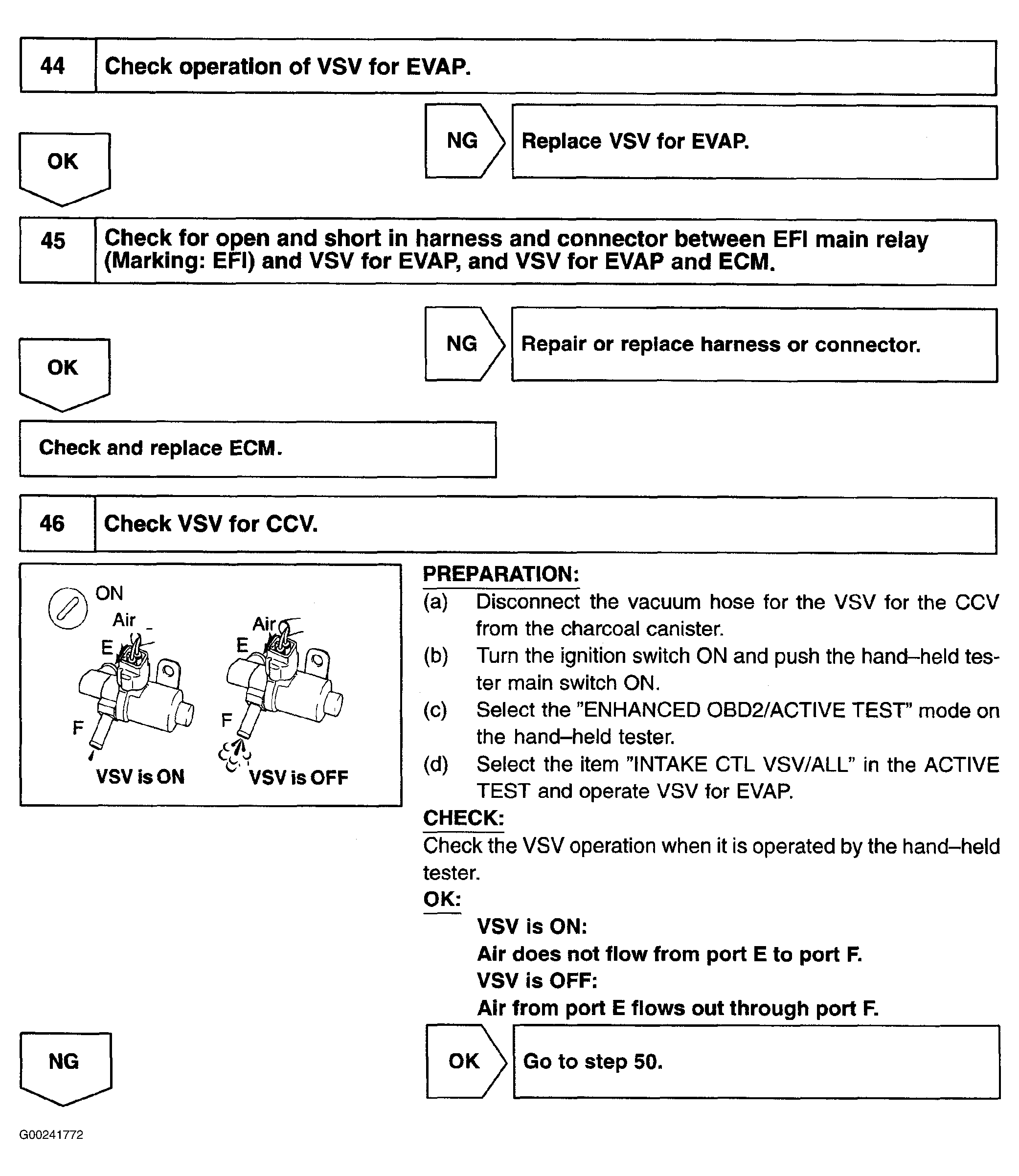

Fig 17: DTCs P0441 & P0446 Diagnostic Procedure Using Hand Held Tester (Steps 44-46)

G00241772

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

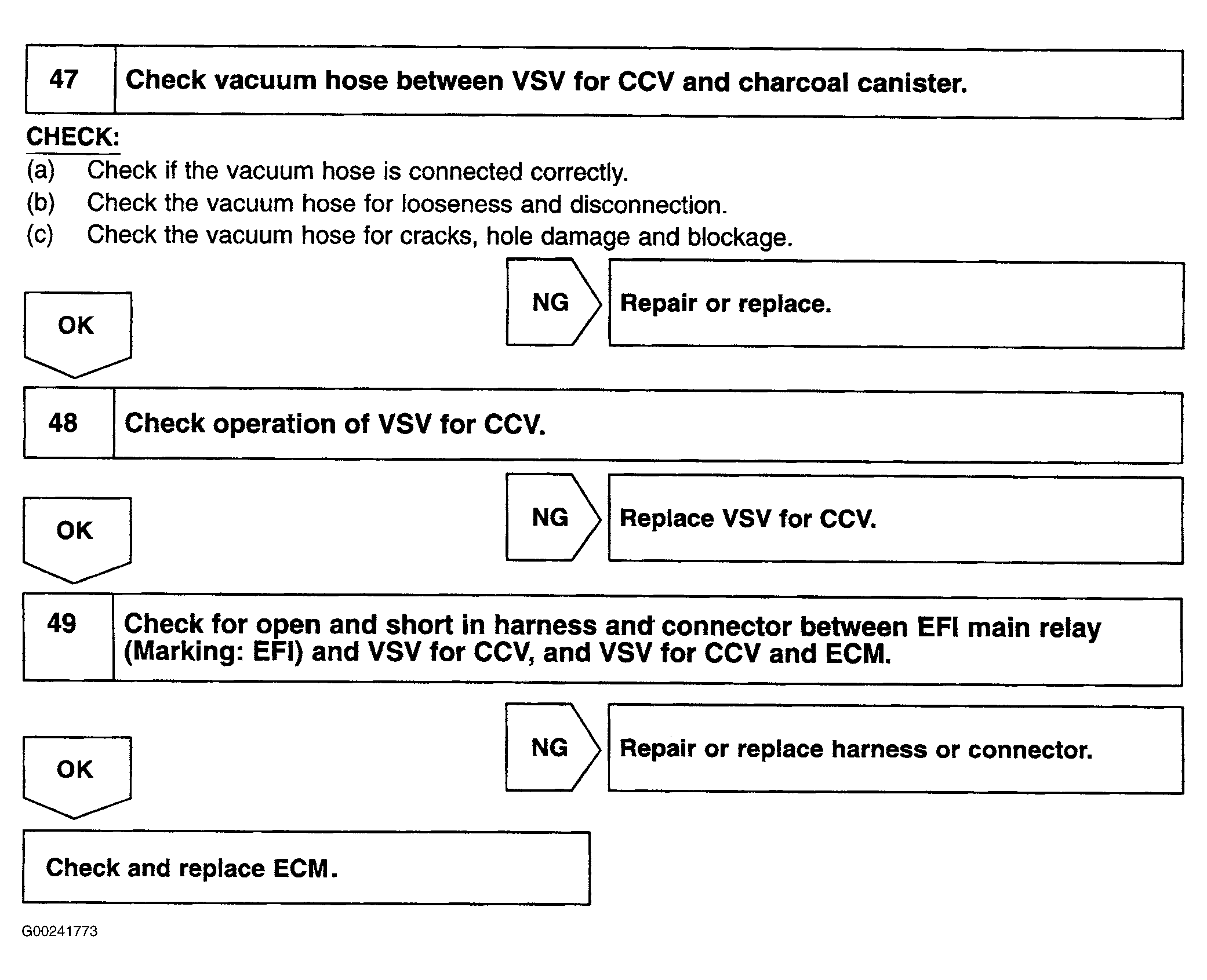

Fig 18: DTCs P0441 & P0446 Diagnostic Procedure Using Hand Held Tester (Steps 47-49)

G00241773

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

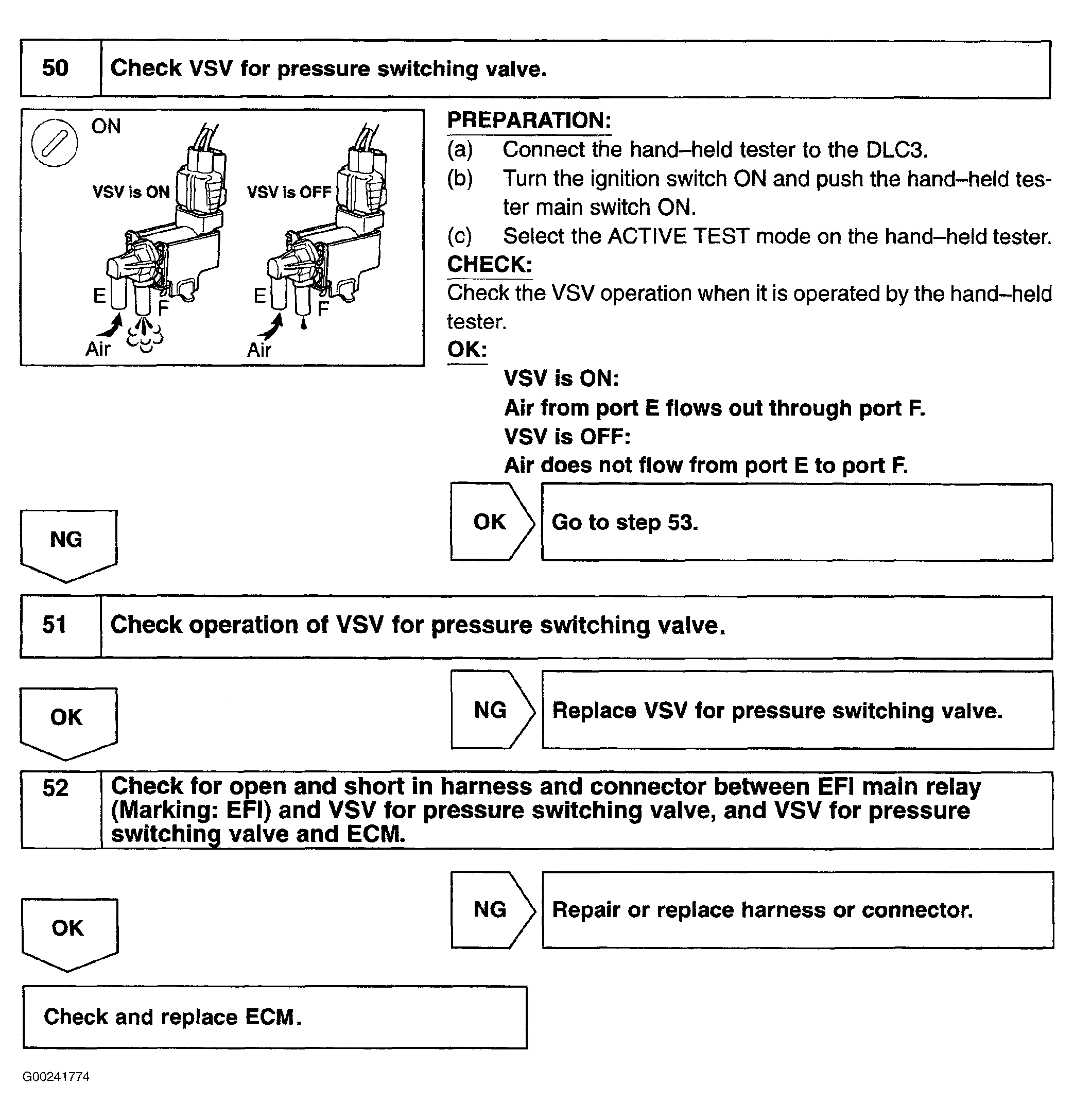

Fig 19: DTCs P0441 & P0446 Diagnostic Procedure Using Hand Held Tester (Steps 50-52)

G00241774

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

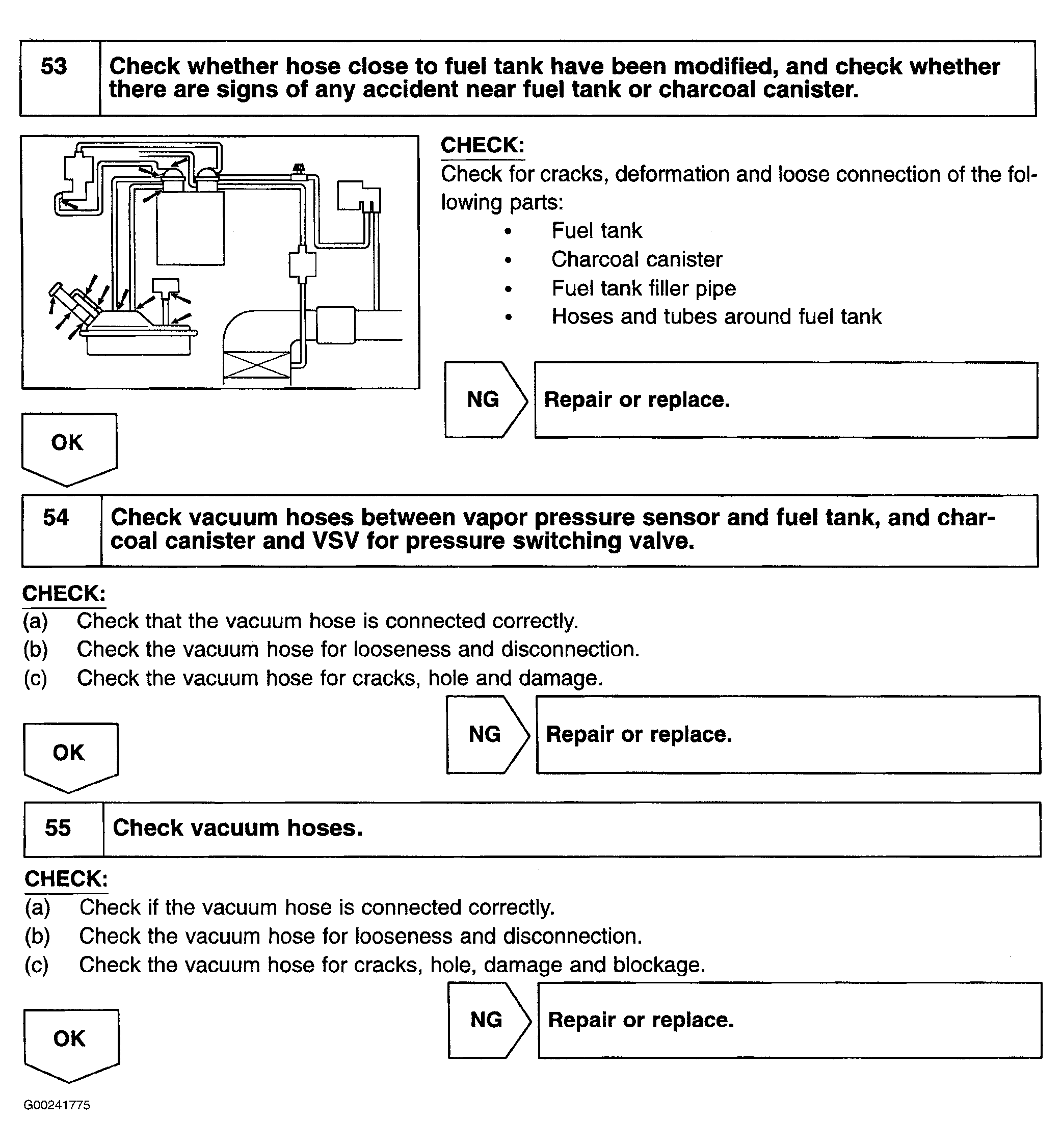

Fig 20: DTCs P0441 & P0446 Diagnostic Procedure Using Hand Held Tester (Steps 53-55)

G00241775

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

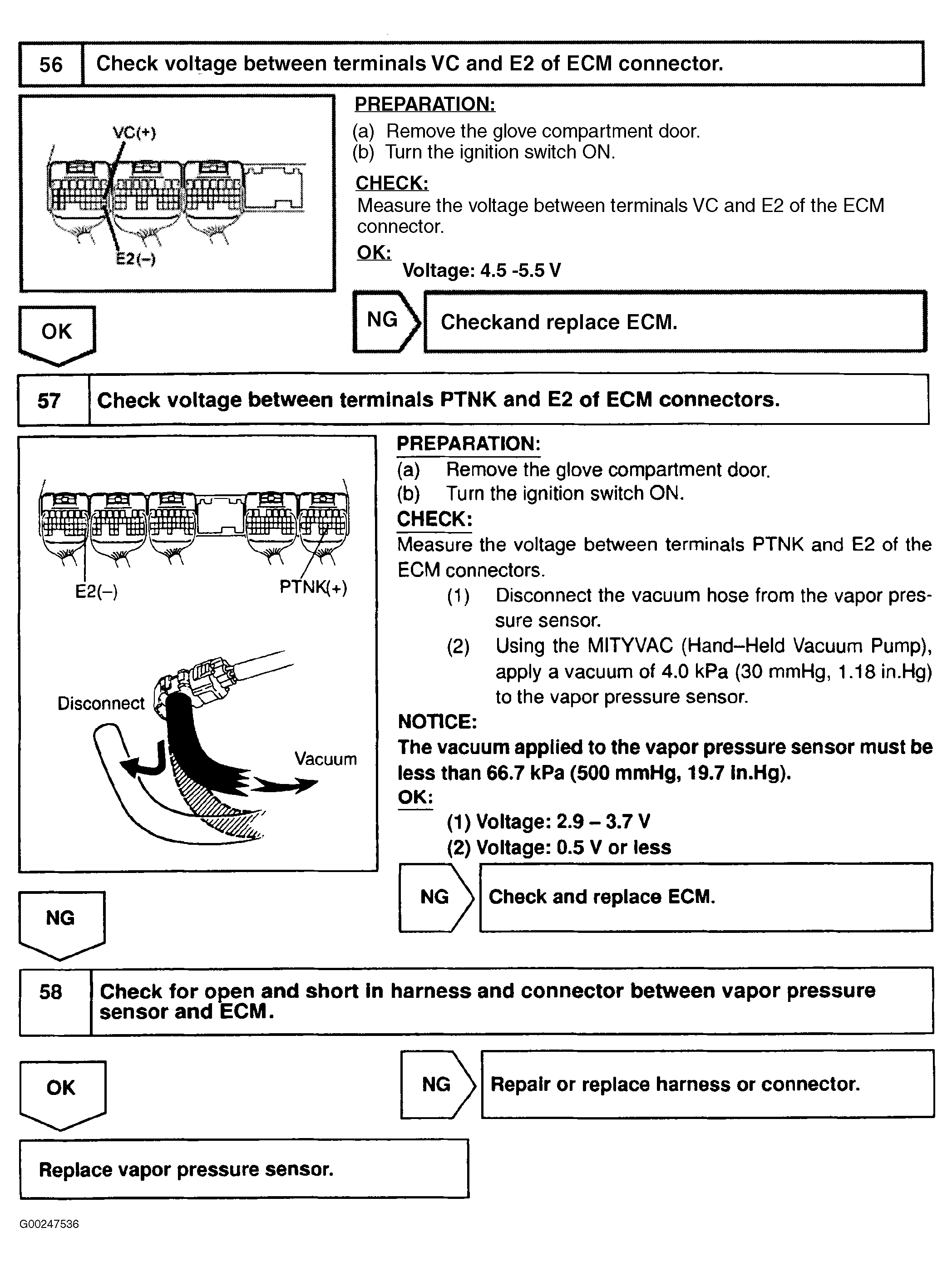

Fig 21: DTCs P0441 & P0446 Diagnostic Procedure Using Hand Held Tester (Steps 56-58)

G00247536

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: DTCs P0441 & P0446 Diagnostic Procedure (OBD II Scan Tool) (Steps 1-3)

G00241777

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: DTCs P0441 & P0446 Diagnostic Procedure (OBD II Scan Tool) (Steps 4-6)

G00241778

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 24: DTCs P0441 & P0446 Diagnostic Procedure (OBD II Scan Tool) (Steps 7-9)

G00241779

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 25: DTCs P0441 & P0446 Diagnostic Procedure (OBD II Scan Tool) (Steps 10-11)

G00247537

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 26: DTCs P0441 & P0446 Diagnostic Procedure (OBD II Scan Tool) (Steps 12-13)

G00247538

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 27: DTCs P0441 & P0446 Diagnostic Procedure (OBD II Scan Tool) (Steps 14-15)

G00241782

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 28: DTCs P0441 & P0446 Diagnostic Procedure (OBD II Scan Tool) (Steps 16-17)

G00247539

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

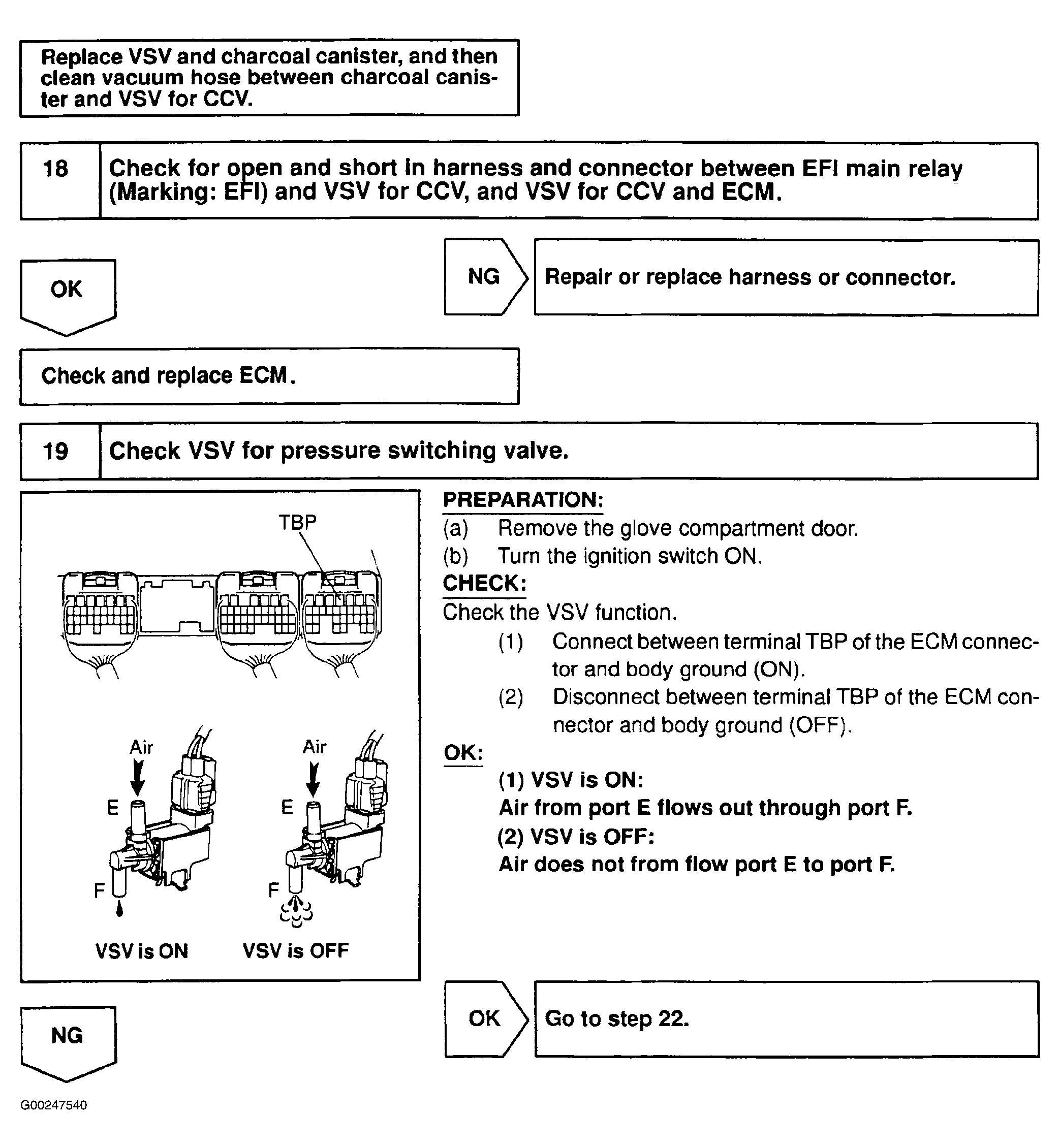

Fig 29: DTCs P0441 & P0446 Diagnostic Procedure (OBD II Scan Tool) (Steps 18-19)

G00247540

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 30: DTCs P0441 & P0446 Diagnostic Procedure (OBD II Scan Tool) (Steps 20-22)

G00241785

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 31: EVAP Emission System Circuit Wiring Diagram

G00247531

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
