Manual Up/Down Function Via Back Door Lock Key Cylinder Does Not Operate: Wiring Diagram
WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

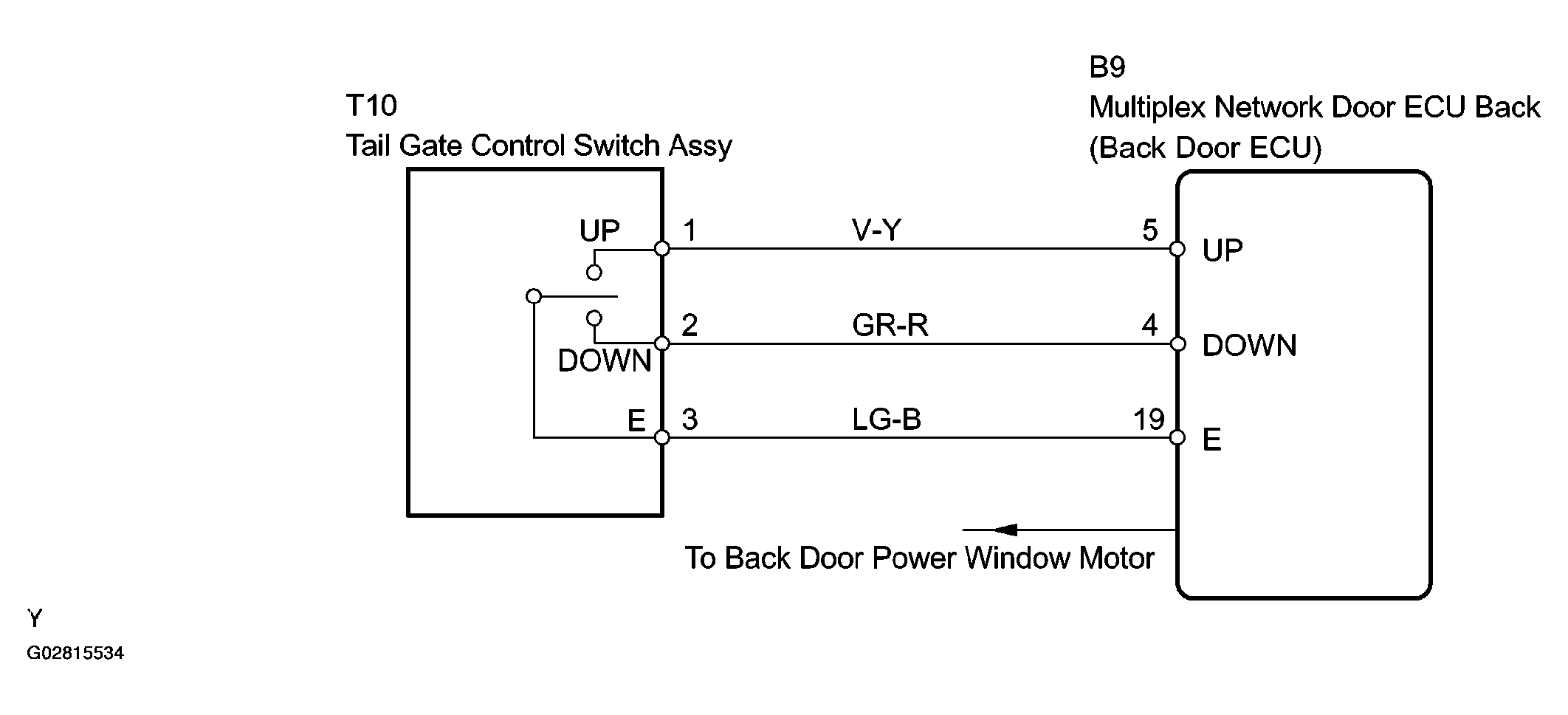

Fig 1: Tail Gate Control Switch & Back Door ECU Circuit
