Manual Up/Down Function Does Not Operate On Rear RH: Wiring Diagram

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

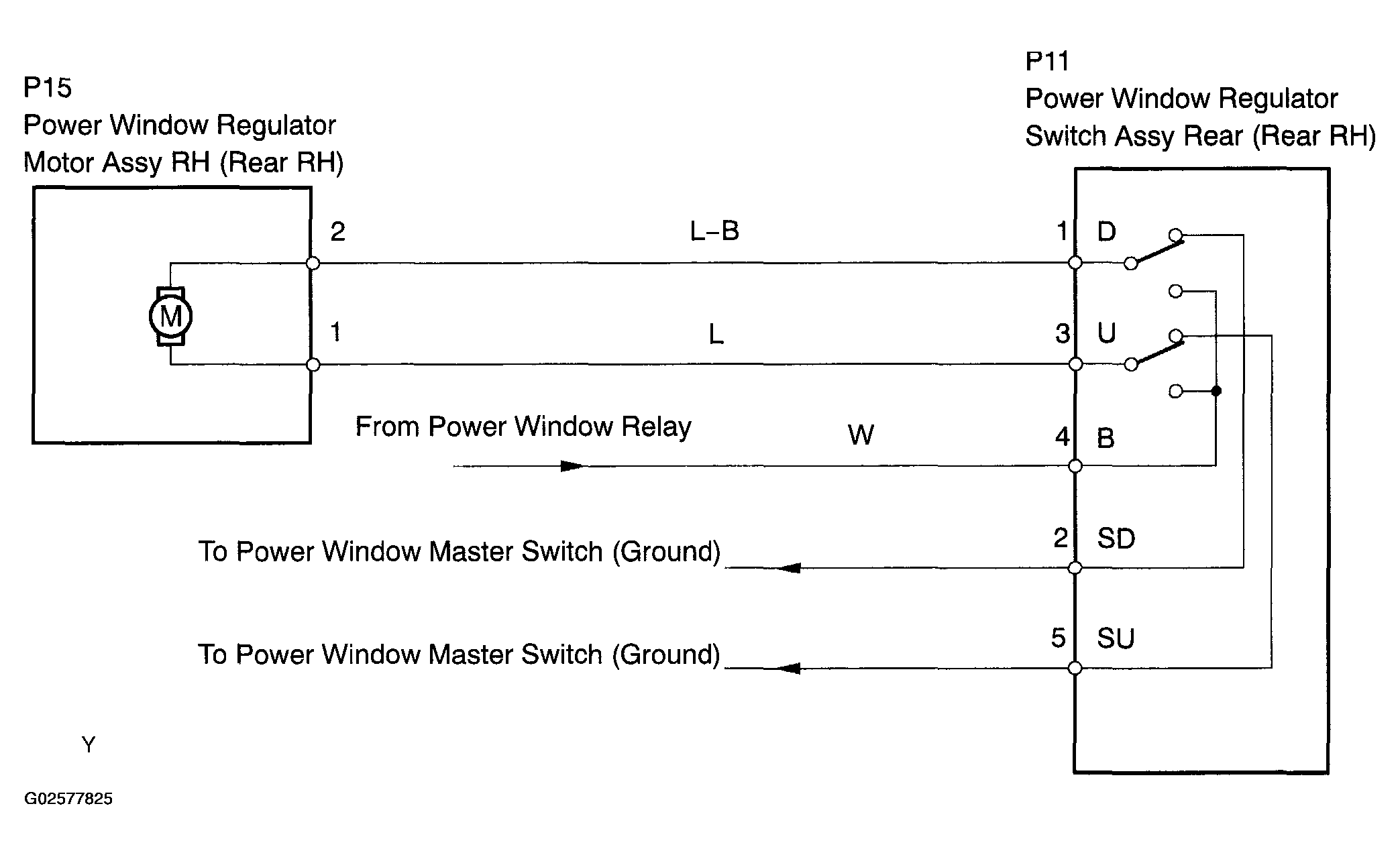

Fig 1: Wiring Diagram Between Power Window Motor RH (Rear RH) And Power Window Switch Assy Rear (Rear RH)
G02577825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
