Hood Support: Replacement
- REMOVE SUPPORT FROM HOOD
Remove the bolt and support from the hood.
HINT:
While supporting the hood by hand, remove the hood.
- REMOVE SUPPORT FROM BODY
Remove the bolt and support.
- IF NECESSARY, REPLACE HOOD SUPPORT NOTE: Handling the support
- Do not disassemble the support as the cylinder is filled with pressurized gas.

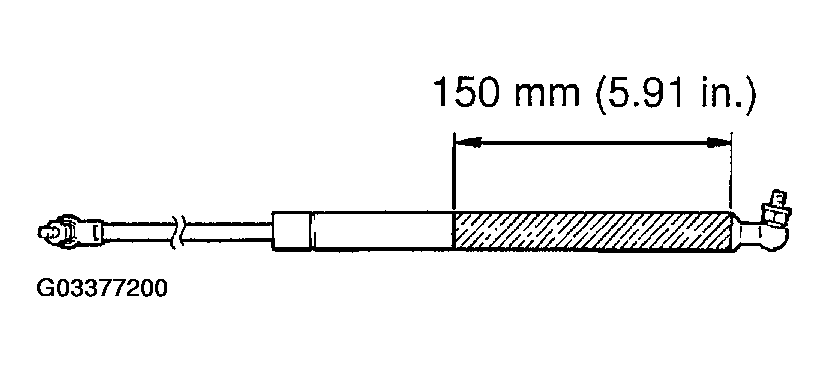

- If the support is to be replaced, drill a 2.0 - 3.0 mm (0.079 - 0.118 in.) hole in the area shown in the illustration to completely release the high pressure gas before disposing of it.
- When drilling, chips may fly out so work carefully.
- The gas is colorless, odorless and non - toxic.
- When working, handle the support carefully. Never score or scratch the exposed part of the piston rod, and allow any paint or oil to get on it.
- Do not turn the piston rod and cylinder with the support fully extended.
- INSTALL HOOD SUPPORT
Install the hood support.
Torque: 22 N.m (225 kgf.cm, 16 ft.lbf)
