Engine control system is a computerized emission, ignition and fuel injection control system. Engine control system lowers exhaust emissions while maintaining good fuel economy and driveability. Engine control system consists of various sensors, switches and control units. See Fig 1-Fig 21 . The Engine Control Module (ECM) controls engine control system based on input signals received from various input devices. ECM contains preprogrammed data to maintain optimum engine performance under all operating conditions.

Fig 1: Locating Engine Control System Components (Avalon)

G00025434

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

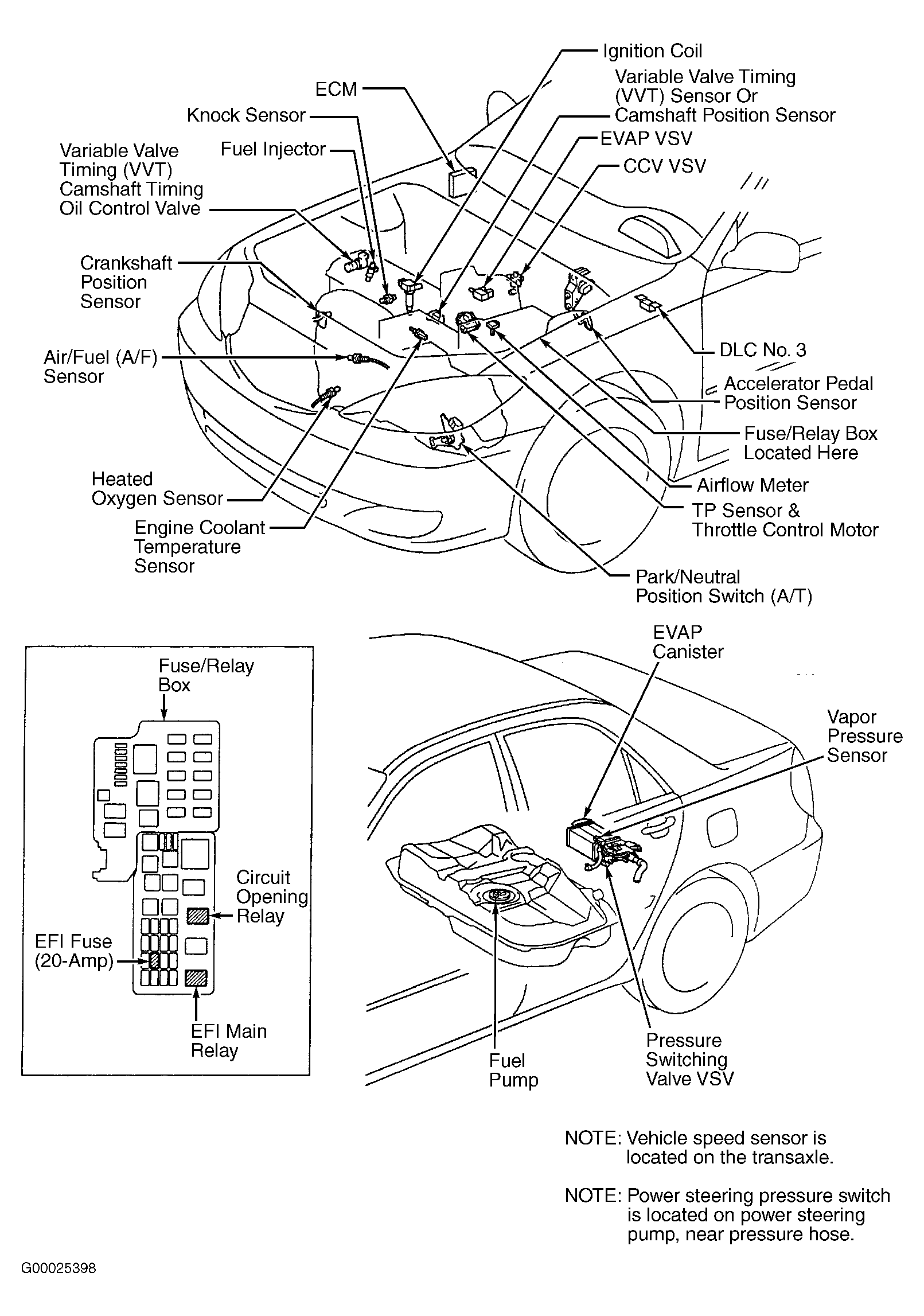

Fig 2: Locating Engine Control System Components (Camry 2.4L 4-Cyl.)

G00025398

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

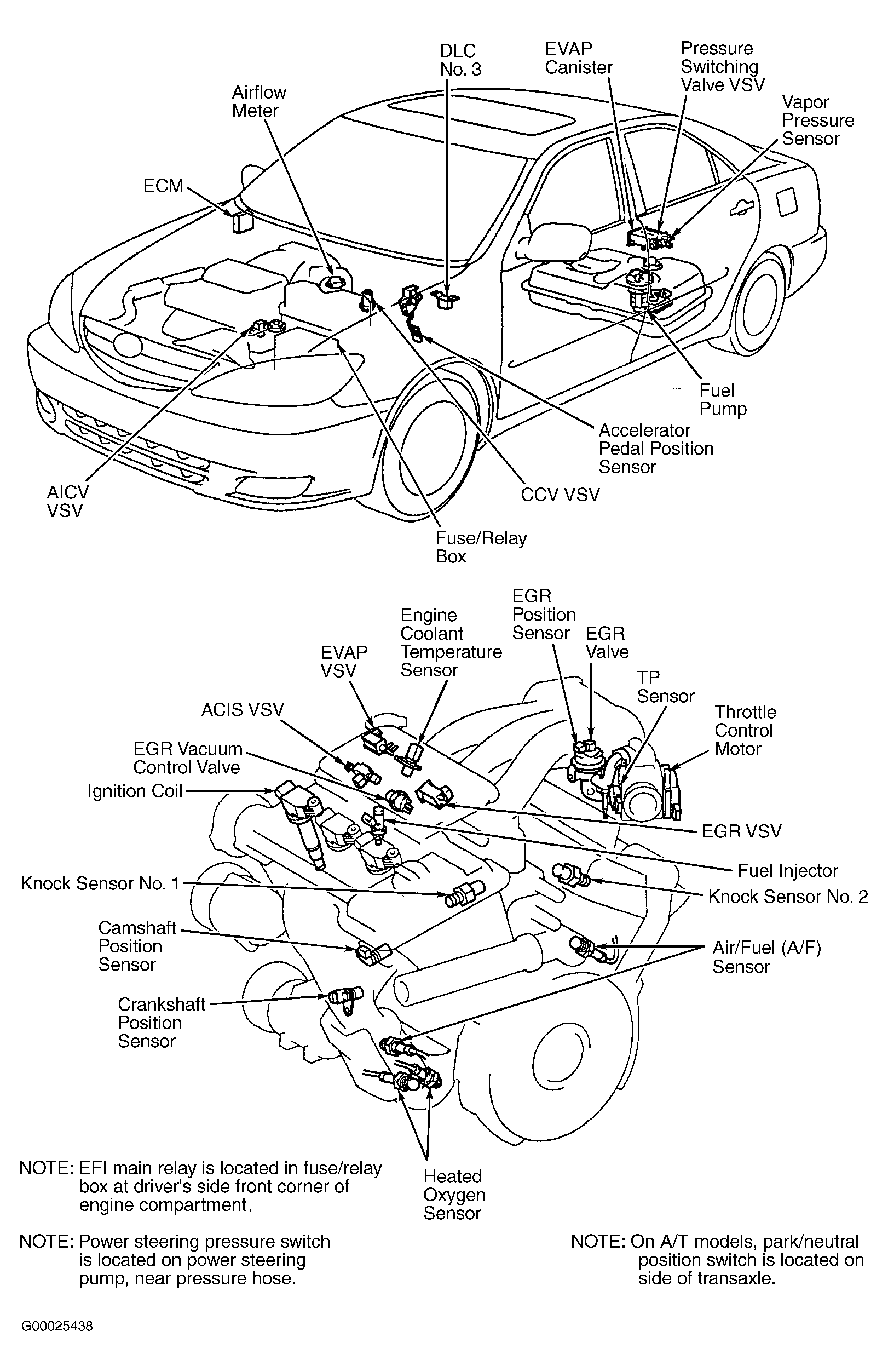

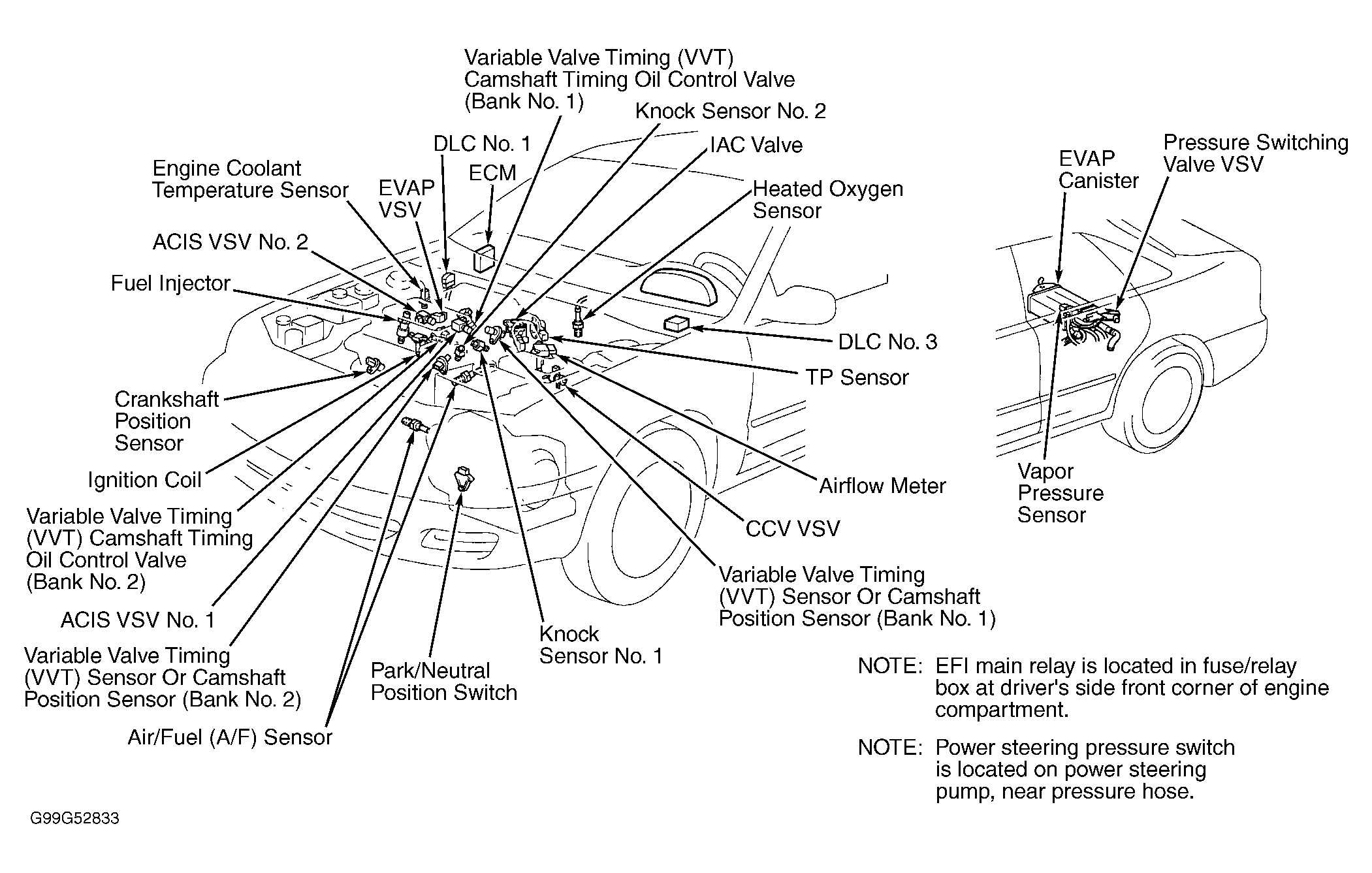

Fig 3: Locating Engine Control System Components (Camry 3.0L V6)

G00025438

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

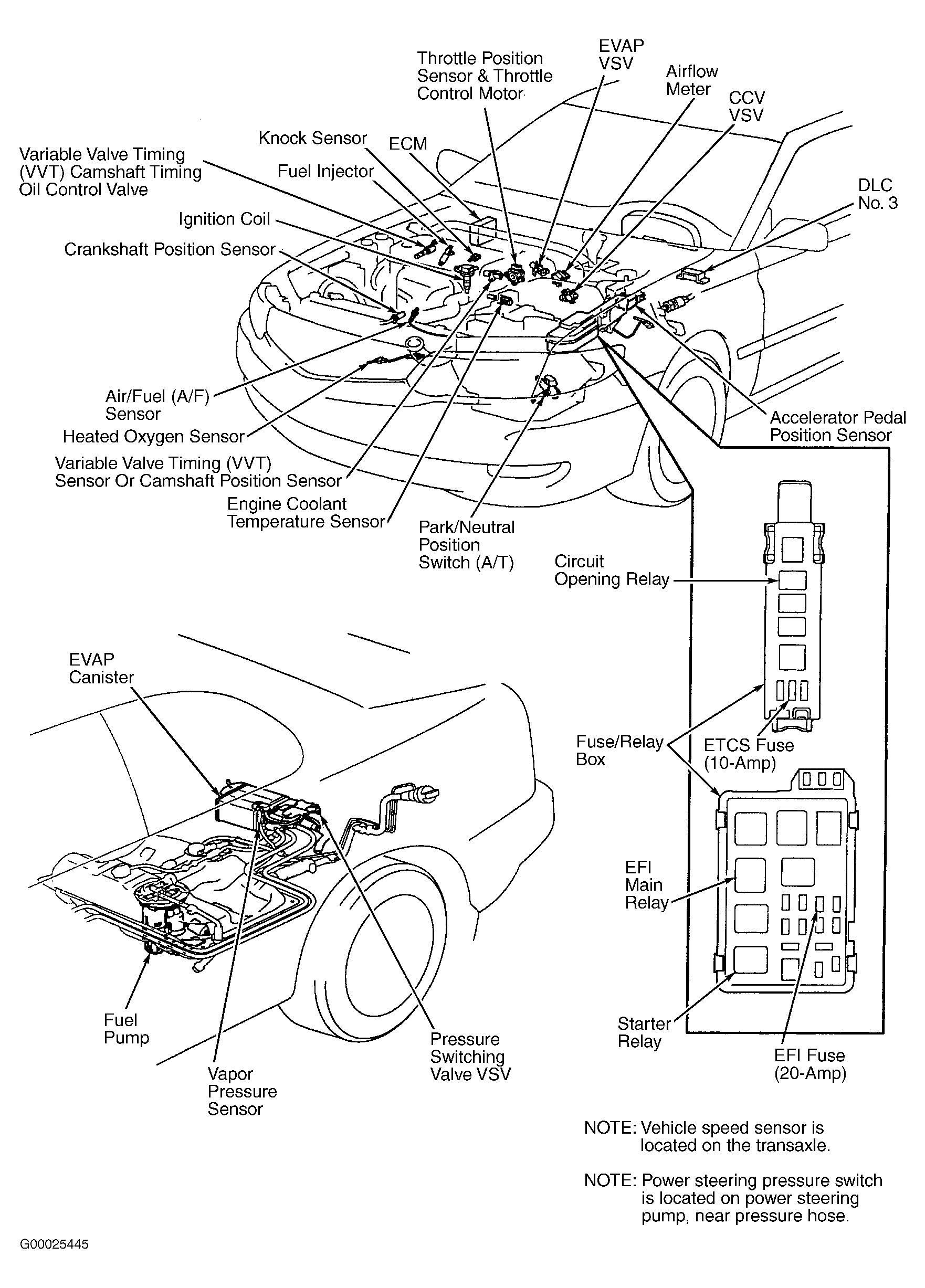

Fig 4: Locating Engine Control System Components (Camry Solara 2.4L 4-Cyl.)

G00025445

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

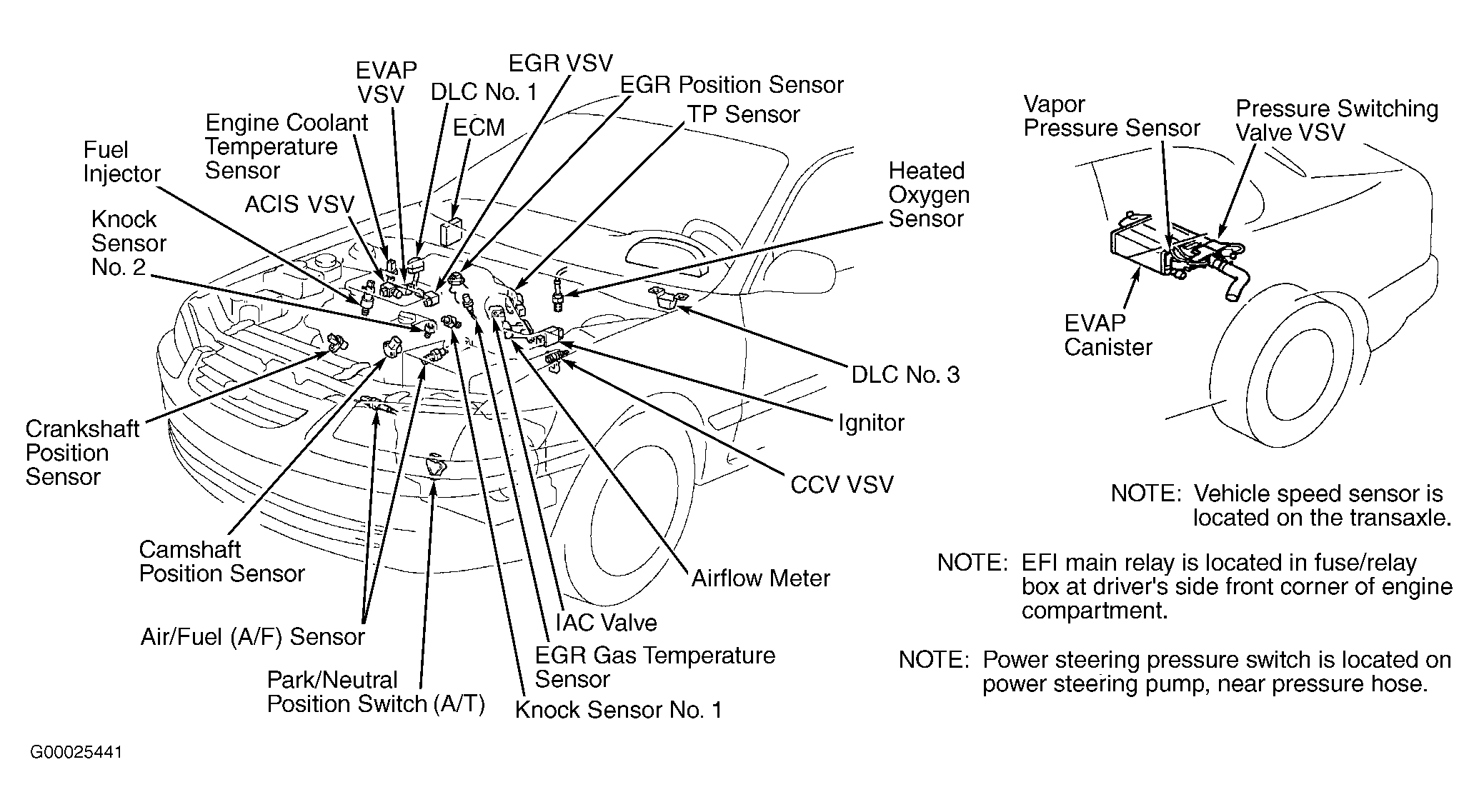

Fig 5: Locating Engine Control System Components (Camry Solara 3.0L V6)

G00025441

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

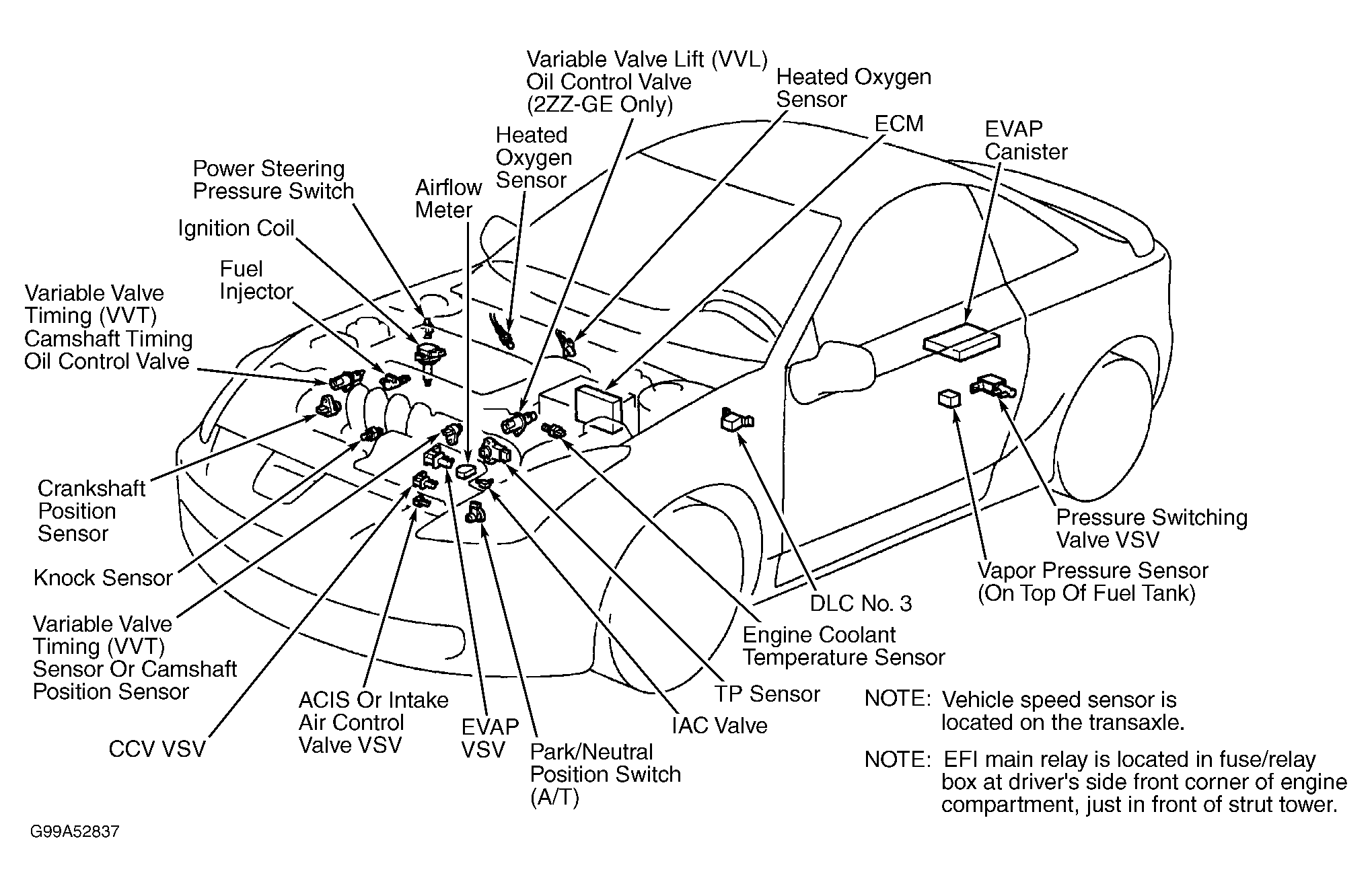

Fig 6: Locating Engine Control System Components (Celica)

G99A52837

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

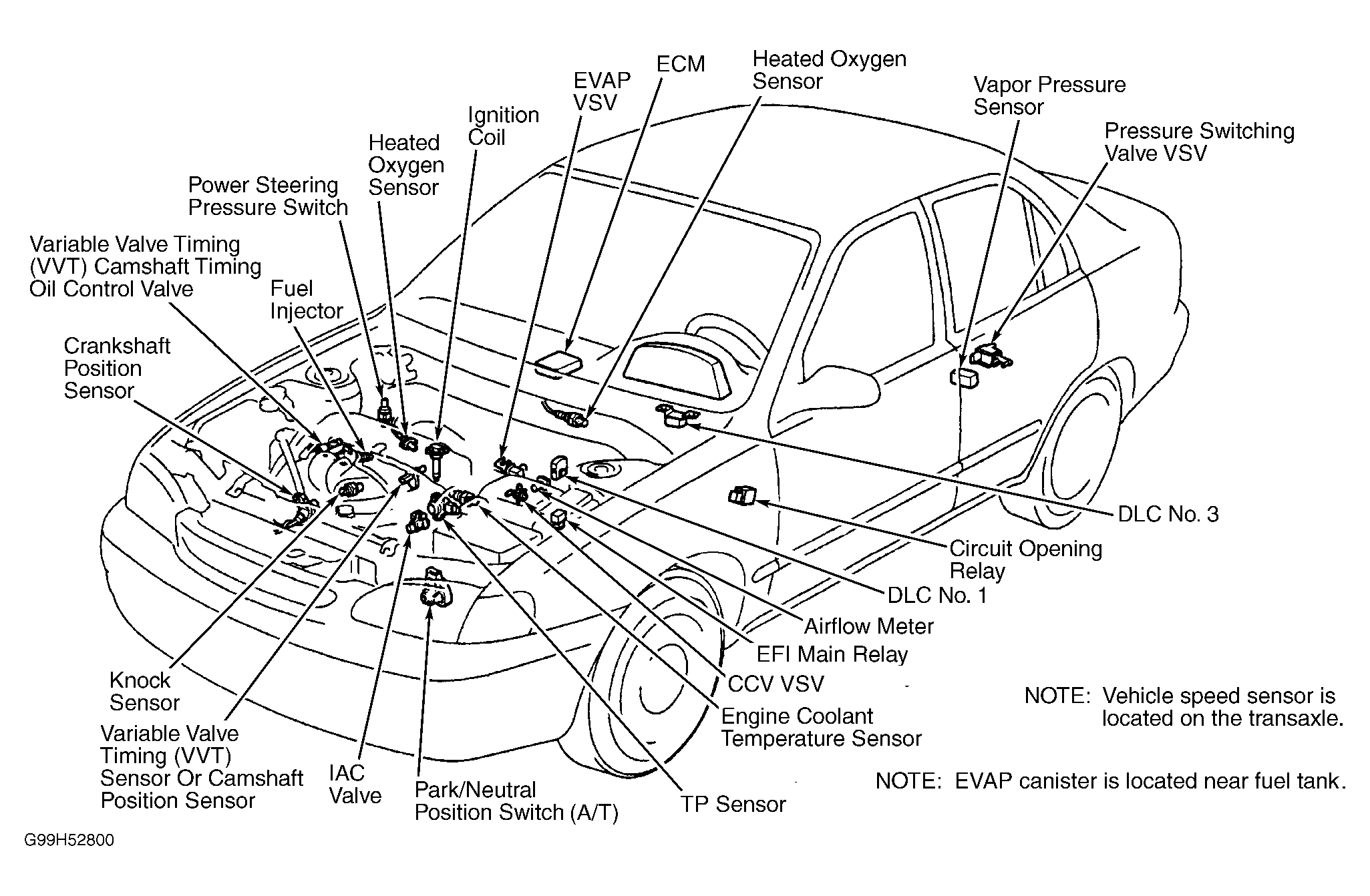

Fig 7: Locating Engine Control System Components (Corolla)

G99H52800

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

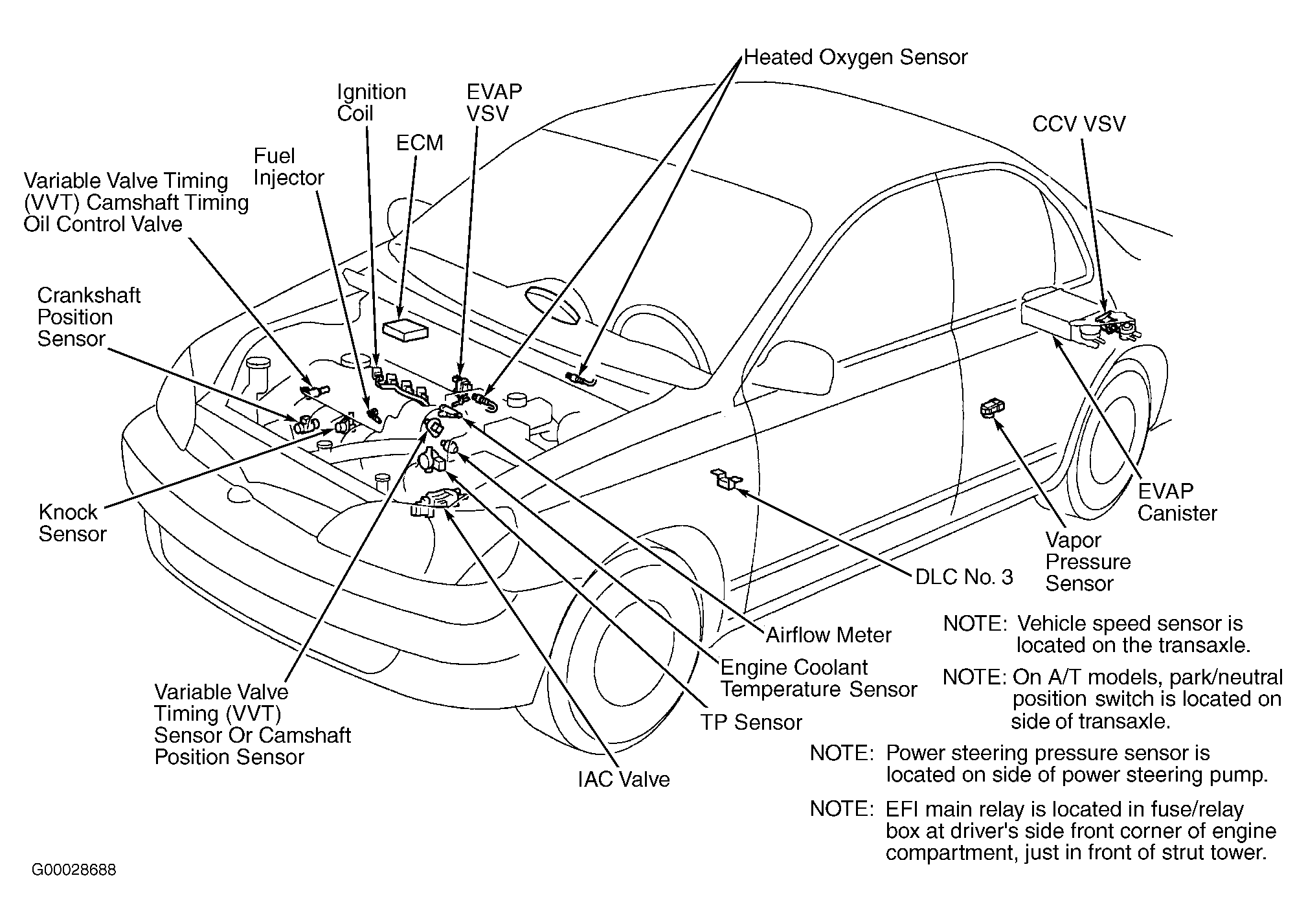

Fig 8: Locating Engine Control System Components (ECHO)

G00028688

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

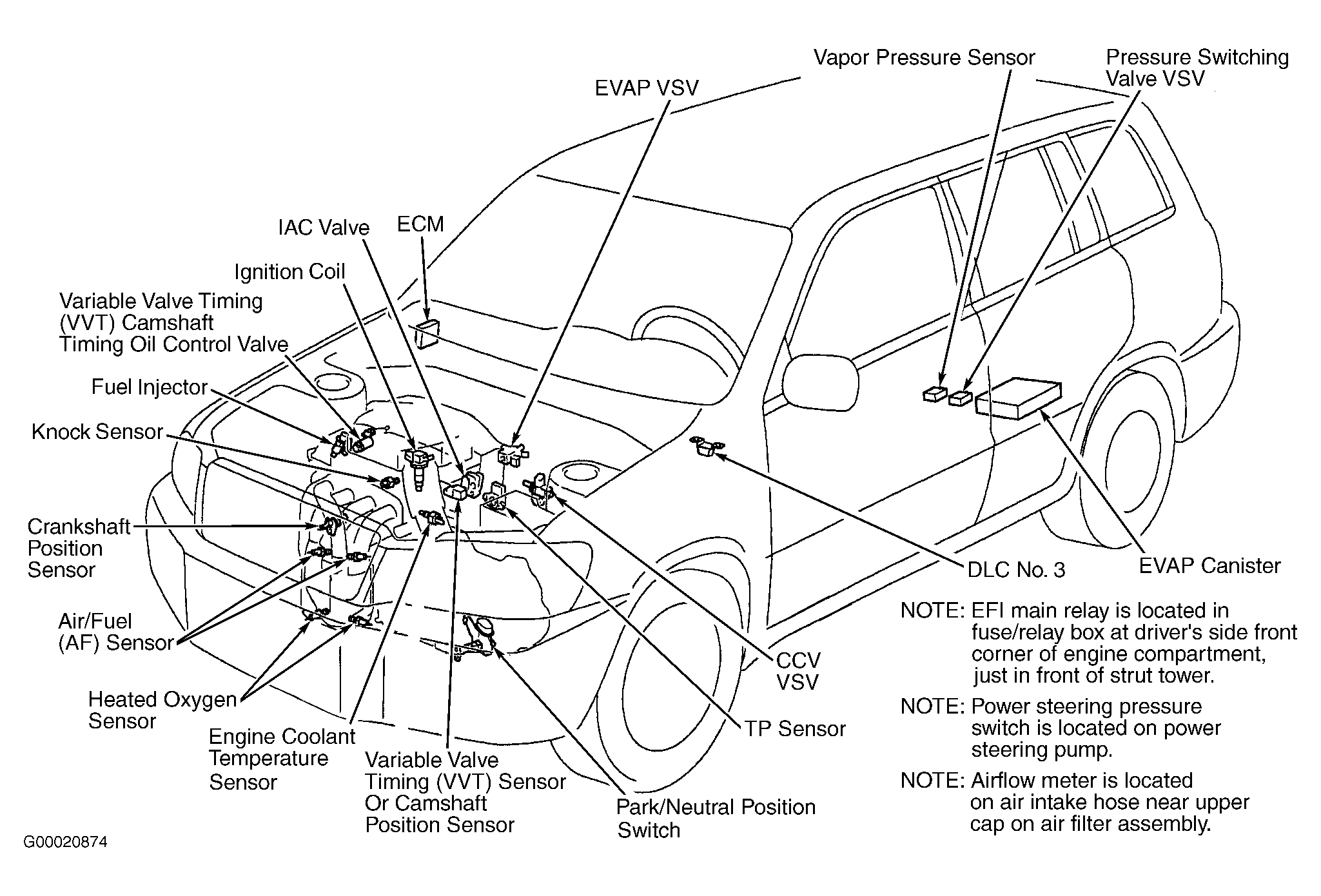

Fig 9: Locating Engine Control System Components (Highlander 2.4L 4-Cyl.)

G00020874

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

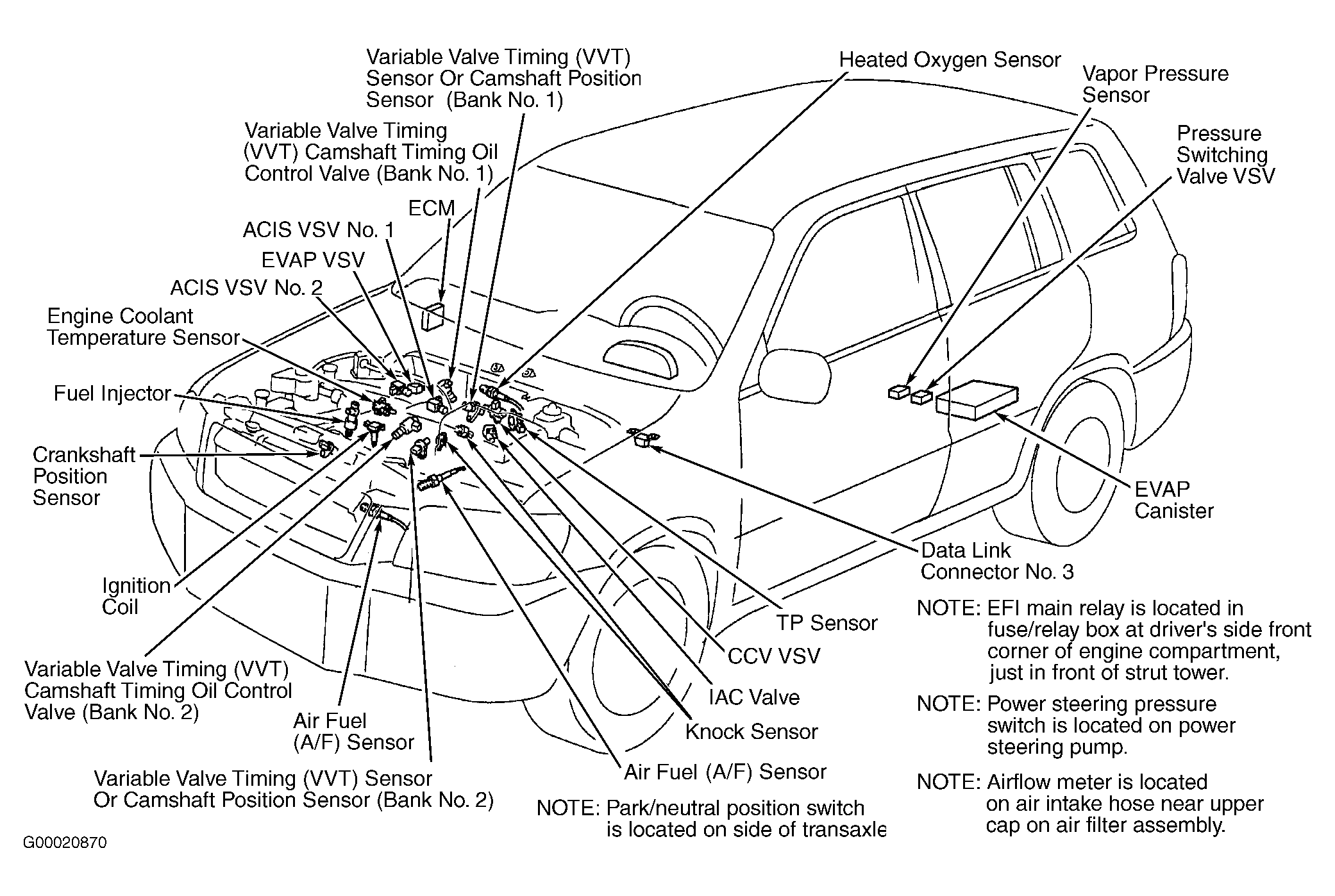

Fig 10: Locating Engine Control System Components (Highlander 3.0L V6)

G00020870

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Locating Engine Control System Components (Land Cruiser)

G98G11490

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

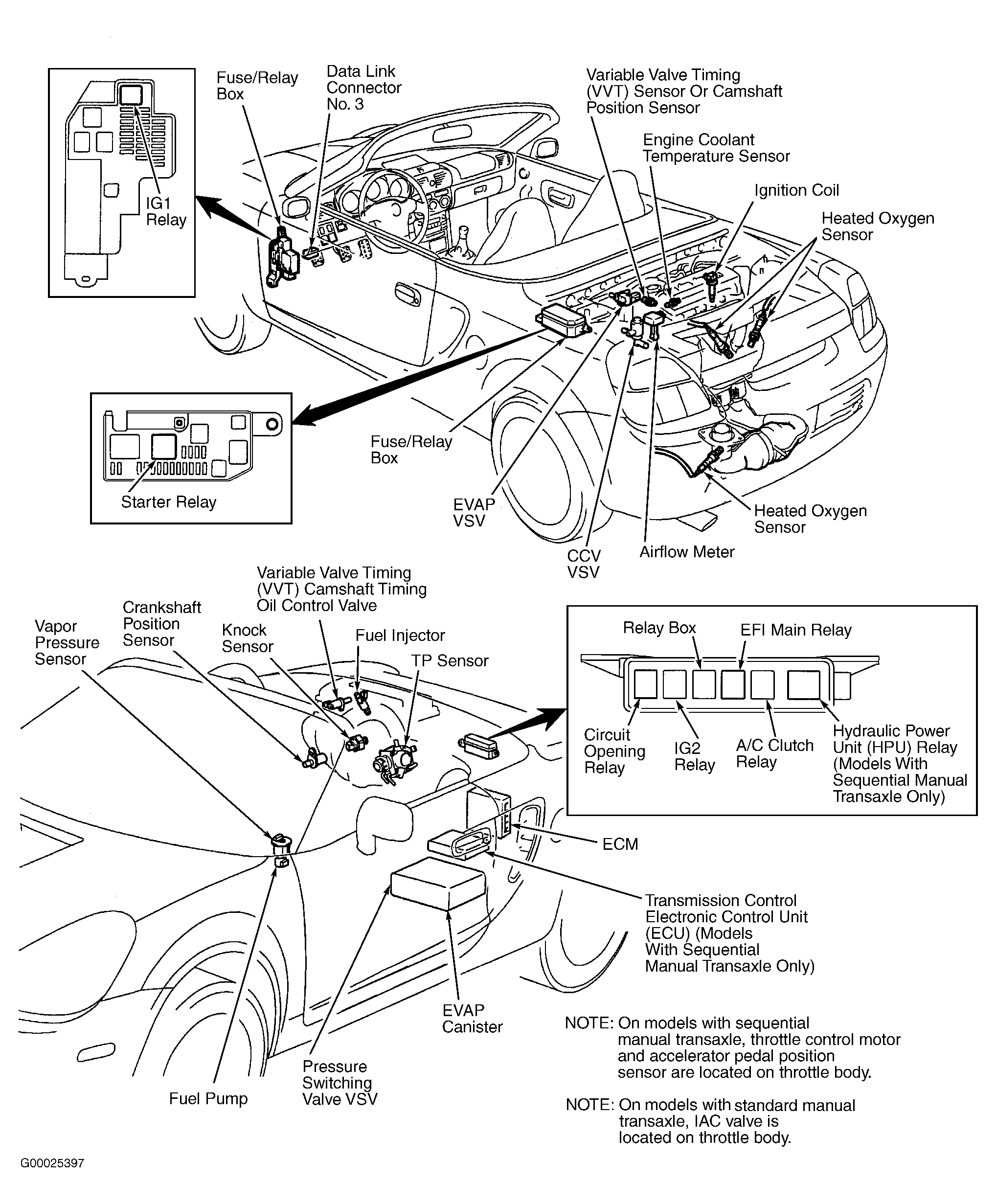

Fig 12: Locating Engine Control System Components (MR2)

G00025397

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

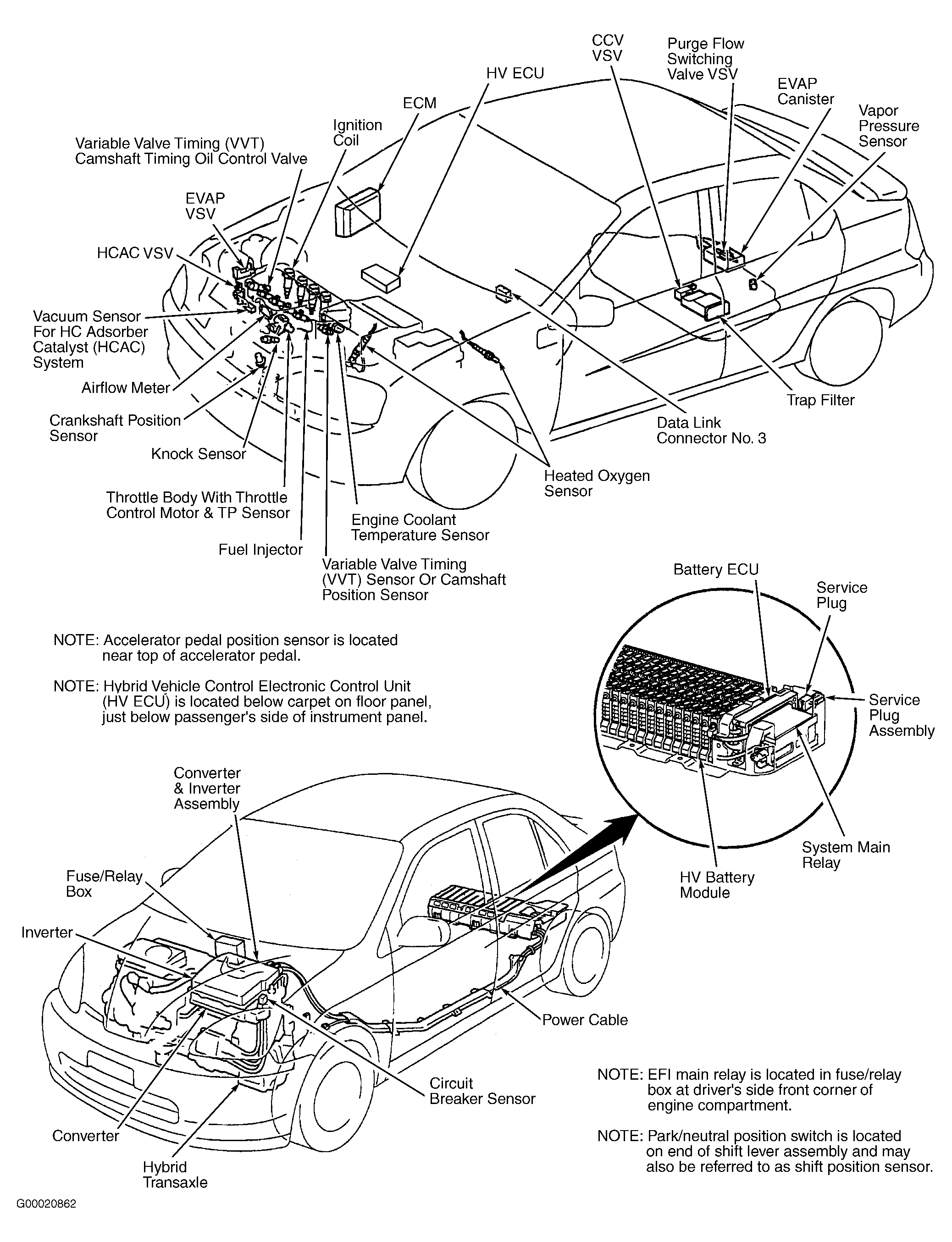

Fig 13: Locating Engine Control System Components (Prius)

G00020862

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

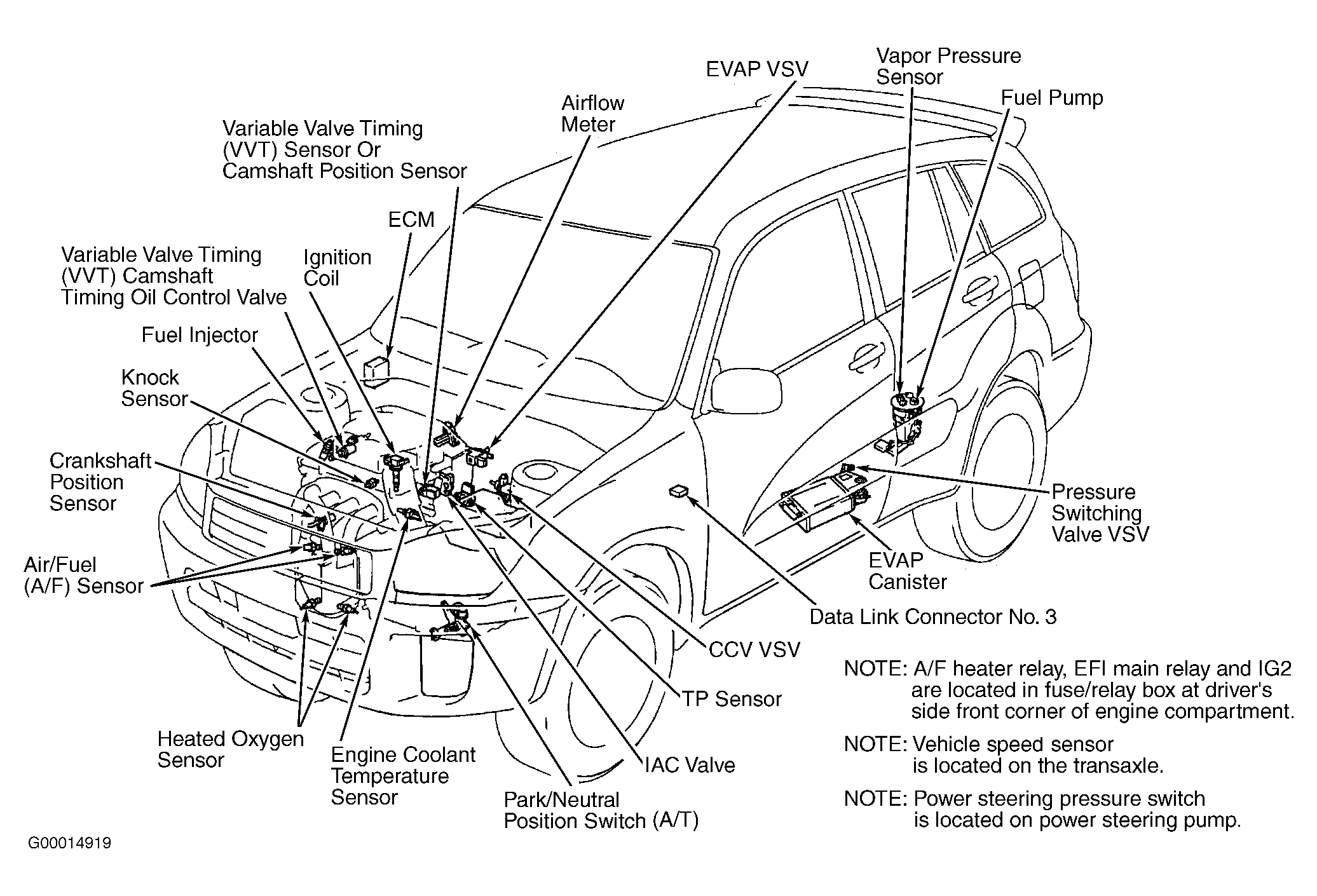

Fig 14: Locating Engine Control System Components (RAV4)

G00014919

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

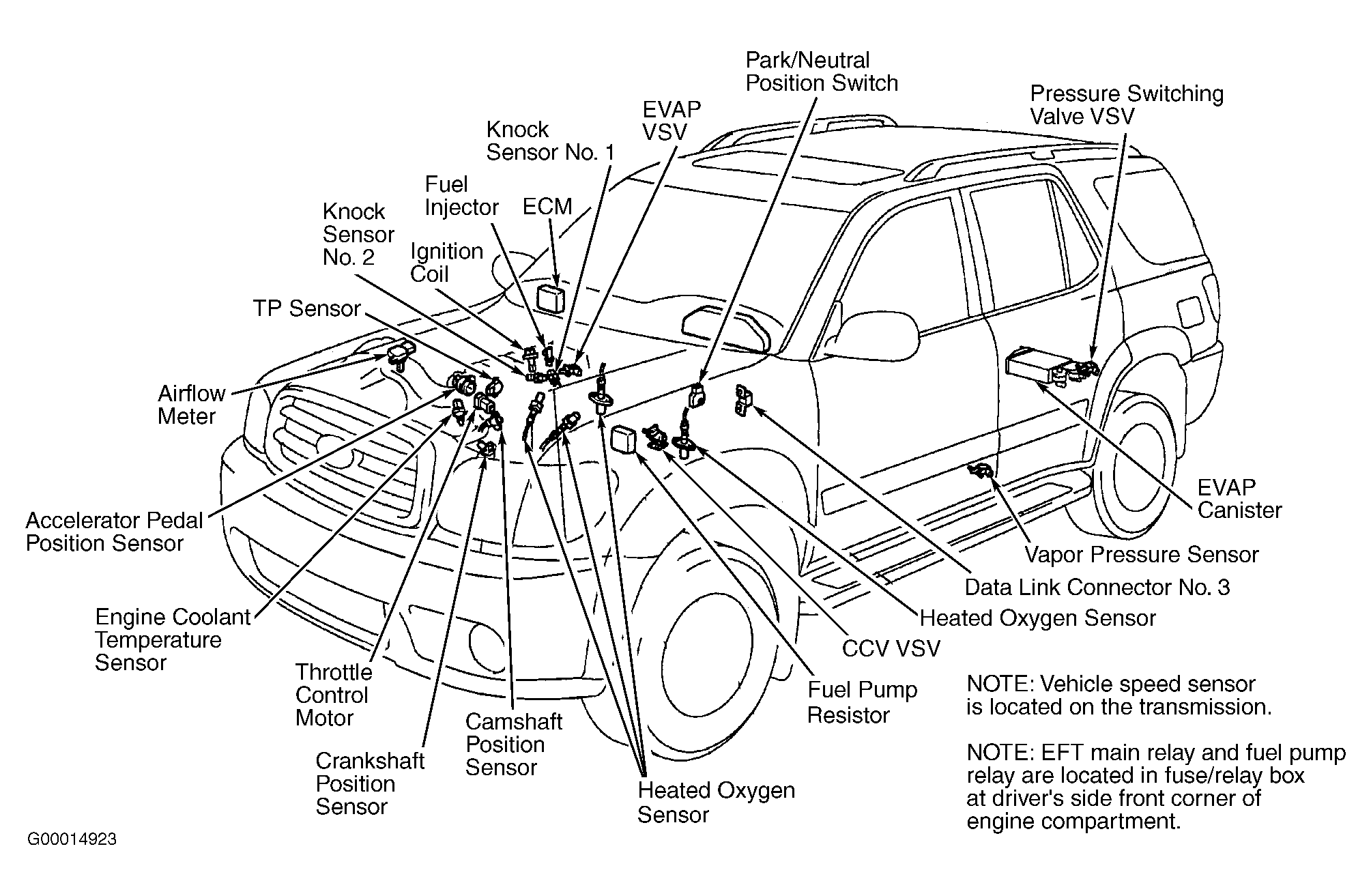

Fig 15: Locating Engine Control System Components (Sequoia)

G00014923

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

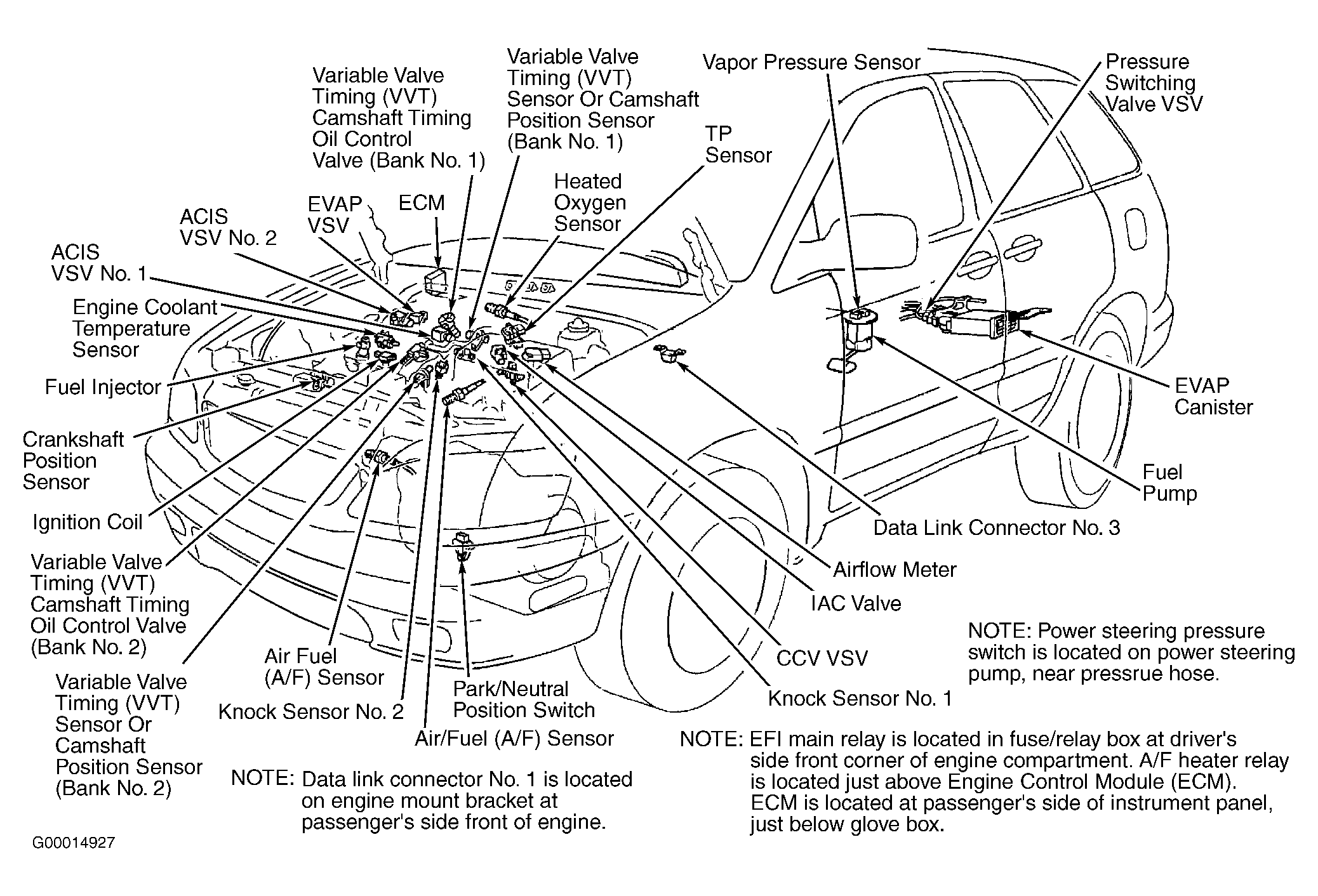

Fig 16: Locating Engine Control System Components (Sienna)

G00014927

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

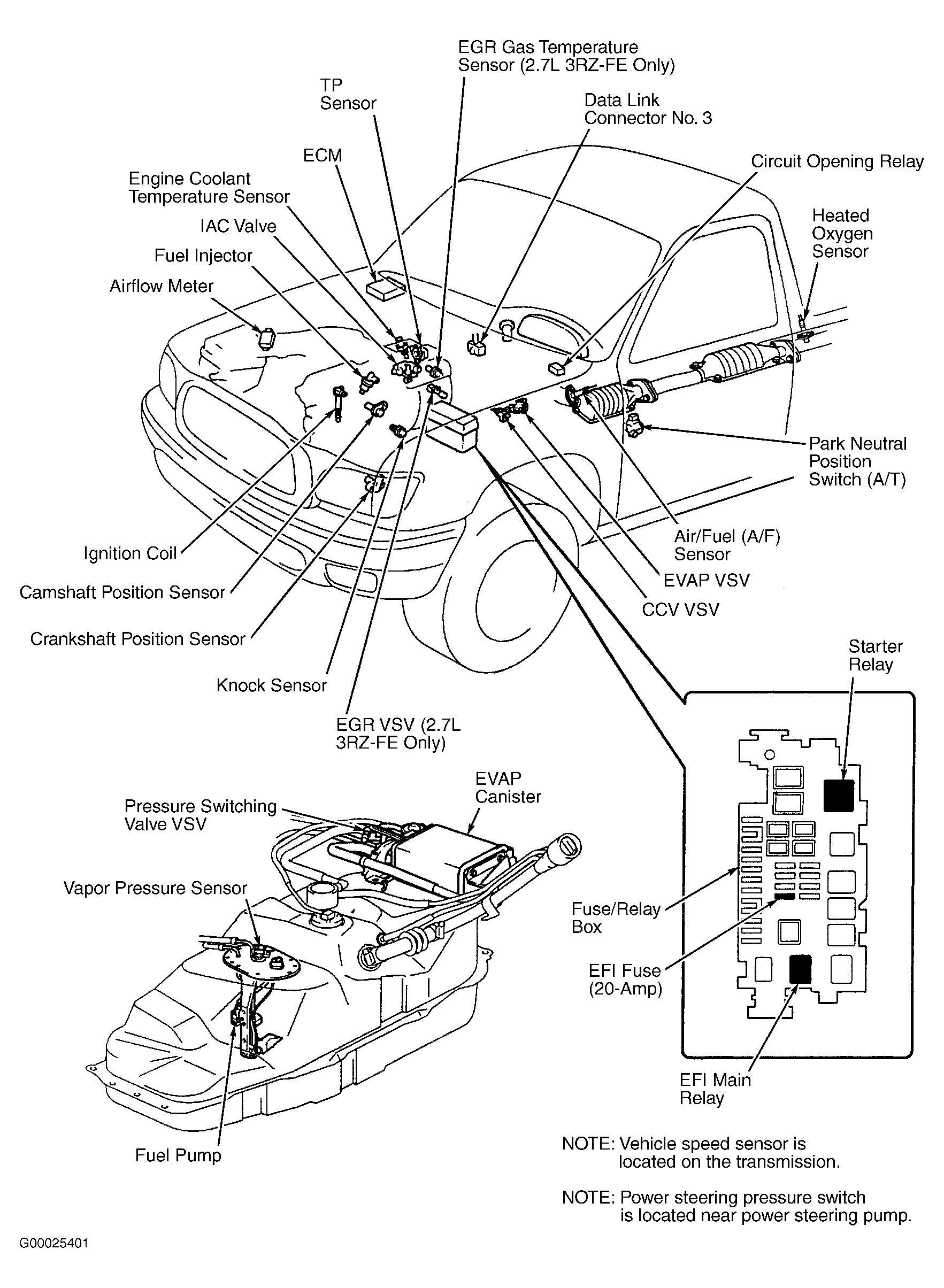

Fig 17: Locating Engine Control System Components (Tacoma 2.4L 4-Cyl. & 2.7L 4-Cyl.)

G00025401

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

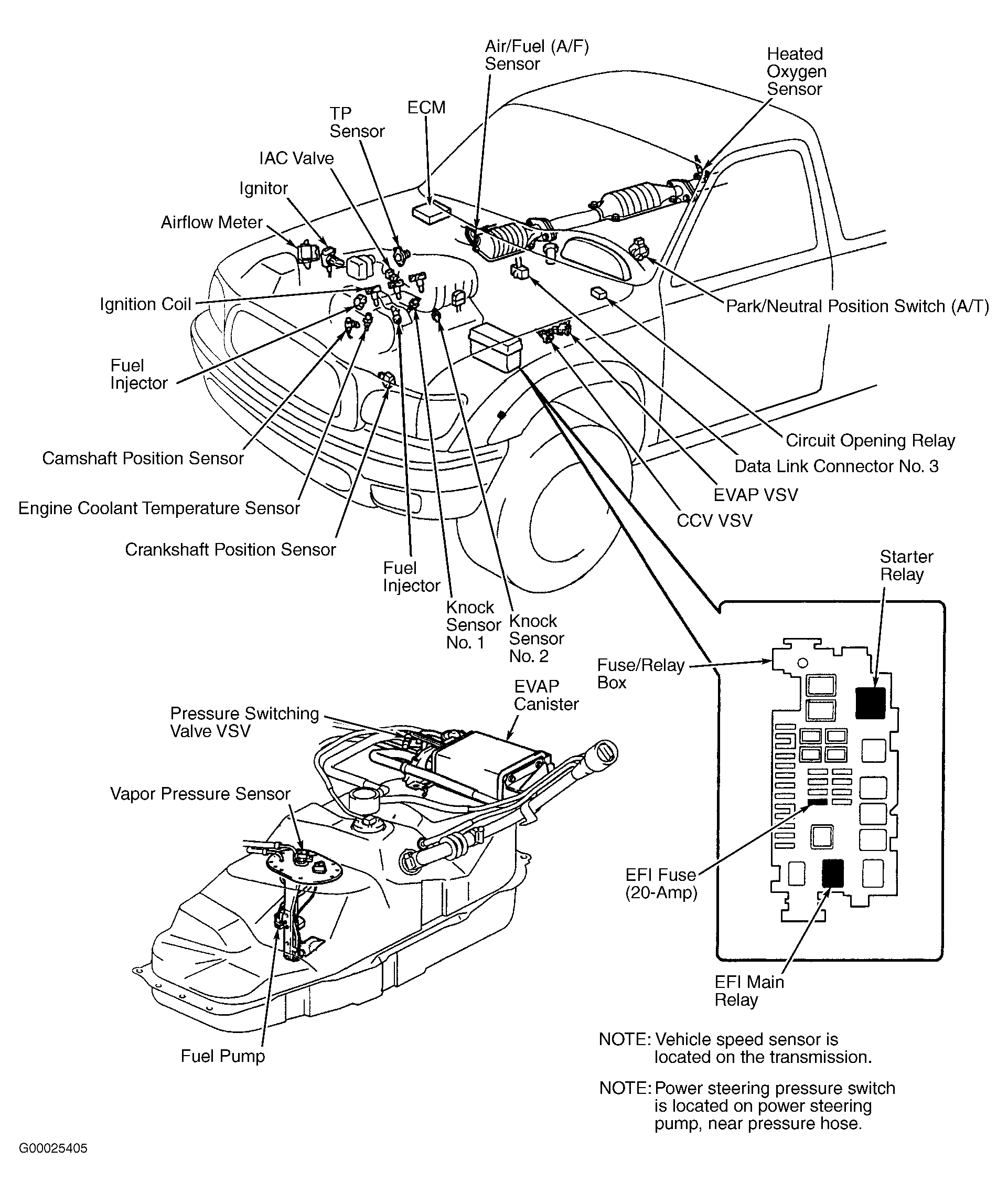

Fig 18: Locating Engine Control System Components (Tacoma 3.4L V6)

G00025405

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

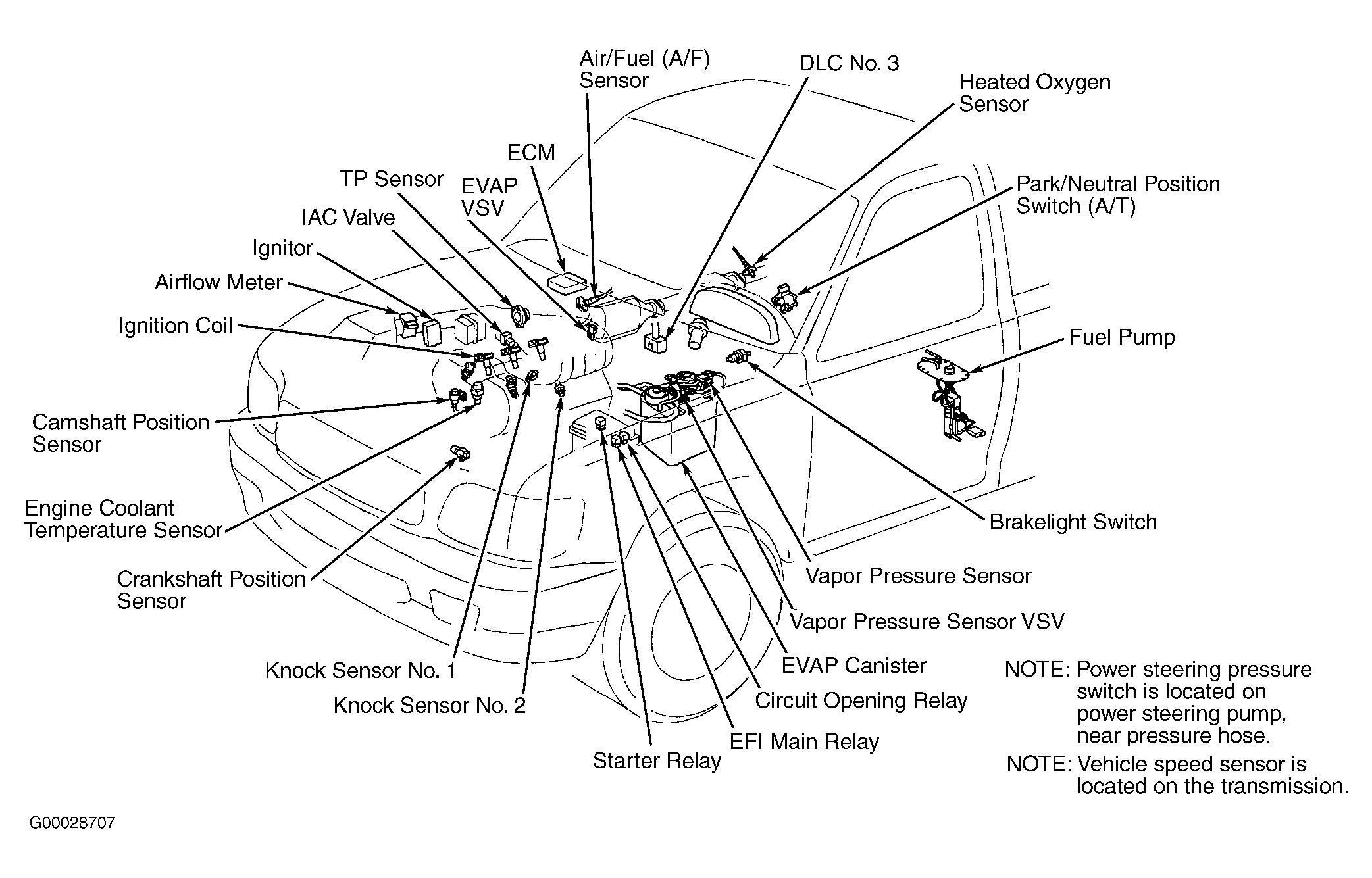

Fig 19: Locating Engine Control System Components (Tundra 3.4L V6)

G00028707

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

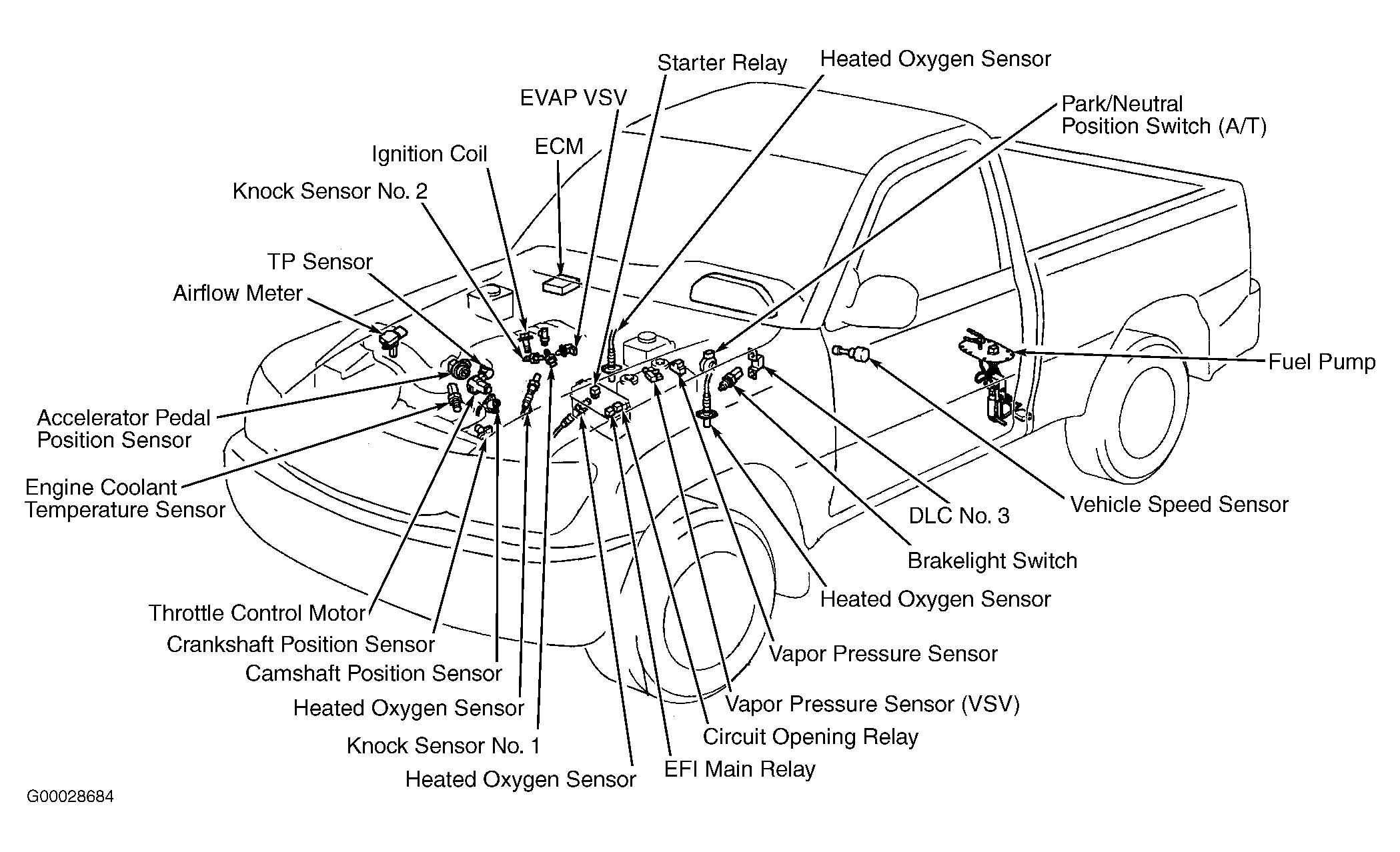

Fig 20: Locating Engine Control System Components (Tundra 4.7L V8)

G00028684

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

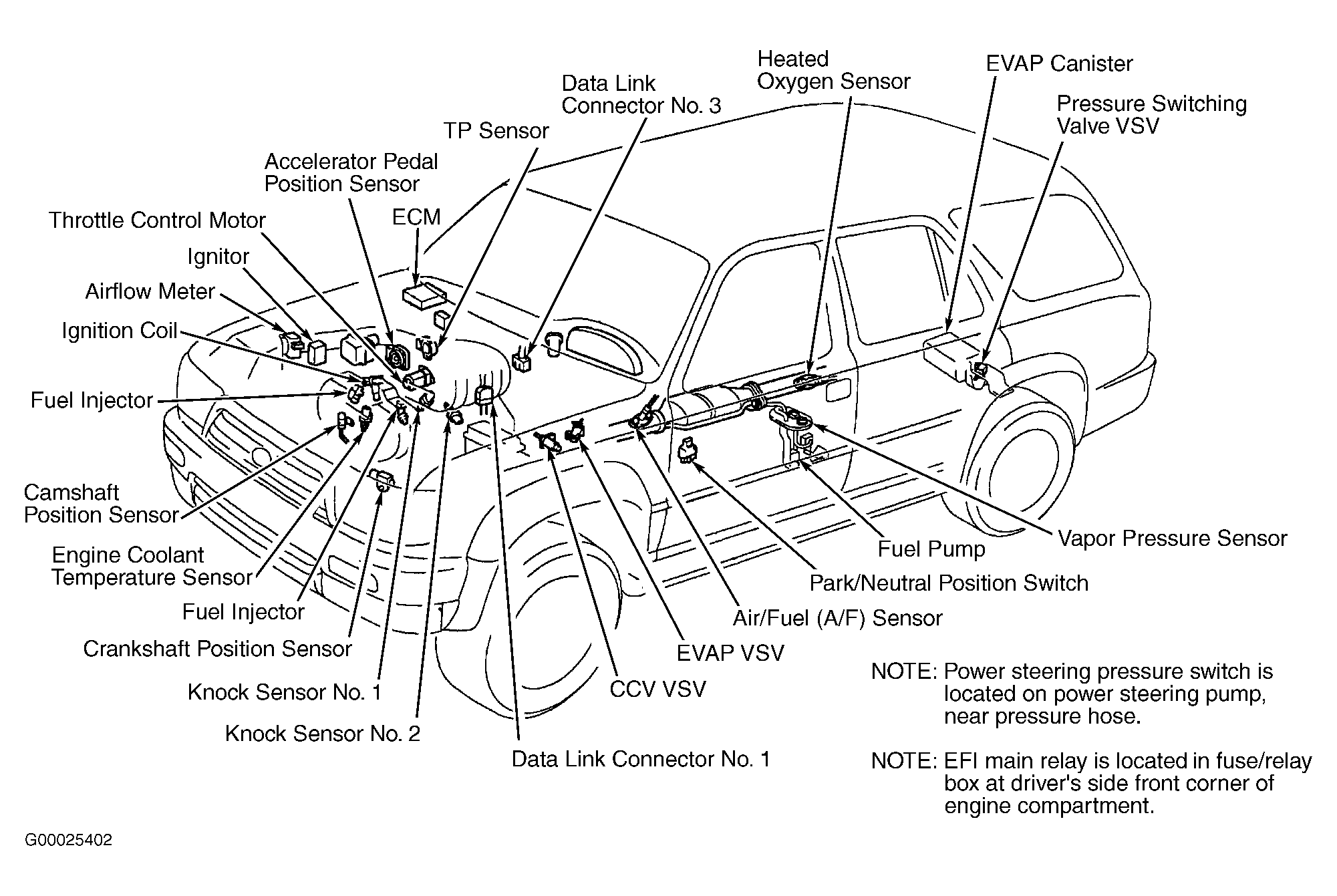

Fig 21: Locating Engine Control System Components (4Runner)

G00025402

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
