Vapor Pressure Sensor (ECHO)
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2002 Toyota Tundra, 2002 Toyota Tacoma, 2002 Toyota Sienna, 2002 Toyota Sequoia, and 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

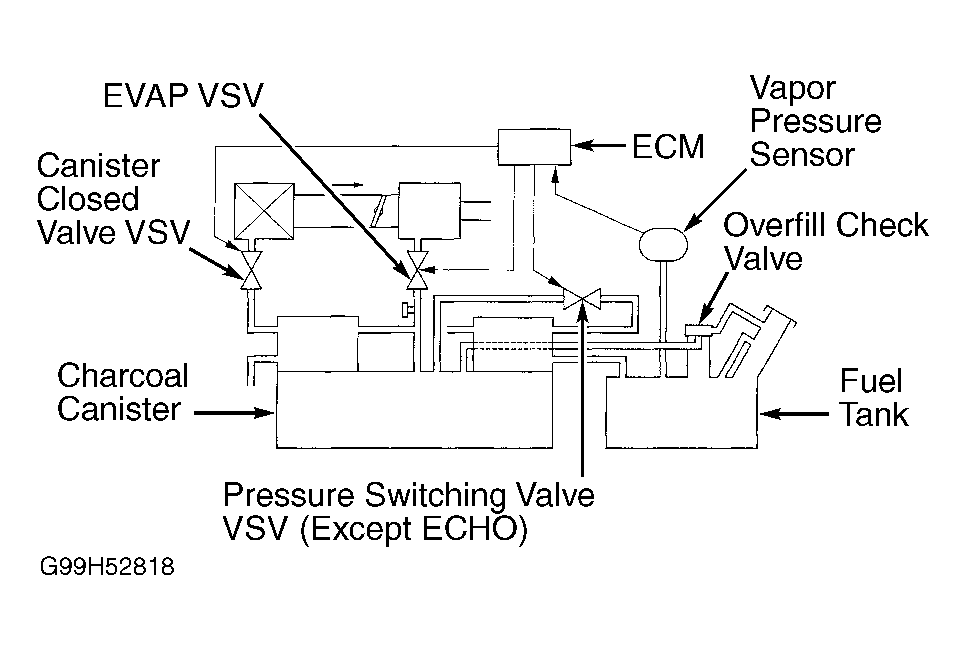

Vapor pressure sensor and canister closed valve Vacuum Switching Valve (VSV) are used to determine if a leak or an abnormality exists in the EVAP system. See Figure. EVAP system may also be referred to as fuel evaporative system. Engine Control Module (ECM) determines if a leak or an abnormality exists in EVAP system by using input signal from vapor pressure sensor. If a leak or abnormality exists, a DTC will be stored in the ECM. Vapor pressure sensor may also be referred to as EVAP vapor pressure sensor. Canister closed valve VSV may also be referred to as EVAP Canister Closed Valve Vacuum Switching Valve (EVAP-CCVVSV) or Canister Closed Valve Vacuum Switching Valve (CCV VSV). EVAP canister may also be referred to as charcoal canister.
