Driving Position Memory Switch
WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

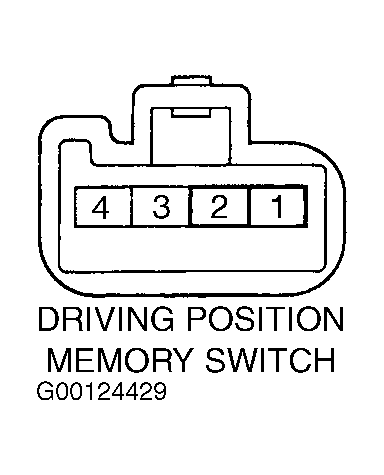

Turn ignition off and disconnect driving position memory switch 4-pin electrical harness connector. Remove driving position memory switch. Using an ohmmeter, check continuity of driving position memory switch terminals. See Fig 1. See DRIVING POSITION MEMORY SWITCH CONTINUITY table. If continuity is not as specified, replace driving position memory switch. See DRIVING POSITION MEMORY SWITCH under REMOVAL & INSTALLATION.
DRIVING POSITION MEMORY SWITCH CONTINUITY
| Switch Position | Continuity Should Exist Between Terminal Nos. |
|---|---|
| SET Button Depressed | 1 & 2 |
| Position 1 Button Depressed | 2 & 3 |
| Position 2 Button Depressed | 2 & 4 |
