Component Location Graphics

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

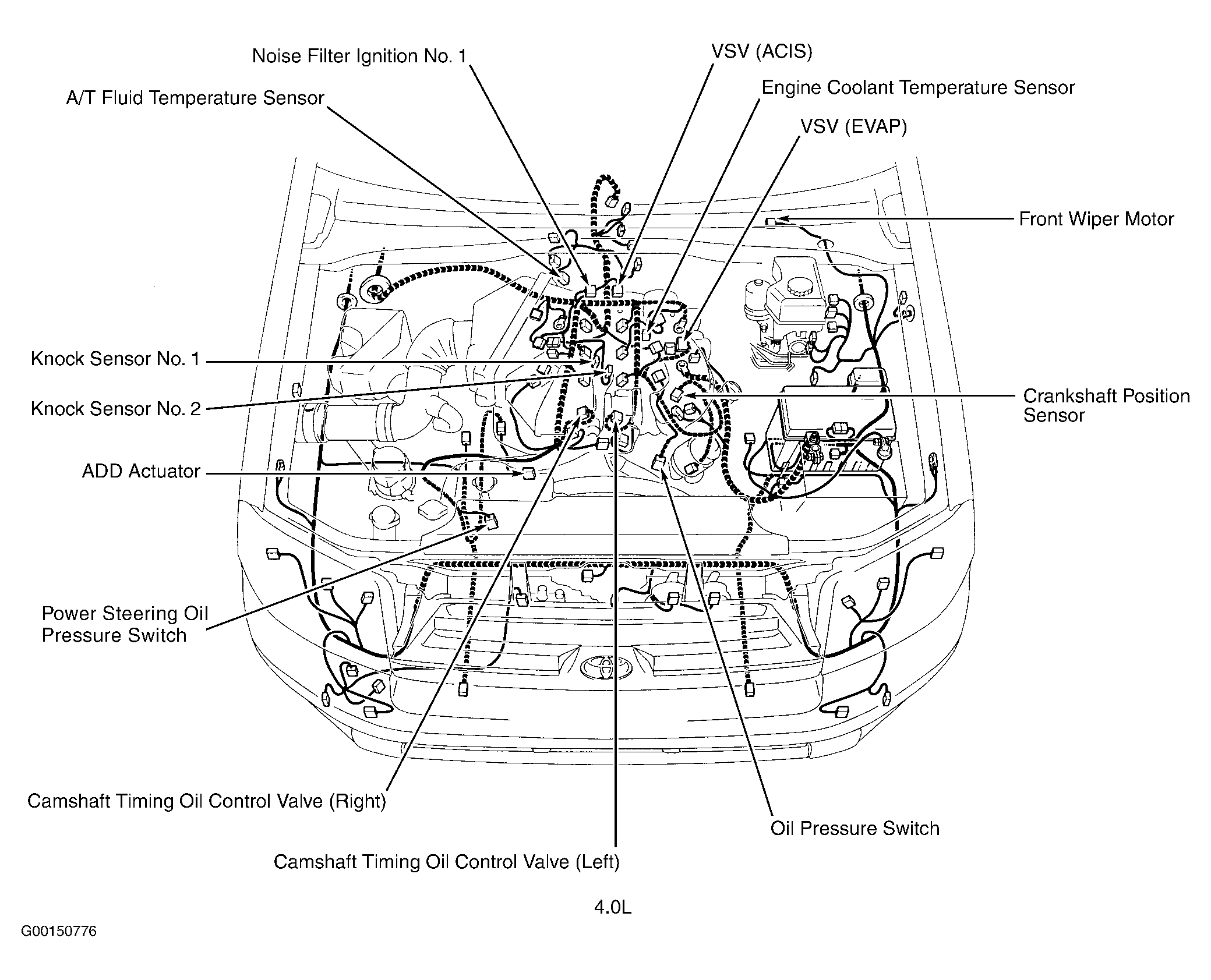

Fig 1: Engine Compartment (4.0L)

G00150776

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

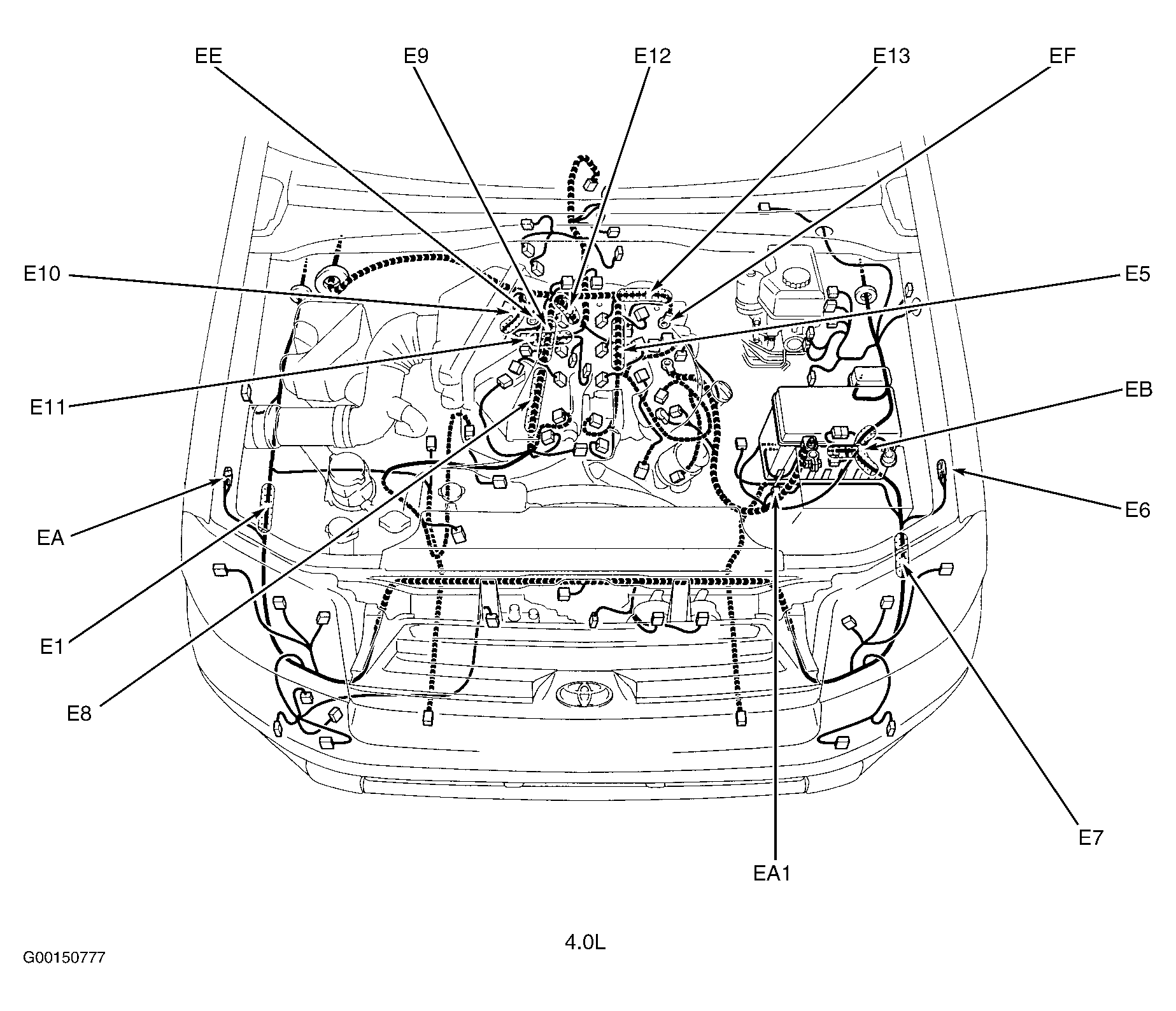

Fig 2: Engine Compartment (4.0L)

G00150777

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

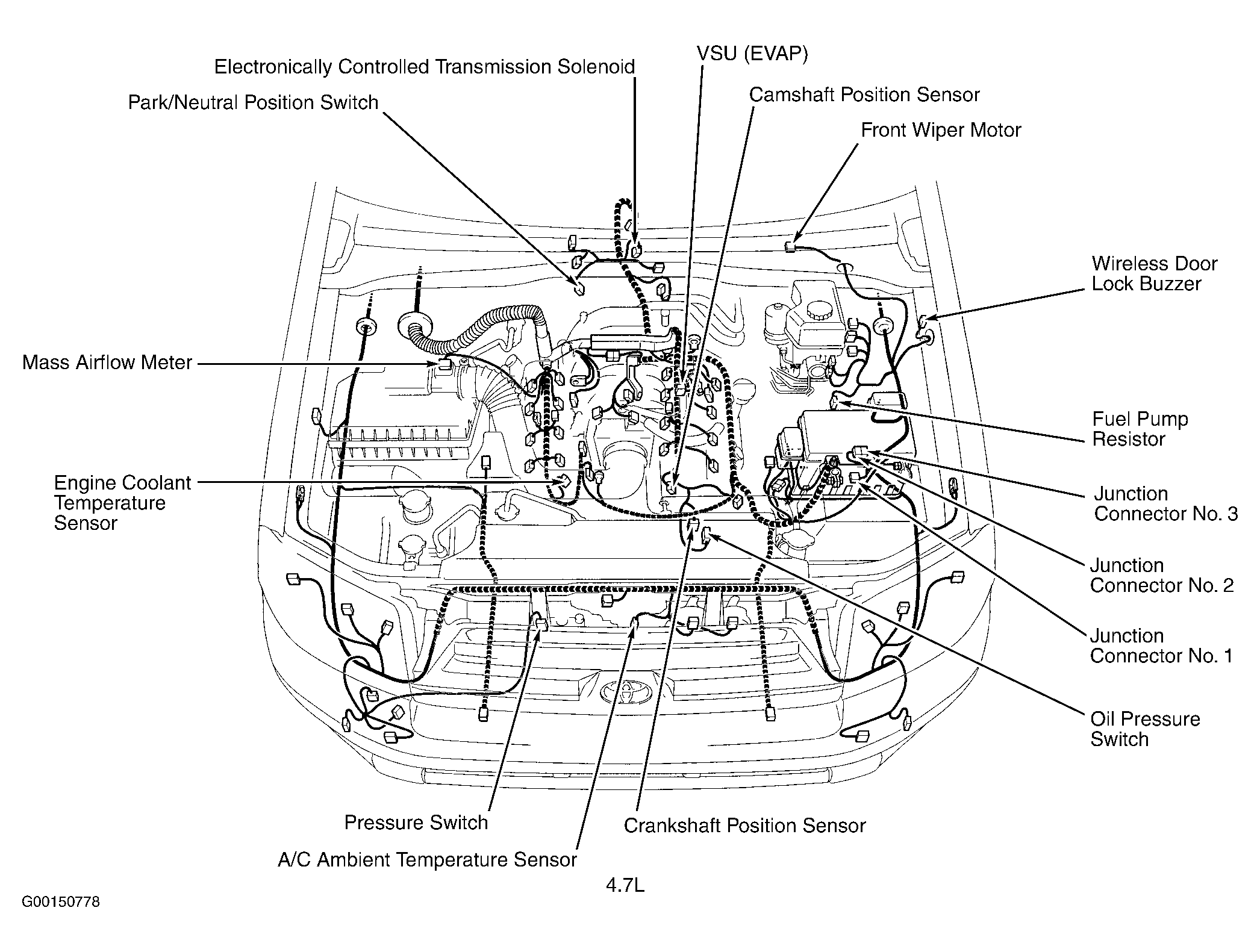

Fig 3: Engine Compartment (4.7L)

G00150778

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

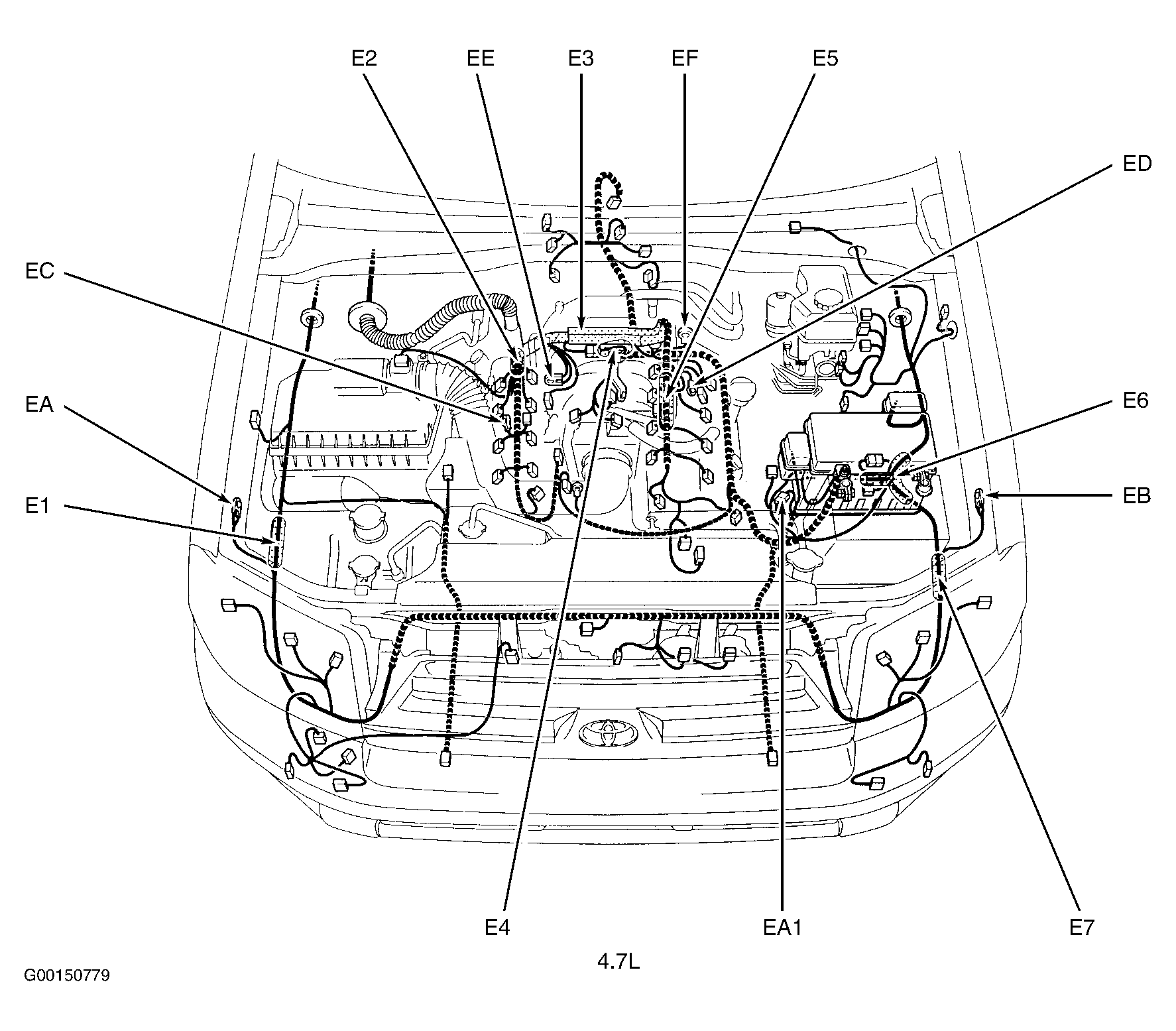

Fig 4: Engine Compartment (4.7L)

G00150779

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Dash

G00150780

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

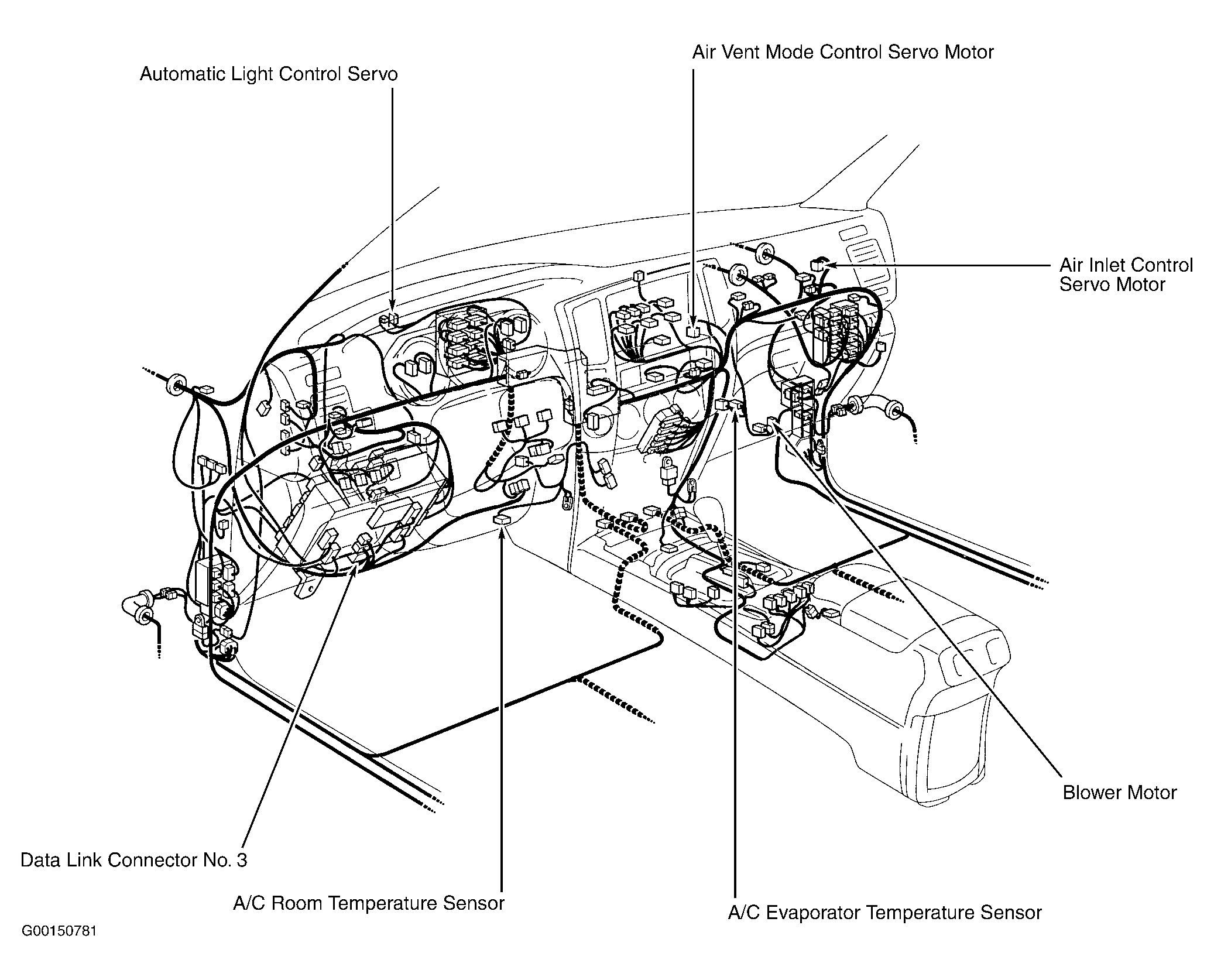

Fig 6: Dash

G00150781

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

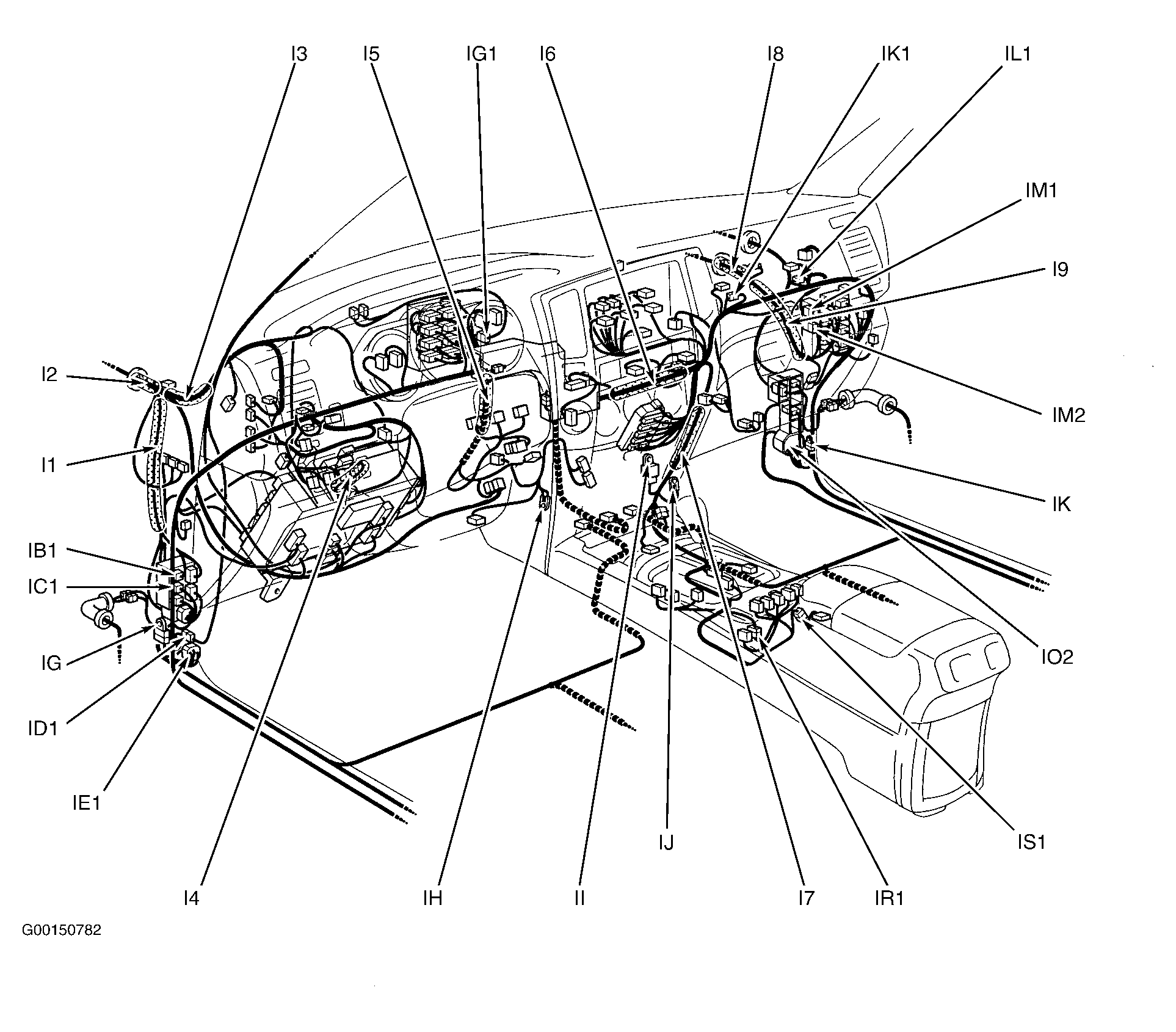

Fig 7: Dash

G00150782

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Vehicle Overview

G00150783

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

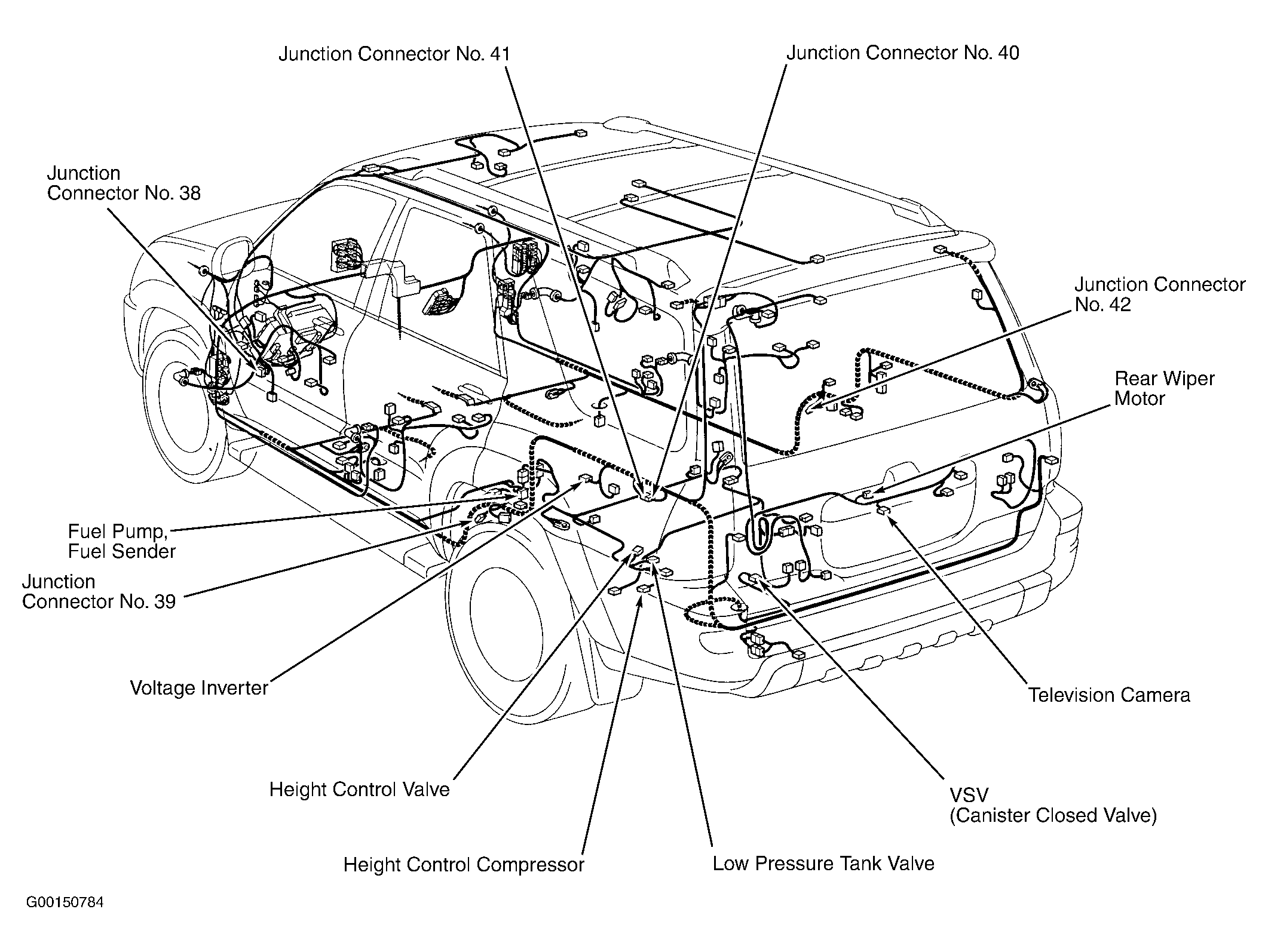

Fig 9: Vehicle Overview

G00150784

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

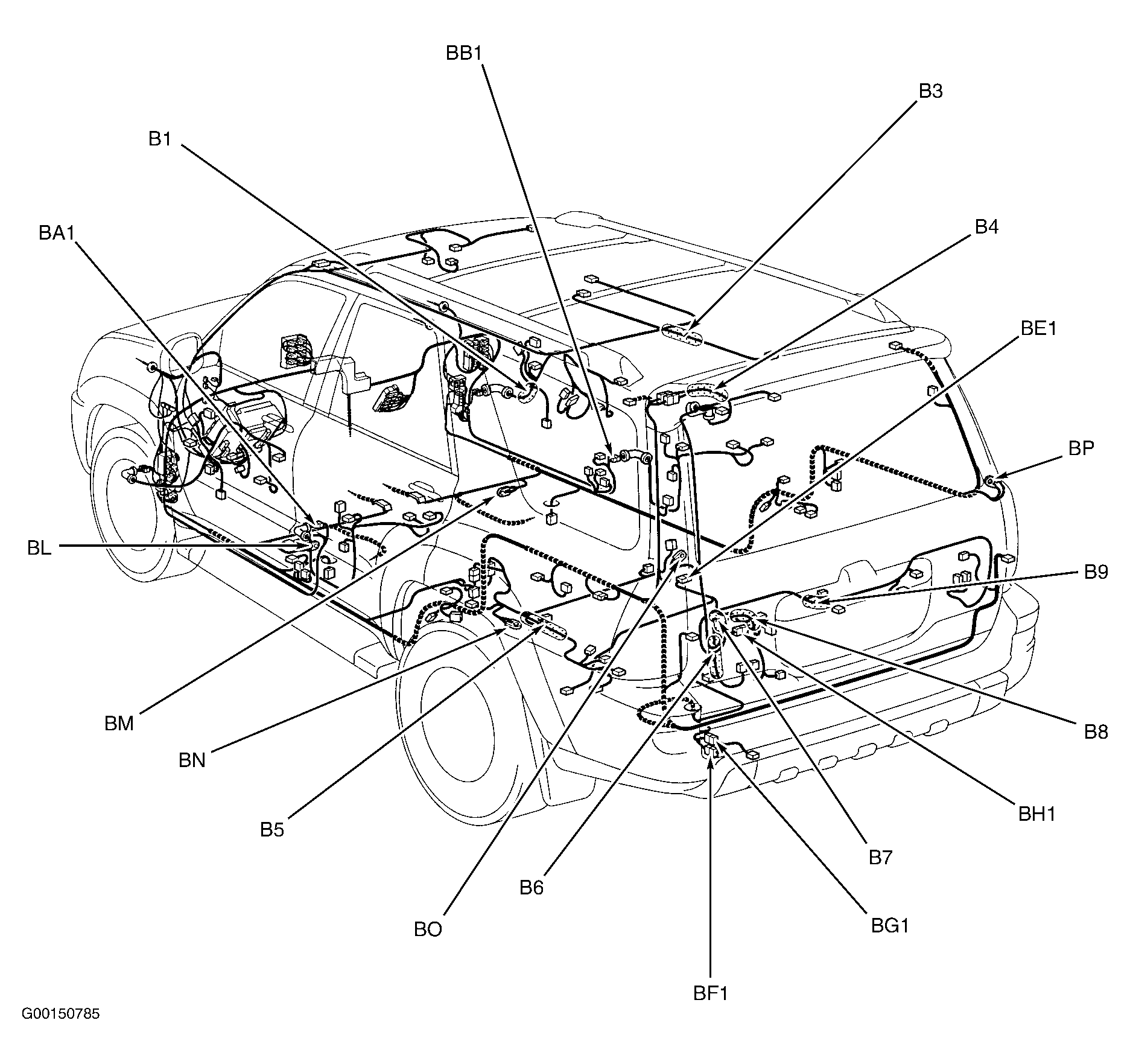

Fig 10: Vehicle Overview

G00150785

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
